Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

Description

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

Language : English
Pages : 2883
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

Liebherr R 996 Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

1 Safety instructions:
Obey all safety instructions given in the Operating manual (which is included in the chapter “Operating
maintenance” of this Service manual).

Tightening:
3.1 Factory standard: tightening torques for screws on LIEBHERR Mining excavators
This section gives the torque values for screws in dry or greased condition. These torque tables must
be used unless a specific torque is given in the manual.
Use the 8.8 torque values from the tables that follow when:
– Tightening an aluminium part without tapping insert
– Tightening a welded nut
– Tightening in GL grey cast iron (flake graphite cast iron), e.g. by splitterboxes, engine blocks or
cast counterweights (in addition with “medium strength” thread locker like Loctite 243)
– Tightening of stainless steel screws (in addition with special stainless steel mounting oil/grease).
From screw size M20 and larger (except for screws with corrosion protective coating), grease must
be applied on the thread and under the screw head (use swing teeth grease):
– Use a paintbrush or similar tool to apply the grease
– Do not put grease inside the thread but on the screw
– Do not put grease in excess on the screw.

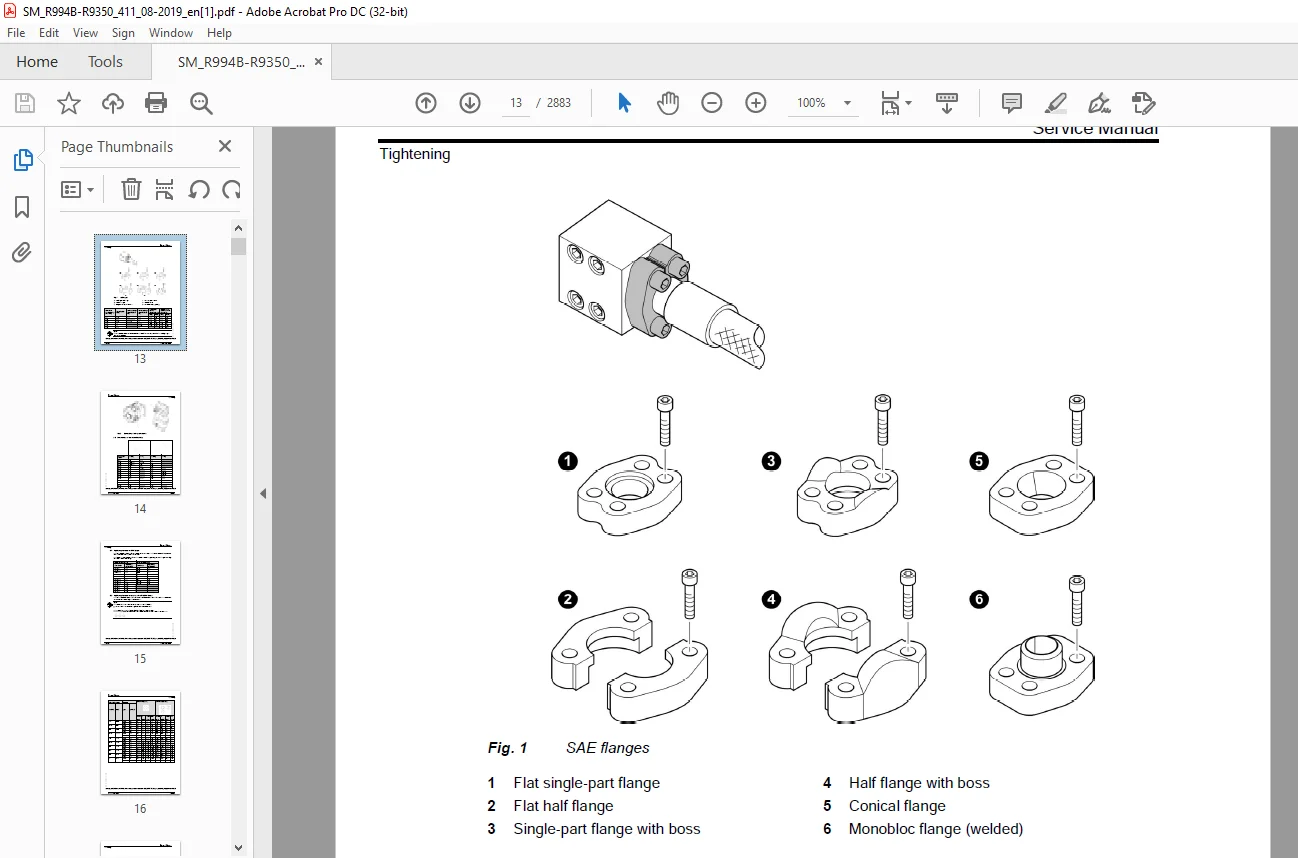

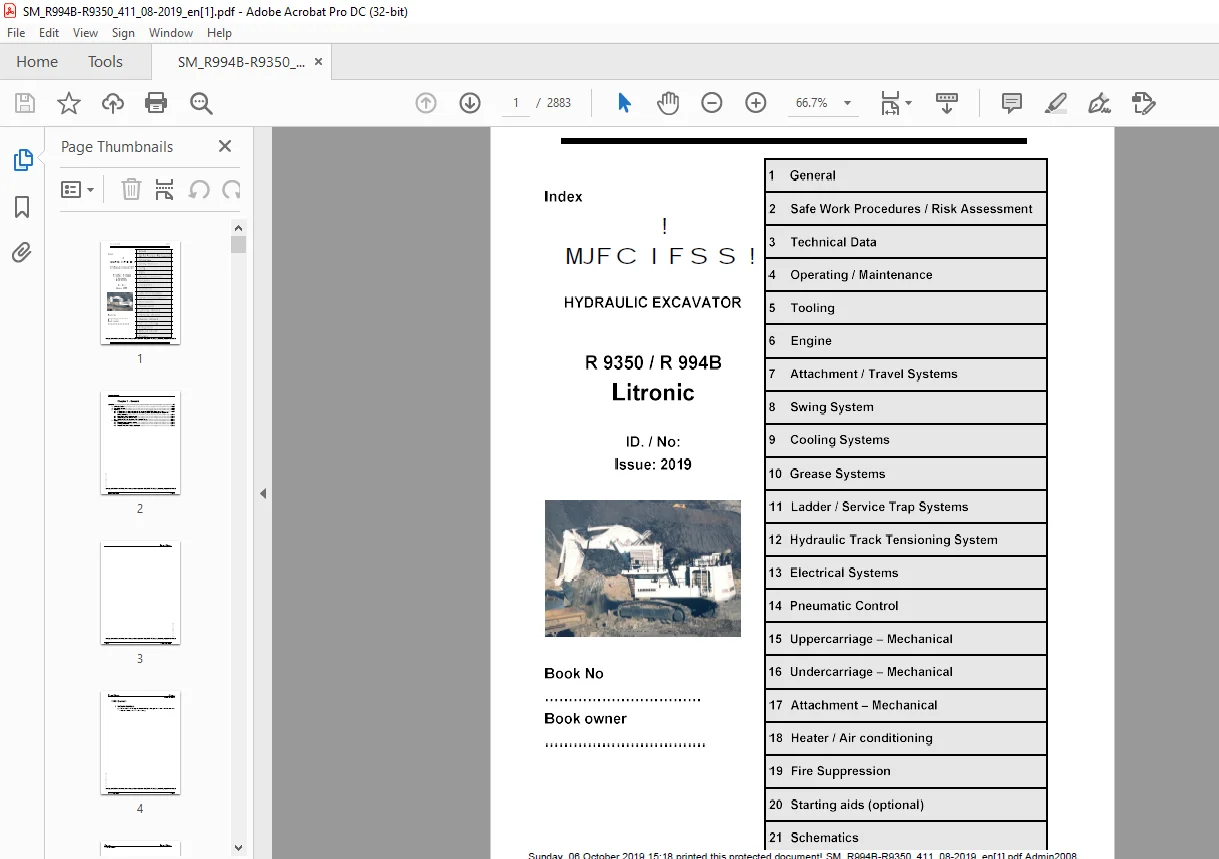

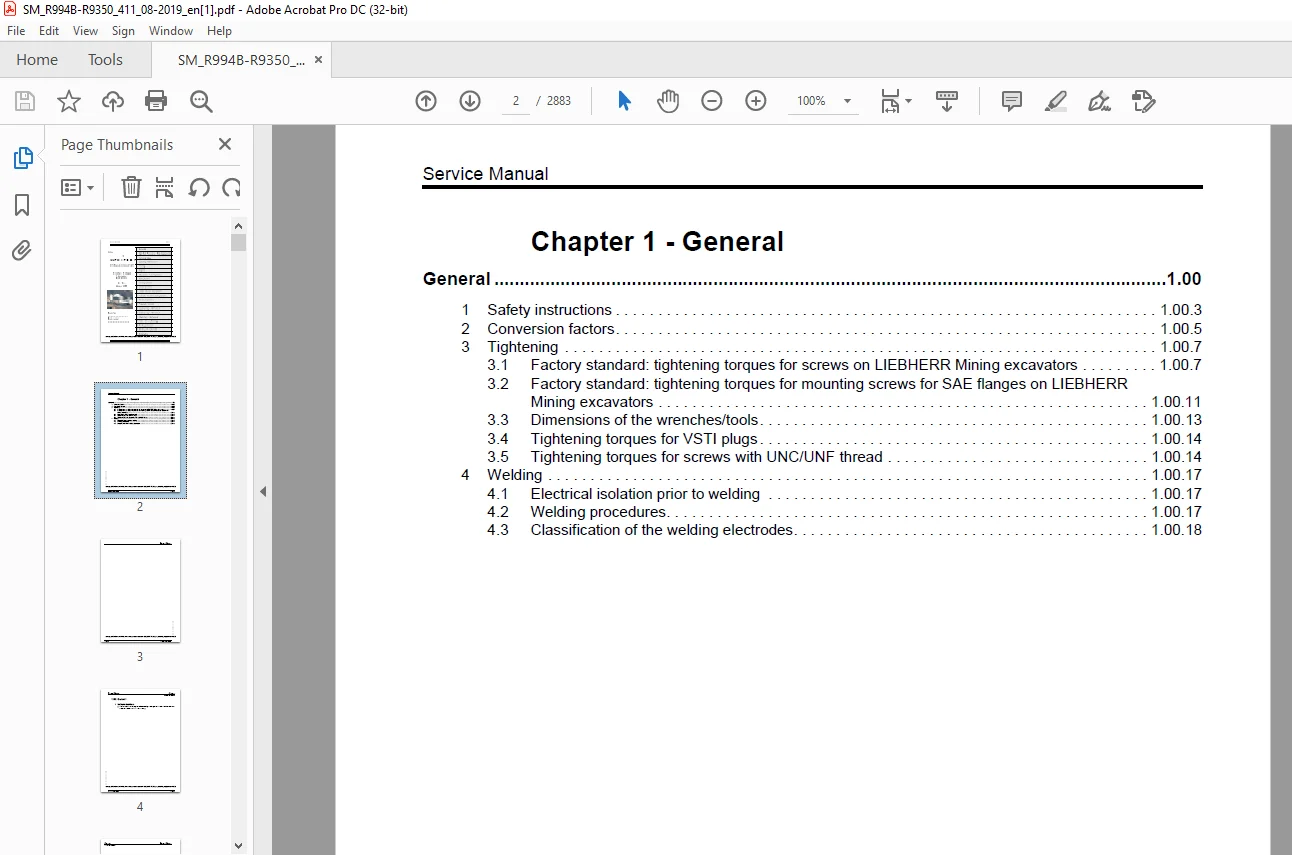

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

General
Safe Work Procedures/ Risk Assessment
Technical Data
Operating I Maintenance
Tooling
Engine
Attachment/ Travel Systems
Swing System
Cooling Systems
Grease Systems
Ladder / Service Trap Systems
Hydraulic Track Tensioning System
Electrical Systems
Pneumatic Control
Uppercarriage – Mechanical
Undercarriage – Mechanical
Attachment – Mechanical
Heater I Air conditioning
Fire Suppression
Starting aids (optional)
Schematics
