Liebherr Siemens VDO Modularer Tachograph MTCO 1324 Operating Instruction Manual DE_EN_FR_IT_NL_PT_ES_DA – PDF DOWNLOAD

Description

Liebherr Siemens VDO Modularer Tachograph MTCO 1324 Operating Instruction Manual DE_EN_FR_IT_NL_PT_ES_DA – PDF DOWNLOAD

FILE DETAILS:

Liebherr Siemens VDO Modularer Tachograph MTCO 1324 Operating Instruction Manual DE_EN_FR_IT_NL_PT_ES_DA – PDF DOWNLOAD

Language : English
Pages : 152
Downloadable : Yes
File Type : PDF

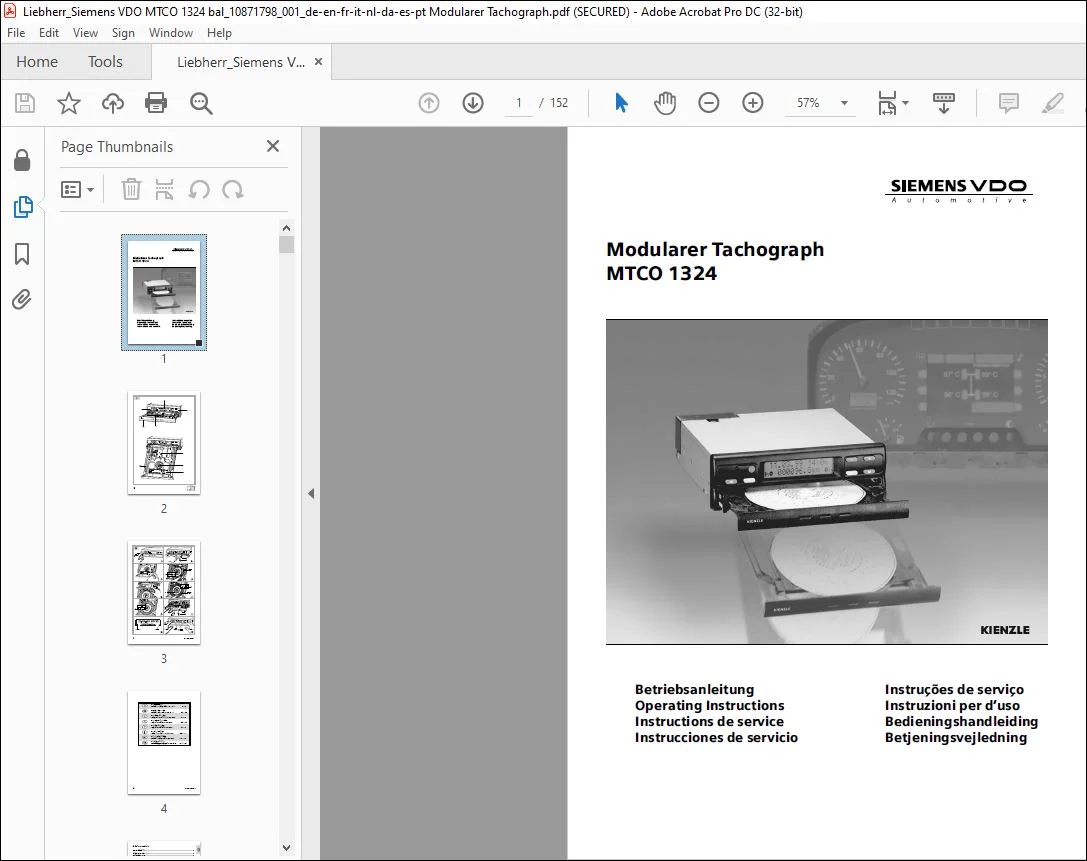

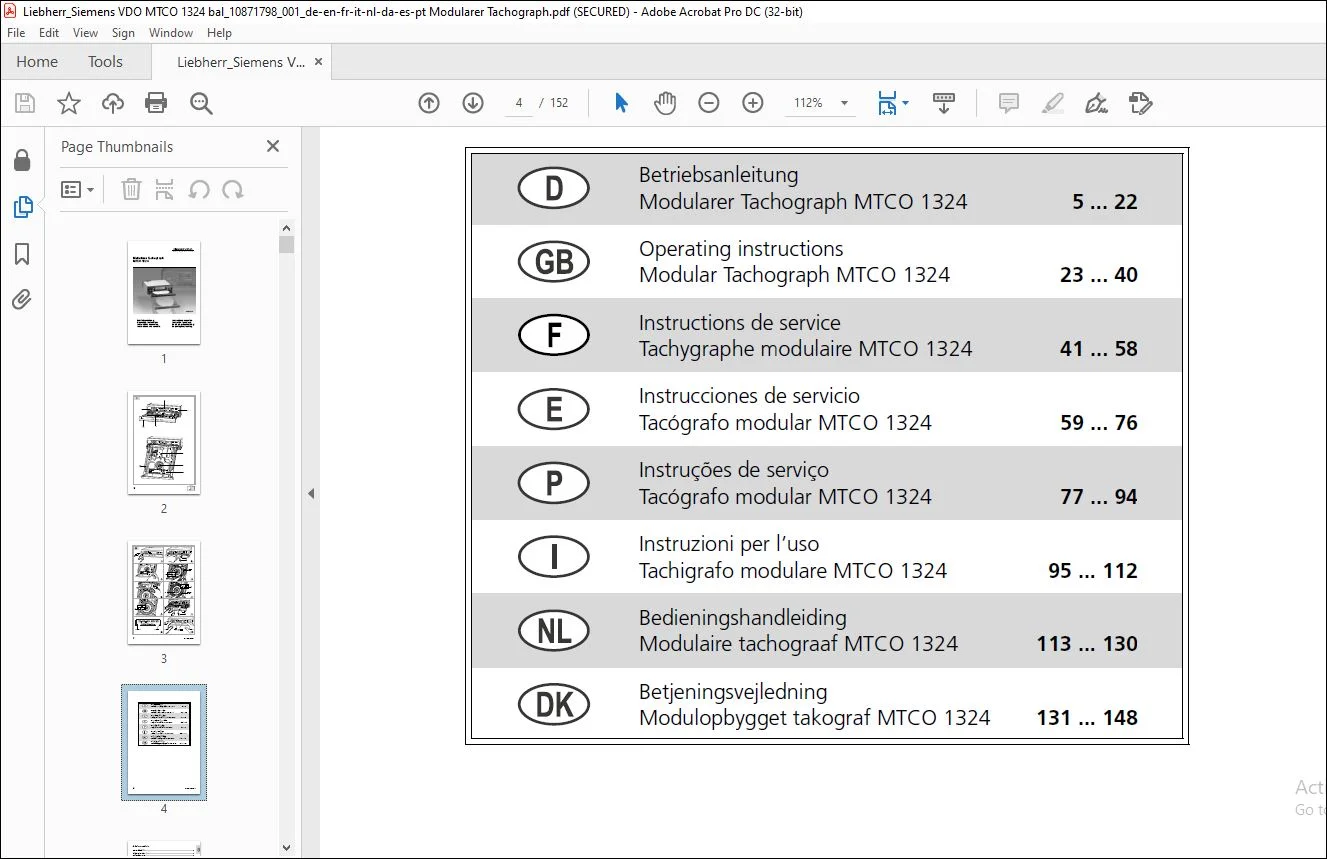

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr Siemens VDO Modularer Tachograph MTCO 1324 Operating Instruction Manual DE_EN_FR_IT_NL_PT_ES_DA – PDF DOWNLOAD

• The new Tachograph Kienzle MTCO 1324 sets new standards in performance, technology, and design due
  to its modular design with separate display and recording. The MTCO, which is in DIN radio compart-
  ment format, is an innovative system compo- nent.
• Driver 1 and driver 2 conveniently select the respective working time groups via the control keys.
  Besides the date, time and distance travelled, the selected working time groups and the symbols of
  the inserted charts are clearly shown in the display. Failures at the device or of a system
  component will be signalled automatically.
• Like before, the vehicle speed and the dis- tance travelled as well as the driver specific driving,
  working and break times are recorded on the tachograph chart.
• Within the immediate field of view of the driver, there is an approved indicating instrument, like
  for example, the E-Tacho 1323, with analogous vehicle speed pointer, digital distance counter, time and trip
  odometer. The function monitor refers to messages of the MTCO 1324.
• Together with the intelligent Kienzle tacho- graph sensor KITAS 2170, the system forms a reliable
  unit. The sensor provides real-time pulses and encoded data for recording the
  distance travelled and the vehicle speed.

TABLE OF CONTENTS:

Liebherr Siemens VDO Modularer Tachograph MTCO 1324 Operating Instruction Manual DE_EN_FR_IT_NL_PT_ES_DA – PDF DOWNLOAD

System overview 24
General information 25
Operating controls 26
Enable the device 27
Opening the drawer 27
Inserting the driver 2 chart 27
Inserting the driver 1 chart 27
Setting the time groups 28
Removing the charts 29

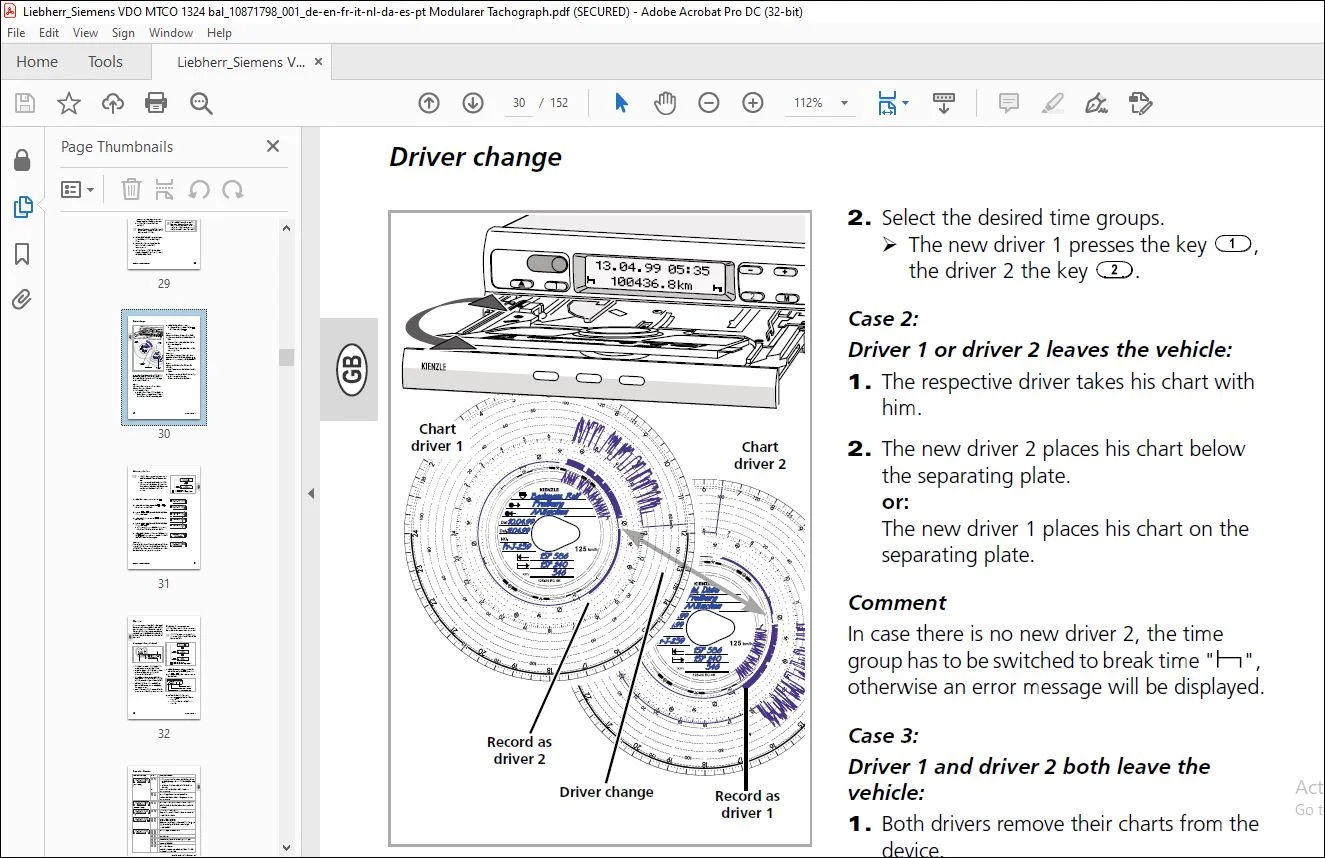

Driver change 30
Adjusting the time 31
Messages 32
A message is being displayed 32
Displaying the error memory 32
Error code – overview 33
Trouble shooting 34
Updating the chart carrier 34
Indicating instrument 35
Reset trip odometer to zero 35
Description of the chart 36
The appropriate chart for the device 36
Recordings on the front of the chart 37
Entries in the centre field 37
The rear side of the chart 38
Recording of failures 39
Appendix 39
Compulsory inspection of tachographs 39
Maintenance and cleaning 39
Technical data 40
