Liebherr Wheeled excavator A 918 Litronic 1184 (USA/ CAN) Operator’s manual SN75431 – PDF DOWNLOAD

Description

Liebherr Wheeled excavator A 918 Litronic 1184 (USA/ CAN) Operator’s manual SN75431 – PDF DOWNLOAD

FILE DETAILS:

Liebherr Wheeled excavator A 918 Litronic 1184 (USA/ CAN) Operator’s manual SN75431 – PDF DOWNLOAD

Language : English
Pages : 433
Downloadable : Yes
File Type : PDF
Size: 78.3 MB

DESCRIPTION:

Liebherr Wheeled excavator A 918 Litronic 1184 (USA/ CAN) Operator’s manual SN75431 – PDF DOWNLOAD

Product ID
Manufacturer: Liebherr-France SAS
Type:A 918 Litronic
Type no.:1184 (USA/ CAN)
From Serial no.:75431

Preface

This operating manual is intended for you as the machine operator or as a member of the maintenance personnel. It contains warnings, important information, and tips for working with the machine. It simplifies the process of familiarization and getting to know the machine and helps to avoid faults caused by incorrect operation.

• Compliance with the operating manual increases the reliability and service life of the machine.
• The operating manual must be kept with the machine. Make sure that a copy is always kept close at hand at the workplace.
• Read the operating manual before initial commissioning and subsequently at regular intervals. Everyone who carries out work with or on the machine must be familiar with and use this operating manual.

Examples of this work:

• Operation, including setup and fitting attachments, elimination of faults, care, disposal of service products, and consumables.
• Maintenance, including servicing, inspection, and repair.
• Transporting or loading the machine.

The owner is responsible for supplementing the operating manual with instructions based on existing national regulations on accident prevention and environmental protection. In addition to this operating manual and the regulations on accident prevention applicable in the user’s country and at the place of use, it is also necessary to comply with recognized technical rules on safety and technically proficient working.

• Some sections of this operating manual do not apply to all machines.
• Some illustrations in this operating manual may show details and implements that are different from your machine.
• In some illustrations, protective devices and covers have been removed to provide a clearer representation.
• Liebherr machines are subject to continuous development and improvement. This may have resulted in modifications to your machine that are possibly not referred to in this operating manual.
• If you require further explanations or information, please contact Liebherr customer service.

Liability and warranty

• Due to the wide variety of products offered by other manufacturers (e.g. service products, lubricants, tool attachments and spare parts), Liebherr cannot examine the general suitability and absence of defects in third-party products which are used in or on Liebherr products.
• The same applies to possible interactions between third-party products and Liebherr products. Third-party products are used in or on Liebherr machines at the user’s own discretion.
• Liebherr does not offer any warranty or accept any liability for losses of any kind caused by failures of or damage to Liebherr machines attributable to the use of third-party products. Furthermore, Liebherr will not recognise any warranty claims attributable to incorrect operation, inadequate maintenance or the failure to follow safety instructions.

Modifications, conditions, copyright

• Liebherr reserves the right to make modifications in the course of technical development, without issuing prior notification.
• Information and illustrations in these instructions are not allowed to be duplicated, distributed or used for the purposes of competing with Liebherr.
• All rights under copyright legislation are expressly reserved. The aforementioned provisions do not extend the warranty and liability conditions in the general terms and conditions of business of Liebherr.

TABLE OF CONTENTS:

Liebherr Wheeled excavator A 918 Litronic 1184 (USA/ CAN) Operator’s manual SN75431 – PDF DOWNLOAD

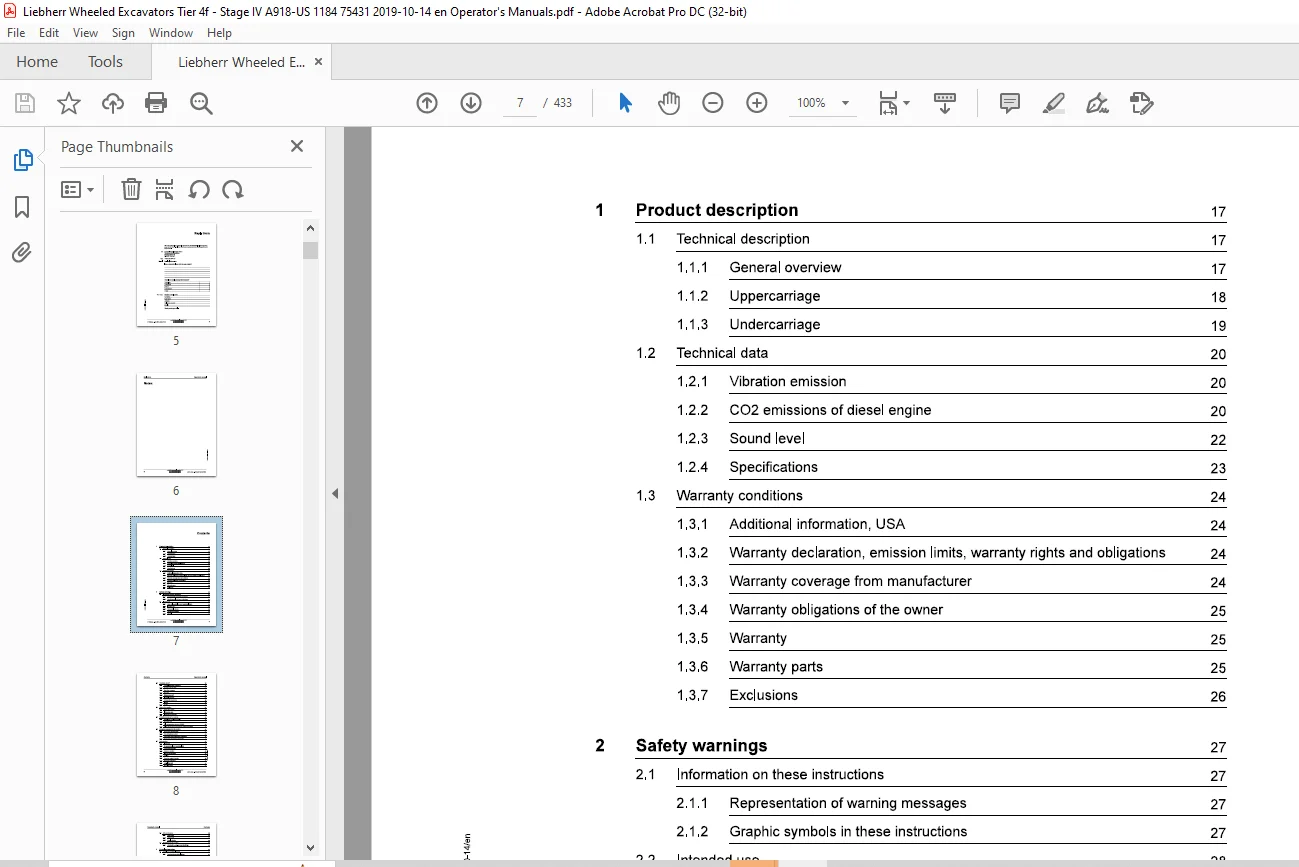

1 Product description 17
