Linkbelt 145X3 Hydraulic Excavator Operator’s Manual 145X3-OM-LXG-05 – PDF DOWNLOAD

Description

Linkbelt 145X3 Hydraulic Excavator Operator’s Manual 145X3-OM-LXG-05 – PDF DOWNLOAD

FILE DETAILS:

Linkbelt 145X3 Hydraulic Excavator Operator’s Manual 145X3-OM-LXG-05 – PDF DOWNLOAD

Language : English
Pages : 204
Downloadable : Yes
File Type : PDF
Size: 35.5 MB

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/770694802

DESCRIPTION:

Linkbelt 145X3 Hydraulic Excavator Operator’s Manual 145X3-OM-LXG-05 – PDF DOWNLOAD

OPERATING PRECAUTIONS :

Check all excavator control devices in accordance with the manufacturer’s instructions prior to starting operation. Observe all gauges or warning instruments for proper operation. Operate all controls to ensure proper operation. If any malfunctions are found, remove the starter key.

• Place a DO NOT OPERATE tag on the excavator until the malfunction is corrected. Understand the excavator limitations and keep the excavator under control. Operate the excavator with care and at a speed compatible with conditions. Use extra caution when operating over rough ground, on slopes, and when turning.
• Note and avoid all hazards and obstructions such as ditches, underground lines, trees, cliffs, overhead electrical wires or areas where there is danger of a slide. Carry loads in recommended positions for maximum stability. Never lift loads in excess of capacity. Know and understand the job site traffic flow patterns and obey signal persons, road signs and flagmen. Know and understand job site conditions may change on an hourly basis.
• Hills of dirt, debris or obstructions may grow and change from the time you began the day. It is your responsibility to monitor the changes and keep the excavator, tools and attachments, etc. at a safe distance. Watch for bystanders and never allow anyone to be under or to reach through the excavator and its equipment while operating. When transporting an excavator, know and use the signaling devices required on the excavator.
• Provide an escort for transporting where required. Use the recommended transport devices when transporting the excavator. See Transporting the Excavator section for more details. Use an approved drawbar and/or attachment point when using the excavator for towing. If a cable or chain is used, keep people away from the tow line. Before you operate at night, check that all work lights illuminate. Engine exhaust fumes can cause death.
• If you operate this excavator in an enclosed area, make sure there is ventilation to replace the exhaust fumes with fresh air. Ensure that all windows are clean and the windshield wipers work correctly. Check all controls in a clear area and make sure the excavator is operating correctly.
• Dust, fog, smoke, etc. can decrease your vision and cause an accident. Stop the excavator or decrease the speed until you can see. Contact with high voltage power lines, underground cables, etc. can cause serious injury or death from electric shock. Before you travel or operate in an area with high voltage lines, cables, or a power station, tell the power or utility company what you are going to do.
• You MUST HAVE THE POWER DISCONNECTED OR KEEP A SAFE WORKING DISTANCE from the lines, cables, or power station. Keep all parts of the excavator at least 16.5 ft (5.0 m) away from the power source. You must also know any federal, state/provincial, or local safety codes or regulations that apply to the job site.

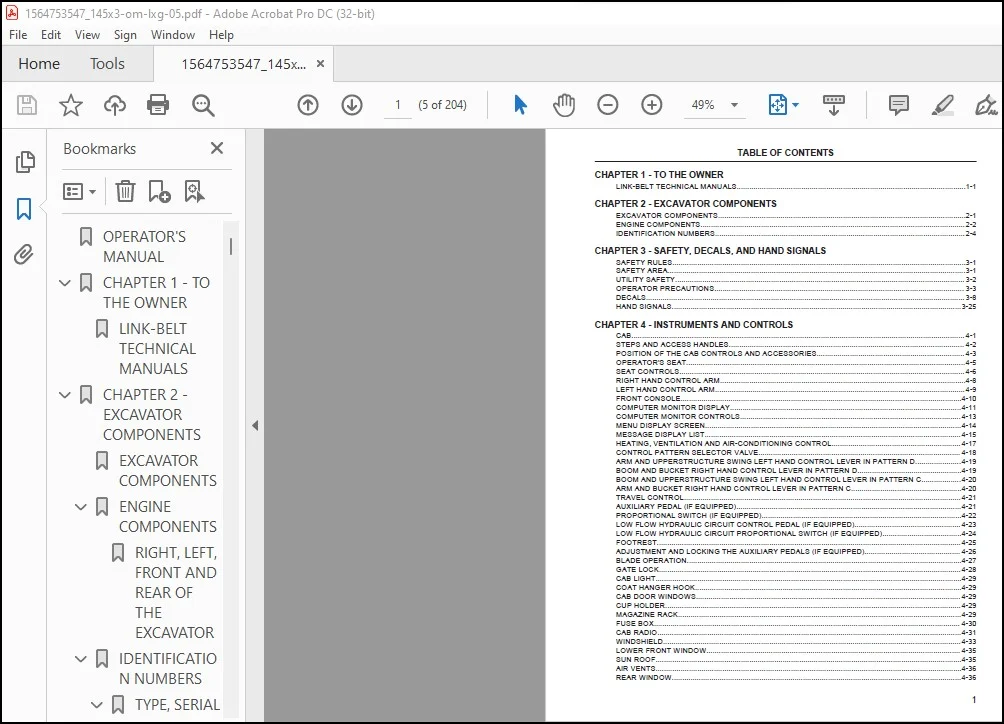

TABLE OF CONTENTS:

Linkbelt 145X3 Hydraulic Excavator Operator’s Manual 145X3-OM-LXG-05 – PDF DOWNLOAD

CHAPTER 1 – TO THE OWNER
LINK-BELT TECHNICAL MANUALS 1-1
CHAPTER 2 – EXCAVATOR COMPONENTS
EXCAVATOR COMPONENTS 2-1

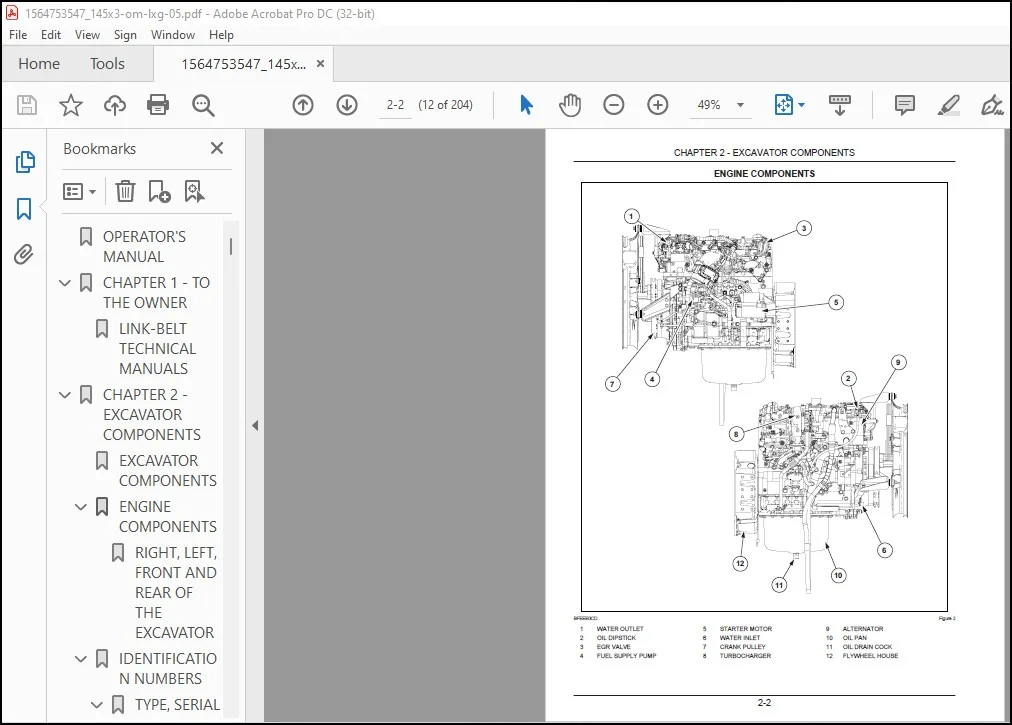

ENGINE COMPONENTS 2-2
