Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
$34.95
Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
FILE DETAILS:
Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
Language : English
Pages :2064
Downloadable : Yes
File Type : PDF

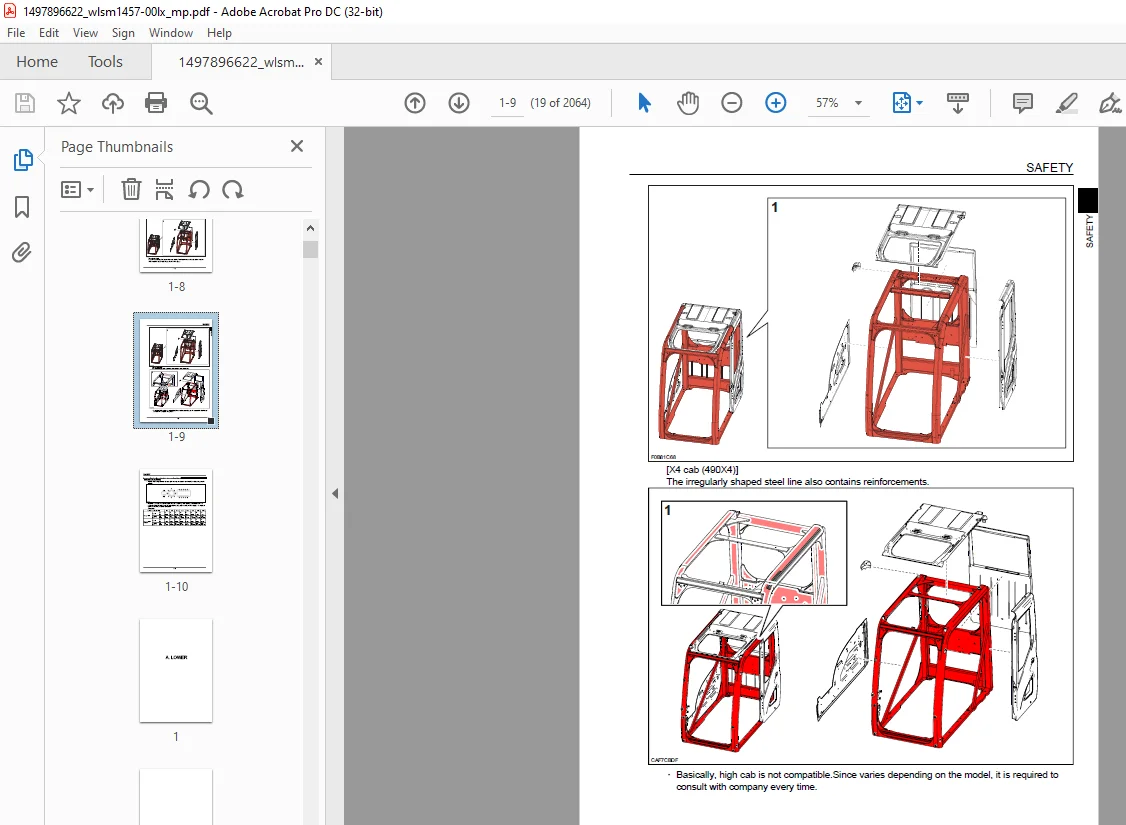

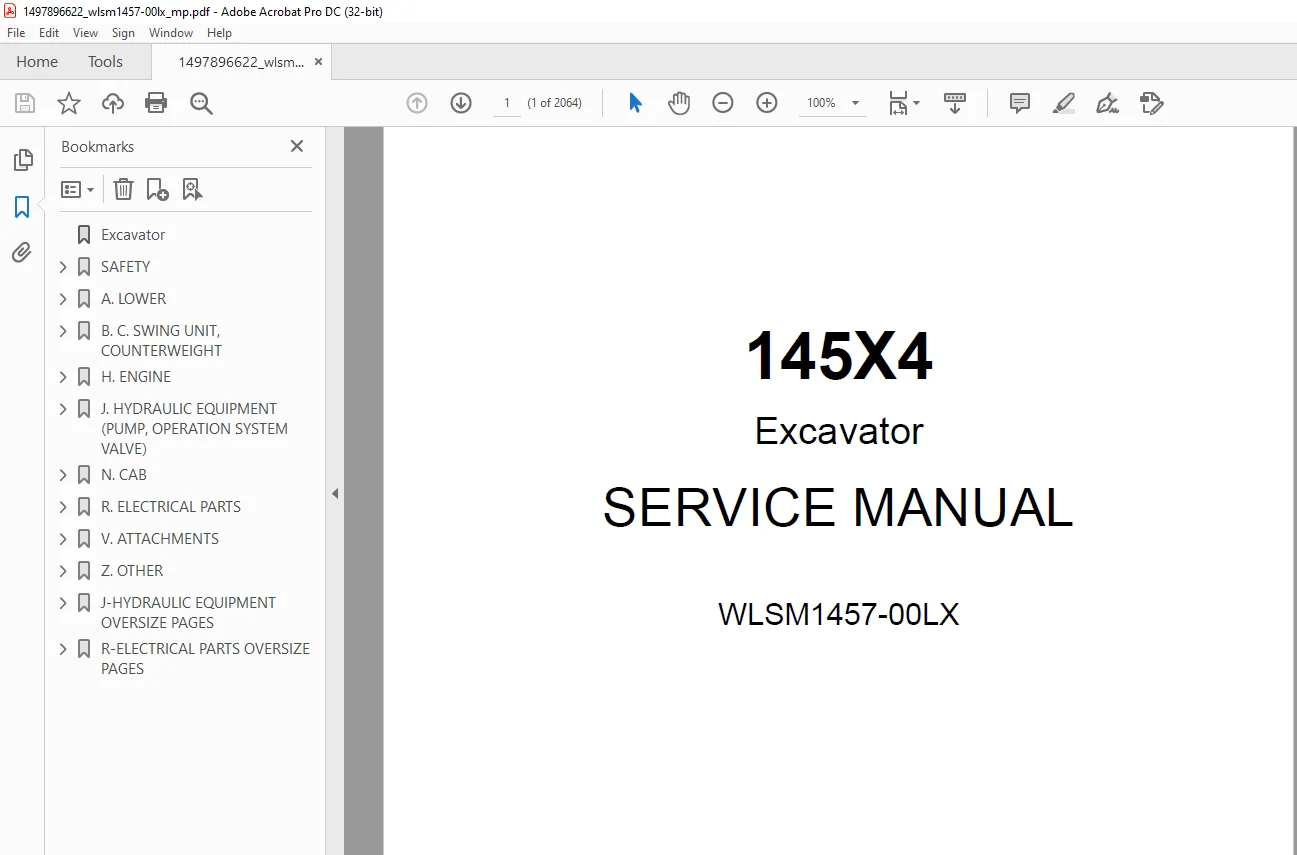

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
General Information
- Cleaning Clean the metal parts with cleaning solution that meets the standard and steam cleaning. (except for bearings) After cleaning, dry well, and inject oil in all parts. Also inject oil into the bearings after drying. Inspection When disassembling parts, check all the parts. If there are any worn or damaged parts, replace them. Inspect carefully to prevent initial breakdowns.
- Bearing Replace any loose bearings. Air dry bearings before installing them. Needle bearing When inserting needle bearings, be very careful not to damage them. Apply grease to the section where the needle bearing will be inserted. Gear Check that there is no wear and no damage. Oil seal, O-ring, gasket Always install new oil seals, O-rings, and gaskets. Apply grease to sections where oil seals and O-rings will be inserted. Shaft Check that there is no wear and no damage. Check the bearings and check for damaged oil seals on the shaft.
- Service parts Install LBX Link-Belt genuine service parts. When placing an order, check the parts catalog. It contains the LBX Link-Belt genuine part numbers. Any breakdowns arising from the installation of non-genuine parts are not covered by the warranty. Lubricants (fuel, hydraulic oil) Use the oil from the specified company or specified in the operator’s manual or service manual. Any breakdowns arising from any fuel or hydraulic oil other than those specified are not covered by the warranty.

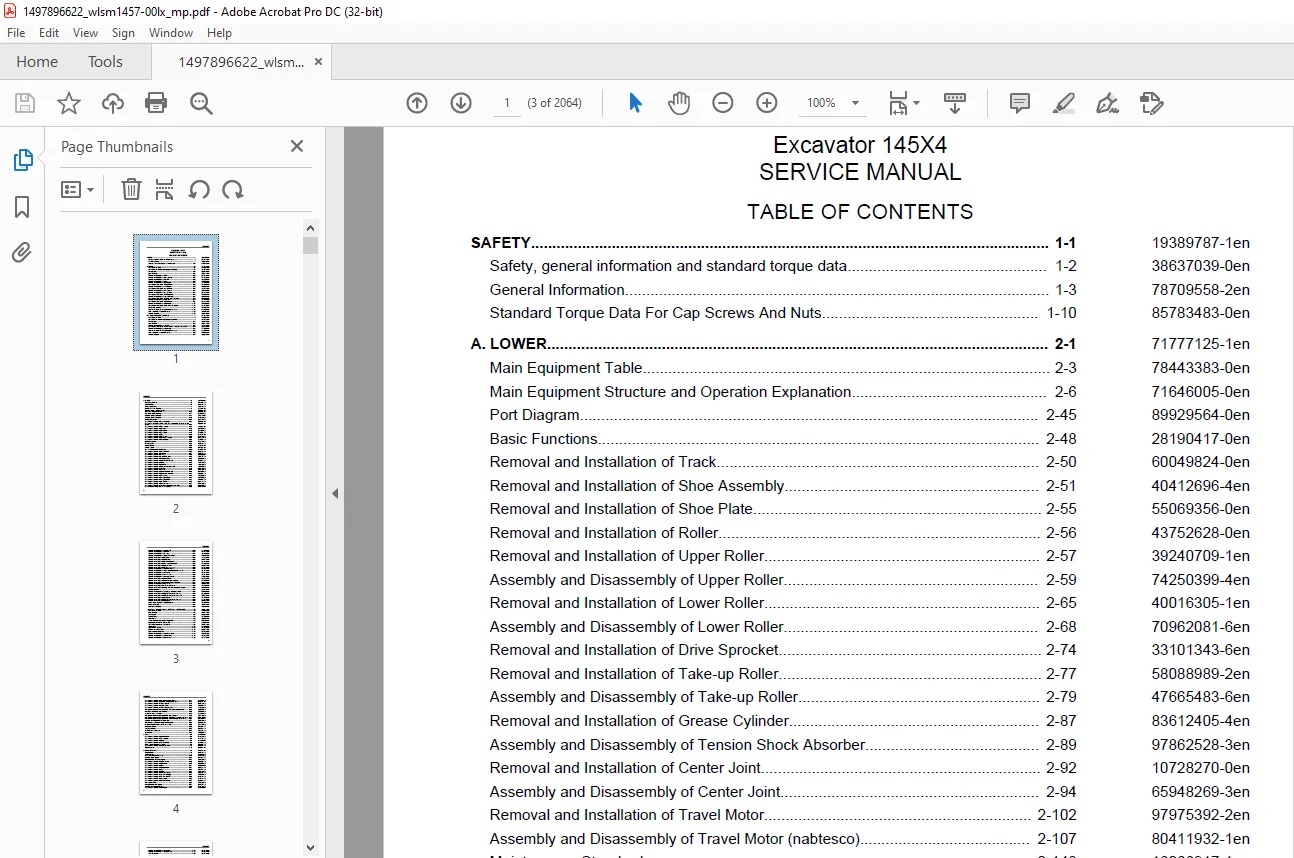

TABLE OF CONTENTS:
Linkbelt 145X4 Excavator SERVICE MANUAL WLSM1457-00LX – PDF DOWNLOAD
Excavator 1
SAFETY 9
Safety, general information and standard torque data 12
General Information 13
Safety 13
ROPS 15
ROPS Judgment Method 15
Standard Torque Data For Cap Screws And Nuts 20
Bolt and Nut Tightening 20
A LOWER 21
Main Equipment Table 25
Lower Component 25
Travel Unit 25
Take-up Roller 25
Upper Roller 25
Lower Roller 25
Recoil Spring 25
Shoe (LC) 25
Shoe (Blade) 26
Center Joint (LC) 26
Center Joint (Blade) 27
Main Equipment Structure and Operation Explanation 28
Travel Motor 28
Safety Precautions 28
Data 28
Use of Product 28
Specifications 28
Type Indication 29
Outside Dimension Diagram and Hydraulic Circuit Diagram 30
Basic Structure and Drawing 33
Assembly Cross-Section Diagram 33
Part List 34
Exploded Views 37
Operation Explanation 39
Reduction Gear 39
Hydraulic Motor Section 40
Usage Precautions 56
Installation Instructions 56
Line 57
Hydraulic Fluid 58
Maintenance and Inspection 58
Daily Inspection 58
Replacement of Hydraulic Fluid 59
Lubricant 59
Table of Seals 62
Failure and Necessary Action 63
Storage of Travel Motor 66
Port Diagram 67
Travel Motor 67
Center Joint 68
Center Joint (Blade) 69
Basic Functions 70
Travel Speed Selection 70
Travel Alarm 70
Removal and Installation of Track 72
Removal and Installation of Shoe Assembly 73
Removal of Shoe Assembly 73
Installation of Shoe Assembly 74
Removal and Installation of Shoe Plate 77
Removal of Shoe Plate 77
Installation of Shoe Plate 77
Removal and Installation of Roller 78
Removal and Installation of Upper Roller 79
Removal of Upper Roller 79
Installation of Upper Roller 80
Assembly and Disassembly of Upper Roller 81
Configuration Diagram 81
Dimension Diagram 82
Jig Dimension Diagram 82
Disassembly Procedures 82
Assembly Procedures 84
Removal and Installation of Lower Roller 87
Removal of Lower Roller 87
Installation of Lower Roller 88
Assembly and Disassembly of Lower Roller 90
Configuration Diagram 90
Dimension Diagram 91
Jig Dimension Diagram 91
Disassembly Procedures 91
Assembly Procedures 94
Removal and Installation of Drive Sprocket 96
Removal of Drive Sprocket 96
Installation of Drive Sprocket 98
Removal and Installation of Take-up Roller 99
Removal of Take-up Roller 99
Installation of Take-up Roller 100
Assembly and Disassembly of Take-up Roller 101
Configuration Diagram 101
Dimension Diagram 102
Jig Dimension Diagram 102
Disassembly Procedures 102
Assembly Procedures 105
Removal and Installation of Grease Cylinder 109
Removal of Grease Cylinder 109
Installation of grease cylinder 110
Assembly and Disassembly of Tension Shock Absorber 111
Configuration Diagram 111
Dimension Diagram 111
Jig dimension diagram 112
Disassembly procedures 112
Assembly procedures 112
Removal and Installation of Center Joint 114
Removal of Center Joint 114
Installation of Center Joint 115
Assembly and Disassembly of Center Joint 116
Configuration Diagram 117
Dimension Diagram 118
Dimension Diagram (Blade) 119
Jig Dimension Diagram 120
Disassembly Procedures 120
Assembly Procedures 121
Removal and Installation of Travel Motor 124
Removal of Travel Motor 124
Installation of Travel Motor 126
Assembly and Disassembly of Travel Motor (nabtesco) 129
Safety Precautions 129
Service Overview 129
Tools 129
Tightening Torque 134
Weight Table 135
Disassembly 135
Preparations 135
General Work Precautions 135
Disassembly Procedure 136
Maintenance Standards 150
Seals 150
Maintenance Standards for Worn Components 150
Assembly 152
Preparations 152
General Work Precautions 152
Assembly Procedure 152
Performance Check Test 169
Maintenance Standards 170
Drive Sprocket 170
Take-up Roller 171
Upper roller 172
Lower Roller 173
Track Shoe (Grouser Shoe) 174
Inspection Gauge 175
For Drive Sprocket 175
For Take-up Roller 175
For Upper Roller 176
For Lower Roller 176
Pressure Measurement and Adjustment Procedures 177
Main Pressure Measurement 177
B Travel Pressure Measurement 177
Drain Volume Measurement Procedures 178
Preparations 178
Travel Motor Drain Volume Measurement 178
Air Bleed Procedure 180
Travel Motor 180
B C SWING UNIT, COUNTERWEIGHT 181
Main Equipment Table 184
Upper Component 184
Swing Unit 184
Main Equipment Structure and Operation Explanation 185
Swing Unit 185
Explanation of Swing Reduction Gear 185
Swing Motor Operation Explanation 185
Hydraulic Motor 185
Mechanical Brake 186
Relief Valve 186
Make-up valve 188
Bypass Valve 188
Assembly cross-section diagram 190
Parts List 191
Disassembly and Assembly Diagram (Swing Motor) 192
Disassembly and Assembly Diagram (Reduction Gear) 193
Port Diagram 194
Swing motor 194
Basic Functions 195
Swing brake 195
Swing Lock 195
Swing Speed Limit 196
Swing Relief Cut 198
Removal and Installation of Swing Unit 200
Removal of Swing Unit 200
Installation of Swing Unit 202
Assembly and Disassembly of Swing Motor and Swing Reduction Gear 204
Causes of Failures, and Actions 204
Maintenance Standards 206
Tools 208
Jig 209
Tightening torque 211
Weight Table 212
Disassembly 212
Disassembly of Swing Unit 212
Disassembly of Swing Motor 212
Disassembly of Swing Reduction Gear 216
Assembly 219
Assembly of Swing Reduction Gear 219
Assembly of Swing Motor 222
Assembly of Swing Unit 228
Assembly cross-section diagram 230
Parts List 231
Disassembly and Assembly Diagram (Swing Motor) 232
Disassembly and Assembly Diagram (Reduction Gear) 233
Removal and Installation of Counterweight 234
Removal of Counterweight 234
Installation of Counterweight 235
Pressure Measurement and Adjustment Procedures 237
Main Pressure Measurement 237
C Swing Pressure Measurement 237
Drain Volume Measurement Procedures 238
Preparations 238
Swing Motor Drain Volume Measurement 238
Air Bleed Procedure 239
Swing Motor 239
Check 239
H ENGINE 241
Main Equipment Table 250
Engine-related 250
Engine 250
Air Cleaner (double element) 250
Radiator 250
SCR 250
Basic Functions 251
Fuel Gauge 251
Coolant Temperature Gauge 252
SCR Gauge 254
Fuel Economy Gauge 257
Neutral start 258
Power-cut Delay 259
Preheat 260
Throttle 261
Throttle Volume Position Detection 262
Idle start 268
Auto Idle 269
One-touch Idle 269
Auto Warm-Up 270
Idle Shutdown 275
Idle up 276
Work Mode Control 276
Engine Emergency Stop 277
SCR RE-GEN 278
Inducement 283
Feed Pump Automatic Stop 287
Coolant Level Decrease 289
Air Filter Clogging 290
Fuel Filter Clogging 291
Battery Charge Abnormality 292
Horsepower Reduction Control (in Uplands) 293
Horsepower Reduction Control (at Engine Failure) 293
Primary specifications 296
Function, Structure, Operation 298
Function, structure, operation (SCR) 341
SCR Control System Inspection 368
Explanation of SCR Operation 369
Diagnosis for Each Symptom 371
Intermittent conditions of urea selective catalytic reduction system 371
Urea fluid consumption too high 374
Ammonia smell noticeable 374
White crystalline powder visible 375
Diagnosis for Each Symptom 376
Engine start failure 376
Engine stalling 377
Engine Hunting, Rough Idling 379
Excess Amount of White Smoke in Exhaust Gas 380
Excessive Black Smoke in Exhaust Gas 381
Abnormal Noise 381
High Fuel Consumption 382
High Oil Consumption 383
Insufficient engine output 384
Functional Inspection 386
Engine compression pressure inspection 386
Fuel System Inspection 387
Lubrication system check 387
Suction air system inspection 388
Exhaust system inspection 388
Inspection of EGR Control System 388
Starting system check 389
Glow control system check 390
OBD system check 391
Inspection of the monitor warning light illumination circuit system 392
Inspection of the monitor warning light blinking circuit system 392
Inspection of the starter circuit system 393
Removal and Installation of Engine Assembly 395
Removal of Engine Assembly 395
Installation of Engine Assembly 399
Removal and Installation of Fuel Cooler, Engine Intercooler, Radiator, and Oil Cooler 400
Removal and Installation of Fuel Cooler 400
Removal of Fuel Cooler 400
Installation of Fuel Cooler 400
Removal and Installation of Engine Intercooler 400
Removal of Intercooler 400
Installation of Inter Cooler 403
Inspection of Intercooler 403
Removal and Installation of Radiator 404
Removal of Radiator 404
Installation of Radiator 407
Inspection of Radiator 407
Removal and Installation of Oil Cooler 408
Removal of Oil Cooler 408
Installation of oil cooler 410
Removal and Installation of Turbo Charger 411
Turbocharger assembly Removal 411
Turbocharger assembly Installation 412
Inspection of Turbocharger assembly 414
Removal and Installation of EGR Valve 415
Removal of EGR Valve 415
Installation of EGR Valve 415
Inspection of EGR Valve 415
Removal and Installation of EGR Cooler 416
Removal of EGR Cooler 416
Installation of EGR Cooler 417
Inspection of EGR Cooler 419
Removal and Installation of Engine Hood 421
Removal of Top Cover 421
Installation of Engine Hood 421
Removal and Installation of SCR 422
Removal of SCR 422
Installation of SCR 423
Removal and Installation of SCR Catalyst 424
Removal of SCR Catalyst 424
Installation of SCR Catalyst 426
Disassembly of SCR Catalyst 430
Assembly of SCR Catalyst 430
Inspection of SCR Catalyst 430
Removal and Installation of Cylinder Head Cover 431
Cylinder head cover Removal 431
Installation of Cylinder Head Cover 432
Removal and Installation of Cylinder Head 433
Removal of Cylinder Head 433
Disassembly of Cylinder Head 442
Assembly of Cylinder Head 443
Installation of Cylinder Head 446
Inspection of Cylinder Head 464
Removal and Installation of Cylinder Block 470
Removal of Cylinder block 470
Installation of Cylinder block 485
Inspection of Cylinder Block 516
Lubrication System 518
Removal and Installation of Oil Pan and Crank Case 518
Removal of Oil pan and crank case 518
Installation of Oil pan and crank case 532
Disassembly of Crankcase 558
Assembly of Crankcase 558
Removal and Installation of Oil Level Switch 558
Removal of Oil Level Switch 558
Installation of Oil Level Switch 559
Removal and Installation of Oil Pump Assembly 559
Removal of Oil pump assembly 559
Installation of Oil pump assembly 562
Inspection of Oil Pump Assembly 565
Engine oil Inspection 566
Removal and Installation of Oil Port Cover 566
Removal of Oil Port Cover 566
Installation of Oil Port Cover 567
Cooling System 568
Removal and Installation of Water Pump Assembly 568
Removal of Water Pump Assembly 568
Installation of Water Pump Assembly 569
Inspection of Water Pump Assembly 570
Removal and Installation of Thermostat 571
Removal of Thermostat 571
Installation of Thermostat 571
Inspection of Thermostat 572
InspectionInspection of Coolant 572
Inspection of Cooling Fan Belt 573
Removal and Installation of Overheat Switch 574
Removal of Overheat switch 574
Installation of Overheat switch 574
Induction System 575
Inspection of Air Cleaner Element 575
Exhaust System 576
Removal and installation of Oxidation Catalyst Assembly 576
Removal of Oxidation Catalyst Assembly 576
Installation of Oxidation Catalyst Assembly 578
Aux Emission Control Devices System 581
Removal and installation of Dosing Module 581
Removal of Dosing Module 581
Disassembly of Dosing Module 581
Assembly of Dosing Module 582
Installation of Dosing Module 582
Removal and installation of DEF Supply Module 583
Removal of DEF Supply Module 583
Disassembly of DEF Supply Module 583
Assembly of DEF Supply Module 584
Installation of DEF Supply Module 584
Removal and installation of Coolant Control Valve 585
Removal of Coolant Control Valve 585
Installation of Coolant Control Valve 585
Removal and Installation of DCU 586
Removal of DCU 586
Installation of DCU 586
Removal and installation of DEF Supply Module Filter 586
Removal of DEF Supply Module Filter 586
Installation of DEF Supply Module Filter 587
Removal and Installation of Exhaust Manifold 588
Removal of Exhaust Manifold 588
Installation of Exhaust Manifold 590
Inspection of Exhaust Manifold 593
Removal and Installation of Fuel Tank 594
Removal of Fuel Tank 594
Installation of fuel tank 597
Removal and Installation of Urea Pump 598
Removal of Urea Pump 598
Installation of Urea Pump 599
Removal and Installation of Urea Solution Tank 600
Removal of Urea Tank 600
Installation of Urea Solution Tank 601
Removal and Installation of Fuel Supply Pump 602
Removal of Fuel Supply Pump 602
Installation of Fuel Supply Pump 607
Removal and Installation of Common Rail Assembly 615
Removal of Common Rail Assembly 615
Installation of Common Rail Assembly 616
Removal and Installation of Injector 618
Removal of Injector 618
Installation of Injector 620
Removal and Installation of Crankshaft 624
Removal of Crankshaft 624
Installation of Crankshaft 639
Disassembly of Crankshaft 668
Assembly of Crankshaft 668
Inspection of Crankshaft 669
Removal and Installation of Piston and Connecting Rod 674
Removal of Piston and connecting rod 674
Installation of Piston and connecting rod 688
Disassembly of Piston and Connecting Rod 715
Assembly of Piston and Connecting Rod 716
Inspection of Piston and Connecting Rod 716
Removal and Installation of Camshaft 721
Removal of Camshaft 721
Installation of Camshaft 723
Inspection of Camshaft 727
Removal and Installation of Flywheel 729
Removal of Flywheel 729
Installation of Flywheel 730
Inspection of Flywheel 731
Removal and Installation of Crankshaft front oil seal 732
Removal of Crankshaft front oil seal 732
Installation of Crankshaft front oil seal 734
Removal and Installation of Crankshaft rear oil seal 737
Removal of Crankshaft Rear Oil Seal 737
Installation of Crankshaft Rear Oil Seal 738
Removal and Installation of Timing Chain 742
Removal of Timing chain 742
Installation of Timing chain 745
Removal and Installation of Timing Gear Train 751
Removal of Timing gear train 751
Installation of Timing gear train 756
Inspection of Timing Gear Train 765
Removal and Installation of Timing Gear Case 767
Removal of Timing gear case 767
Installation of Timing gear case 778
Removal and Installation of Inlet Manifold 801
Removal of Inlet manifold 801
Installation of Inlet manifold 802
Removal and Installation of Rocker Arm Shaft 806
Removal of Rocker arm shaft assembly 806
Installation of Rocker arm shaft assembly 809
Removal and Inspection of Valve Stem Oil Seal and Valve Spring 819
Removal of Valve stem oil seal and valve spring 819
Installation of Valve stem oil seal and valve spring 822
Inspection of Valve Spring 828
Removal and installation of Intake Throttle Valve 830
Removal of Intake throttle valve 830
Installation of Intake throttle valve 830
Removal and Installation of Starter Motor 831
Removal of Starter Motor 831
Installation of Starter Motor 832
Inspection of Starter Motor 832
Removal and Installation of Alternator 834
Removal of Alternator 834
Installation of Alternator 834
Inspection of Alternator 835
Removal and Installation of Glow Plug 839
Removal of Glow Plug 839
Installation of Glow Plug 839
Inspection of Glow Plug 840
Removal and Installation of Suction Control Valve 841
Removal of Suction Control Valve 841
Installation of Suction Control Valve 841
Removal and installation of Fuel Filter 843
Removal of Fuel Filter 843
Installation of Fuel Filter 843
Removal and installation of Relief Valve 846
Removal of Relief valve 846
Installation of Relief valve 846
Removal and installation of Fuel Filter Element 847
Removal of Fuel filter element 847
Installation of Fuel Filter Element 847
Removal and installation of Fuel temperature sensor 850
Removal of Fuel temperature sensor 850
Installation of Fuel temperature sensor 855
Inspection of Fuel temperature sensor 862
Removal and installation of Pressure limiter 863
Removal of Pressure limiter 863
Installation of Pressure limiter 863
Removal and installation of Fuel pressure sensor 864
Removal of Fuel pressure sensor 864
Installation of Fuel pressure sensor 864
Removal and Installation of Fuel filter pressure 865
Fuel filter pressure sensor Removal 865
Fuel filter pressure sensor Installation 865
Removal and Installation of Engine coolant temperature sensor 866
Engine coolant temperature sensor Removal 866
Engine coolant temperature sensor Installation 866
Inspection of Engine coolant temperature sensor 866
Removal and Installation of CKP sensor 868
CKP sensor Removal 868
CKP sensor Installation 868
Inspection of CKP sensor 868
Removal and Installation of CMP sensor 869
CMP sensor Removal 869
CMP sensor Installation 869
Inspection of CMP sensor 869
Removal and Installation of Oil pressure sensor 870
Oil pressure sensor Removal 870
Oil pressure sensor Installation 870
Inspection of Oil pressure sensor 870
Removal and installation of Boost Sensor 872
Removal of Boost sensor 872
Installation of Boost sensor 872
Inspection of Boost sensor 872
Removal and installation of Boost Temperature Sensor 873
Removal of Boost temperature sensor 873
Installation of Boost temperature sensor 873
Removal and installation of Turbocharger control solenoid 874
Removal of Turbocharger control solenoid 874
Installation of Turbocharger control solenoid 874
Inspection of Turbocharger control solenoid 874
Removal and Installation of IMT sensor 876
IMT sensor Removal 876
IMT sensor Installation 876
Removal and installation of MAF and IAT sensor 877
Removal of MAF and IAT sensor 877
Installation of MAF and IAT sensor 877
Inspection of MAF and IAT sensor 877
Removal and installation of Charge Air Cooler Temperature Sensor 1 878
Removal of Charge Air Cooler Temperature Sensor 1 878
Installation of Charge Air Cooler Temperature Sensor 1 878
Inspection of Charge Air Cooler Temperature Sensor 1 878
Sampling Procedure 879
Sampling of Engine Oil 879
Removal and Installation of Exhaust gas temperature sensor 880
Removal of Exhaust gas temperature sensor 880
Installation of Exhaust gas temperature sensor 880
Inspection of Exhaust gas temperature sensor 881
Removal and installation of EGR Gas Temperature Sensor 1 882
Removal of EGR Gas Temperature Sensor 1 882
Installation of EGR Gas Temperature Sensor 1 882
Inspection of EGR Gas Temperature Sensor 1 882
Removal and installation of EGR Gas Temperature Sensor 2 883
Removal of EGR Gas Temperature Sensor 2 883
Installation of EGR Gas Temperature Sensor 2 883
Inspection of EGR Gas Temperature Sensor 2 883
Removal and installation of NOx Sensor 885
Removal of NOx Sensor 885
Installation of NOx Sensor 885
Removal and installation of EGR Gas Temperature Sensor 3 888
Removal of EGR Gas Temperature Sensor 3 888
Installation of EGR Gas Temperature Sensor 3 888
Removal and installation of DEF Sensor 890
Removal of DEF Sensor 890
Installation of DEF Sensor 890
Engine-related Diagnostic Trouble Code List 891
Engine-side Trouble 900
ECM Trouble 900
DTC P0016 Crankshaft Position – Camshaft Position Correlation Error 900
DTC P0045 Turbocharger Boost Control VNT Error 901
DTC P0047 Turbocharger EVRV Control Circuit High 903
DTC P0087 Fuel Rail/System Pressure – Too Low 904
DTC P0089 Fuel Pressure Regulator Performance 907
DTC P0091 Fuel Pressure Regulator Control Circuit Low 908
DTC P0092 Fuel Pressure Regulator Control Circuit High 909
DTC P0097 Intake Air Temperature (IAT) Sensor 2 Circuit Low Voltage 911
DTC P0098 Intake Air Temperature (IAT) Sensor 2 Circuit High Voltage 912
DTC P0102 Mass Air Flow Sensor Circuit Low Input 913
DTC P0103 Mass Air Flow Sensor Circuit High Input 914
DTC P0112 Intake Air Temperature Sensor Circuit Low 915
DTC P0113 Intake Air Temperature Sensor Circuit High 916
DTC P0117 Engine Coolant Temperature Sensor Circuit Low 918
DTC P0118 Engine Coolant Temperature Sensor Circuit High 919
DTC P0122 Throttle Position Sensor Circuit Low 920
DTC P0123 Throttle Position Sensor Circuit High 921
DTC P0182 Fuel Temperature Sensor Circuit Low 922
DTC P0183 Fuel Temperature Sensor Circuit High 923
DTC P0192 Fuel Rail Pressure Sensor Circuit Low 925
DTC P0193 Fuel Rail Pressure Sensor Circuit High 926
DTC P0201 Injector Circuit Open – Cylinder 1 927
DTC P0202 Injector Circuit Open – Cylinder 2 929
DTC P0203 Injector Circuit Open – Cylinder 3 930
DTC P0204 Injector Circuit Open – Cylinder 4 932
DTC P0217 Engine Coolant Over Temperature Condition 933
DTC P0219 Engine Overspeed Condition 934
DTC P0234 Turbocharger Overboost Condition 935
DTC P0237 Turbo Charger Boost Sensor Circuit Low 937
DTC P0238 Turbo Charger Boost Sensor Circuit High 938
DTC P0299 Turbocharger Underboost 939
DTC P0335 Crankshaft Position Sensor Circuit 941
DTC P0336 Crankshaft Position Sensor Circuit Range/Performance 942
DTC P0340 Camshaft Position Sensor Circuit 943
DTC P0380 Glow Relay Circuit Error 945
DTC P0401 EGR Flow Insufficient Detected 946
DTC P0404 EGR Control Circuit Range/Performance 947
DTC P0409 EGR Sensor Circuit 948
DTC P041C EGR Cooler Outlet 1 Temp Sensor Circuit Low 949
DTC P041D EGR Cooler Outlet 1 Temp Sensor Circuit High 950
DTC P0427 Catalyst Temperature Sensor Circuit Low Sensor 1 952
DTC P0428 Catalyst Temperature Sensor Circuit High Sensor 1 953
DTC P042C Catalyst Temperature Sensor Circuit Low Sensor 2 954
DTC P042D Catalyst Temperature Sensor Circuit High Sensor 2 955
DTC P0522 Engine Oil Pressure Sensor Circuit Low Input 957
DTC P0523 Engine Oil Pressure Sensor Circuit High Input 958
DTC P0545 EGR Cooler Inlet 1 Temp Sensor Circuit Low 959
DTC P0546 EGR Cooler Inlet 1Temp Sensor Circuit High 960
DTC P0560 12 Volt Circuit Error 961
DTC P0563 System Voltage High 962
DTC P0601 Internal Control Module Memory Check Sum Error 963
DTC P0602 Internal Control Module QR Code Error 963
DTC P0604 Internal Control Module RAM Error 964
DTC P0606 Internal Control Module CPU Error 965
DTC P060A Internal Control Module CPU IC Error 965
DTC P060C Internal Control Module A/D Processing Performance 966
DTC P0615 Starter Relay Circuit Error 966
DTC P0638 Throttle Actuator Control Range/Performance 967
DTC P0685 ECM Power Relay Control Circuit Open 969
DTC P0687 ECM Power Relay Control Circuit High 970
DTC P06A6 Sensor Reference Voltage 1 Circuit 970
DTC P06A7 Sensor Reference Voltage 2 Circuit 971
DTC P06A8 Sensor Reference Voltage 3 Circuit 972
DTC P06A9 Sensor Reference Voltage 4 Circuit 974
DTC P06AF Torque Management System – Forced Engine Shutdown 975
DTC P06D5 Sensor Reference Voltage 5 Circuit 976
DTC P1076 Charge Air Cooler (CAC) Temperature Sensor 1 Circuit Low Voltage 976
DTC P1077 Charge Air Cooler (CAC) Temperature Sensor 1 Circuit High Voltage 977
DTC P1093 Fuel Rail Pressure Too Low 979
DTC P1097 Compressor Outlet Temperature Sensor Circuit High 982
DTC P1098 Compressor Outlet Temperature Sensor Circuit High 983
DTC P1236 Charge Air Cooler Performance Failure 984
DTC P1261 Injector Positive Voltage Control Circuit Group 1 985
DTC P1262 Injector Positive Voltage Control Circuit Group 2 986
DTC P1404 EGR Position Fault 986
DTC P1606 SW-IC Internal failure 987
DTC P160B AD-IC Failure Error 988
DTC P160C AD-IC2 Failure Error 988
DTC P1621 Control Module Long Term Memory Performance 989
DTC P1622 Control Module Long Term Memory Hardware 990
DTC P1669 DPD Lamp Control Circuit 991
DTC P204F SCR System Error (No Inducement) 992
DTC P207F Urea Fluid Concentration Too Low 992
DTC P20C9 SCR System Error 993
DTC P2122 Pedal Position Sensor 1 Circuit Low Input 993
DTC P2123 Pedal Position Sensor 1 Circuit High Input 994
DTC P2127 Pedal Position Sensor 2 Circuit Low Input 995
DTC P2128 Pedal Position Sensor 2 Circuit High Input 996
DTC P2138 Pedal Position Sensor 1 – 2 Voltage Correlation 997
DTC P2146 Fuel Injector Group 1 Supply Voltage Circuit 998
DTC P2149 Fuel Injector Group 2 Supply Voltage Circuit 999
DTC P2228 Barometric Pressure Sensor Circuit Low1000
DTC P2229 Barometric Pressure Sensor Circuit High1001
DTC P2457 Exhaust Gas Recirculation (EGR) Cooling System Performance1001
DTC P2458 Purge time Out Error1002
DTC P2BA7 Urea Fluid Quantity Too Low1003
DTC P2BAA SCR System Error (Inducement, No Purge)1003
DTC P3093 Fuel Rail Pressure Too Low1004
DTC U0001 CAN Bus Error (ISO-CAN)1007
DTC U0073 Control Module Communication Bus Off1008
DTC U0101 Lost Communication With CAN1010
DTC U010E Lost Communications With Dosing Control Module1011
DTC U0110 Lost Communication With VNT System1012
DTC U2106 Lost CAN Communications With Wheel Loader Transmission Control System1013
DTC U0411 Lost CAN Communications With VNT Control Module1013
DCU Trouble1014
DTC P0607 Control Module Performance1014
DTC P060B Internal Control Module A/D Processing Performance1015
DTC P062F Control Module EEPROM Error1015
DTC P0641 Sensor Reference Voltage 1 Circuit1016
DTC P0658 Actuator Supply Voltage Circuit1017
DTC P0659 Actuator Supply Voltage Circuit1019
DTC P1462 Urea Fluid Quality Sensor Timeout Error1020
DTC P1464 Main Relay Performance1021
DTC P1468 DCU Overtemperature1022
DTC P1491 Urea Fluid Overpressure1023
DTC P1493 DCU Driver Overtemperature1024
DTC P149C Urea Fluid Pressure Reduction Malfunction1025
DTC P149D Urea Fluid Tank Overtemperature1026
DTC P2000 Monitoring the NOx Efficiency1028
DTC P203B Urea Fluid Tank Level Sensor Stuck1029
DTC P203C Urea Fluid Tank Level Sensor Low Voltage1031
DTC P203D Urea Fluid Tank Level Sensor High Voltage1032
DTC P2048 Urea Fluid Injector Circuit Low Voltage1033
DTC P2049 Urea Fluid Injector Circuit High Voltage1034
DTC P204B Urea Fluid Pressure Sensor Performance1035
DTC P204C Urea Fluid Pressure Sensor Circuit Low Voltage1036
DTC P204D Urea Fluid Pressure Sensor Circuit High Voltage1037
DTC P205B Urea Fluid Tank Temperature Sensor Performance1039
DTC P205C Urea Fluid Tank Temperature Sensor Low Voltage1040
DTC P205D Urea Fluid Tank Temperature Sensor High Voltage1041
DTC P206A Urea Fluid Quality Sensor Circuit1042
DTC P206B Urea Sensor Over Temperature Condition1043
DTC P206C Urea Fluid Quality Sensor Circuit Low Voltage1044
DTC P206D Urea Fluid Quality Sensor Circuit High Voltage1045
DTC P207F Urea Fluid Concentration Too Low1045
DTC P208A Urea Fluid Pump Control Circuit1046
DTC P208B Usea Fluid Pump Performance1047
DTC P208C Urea Fluid Pump Control Circuit Low Voltage1048
DTC P208D Urea Fluid Pump Control Circuit High Voltage1049
DTC P208E Urea Fluid Injector Stuck1050
DTC P20A0 Urea Fluid Reverting Valve Circuit Open1052
DTC P20A2 Urea Fluid Reverting Valve Circuit Low Voltage1053
DTC P20A3 Urea Fluid Reverting Valve Circuit High Voltage1054
DTC P20AC Urea Fluid Pump Temperature Sensor Performance1055
DTC P20AD Urea Fluid Pump Module Temperature Sensor Performance1056
DTC P20B1 Urea Fluid Tank Heater Coolant Control Valve Circuit Open1057
DTC P20B3 Urea Fluid Tank Heater Coolant Control Valve Circuit Low Voltage1058
DTC P20B4 Urea Fluid Tank Heater Coolant Control Valve Circuit High Voltage1059
DTC P20E8 Urea Fluid Pressure Underpressure1060
DTC P20E9 Urea Fluid Overpressure1062
DTC P20EA Urea Fluid Pressure Reduction Malfunction1063
DTC P20FE Urea Fluid Pressure Build-Up Error1064
DTC P2201 Upstream Nox Sensor Performance1066
DTC P2206 Reading the error(open) information detected by Ft NOx sensor1067
DTC P2207 Reading the error(short) information detected by Ft NOx sensor1067
DTC P2210 Reading the error(open) information detected by Rr NOx sensor1068
DTC P2211 Reading the error(short) information detected by Rr NOx sensor1068
DTC P242B Exhaust Gas Temperature (EGT) Sensor 3 Performance1069
DTC P242C Exhaust Gas Temperature (EGT) Sensor 3 Circuit Low Voltage1070
DTC P242D Exhaust Gas Temperature (EGT) Sensor 3 Circuit High Voltage1071
DTC U0002 CAN Bus Off1072
DTC U0100 Lost Communication With ECM1073
DTC U029D CAN communication error between DCU and Ft NOx sensor1074
DTC U029E CAN communication error between DCU and Rr NOx sensor1076
Data Reference Values1078
Idle Speed1078
Two Pump Relief1079
J HYDRAULIC EQUIPMENT (PUMP, OPERATION SYSTEM VALVE)1081
Main Equipment Table1087
Hydraulic Device1087
Hydraulic Pump (LC)1087
Hydraulic Pump (Blade)1087
Control-related1088
Control Valve (LC)1088
Control valve (Blade)1088
Solenoid Valve (4 stack)1088
Remote Control Valve for Left/Right Operations1089
Remote Control Valve for Travel Operation1089
Valve for Blade Operation1089
Remote Control Valve Characteristic Diagram1089
Operation Remote Control Valve Control Diagram1090
Travel Remote Control Valve Control Diagram1091
Blade Remote Control Valve Control Diagram1091
Cushion Valve (with Heat Circuit, Shuttle Valve)1091
Selector Valve1091
Relief Valve (Electromagnetic Proportional)1092
Basic Functions1093
Oil temperature gauge1093
Static Horsepower Control1094
Overload Warning (Function for Europe Only)1095
Pressure Boost Control1095
Stroke Control1097
Boom Down Energy Save1099
Pump Horsepower Boost Control1100
Arm 1 Semi-parallel Control1100
Arm 2 Semi-parallel Control1101
Hot Shutdown Warning1102
Gate Lock1103
Breaker Mode1104
Crusher Mode1104
Quick coupler1105
Hydraulic Fluid Filter Clogging1106
Solenoid Sticking Prevention1107
Port Diagram1108
Hydraulic Pump (standard model)1108
Hydraulic Pump (Blade)1110
Control valve1111
4 Stack Solenoid Valve1113
2 Stack Solenoid Valve1114
Remote Control Valves (upper, travel)1115
Remote Control Valves (left-right)1115
Remote control valve (travel)1115
Remote Control Valve (blade)1116
Cushion valve1117
2-way Selector Valve1118
Direction Valve1119
Reducing valve (4-line)1120
Relief Valve (electromagnetic proportional)1121
Manifold Under Cab1122
Manifold (accumulator section)1123
Hydraulic tank1124
Hydraulic Pump1125
Type Indication1125
Specifications1125
Structure and Operation Explanation1125
Hydraulic Circuit Diagram1127
Hydraulic Pump Internal Structure Diagram1128
Overall View1128
Drive Shaft Front Side1132
Drive Shaft Rear Side1133
Development Diagram1134
Part Table1136
Regulator1136
Regulator Operation Explanation1136
Regulator Operation Explanation Diagram1139
Internal Configuration Diagram of Regulator1142
Development Diagram of Regulator1144
Component Table1145
Operation Outline of Electronically-Controlled Pump1147
Control Valve1150
Basic Configuration1150
Operation1150
Operation of Main Unit1150
Activation of Relief Valve1164
4 Stack Solenoid Valve Operation Explanation1169
External Shape Diagram and Component Parts1169
Operation Explanation1170
Upper Pilot Valve (remote control valve)1171
Structure1171
Function1171
Operation1171
Structural Diagram1175
Travel Pilot Valve (remote control valve)1176
Operation1176
Pressure Reducing Valve Section1176
Damping Mechanism in Operation Section1177
Structural Diagram1180
Cushion Valve 1182
Structure1182
Operation Explanation1182
Selector Valve (2-way)1186
Structure1186
Operation Explanation1187
Development Diagram1188
Direction Valve (3-direction) 1189
Structure1189
Operation Explanation1190
Electromagnetic Relief Valve1192
Structure1192
Operation Explanation1193
Operation of Check Valve1193
Operation of Electromagnetic Relief Valve1194
Removal and Installation of Hydraulic Reservoir1196
Removal of Hydraulic Reservoir1196
Installation of Hydraulic Tank1199
Removal and Installation of Hydraulic Pump1200
Removal of Hydraulic Pump1200
Installation of hydraulic pump1201
Removal and Installation of Control Valve1202
Removal of Control Valve1202
Installation of Control Valve1205
Removal and Installation of Travel Remote Control Valve1206
Removal of Travel Remote Control Valve1206
Installation of Travel Remote Control Valve1207
Removal and Installation of Operation Remote Control Valve1210
Removal of Operation Remote Control Valve (left side)1210
Installation of Operation Remote Control Valve (left side)1212
Removal of Operation Remote Control Valve (right side)1213
Installation of Operation Remote Control Valve (right side)1215
Removal and Installation of 4 Stack Solenoid1218
Removal of 4 Stack Solenoid Valve1218
Installation of 4 Stack Solenoid Valve1219
Removal and Installation of Cushion Valve1220
Removal of Cushion Valve1220
Installation of Cushion Valve1221
Removal and Installation of 4 Stack Reducing Valve1222
Removal of 4 Stack Reducing Valve1222
Installation of 4 Stack Reducing Valve1223
Procedures for Assembly and Disassembly of Hydraulic Pump Main Unit1224
Tools1224
Disassembly Procedure1225
Assembly Procedure1227
Pump Main Unit Maintenance Standards1231
Replacement standards for worn parts1231
Standards for repairing cylinders, valve plates, and swash plates (shoe plates)1231
Tightening torque1232
Overall View1232
Drive Shaft Front Side1236
Drive Shaft Rear Side1237
Development Diagram1238
Part Table1240
Causes of Failures, and Actions1241
Regulator Adjustment1242
Appendix Table and Drawings1244
Regulator Assembly and Disassembly Procedures1247
Tools1247
Preparations for Disassembly1247
Disassembly Procedure1247
Assembly Procedures1249
Internal Configuration Diagram of Regulator1252
Development Diagram of Regulator1254
Component Table1255
Procedures for Assembly and Disassembly of Control Valve1257
Disassembly1257
Caution for Disassembly1257
Disassembly Procedure1257
Cleaning1260
Inspection1260
Assembly1260
Internal Structural Diagram1265
part list1271
Relief Valve1273
Assembly and Disassembly Procedure of Main Relief Valve1273
Assembly and Disassembly Procedures of Overload Relief1274
Assembly and Disassembly Procedure of Main Relief Valve for Add-On1275
Assembly and Disassembly Procedure of Negative Control Relief Valve1275
Adjustment of Relief Valve1276
Installation1277
Operation1277
Malfunction and Countermeasure1277
Procedures for Assembly and Disassembly of Operation Remote Control Valve1279
Maintenance Procedures1279
Required Tools and Tightening Torque1279
Maintenance Standards1279
Disassembly Procedures1280
Assembly Procedures1282
Causes of Trouble and Countermeasures1286
Procedures for Assembly and Disassembly of Travel Remote Control Valve1290
Maintenance Procedures1290
Disassembly Procedures1291
Assembly Procedures1295
Causes of Trouble and Countermeasures and Cross-section Diagram1300
Assembly and Disassembly of Cushion Valve1303
Disassembly Procedures1303
Reverse Operation Spool1303
Check Plunger With Orifice1303
Shuttle valve1303
Assembly Procedures1304
Reverse Operation Spool1304
Check Plunger with Orifice1304
Shuttle Valve1304
Document1305
Pressure Measurement and Adjustment Procedures1308
Procedures for Pressure Measurement from the Monitor Display1308
Monitor and Switch Panel1308
Pressure Measurement Method1308
Operating Method1308
PROCEDURES FOR MEASURING HYDRAULIC OIL TEMPERATURE FROM THE MONITOR DISPLAY1308
Hydraulic Oil Temperature Measurement Method1308
Operating Method1309
Procedures for Pressure Measurement by Installing Pressure Gauge1310
Preparations1310
Items to prepare1310
Pressure Measuring Port1311
Control Valve1313
Location of Relief Valves1313
Pressure Measurement Preparations1314
Pressure Measurement1316
Main Pressure Measurement1316
A Attachment Pressure Measurement1317
Boom-down Pressure Measurement1318
D Option Line Pressure Measurement1318
Pilot Pressure Measurement1318
Pressure Gauge Installation1318
Negative Control Pressure Measurement1319
Pressure Gauge Installation1319
Pressure Adjustment1319
Main Pressure Adjustment1319
Pressure Measurement and Adjustment Preparations1319
Main Relief Pressure Adjustment1320
Overload Relief Pressure Adjustment1321
Adjustment of Swing Relief Pressure1322
Pilot Pressure Adjustment1322
Hydraulic Pump Flow Measurement Procedures1323
Preparations1323
Items to Prepare1323
Work Preparations1324
Flow Measurement1325
Air Bleed Procedure1327
Hydraulic Pump1327
Sampling Procedure1328
Sampling of Hydraulic Fluid1328
Hydraulic Equipment Layout1329
Overall View1330
Pump Chamber Hydraulic Equipment Layout1331
Swing Body Center Section Hydraulic Equipment Layout1332
Housing Left Side Hydraulic Equipment Layout1333
Layout of Hydraulic Equipment in Cab1334
N CAB1414
Removal and Installation of Operator’s Seat1417
Removal of Operator’s Seat1417
Installation of Operator’s Seat1417
Removal and Installation of Cab Assembly1418
Removal of Cab Assembly1418
Installation of Cab Assembly1421
Removal and Installation of Wiper1422
Removal of Wiper1422
Installation of wiper1422
Removal and Installation of Cab Windshield1423
Removal of Cab Windshield1423
Installation of Cab Front Glass1423
Window Lock Adjustment Procedure1424
Window Lock (front side)1424
Window Lock (rear side)1424
Removal and Installation of Housing Guardrail1425
Removal of Housing Guardrail1425
Installation of Housing Guardrail1425
Tightening torque1426
R ELECTRICAL PARTS1428
Basic Functions1432
Monitor Control1432
Monitor Display Dimming1432
Diagnostic Trouble Code Indicator1433
Clock1433
Basic Operation1434
Battery save1434
Accessories1436
Working Light1436
LED Light1437
Room Lamp1437
Radio Mute1439
Wiper and Washer1440
Safety1442
Horn1442
Back/Side View Monitor1443
Precautions for Camera Installation1444
Maintenance1444
Anti-theft1444
Manual Lock1445
Service Support Screen Lock1445
Customer-specific System Information Screen Lock1445
Maintenance Information Screen Lock1446
Option Line Setting Screen Lock1446
Setting1446
Clock Adjustment1446
Screen Brightness Setting1447
Battery disconnect switch1448
Explanation of Controller1449
Service Support1452
Screen Operations1452
Screen Display List1452
Service Monitor Structure1453
CHECK Screen List1454
MACHINE STATUS1455
HYDRAULIC STATUS1462
ENGINE STATUS1469
FAULT HISTORY1474
WORK HISTORY1474
HYDRAULIC HISTORY1482
ENGINE HISTORY1495
DEVICE TEST1518
ECM/DCU Memory Clear1518
SCR RE-GEN1519
Urea Line Leak Test1520
CCV Operation Test1520
Dosing Test1521
Reverting Valve Operation Test1522
Common Rail Pressure Test1523
Idle Speed Test / Injector Test1524
EGR Valve Control Test1526
VG Turbo Control Test1527
Intake Throttle Control Test1528
CONTROL UNIT Screen List1529
MCM-MAIN1529
MCM-SUB1533
COMMU TERMINAL1534
SETUP Screen List1536
MACHINE SELECT1536
DIMENSIONS1541
PARAMETERS1544
ENGINE INFORMATION1548
ENGINE INFORMATION1549
Data Confirmation1549
Data Transfer (Copy)1549
QR (INJECTOR) CODE1550
Injector number1550
Screen Layout1551
Data Source Selection1551
Manual Input1551
CAMERA1553
PASSWORD1556
CALIBRATE Screen List1558
THROTTLE VOLUME1559
OPTLINE RELIEF1560
PUMP FLOW1562
RESET Screen List1564
Connection Connector Pin Layout1567
Main Controller1567
Monitor1568
Sequence Circuit Diagram1569
Code List1569
Overall1572
Block diagram1575
Main controller1575
DCU1576
ECM1577
Monitor1578
Air conditioner1578
Gate Lock1579
Option1579
Others1580
Electrical Symbol List1580
Electrical Equipment Layout Diagram1582
Main Unit Left-side Layout Diagram1583
Engine Section Layout Diagram1585
Main Unit Right Rear Section Layout Diagram1588
Main Unit Right Front Section Layout Diagram1589
Cab Layout Diagram 11590
Cab Layout Diagram 21591
Layout Around Operator Seat1594
Stand Alone Parts Diagram1595
Removal and Installation of Wiper Controller1617
Removal of Wiper Controller1617
Installation of wiper controller1617
Removal and Installation of Wiper Motor1618
Removal of Wiper Motor1618
Installation of wiper motor1619
Removal and Installation of ECM1620
Removal of ECM1620
Installation of ECM1620
Removal and Installation of Main Controller1621
Main controller Removal1621
Installation of Main Controller1621
Removal and Installation of DCU1622
Removal of DCU1622
Installation of DCU1622
Removal and Installation of Monitor1623
Removal of Monitor1623
Installation of Monitor1624
Removal and Installation of Rear View Camera 1625
Removal of Rear View Camera1625
Installation of Rear View Camera1625
Removal and Installation of Side Camera (Right)1626
Removal of Side Camera (Right)1626
Installation of Side Camera (Right)1626
Removal and Installation of Side Camera (Left)1627
Removal of Side Camera (Left)1627
Installation of Side Camera (Left)1627
Removal and Installation of Ambient light1629
Removal of Ambient Light1629
Installation of Ambient Light1630
Removal and Installation of WAVES Controller1631
Removal of WAVES Controller1631
Installation of WAVES Controller1631
How to Set WAVES1632
Air Conditioner Overall Diagram1636
Frame1636
Cab1639
Equipment Layout Diagram1642
Circuit Diagram1644
Air Conditioner Circuit Diagram1644
Explanation of Functions1646
Explanation of Control1646
Air Mix Motor Actuator Control1647
Blow Mode Motor Actuator Control1647
Refresh/Recirculate Switch Motor Actuator Control1649
Blower Amp Control1649
Compressor Clutch Control1652
COOLMAX Control and HOTMAX Control1653
Abnormality Detection and Control after Abnormality Detected1653
Monitor Mode1656
Door Switch Control1658
Actuator Inspection1659
Air Mix Motor Actuator Inspection1659
Refresh/Recirculate Switch Motor Actuator Inspection1660
Mode Motor Actuator Inspection1661
Self-diagnosis Function with Panel Display1663
Abnormality Display and Self-check Procedures1663
Abnormality Display Position1663
Explanation of Abnormality Display1663
Motor Actuator Abnormality1663
Sensor Abnormality1664
Explanation of Monitor Mode1664
Monitor Mode Display Position1664
Monitor Mode Display Operating Method1665
Display Contents in Monitor Mode1666
Air Conditioner Troubleshooting1667
Part Function and Good/Poor Judgment1671
Control Panel1671
Blower Amp1672
Relay1673
Air Mix Actuator1673
Refresh/Recirculate Actuator1674
Mode switch actuator1675
Evaporator Sensor1675
Dual Pressure Switch1676
Solar Radiation Sensor1677
Inside Air Sensor1677
Assembly and Disassembly of Unit1678
Removal of Blower Unit1678
Replacement of Blower Motor1678
Replacement of Blower Amp1679
Removal of Heater Core1679
Removal of Switchover BOX1679
Replacement of Evaporator and Expansion Valve1680
Installation of Evaporator Sensor1681
Replacement of Motor Actuator1681
Removal and Installation of Compressor1683
Removal of Compressor1683
Installation of Compressor1683
Removal and Installation of Condenser1684
Removal of Condenser1684
Installation of Condenser1685
Removal and Installation of Receiver Dryer1686
Removal of Receiver Dryer1686
Installation of Receiver Dryer1686
Work Precautions1688
Work Procedures1688
Air Conditioner Refrigerant Filling is Divided into the “Vacuum Operation” and “Gas Filling Operation”1688
Operation Chart1689
Tools1689
Filling Procedures1691
Charging Hose Connection Position1691
Connecting Gauge Manifold1691
Vacuuming1692
Gas Filling Operation, High-pressure Side1693
Gas Filling Work, Low Pressure Side1693
V ATTACHMENTS1764
Main Equipment Table1768
Backhoe Attachment1768
Cylinder1768
Cylinder (Blade)1768
Maintenance Standards1769
Attachment (Backhoe)1769
1 Boom and Swing Frame Installation Section1769
2 Boom Cylinder and Swing Frame Installation Section1770
3 Boom and Boom Cylinder Installation Section1770
4 Boom and Arm Cylinder Installation Section1771
5 Boom and Arm Installation Section1771
6 Arm and Arm Cylinder Installation Section1772
7 Arm and Bucket Cylinder Installation Section1773
8 Arm and Arm Link Installation Section1773
9 Bucket and Bucket Link Installation Section1774
10 Bucket Link and Bucket Cylinder Installation Section1774
11 Bucket and Arm Installation Section1775
Dozer Blade1777
1 Blade Cylinder Installation Section1777
2 Lower Frame and Blade Cylinder Installation Section1778
3 Lower Frame and Blade Installation Section1778
Removal and Installation of Bucket Cylinder1779
Removal of Bucket Cylinder1779
Installation of Bucket Cylinder1781
Removal and Installation of Arm Cylinder1782
Removal of Arm Cylinder1782
Installation of Arm Cylinder1784
Removal and Installation of Boom Cylinder1787
Removal of Boom Cylinder1787
Installation of Boom Cylinder1789
Removal and Installation of Blade Cylinder1791
Removal of Blade Cylinder1791
Installation of Blade Cylinder1792
Procedures for Operation/Assembly and Disassembly of Hydraulic Cylinder1795
Specifications and Structure Diagram (including the assembly diagram and parts table)1795
Basic Functions1795
Function of Each Location1795
Cylinder Head Assembly (made by KYB)1795
Piston Assembly (made by KYB)1796
Pipe Assembly (made by KYB)1798
Handling Precautions1798
Precautions for Installing the Cylinder on the Machine Body1798
Usage Cautions1799
Maintenance and Inspection Cautions1799
Maintenance Inspection and Service1801
Trouble Diagnostics1802
Storage Standards1807
Storing Parts Individually (In principle, store indoors)1807
When Mounted on Vehicle Body1807
Recommended Anti-rust Oil1807
Assembly and Disassembly Procedures1808
Preparations ····· Prepare the Following before Starting Disassembly1808
General Work Precautions1808
Maintenance Standards1808
Inspection after Assembly1808
Required Tool1809
General Tool1809
Special Jig (made by KYB)1810
Special Jig Parts Number List (made by KYB)1810
Disassembly Procedures (made by KYB)1811
Assembly Procedures (made by KYB)1814
Test Operation1819
Usage Limits1820
Structural Diagram (made by KYB)1821
Boom Cylinder1821
Arm Cylinder1823
Bucket Cylinder1825
Blade Cylinder1827
HBCV1829
structure1829
Function1829
operation explanation1829
Port Diagram1844
HBCV1844
Air Bleed Procedure1845
HBCV1845
Boom Cylinder HBCV1845
Arm Cylinder HBCV1846
Removal and Installation of HBCV1847
Removal and Installation of Arm HBCV1848
Removal of arm HBCV1848
Installation of Arm HBCV1848
Removal and Installation of Boom HBCV1849
Removal of Boom HBCV1849
Installation of boom HBCV1850
Removal and Installation of Bucket1851
Removal of Bucket1851
Installation of Bucket1851
Removal and Installation of Bucket Link1853
Removal of Bucket Link1853
Installation of Bucket Link1853
Removal and Installation of Arm1855
Removal of Arm1855
Installation of Arm1856
Removal and Installation of Boom1857
Removal of Boom1857
Installation of Boom1859
Removal and Installation of Blade1862
Removal of Blade1862
Blade Installation1862
Z OTHER1864
Change from Type 61869
Overall Layout1869
Engine1869
Hydraulic-related Data1871
Oil Pressure Control1872
Cab, House1873
Electrical Data1873
Electric Control1874
Specifications (145X4) (LC Specifications)1875
ENGINE1875
HYDRAULIC SYSTEM1875
HYDRAULIC CONTROLS1876
ELECTRICAL SYSTEM1876
OPERATOR ENVIRONMENT1877
UNDERCARRIAGE1877
MASS1878
DIGGING FORCE (with 05 m3 Sumitomo Bucket) (ISO 6015)1878
DIMENSIONS1878
WORKING RANGES1879
SYSTEM FLUID CAPACITIES AND SPECIFICATIONS1879
Specifications (145X4) (Blade Specifications)1880
ENGINE1880
HYDRAULIC SYSTEM1880
HYDRAULIC CONTROLS1881
ELECTRICAL SYSTEM1881
OPERATOR ENVIRONMENT1882
UNDERCARRIAGE1883
DOZER BLADE1883
MASS1883
DIGGING FORCE (with 05 m3 Sumitomo Bucket) (ISO 6015)1883
DIMENSIONS1883
WORKING RANGES1884
SYSTEM FLUID CAPACITIES AND SPECIFICATIONS1884
Arm Dimensions1885
Standard Arm [250 m (82021 ft)]1885
Short Arm [211 m (69226 ft)]1887
Long Arm [301 m (98753 ft)]1889
Main Unit Weight1891
Divided Weight (LC Specifications)1891
Divided Weight (Blade Specifications)1892
Stand Alone Part Weight1892
Stand Alone Part Weight1893
Shoe Weight (per Side) (LC Specifications)1893
Shoe Weight (per Side) (Blade Specifications)1893
Arm Weight1894
Bolt Size and Torque Table1895
Special Torque Setting1895
Overall View1900
145X4 (LC Specifications) (Grouser Shoe)1900
Standard Arm [250 m (82021 ft)]1900
Long Arm [301 m (98753 ft)]1901
Short Arm [211 m (69226 ft)]1902
145X4 (LC Specifications) (Link Chain)1903
Standard Arm [250 m (82021 ft)]1903
Long Arm [301 m (98753 ft)]1904
Short Arm [211 m (69226 ft)]1905
145X4 (Blade Specifications) (Grouser Shoe)1905
Standard Arm [250 m (82021 ft)]1905
Long Arm [301 m (98753 ft)]1906
Short Arm [211 m (69226 ft)]1907
145X4 (Blade Specifications) (Link Chain)1909
Standard Arm [250 m (82021 ft)]1909
Short Arm [211 m (69226 ft)]1910
Long Arm [301 m (98753 ft)]1911
WORK RANGE DIAGRAM1912
145X4 (LC Specifications)1912
Standard Arm [250 m (82021 ft)]1912
Long Arm [301 m (98753 ft)]1914
Short Arm [211 m (69226 ft)]1915
145X4 (Blade Specifications)1917
Standard Arm [250 m (82021 ft)]1917
Long Arm [301 m (98753 ft)]1919
Short Arm [211 m (69226 ft)]1920
New Machine Performance Judgment Table1922
Table of Standards1922
Measurement Method1925
Engine Speed1925
Pressure in Each Section1925
Pump Command Displacement1925
Cylinder Falling Amount1925
Attachment Speed1926
Swing Speed1926
Swing (180°) Brake Angle1927
Travel Speed1927
Travel Deviation1927
Travel Sprocket Speed1928
Shoe Tension Amount1928
Swing Ball Race Bearing Movement Amount and Bucket Tip Movement Amount1929
FLUIDS AND LUBRICANTS1931
HYDRAULIC FLUID1931
Engine Oil1931
Fuel1931
Conditions applicable to diesel fuel1931
Recommended conditions applicable to diesel fuels1931
Main-Unit-related Diagnostic Trouble Code List1932
Main Unit-side Trouble1935
Diagnostic Trouble Code: 7000 Pressure Sensor P1 Abnormality1935
Diagnostic Trouble Code: 7001 Pressure Sensor P2 Abnormality1937
Diagnostic Trouble Code: 7002 Pressure Sensor N1 Abnormality1939
Diagnostic Trouble Code: 7003 Pressure Sensor N2 Abnormality1941
Diagnostic Trouble Code: 7004 Pressure sensor Boom Cylinder Bottom Abnormality1943
Diagnostic Trouble Code: 7007 Pressure Sensor Arm Cylinder Rod Abnormality1945
Diagnostic Trouble Code: 7021 Pressure sensor swing pilot abnormality1947
Diagnostic Trouble Code: 7023 Pressure sensor arm-in pilot abnormality1949
Diagnostic Trouble Code: 7040 Level Sensor Fuel Abnormality1951
Diagnostic Trouble Code: 7041 Temperature sensor hydraulic oil abnormality1953
Diagnostic Trouble Code: 7065 Pressure sensor boom-up pilot abnormality1955
Diagnostic Trouble Code: 7067 Pressure sensor bucket-close pilot abnormality1957
Diagnostic Trouble Code: 7068 Pressure sensor boom-down pilot abnormality1959
Diagnostic Trouble Code: 7069 Pressure sensor arm-out pilot abnormality1961
Diagnostic Trouble Code: 7070 Pressure sensor bucket-open pilot abnormality1963
Diagnostic Trouble Code: 7071 Pressure Sensor Travel Right Pilot Abnormality1965
Diagnostic Trouble Code: 7072 Pressure Sensor Travel Left Pilot Abnormality1967
Diagnostic Trouble Code: 7074 Pressure Sensor 1st Option Pilot (Common/Front Press) Abnormality1969
Diagnostic Trouble Code: 7075 Pressure Sensor Arm Cylinder Bottom Abnormality1971
Diagnostic Trouble Code: 7078 Pressure Sensor 1st Option Pilot (Back Press) Abnormality1973
Diagnostic Trouble Code: 7200 Swing Brake Solenoid Abnormality1975
Diagnostic Trouble Code: 7201 Travel 2nd Speed Switchover Solenoid Abnormality1977
Diagnostic Trouble Code: 7202 Pressure Boost Solenoid Abnormality1978
Diagnostic Trouble Code: 7203 Travel Alarm Buzzer Abnormality1979
Diagnostic Trouble Code: 7206 Option Return Line Switchover Solenoid Abnormality1980
Diagnostic Trouble Code: 7207 Free Swing Solenoid Abnormality1982
Diagnostic Trouble Code: 7213 Quick Coupler Buzzer Abnormality1983
Diagnostic Trouble Code: 7214 Quick Coupler Solenoid Abnormality1985
Diagnostic Trouble Code: 7247 Boom-2 Down Pilot Proportional Valve Abnormality1987
Diagnostic Trouble Code: 7249 Bucket-close Pilot Proportional Valve Abnormality1989
Diagnostic Trouble Code: 7250 Option Relief Pressure Proportional Valve Abnormality1991
Diagnostic Trouble Code: 7265 Arm 1 Semi-Parallel Proportional Valve Abnormality1993
Diagnostic Trouble Code: 7270 Tilting 1 Proportional Valve Abnormality1995
Diagnostic Trouble Code: 7271 Tilting 2 Proportional Valve Abnormality1997
Diagnostic Trouble Code: 7273 Straight Travel Proportional Valve Abnormality1999
Diagnostic Trouble Code: 7400 Coolant Temperature Overheating 12001
Diagnostic Trouble Code: 7401 Coolant Temperature Overheating 22002
Diagnostic Trouble Code: 7404 Oil Temperature Overheating2003
Diagnostic Trouble Code: 7405 Boost Temperature Overheating 12004
Diagnostic Trouble Code: 7406 Boost Temperature Overheating 22005
Diagnostic Trouble Code: 7420 Alternator Power Generation Defect2006
Diagnostic Trouble Code: 7421 Decrease in Coolant Level2008
Diagnostic Trouble Code: 7422 Decrease in Engine Oil Pressure2009
Diagnostic Trouble Code: 7423 Air Cleaner Clogging2010
Diagnostic Trouble Code: 7424 Return Filter Clogging2011
Diagnostic Trouble Code: 7426 Fuel Filter Clogging 12012
Diagnostic Trouble Code: 7427 Fuel Filter Clogging 22014
Diagnostic Trouble Code: 7428 Inducement (Remaining Urea Level Low) – Warning2016
Diagnostic Trouble Code: 7429 Inducement (Remaining Urea Level Low) – Early2017
Diagnostic Trouble Code: 7430 Inducement (Remaining Urea Level Low) – Final2018
Diagnostic Trouble Code: 7602: ECM Communication Abnormality2019
Diagnostic Trouble Code: 7605 ECM Not Matched2021
Diagnostic Trouble Code: 7606 EEPROM Abnormality2022
Diagnostic Trouble Code: 7608 Camera Abnormality2023
Diagnostic Trouble Code: 7612 Air Conditioner Communication Abnormality2025
Diagnostic Trouble Code: 7613 Monitor communication (CAN) abnormality2027
Diagnostic Trouble Code: 7618 DCU Communication Abnormality2029
List of special tools2031
NUMERICAL VALUE CONVERSION TABLE2031
Unit conversion rate2031
Length2031
Area2033
Volume2034
Weight2036
Pressure2037
Torque2038
Temperature2039
A2041
Travel Motor Special Tool2041
145X42041
Take-up Roller Special Tool2046
145X42046
Upper Roller Special Tool2047
130X4/145X42047
Lower Roller Special Tool2048
130X4/145X42048
C2048
Swing Motor Special Tool2048
145X42048
H2049
Engine Oil Filter Special Tool2049
130X4/145X4/160X42049
Fuel Filter Special Tool2049
130X4/145X4/160X42049
Injector Special Tool2050
130X4/145X4/160X42050
Circuit Test Special Tool2050
130X4/145X4/160X42050
Valve Guide Special Tool2050
130X4/145X4/160X42050
Cylinder Head Special Tool2051
130X4/145X4/160X42051
Head Bolt Special Tool2052
130X4/145X4/160X42052
Crankshaft Special Tool2053
130X4/145X4/160X42053
Valve Spring Special Tool2054
130X4/145X4/160X42054
J2055
Remote Control Valve Special Tool2055
130X4/145X42055
R2057
Gas Filling Special Tool2057
130X4/145X42057
V2057
Attachment Special Tool (for Cylinder Assembly)2057
Special Jigs Part Number List2057
Paint Colors2059
Abbreviation2061
J-HYDRAULIC EQUIPMENT OVERSIZE PAGES1335
WLSM1457-00LX-A3_J_Standard1335
WLSM1457-00LX-A3_J_Option1398
R-ELECTRICAL PARTS OVERSIZE PAGES1696
WLSM1457-00LX-A3_R_Electrical Connector Wiring1696
WLSM1457-00LX-A3_R_Electrical parts and wiring1748
S.M 2/1/25
