Linkbelt 2650Q-2700Q EXCAVATOR SHOP MANUAL WEL2710-0E(819) – PDF DOWNLOAD
Original price was: $90.95.$37.95Current price is: $37.95.
Linkbelt 2650Q-2700Q EXCAVATOR SHOP MANUAL WEL2710-0E(819) – PDF DOWNLOAD
Description
Linkbelt 2650Q-2700Q EXCAVATOR SHOP MANUAL WEL2710-0E(819) – PDF DOWNLOAD

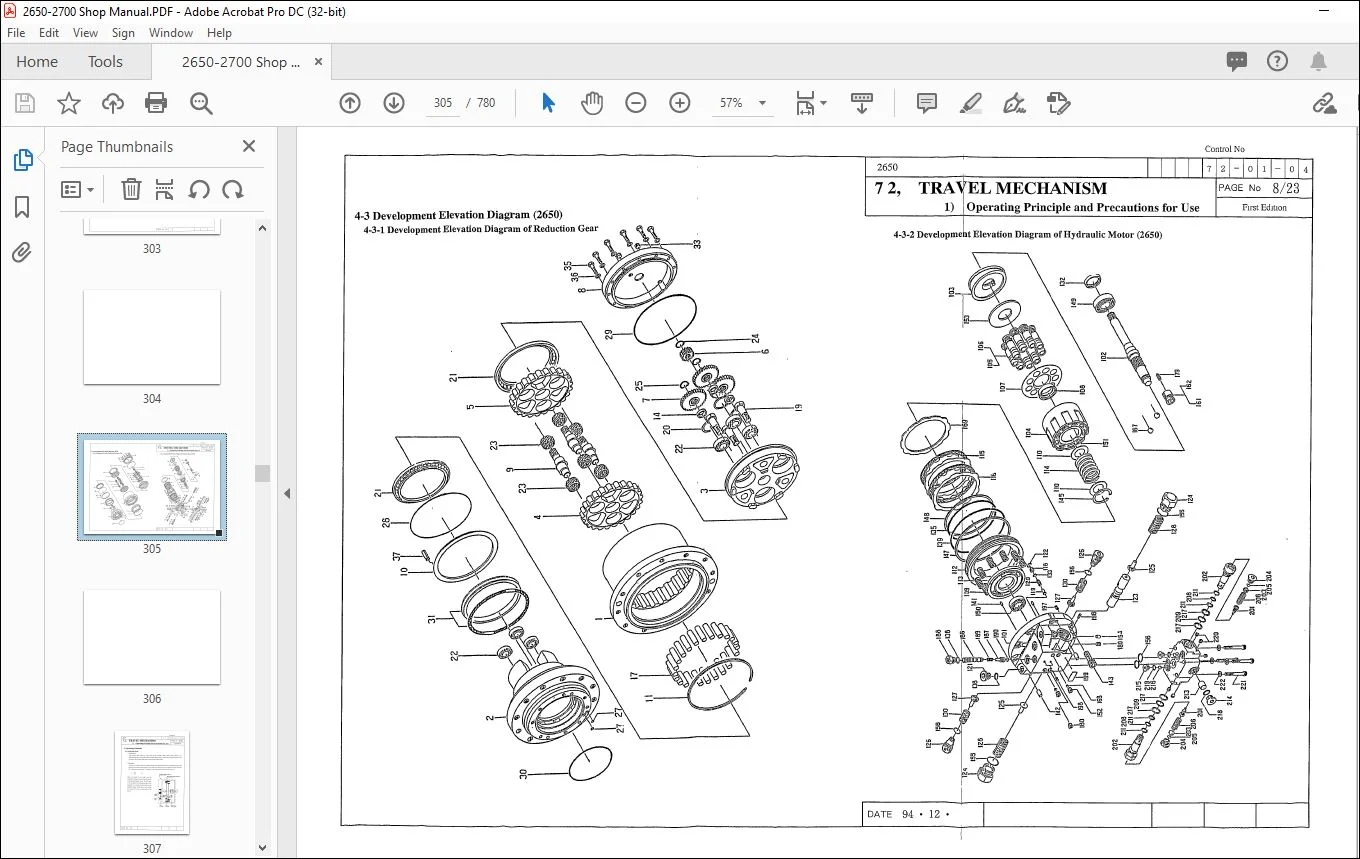

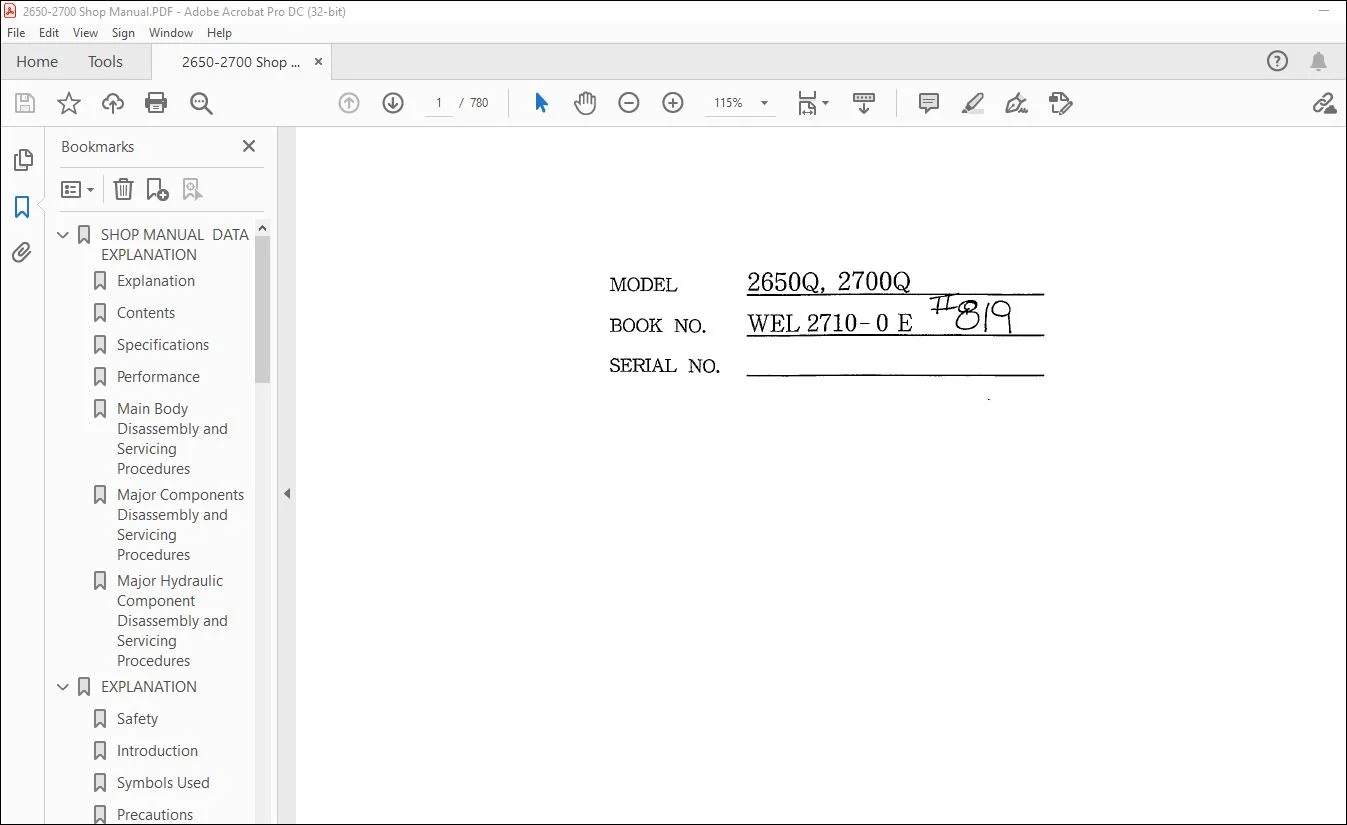

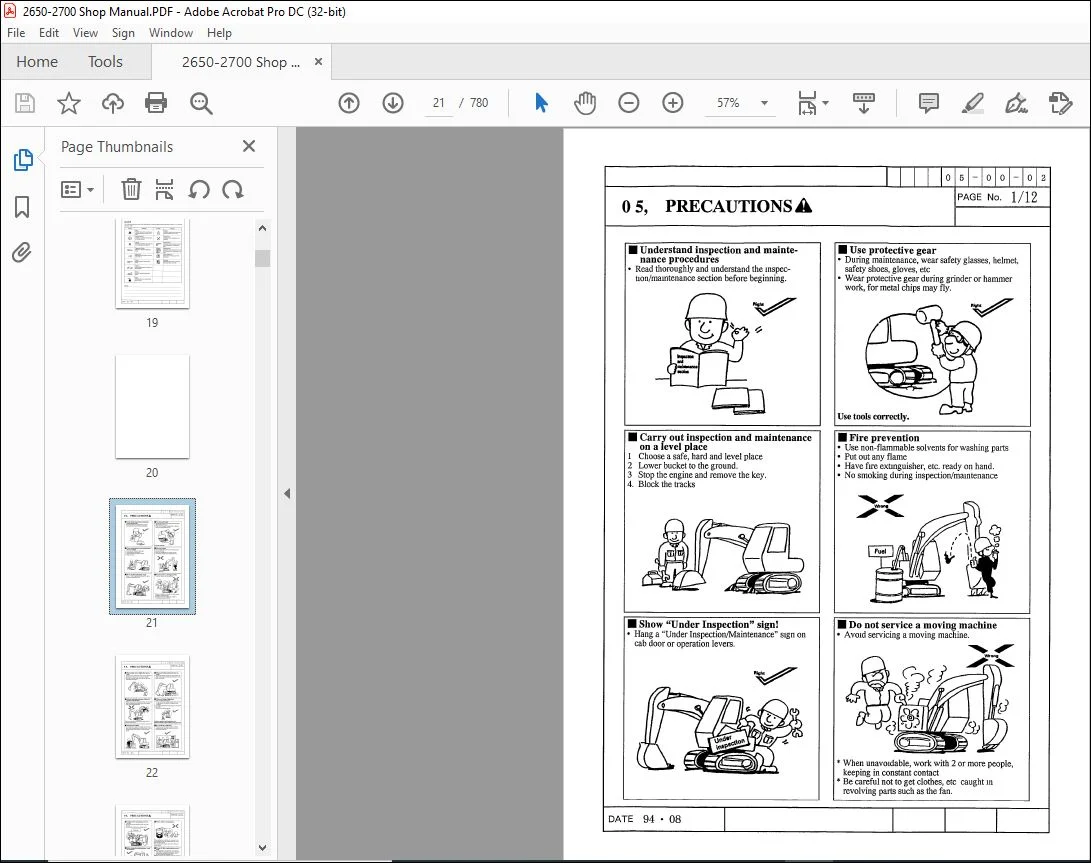

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Linkbelt 2650Q-2700Q EXCAVATOR SHOP MANUAL WEL2710-0E(819) – PDF DOWNLOAD
necessary to carry out suitable “Operations”, “Maintenance Inspections”, “Failure Diagnosis” and “Repair Work”
In this data, necessary information relating to inspection, failure diagnosis and repair are located in the “General”,
“Specifications” ,”Performance”, “Troubleshooting”, “Disassembly and Servicing Procedures” sections
Refer to the “Engine Manuals” published by the engine manufacturer for serv1cmg the engine
In add1t10n, mformat1on regarding daily inspection and maintenance 1s also included m the Operator’s Manual.
Make use of all data.
TABLE OF CONTENTS:
Linkbelt 2650Q-2700Q EXCAVATOR SHOP MANUAL WEL2710-0E(819) – PDF DOWNLOAD
0, SHOP MANUAL EXPLANATION
0 1, Contents
0 2, Safety
03, Introduction
04, Symbols Used
05, Precautions
0 6, Standard Torque Specifications
07, Numerical Value Conversion Table
1, GENERAL
(Material for special course)
(Refer to Service Text)
2, SPECIFICATIONS
~ . 2 1, Major Equipments Specifications
2 2, Main Body, Oils Grease
3, PERFORMANCE
~ 31, Mam Body Weight
4, MISSING NUMBER
5, MAIN BODY DISASSEMBLY AND SERVICING PROCEDURES
I 5 1, Lower Mechanism
5 2, Upper Mechanism
5 3, Attachment
5 4, Maintenance Standards
6, MAJOR COMONENTS DISASSEMBLY AND SERVICING PROCEDURES
~ , 6 1, Tightening Torque for Major Parts
6 2, Take Up Roller
6 3, Upper Roller
6 4, Lower Roller
6 5, Recoil Spring (2650)
Recoil Spring (2700)
6 6, Rotating Joint
7, MAJOR HYDRAURIC COMPONENT DISASSEMBLY AND SERVICING PROCEDURES
‘ ~ 71, HydraulicPump
7 2, Travel Equipment
7 3, Swing Equipment
7 4, Control Valve
7 5, Hyadraulic Cylinder
7 6, Remote Control Valve
77, Valve
