Linkbelt 330LX TIER III SERIES EXCAVATOR SHOP MANUAL 1160 – PDF DOWNLOAD
Original price was: $90.95.$36.95Current price is: $36.95.
Linkbelt 330LX TIER III SERIES EXCAVATOR SHOP MANUAL 1160 – PDF DOWNLOAD
Description
Linkbelt 330LX TIER III SERIES EXCAVATOR SHOP MANUAL 1160 – PDF DOWNLOAD

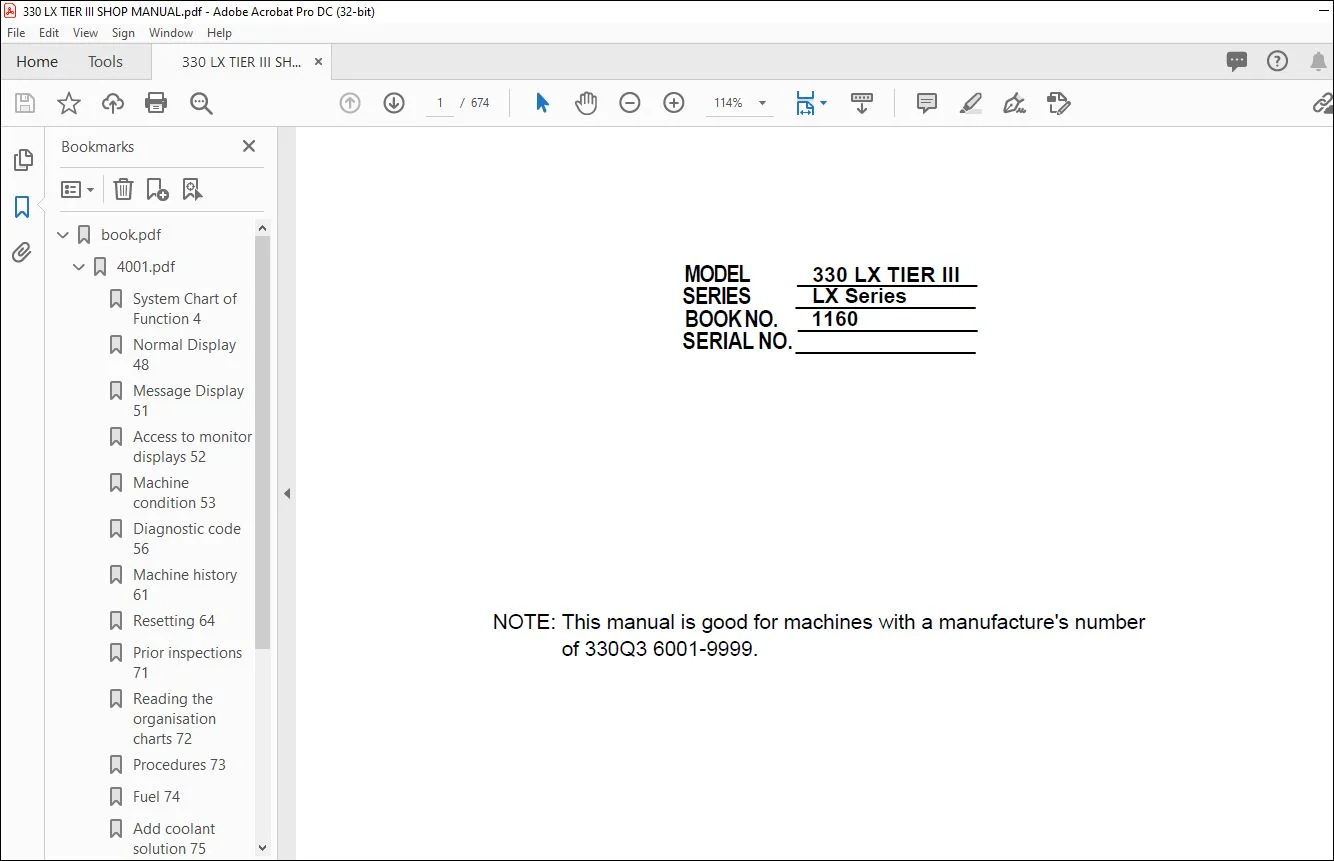

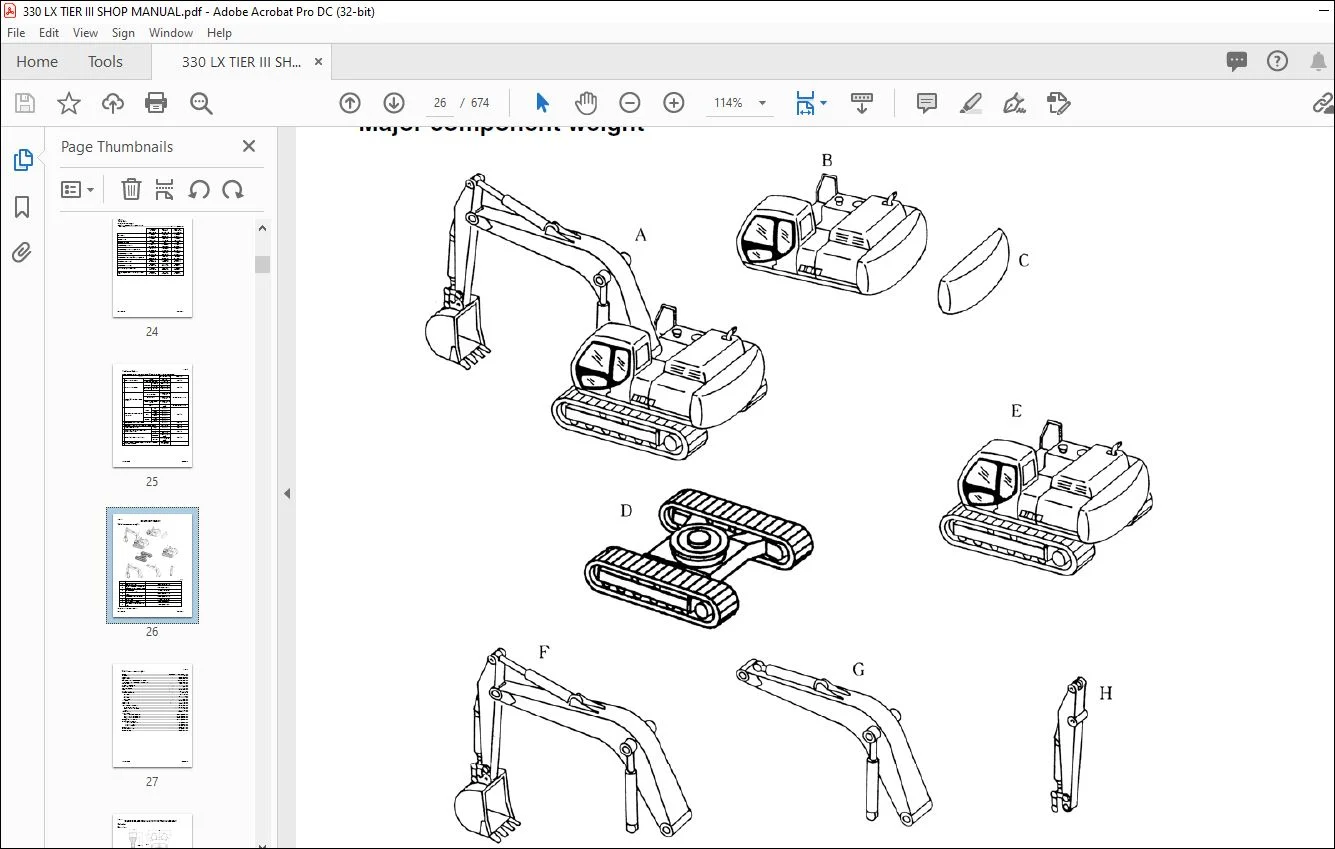

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Linkbelt 330LX TIER III SERIES EXCAVATOR SHOP MANUAL 1160 – PDF DOWNLOAD
Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
Inspection:
Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
Bearings:
Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
Needle bearings:
Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
Gears:
Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gaskets. Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.
Shafts:
Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
Service parts:
Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
Lubrication:
Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

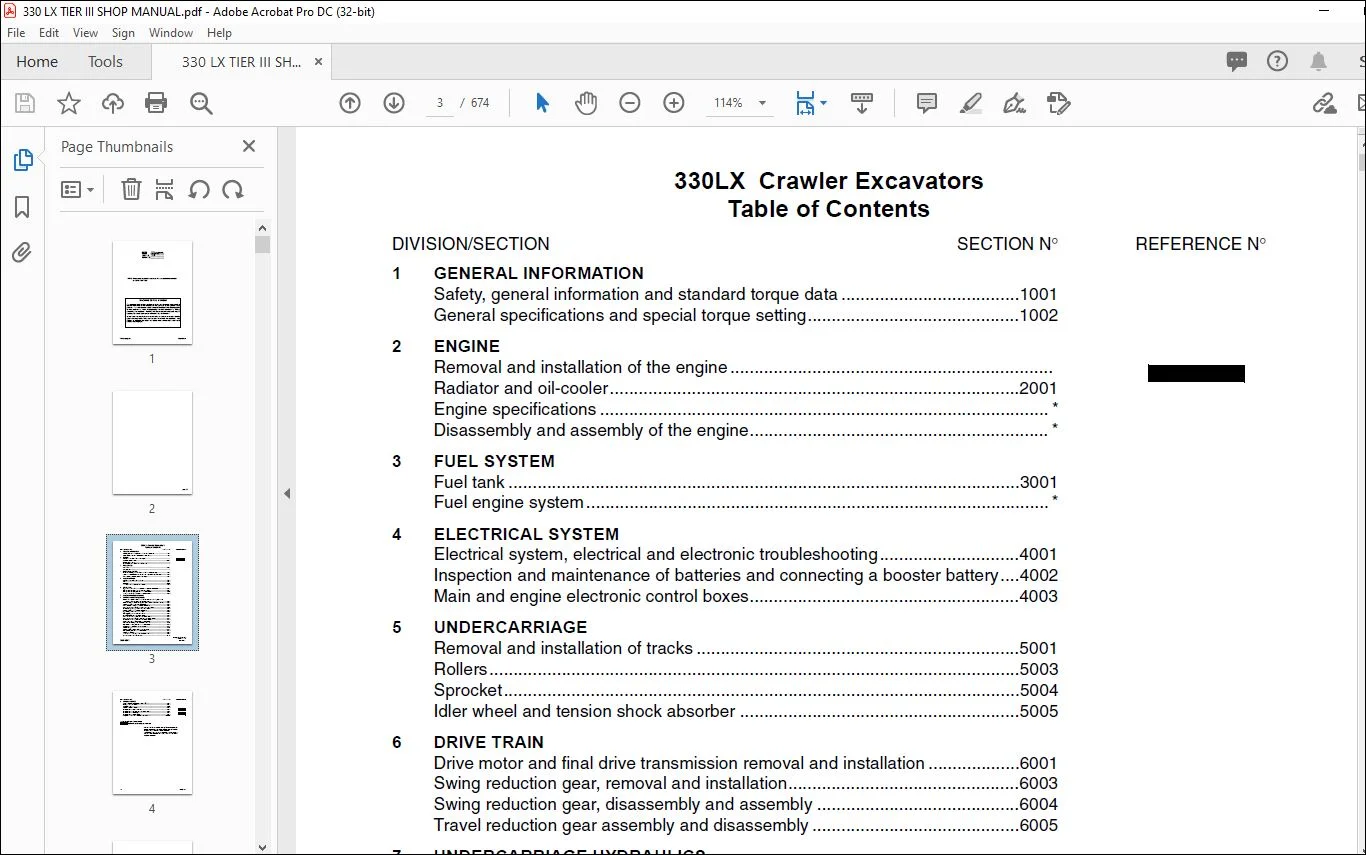

TABLE OF CONTENTS:
Linkbelt 330LX TIER III SERIES EXCAVATOR SHOP MANUAL 1160 – PDF DOWNLOAD
1 GENERAL INFORMATION
Safety, general information and standard torque data 1001
General specifications and special torque setting 1002
2 ENGINE
Removal and installation of the engine
Radiator and oil-cooler 2001
Engine specifications *
Disassembly and assembly of the engine *
3 FUEL SYSTEM
Fuel tank 3001
Fuel engine system *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting 4001
Inspection and maintenance of batteries and connecting a booster battery 4002
Main and engine electronic control boxes 4003
5 UNDERCARRIAGE
Removal and installation of tracks 5001
Rollers 5003
Sprocket 5004
Idler wheel and tension shock absorber 5005
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation 6001
Swing reduction gear, removal and installation 6003
Swing reduction gear, disassembly and assembly 6004
Travel reduction gear assembly and disassembly 6005
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components 8000
Specifications, troubleshooting, checks and hydraulic pressure settings 8001
Hydraulic reservoir removal and installation 8002
Main and pilot pumps, removal and installation 8003
Main hydraulic control valve, removal and installation 8004
Attachment cylinders, removal and installation 8005
Hydraulic swivel, removal and installation 8006
Pilot blocs, removal and installation 8007
Swing motor, removal and installation 8008
Free swing disassembly and assembly 8009
Main hydraulic pump, disassembly and assembly 8010
Main hydraulic control valve, disassembly and assembly 8011
Attachment cylinders, disassembly and assembly 8012
Hand control levers, disassembly and assembly 8013
Foot control levers, disassembly and assembly 8014
Six-solenoid valves, disassembly and assembly 8015
Caution valve, disassembly and assembly 8016
Safety valve 8017
Hydraulic swivel, disassembly and assembly 8018
Swing motor, disassembly and assembly 8019
Hydraulic functions 8020
Travel hydraulic motor, disassembly and assembly 8021
Hydraulic Component Functions 8030
LX Issued 06-07
DIVISION/SECTION SECTION N° REFERENCE N°
9 UPPERSTRUCTURE
Upperstructure, turntable and counterweight 9002
Boom, dipper and bucket 9003
Seat and seat belt 9004
Cab and cab equipment 9005
Air conditioning troubleshooting 9006
Air conditioning unit disassembly and assembly 9007
Air conditioning servicing 9008
Air conditioning components 9009
Large format hydraulic and electrical schematics Pocket
Questions? Email us: [email protected]
https://vimeo.com/738130626
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
S.V
