Linkbelt 600LX Excavators Service Manual 1118 – PDF DOWNLOAD

Description

Linkbelt 600LX Excavators Service Manual 1118 – PDF DOWNLOAD

FILE DETAILS:

Linkbelt 600LX Excavators Service Manual 1118 – PDF DOWNLOAD

Language : English
Pages : 576
Downloadable : Yes
File Type : PDF
Size: 95.4 MB

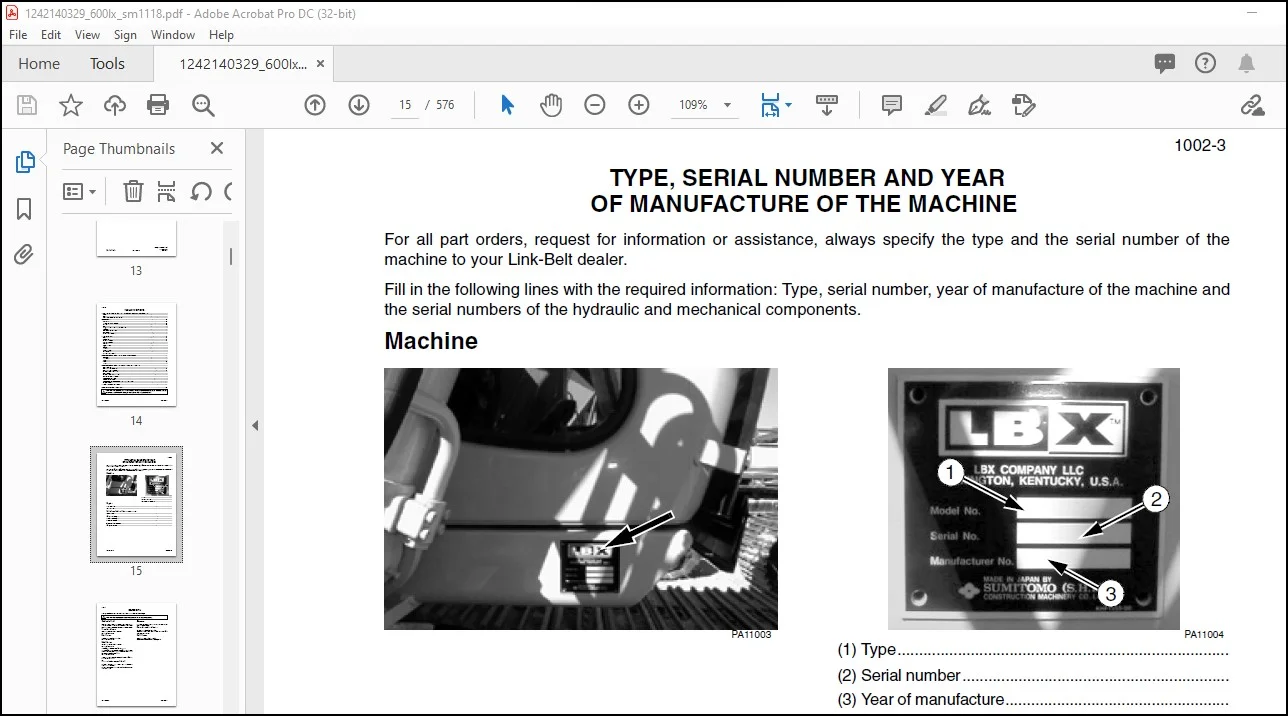

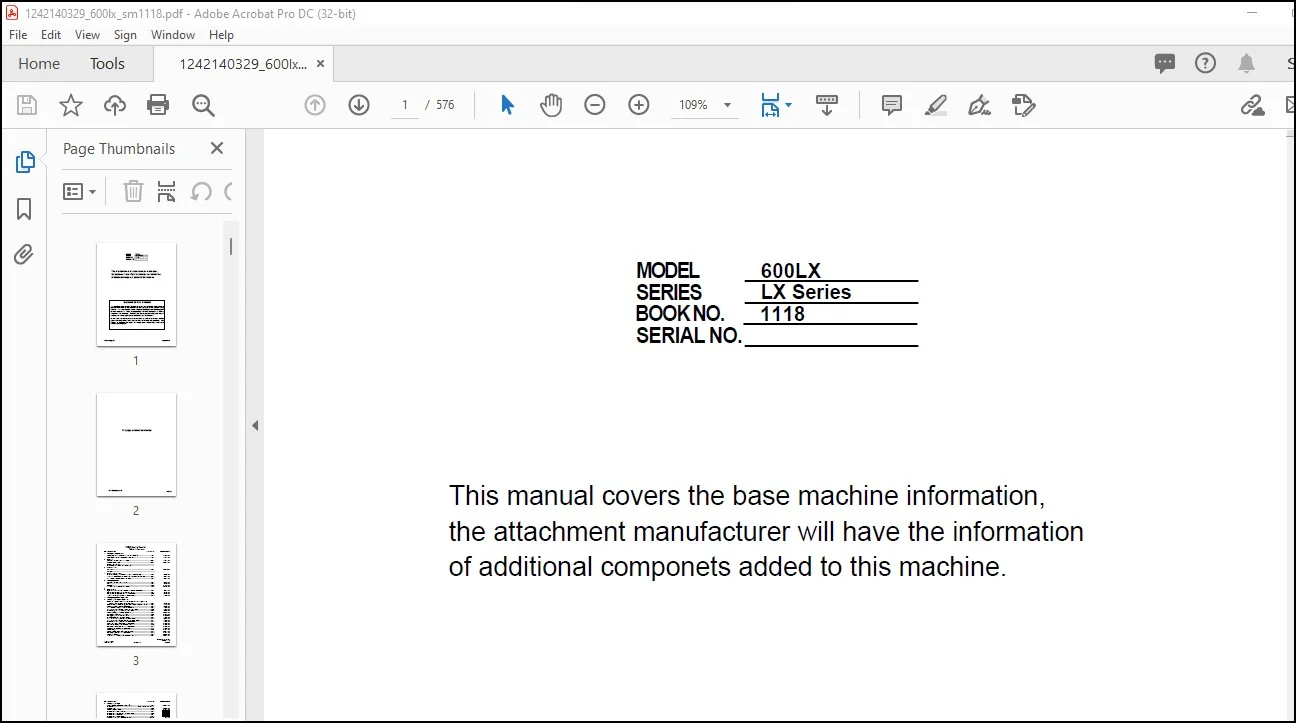

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

https://vimeo.com/771030012

DESCRIPTION:

Linkbelt 600LX Excavators Service Manual 1118 – PDF DOWNLOAD

GENERAL INFORMATION:

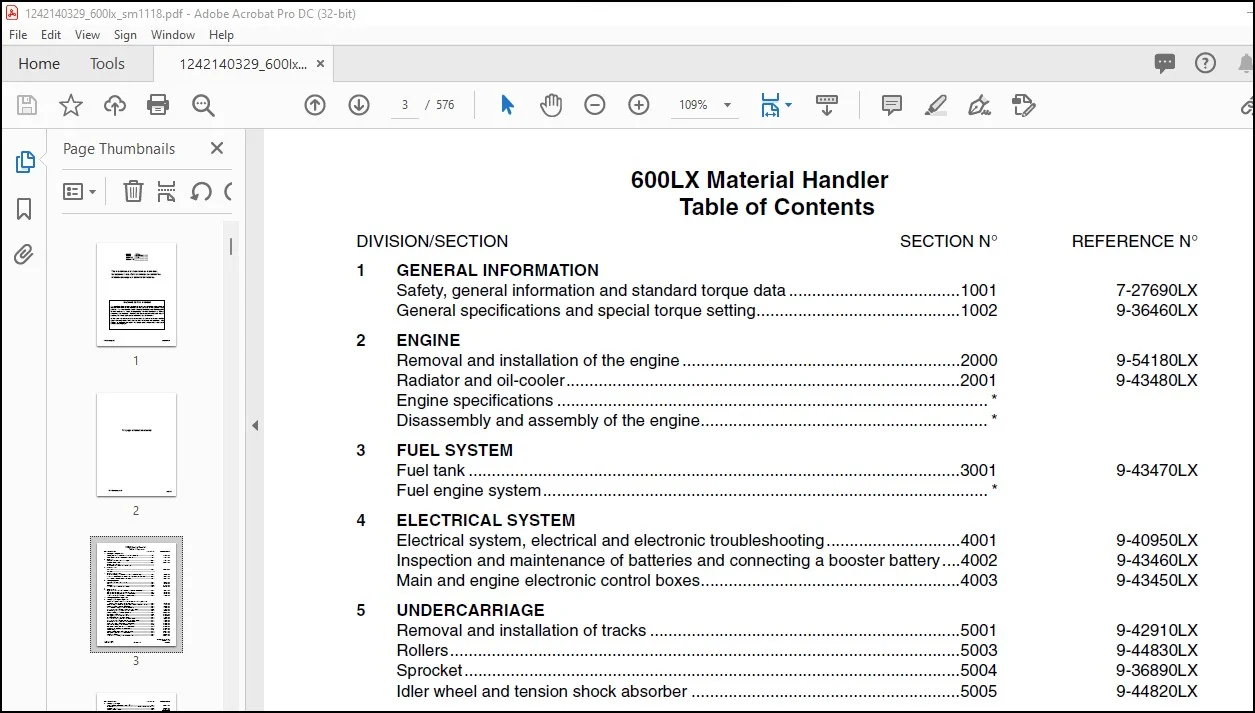

TABLE OF CONTENTS:

Linkbelt 600LX Excavators Service Manual 1118 – PDF DOWNLOAD

1 GENERAL INFORMATION
Safety, general information and standard torque data 1001 7-27690LX
General specifications and special torque setting 1002 9-36460LX
2 ENGINE
Removal and installation of the engine 2000 9-54180LX
Radiator and oil-cooler 2001 9-43480LX
Engine specifications *
Disassembly and assembly of the engine *
3 FUEL SYSTEM
Fuel tank 3001 9-43470LX
Fuel engine system *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting 4001 9-40950LX
Inspection and maintenance of batteries and connecting a booster battery 4002 9-43460LX
Main and engine electronic control boxes 4003 9-43450LX
5 UNDERCARRIAGE
Removal and installation of tracks 5001 9-42910LX
Rollers 5003 9-44830LX
Sprocket 5004 9-36890LX
Idler wheel and tension shock absorber 5005 9-44820LX
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation 6001 9-43140LX
Swing reduction gear, removal and installation 6003 9-44810LX
Swing reduction gear, disassembly and assembly 6004 9-44590LX
Travel reduction gear assembly and disassembly 6005 9-53710LX
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components 8000 9-44560LX
Specifications, troubleshooting, checks and hydraulic pressure settings 8001 9-36910LX
Hydraulic reservoir removal and installation 8002 9-43230LX
Main and pilot pumps, removal and installation 8003 9-53950LX
Main hydraulic control valve, removal and installation 8004 9-53990LX
Attachment cylinders, removal and installation 8005 9-43250LX
Hydraulic swivel, removal and installation 8006 9-43390LX
Pilot blocs, removal and installation 8007 9-53980LX
Swing motor, removal and installation 8008 9-53970LX
Free swing disassembly and assembly 8009 9-35530LX
Main hydraulic pump, disassembly and assembly 8010 9-43330LX
Main hydraulic control valve, disassembly and assembly 8011 9-54310LX
Attachment cylinders, disassembly and assembly 8012 9-53690LX
Hand control levers, disassembly and assembly 8013 9-54000LX
Foot control levers, disassembly and assembly 8014 7-28210LX
Six-solenoid valves, disassembly and assembly 8015 9-54050LX
Caution valve, disassembly and assembly 8016 7-27942LX
Safety valve 8017 9-54100LX
Hydraulic swivel, disassembly and assembly 8018 9-43190LX
Swing motor, disassembly and assembly 8019 9-54140LX
Hydraulic functions 8020 9-42740LX
Travel hydraulic motor, disassembly and assembly 8021 9-43160LX
Cre 9-54350LX Issued 06-03
DIVISION/SECTION SECTION N° REFERENCE N°
9 UPPERSTRUCTURE
Upperstructure, turntable and counterweight 9002 9-43410LX
Attachment See Attachment Manfacturer
Seat and seat belt 9004 9-40960LX
Cab and cab equipment 9005 9-53410LX
Air conditioning troubleshooting 9006 7-xxxxxFR
Air conditioning unit disassembly and assembly 9007 7-29910GB
Air conditioning servicing 9008 7-xxxxxFR
Air conditioning components 9009 7-xxxxxFR
Large format hydraulic and electrical schematics Pocket 9-43170
