Linkbelt 700 X2 Excavator Service Manual – PDF DOWNLOAD

Description

Linkbelt 700 X2 Excavator Service Manual – PDF DOWNLOAD

FILE DETAILS:

Linkbelt 700 X2 Excavator Service Manual – PDF DOWNLOAD

Language : English
Pages : 1140
Downloadable : Yes
File Type : PDF

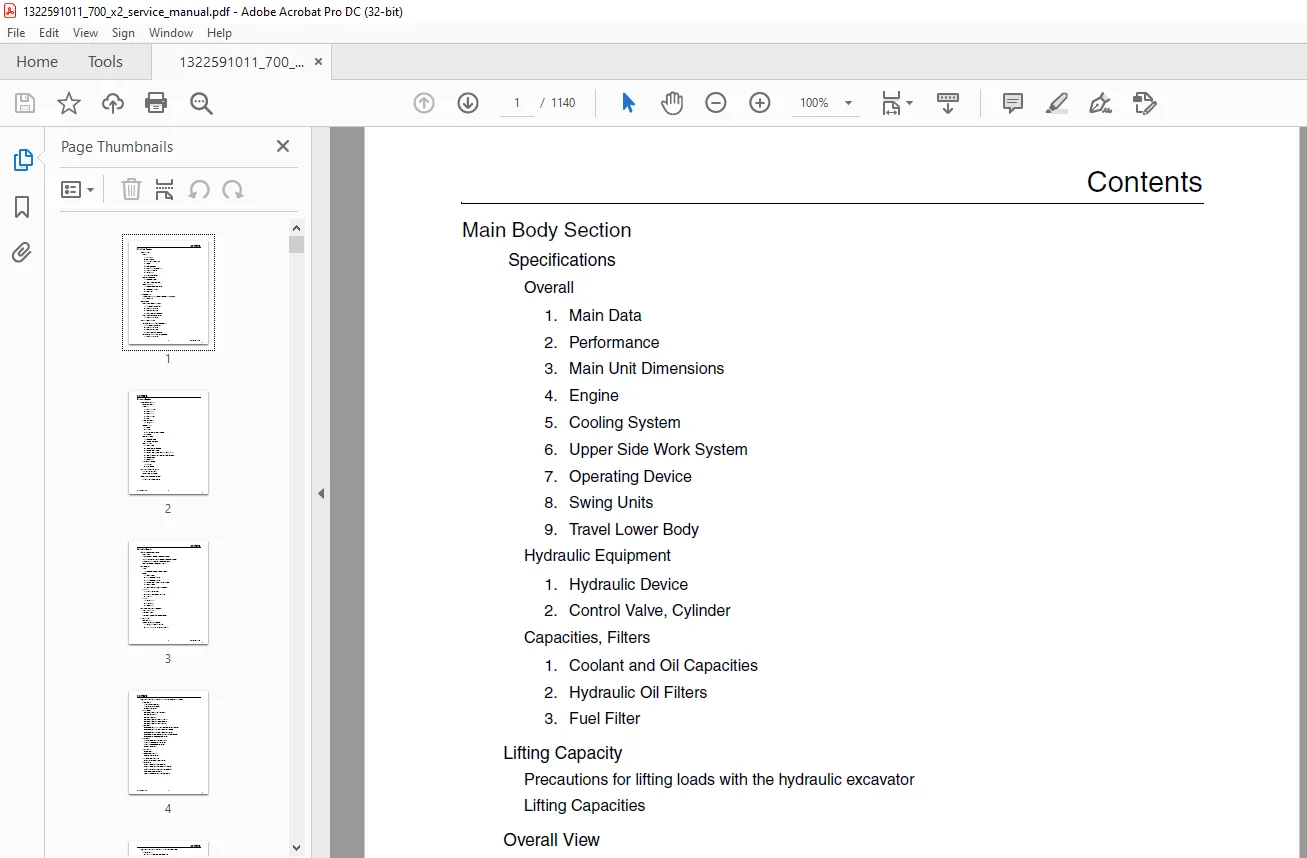

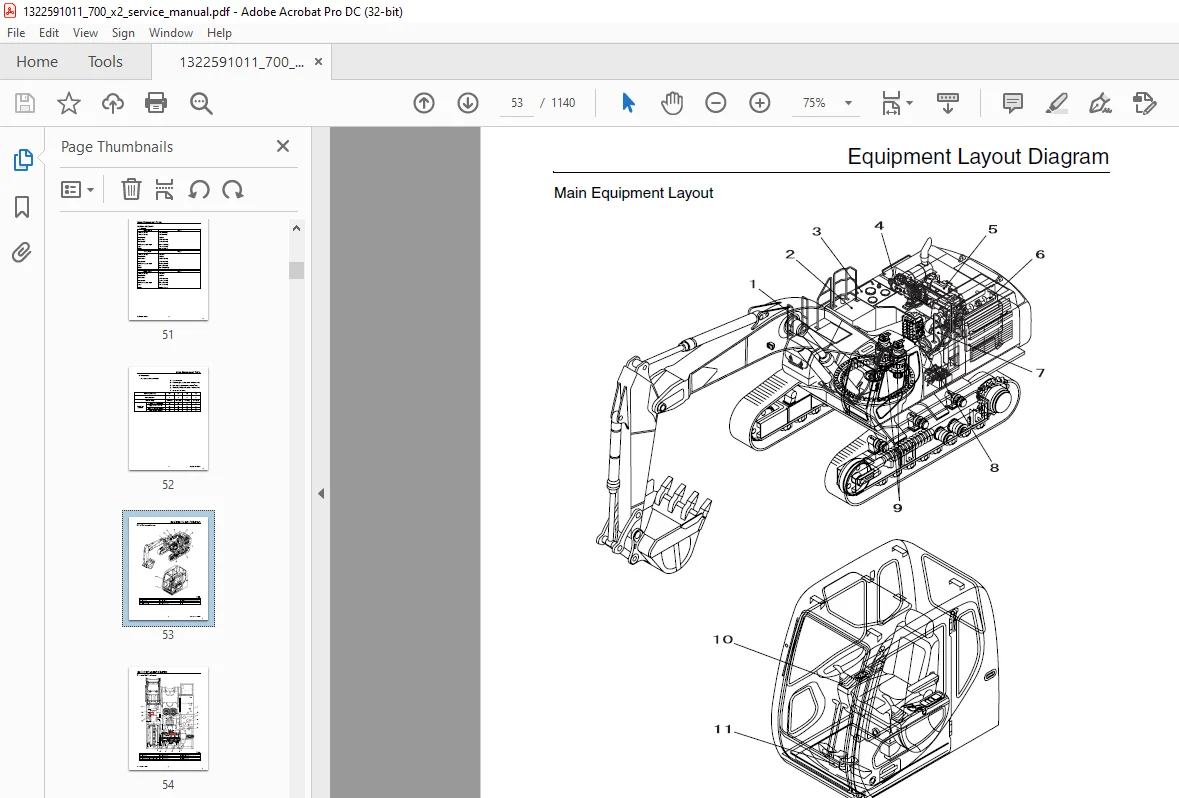

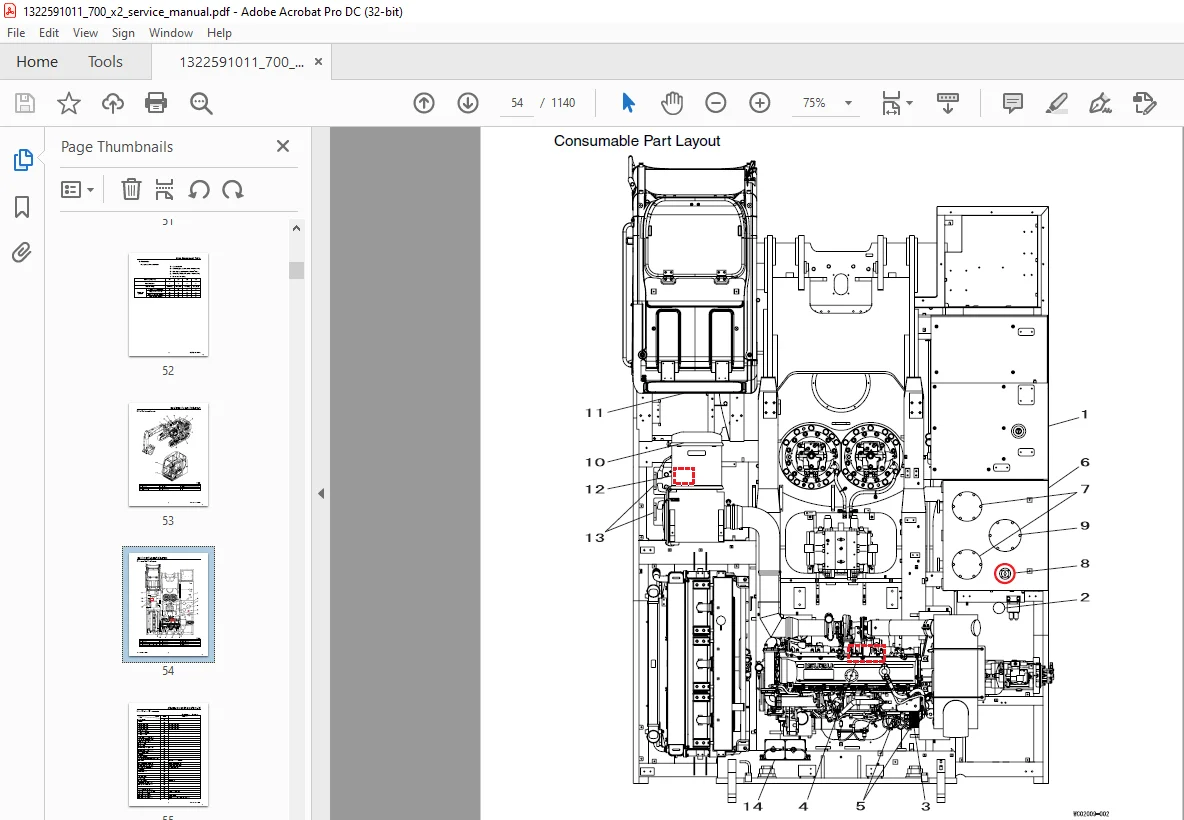

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Linkbelt 700 X2 Excavator Service Manual – PDF DOWNLOAD

Upper Pilot Valve (remote control valve)
(1) Structure
The remote control valve structure is as shown in the assembly cross-section diagram (page 55). There is a longitudinal axial hole in the casing and the pressure reduction valve is installed in it. The pressure reduction valve comprises the spool (201), secondary pressure setting spring (241), return spring (221), spring seating (216), and washer 2 (217). The secondary pressure setting spring (241) is set so that the secondary pressure calculation is 73 – 145 PSI (0.5 – 1 MPa) (depending on the model). The spool (201) is pressed against the push rod (212) by the return spring (221).
When the push rod (212) is pushed down by tilting the handle or another operation, the spring seating goes down at the same time and the secondary pressure setting spring (241) setting is changed.
The casing (101) has the oil inlet (primary pressure) port P and the outlet (tank) port T and, furthermore, the secondary pressure is taken out from the ports 1, 2, 3, and 4.
(2) Function
[1] Basic functions
The remote control valve is for controlling the control valve spool stroke quantity, direction, etc. This is done by operating the pilot valve output pressure on the control valve spool end section.
In order to satisfy this function, the remote control valve is made up of the following elements.
1) Inlet port (P) to which the oil is fed from the hydraulic pump
2) Multiple output ports (1, 2, 3, 4) for operating the feed pressure from the inlet port on the control valve spool end
3) Tank port (T) required for controlling the above output pressure
4) Spool connecting the output port to the inlet port or tank port
5) Mechanical means including a spring operating on the above spool in order to control the output pressure
[2] Main part functions
The function of the spool (201) is to switch the oil path either to have the hydraulic pressure fed from the hydraulic pump received by the P port and lead the P port pressurized oil to the output ports (1, 2, 3, and 4) or to lead the output port pressurized oil to the T port. The output pressure operating on this spool (201) is determined by the secondary pressure setting spring (241).
In order to change the deflection quantity of the secondary pressure setting spring (241), the push rod (212) is inserted into the plug (211) in such a way that it can slide.
The return spring (221) operates on the casing (101) and spring seating (216) and operates to return the push rod (212) in the displacement zero direction regardless of the output pressure and makes the spool (201) neutral return reliable. It also has the effect of a counterforce spring for giving an operator an appropriate operation feel.

TABLE OF CONTENTS:

Linkbelt 700 X2 Excavator Service Manual – PDF DOWNLOAD

Main Body Section
Specifications
Overall
1. Main Data
2. Performance
3. Main Unit Dimensions
4. Engine
5. Cooling System
6. Upper Side Work System
7. Operating Device
8. Swing Units
9. Travel Lower Body
Hydraulic Equipment
1. Hydraulic Device
2. Control Valve, Cylinder
Capacities, Filters
1. Coolant and Oil Capacities
2. Hydraulic Oil Filters
3. Fuel Filter
Lifting Capacity
Precautions for lifting loads with the hydraulic excavator
Lifting Capacities
Overall View
Overall View (Standard boom)
1. Standard Arm (3.55 m)
2. Short Arm (3.02 m)
3. Long Arm (4.11 m)
4. Super Long Arm (5.00 m)
Overall View (MASS Excavator)
1. Short Arm (3.02 m)
Work Range Diagram
Work Range Diagram (Standard boom)
1. Standard Arm (3.55 m)
2. Short Arm (3.02 m)
3. Long Arm (4.11 m)
4. Super Long Arm (5.00 m)
Work Range Diagram (MASS Excavator)
1. Short Arm (3.02 m)
Summary Section
Main Equipment Table
Lower Component
Travel Unit
1. Take-up Roller
2. Upper Roller
3. Lower Roller
4. Recoil Spring
5. Shoe
Upper Component
1. Swing Unit
Engine-related
1. Engine
2. Muffler
3. Air Cleaner (double element)
4. Radiator
Hydraulic Device
1. Hydraulic Pump
2. Pump P-Q Diagram
Control-related
1. Control Valve
2. Solenoid Valve (5 stack)
3. Remote Control Valve
4. Remote Control Valve Characteristic Diagram
5. Cushion Valve (heat circuit, with shuttle valve)
6. Selector Valve
7. Center Joint
Backhoe Attachment
1. Cylinder
2. Attachments
Equipment Layout Diagram
Main Equipment Layout
Consumable Part Layout
Standard Machine Option List
List of Optional Components
Hydraulics Section
Hydraulic Equipment Layout
Overall View
Pump Chamber Hydraulic Equipment Layout
Swing Body Center Section Hydraulic Equipment Layout
Housing Left Side Hydraulic Equipment Layout
Layout of Hydraulic Equipment in Cab
Port Diagram
Pump
1. Hydraulic Pump (standard model)
Valves
1. Control Valve
2. 5 Stack Solenoid Valve
3. 2 Stack Solenoid Valve
4. Remote Control Valves (upper, travel)
5. Cushion Valve
6. HBCV (Option for Export, Europe)
Manifolds
1. Manifold Under Cab
2. Manifold (accumulator section)
3. Manifold
Motors
1. Swing Motor
2. Travel Motor
3. Center Joint
Pilot Hose Connection Diagram
Pilot P and T Lines
Pilot Control Line
Pilot Control Line (2-way selector valve)
Function List
Function Table
Explanation of New Functions
1. Swing Relief Cut-off Control
2. Option Line Flow Adjustment Control
Explanation of Hydraulic Circuit and Operations (standard model)
Travel Circuit
Travel Low-speed Circuit
Travel High-speed Circuit
Straight Travel Circuit
Swing Circuit
Swing Relief Cut-off Control Circuit
Swing Priority Circuit
Swing Brake Circuit
Swing Parking Circuit (lever in neutral)
Swing Parking Circuit (brake release)
Swing Parking Circuit (machine stop)
Boom Circuit
Boom-up Circuit (single operation) (with / without HBCV)
Boom-up Circuit (compound boom-up + bucket)
Boom-up Circuit (compound boom-up + swing)
Boom-down Regenerative Circuit (with / without HBCV)
Boom-down Load Holding Valve Circuit
Arm Circuit
Arm-out Circuit (with / without HBCV)
Arm-in Forced Regenerative Circuit
Arm-in Load Holding Valve Circuit
Bucket-open Circuit
Bucket Circuit
Bucket Close
Negative Control Circuit
Negative Control Circuit
Horsepower Boost Circuits
High load Horsepower Boost Circuit
Other Circuits
Cushion Circuit (arm-out operation)
Cushion Circuit (arm-out operation stopped)
Cushion Circuit (arm-out → arm-in operation)
Heat Circuit（lever in neutral）
Auto Pressure Boost Circuit (bucket close)
Explanation of Hydraulic Circuit and Operations (option)
Option Circuits
Breaker circuit (independent operation)
Double-acting circuit (hydraulic fork)
Multi-purpose circuit (breaker circuits)
Multi-purpose circuit (2 pumps flow circuit)
2nd option circuit (hydraulic rotation fork)
Main Equipment Structure and Operation Explanation
Pump
1. Hydraulic Pump
2. Regulator
3. Gear Pump
Motor
1. Travel Motor
2. Swing Motor
Valve
1. Control Valve
2. 5 Stack Solenoid Valve Operation Explanation
3. Upper Pilot Valve (remote control valve)
4. Travel Pilot Valve (remote control valve)
5. Cushion Valve
Hydraulic Drive Fan Motor
1. External Shape Diagram
2. Internal Structure Diagram
3. Operation principles
Electrics Section
Explanation of New Functions
Work Mode Select Switch
The Throttle Volume and Work Mode Select Switch are Linked!!
Computer Connection Method
Monitor Changes
Pilot Pressure Switch Changed to Pressure Sensor
Pump Electromagnetization Proportional Valve
1. Horsepower Control Proportional Valve
2. P1 Flow Control Proportional Valve
System Control for Energy Saving
1. Reduced Fuel Consumption Through Transient Load Reduction Control
2. Reduced Fuel Consumption Through Swing Relief Cut Control
Electrical Equipment Layout Diagram
Overall View
1. Main Unit Left Side Layout Diagram (radiator chamber)
2. Engine Section Layout Diagram
3. Main Unit Right Side Layout Diagram (pump chamber)
4. Main Unit Center Section Layout Diagram
5. Cab Layout Diagram 1
6. Layout Around Operator’s Seat
Stand Alone Parts Diagram
Main Equipment Structural Diagrams
Connection Connector Pin Layout
1. Computer A
2. Monitor
Electrical Circuit Diagram
Overall View
1. Sequence Circuit Diagram
Block Diagram
1. Computer A
2. Computer S
3. ECM
4. Monitor Display
5. Air Conditioner
6. Lever Lock
7. Horn
8. Hydraulic motor fan
9. Mounting Counterweight
10.Working Light
11. Option
12. Others
13. Electrical Symbol List
Electrical Connector Wiring Diagram
Wire Harness
1. Main Frame Harness
Cab
1. Cab Main Harness
2. Cab Sub Harness
3. In Cab
4. Engine Harness
Console
1. Console Right Harness
2. Console Left Harness
Electrical Parts and Wiring Assembly Diagram
Main Frame
Cab
Explanation of Functions and Operations
Explanation of Electrical Functions
Engine Speed Control
1. Throttle Control
2. Idling Control (auto / one-touch)
3. Idling Start
4. Auto warm up
Engine Start / Stop Control
1. Engine Start / Stop Judgment
2. Power-cut Delay
3. Engine Emergency Stop
4. Neutral Start
Pump Control
1. Work Mode Control
2. Pump Horsepower Boost Control
3. Pump Horsepower Cut Control
Swing
1. Swing Brake
2. Swing Free Swing (Option for North America)
3. Swing Lock (for maintenance)
4. Swing Relief Cut
Travel
1. Travel Speed Switchover
2. Travel Alarm
Valve Control
1. Lever Lock
2. Solenoid Sticking Prevention
3. Pressure Boost Control
Monitor Control
1. Bar Graph (coolant temperature gauge, oil temperature gauge, fuel gauge)
Accessories
1. Horn
2. Working Light
3. Wiper and Washer
4. Room Lamp
5. Radio Mute
Others
1. Anti-theft
2. Battery Save Function
3. Alternator Power Generation Detection
4. Overload Alarm (Option for Europe)
5. Control of Hydraulic Driven Fan
Options
1. Option Line Control
2. Option Line Control
3. Feed Pump Automatic Stop
4. Return Filter Clogging Detected
5. Beacon
Service Support
Screen Operations
1. Screen Shift
Screen Display List
1. CHK (status display) Screen List
2. DIAG (trouble diagnosis) Screen
3. HR (usage log) Screen List
4. CFG (setting change) Screen
5. CAL (troubleshooting support) Screen
6. Check the Monitor Switch (self-diagnosis function)
7. Option Flow Setting
8. Anti-theft Setting
9. Model Setting
10. Engine Information Screen
Screen Display Details
1. Message Display List
Abnormality Display
1. Diagnostic Trouble Code Display
2. Main Unit Diagnostic Trouble Code List
3. Diagnostic Trouble Code (monitor display)
4. Sensor Trouble Operation Table
5. EPF (Engine Protection Feature)
Engine Section
Engine Summary
Main Data Table
Overall Appearance Diagram
Sensor and Auxiliary Equipment Layout (left)
Sensor and Auxiliary Equipment Layout (rear)
Engine System Diagram
Fuel System Diagram
Detailed Parts Diagrams
1. ECM (engine control module)
2. Supply Pump/PCV (pressure control valve)
3. Common Rail/Flow Damper
4. Common Rail Pressure Sensor/Pressure Limiter
5. Injector
6. Engine Coolant Temperature Sensor
7. Engine Oil Pressure Sensor
8. Cam Position Sensor (G sensor)
9. Crank Position Sensor (CKP sensor)
10. Atmospheric Pressure Sensor
11. Suction Air Temperature Sensor
12. Boost Pressure Sensor
13. Boost Temperature Sensor
14.EGR Cooler
15. Lead Valve (check valve)
16.EGR Valve
Engine Control Summary
Explanation of Engine Terms
Function Explanation Table
Explanation of Engine Structure
Technology for Exhaust Gases
1. Common Rail System
2. Multi-Stage Fuel Injection (multiple injection)
3. Inter Cooler
4. EGR (exhaust gas recirculation)
Explanation of Engine Operation
Fuel Unit
1. Common Rail System Summary
2. Change Points for Injection Method (governor, common rail)
3. Explanation of Injector Operation
4. Explanation of Supply Pump Operation
5. Supply Pump Disassembly Diagram
6. Explanation of Flow Damper Operation
7. Pressure Limiter
8. Cautions for Maintenance
Explanation of Engine Control
1. Fuel Injection Quantity Correction
2. Starting Q Correction
3. Preheat Control (QOS quick on start)
4. Atmospheric Pressure Correction (high altitude correction)
5. Control for Overheating
6. Control for Boost Temperature Rise
7. Control for Engine Oil Pressure Drop
8. Start Control (coolant temperature monitoring)
9. Long Cranking Control
10. Starting Control for Reduced Number of Cylinders
11. Normal Stop (key switch OFF operation)
12. Engine Start / Stop Judgment
Engine Maintenance Standards
Engine Information Screen
1. Purpose
2. How to Go to This Screen
3. Engine Start Restriction
4. Screen
Monitor Operating Method
1. View Mode
2. Edit Mode
Engine Information (Q resistance, QR code, engine serial number) Copying Method
Rewriting Injector QR Codes
When Replacing Computer A at the Same Time
Engine Information Acquisition Timing
Redoing Engine Information Acquisition
Abnormality Display
Engine Equipment Table
Exhaust Gas 3rd Accessory Electrical Parts Compatibility (Isuzu part number)
Exhaust Gas Regulations
Features of Materials Subject to Exhaust Gas Regulation
Exhaust Gas Regulation Values
Cautions for Fuel Used
Engine Fuel and Maintenance of Fuel Filters
1. Fuel to be applied
2. Maintenance of fuel filters
Air Conditioner Section
Layout Diagram
Air Conditioner Overall Diagram
1. Frame
2. Cab
Equipment Layout Diagram
Circuit Diagram
Air Conditioner Circuit Diagram
Explanation of Functions
Explanation of Control
1. Air Mix Motor Actuator Control
2. Blow Mode Motor Actuator Control
3. Refresh / Recirculate Switch Motor Actuator Control
4. Blower Amp Control
5. Compressor Clutch Control
6. COOLMAX Control and HOTMAX Control
7. Trouble Detection and Control after Trouble Detected
8. Monitor Mode
9. Door Switch Control
10. Inside Air Filter Clogging Detection Control
Actuator Inspection
Air Mix Motor Actuator Inspection
Refresh / Recirculate Motor Actuator Inspection
Mode Motor Actuator Inspection
Self-diagnosis Function with Panel Display
Abnormality Display and Self-check Procedures
Abnormality Display Position
Explanation of Abnormality Display
Explanation of Monitor Mode
Part Function and OK/NG Judgment
Control Panel and Control Unit
Blower Amp
Relay
Air Mix Actuator
Refresh / Recirculate Actuator
Blow Mode Actuator
Evaporator Sensor
Dual Pressure Switch
Solar Radiation Sensor
Maintenance Section
Pressure Measurement and Adjustment Procedures
Procedures for Pressure Measurement from the Monitor Display
1. Pressure Measurement Method
2. Operating Method
Procedures for Measuring Hydraulic Oil Temperature from the Monitor Display
1. Hydraulic Oil Temperature Measurement Method
2. Operating Method
Procedures for Pressure Measurement by Installing Pressure Gauge
1. Preparations
2. Items to prepare
Pressure Measuring Ports
Pressure Adjustment Location
1. Location of Relief Valves
Pressure Measurement Preparations
Pressure Measurement and Adjustment Procedures
1. Main Pressure Measurement
2. Pilot Pressure Measurement
3. Negative Control Pressure Measurement
Pressure Adjustment
1. Main Pressure Adjustment
2. Pilot Pressure Adjustment
Hydraulic Pump Flow Measurement Procedure
Preparations
1. Items to Prepare
Work Preparations
Flow Measurement
Drain Volume Measurement Procedure
Preparations
Travel Motor Drain Volume Measurement
Swing Motor Drain Volume Measurement
Air Bleed Procedure
Hydraulic Pump
Travel Motor
Swing Motor
HBCV
1. Boom Cylinder HBCV
2. Arm Cylinder HBCV
Procedures for Replacing Consumable Parts
Air Conditioner Belt and Fan Belt Replacement
1. Air Conditioner Belt Replacement
2. Fan Belt Replacement
Fuel Filter Replacement
1. Filter Replacement
2. Air Bleeding
Engine Oil Filter and Engine Oil Replacement
1. Engine Oil Replacement
2. Engine Oil Filter Replacement
Radiator Coolant Replacement
Air Cleaner Cleaning and Replacement
Hydraulic Oil Filter Replacement
1. Return Filter Replacement
2. Suction Filter Replacement
3. Air Breather Element Replacement
4. Pilot Oil Filter Replacement
5. Hydraulic Oil Replacement
Others
1. Coolant Filling
2. Washer Fluid Filling
Periodic Maintenance Procedures
Maintenance Every 250 Hours
1. Battery Inspection and Replacement
Maintenance after First 250 Hours for New Machine
/ Every 1000 Hours from Then on
1. Swing Reduction Gear Oil Replacement
2. Gear Oil Filling
Replace the Flange Packing at the Bottom of the Fuel Tank
Bolt Size and Torque Table
Bolt and Nut Tightening
Bolt and nut retightening [after 1st 50 hours for new machine] [every 250 hours]
Retightening Torque Table
Data Section
Main Unit Weight
Major Component Weight (standard specifications)
Individual Part Weight
Shoe Weight (one side)
Arm Weight
Bucket Weight
Interchangeability
Interchangeability
1. Main Part Interchangeability Table (SH700LHD-5)
Attachment Installation Methods
Attachment Dimensions
Paint Colors
Paint Colors
Unit Conversion Ratio
Unit Conversion Ratio
Assembly and Disassembly Section
Assembly, Disassembly
Overall Process
Major Machines • Tools • Equipment Table
Matters to be Attended
Prior Preparation
Ensuring assembly/disassembly work place
Major layout
Prior Preparation Procedure
Unloading Work
1. Unloading Work No. 1
2. Unloading 1 Procedure
3. Unloading Work No.2
4. Procedure for Unloading Work No. 2
5. Unloading Work No. 3
6. Procedure for Unloading Work No. 3
Connection of Lower Sideframes to Upper Swing Body
1. Assembling work No. 1 (One side)
2. Procedure for Mounting No. 1
3. Assembling work No. 2 (Remaining one sideframe)
4. Procedure for Mounting No. 2.
Mounting Travel Motor Lines
1. Procedure for Mounting
Mounting Counterweight
Procedure for Mounting
Mounting Attachments
1. Mounting Boom Cylinders
2. Mounting Boom and Connecting Cylinder Hose
3. Mounting Boom Cylinder Top Pin
4. Mounting ARM
5. Connecting Bucket Cylinder Hose and Mounting Bucket
6. Mounting bucket
Checking Work
Confirmation of Movement after Assembling Work
1. Attended items when assembling work is done.
2. Procedure for confirmation of movement
and the items to be attended after the assembling work is completed.
Assembly, Disassembly
1. Bucket removal
2. Arm removal
3. Boom cylinder removal
4. Boom removal
5. Counterweight removal
6. Removal of travel motor piping and their small accessories
7. Separation of upper body and lower, and loading
Attached data
Stool Assembly Drawing(BKWA4024-B01)
1. Stool (Upper) (BKWA4025-B01)
2. Stool (Under) (BKWA4026-B01)
Lower Frame Assembly Drawing
Piping Cover Assembly Drawing
Traction Motor Line Assembly Drawing
Counterweight Assembly Drawing
Catwalk Assembly Drawing
House Assembly Drawing
Attachment Assembly Drawing

Need help? Contact: [email protected]

https://vimeo.com/892210022?share=copy

s.s
