Linkbelt 700X2 EXCAVATOR PARTS MANUAL 2210 – PDF DOWNLOAD

Description

Linkbelt 700X2 EXCAVATOR PARTS MANUAL 2210 – PDF DOWNLOAD

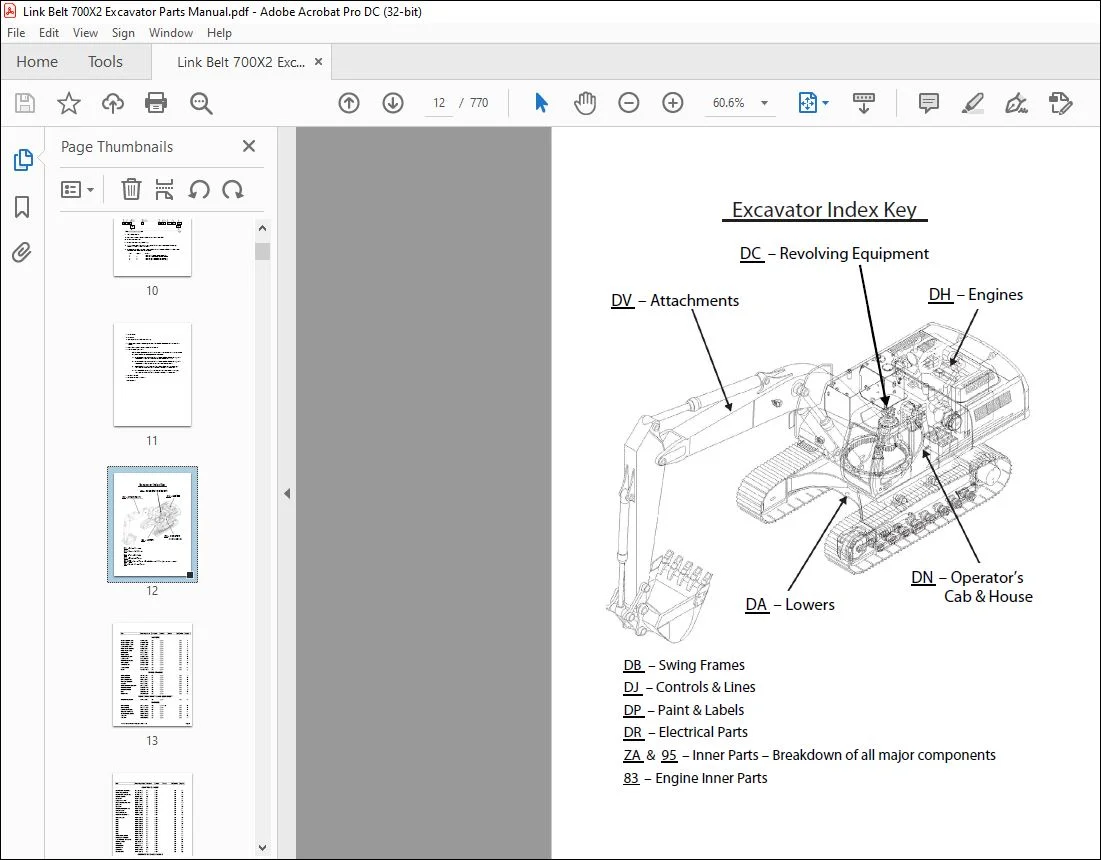

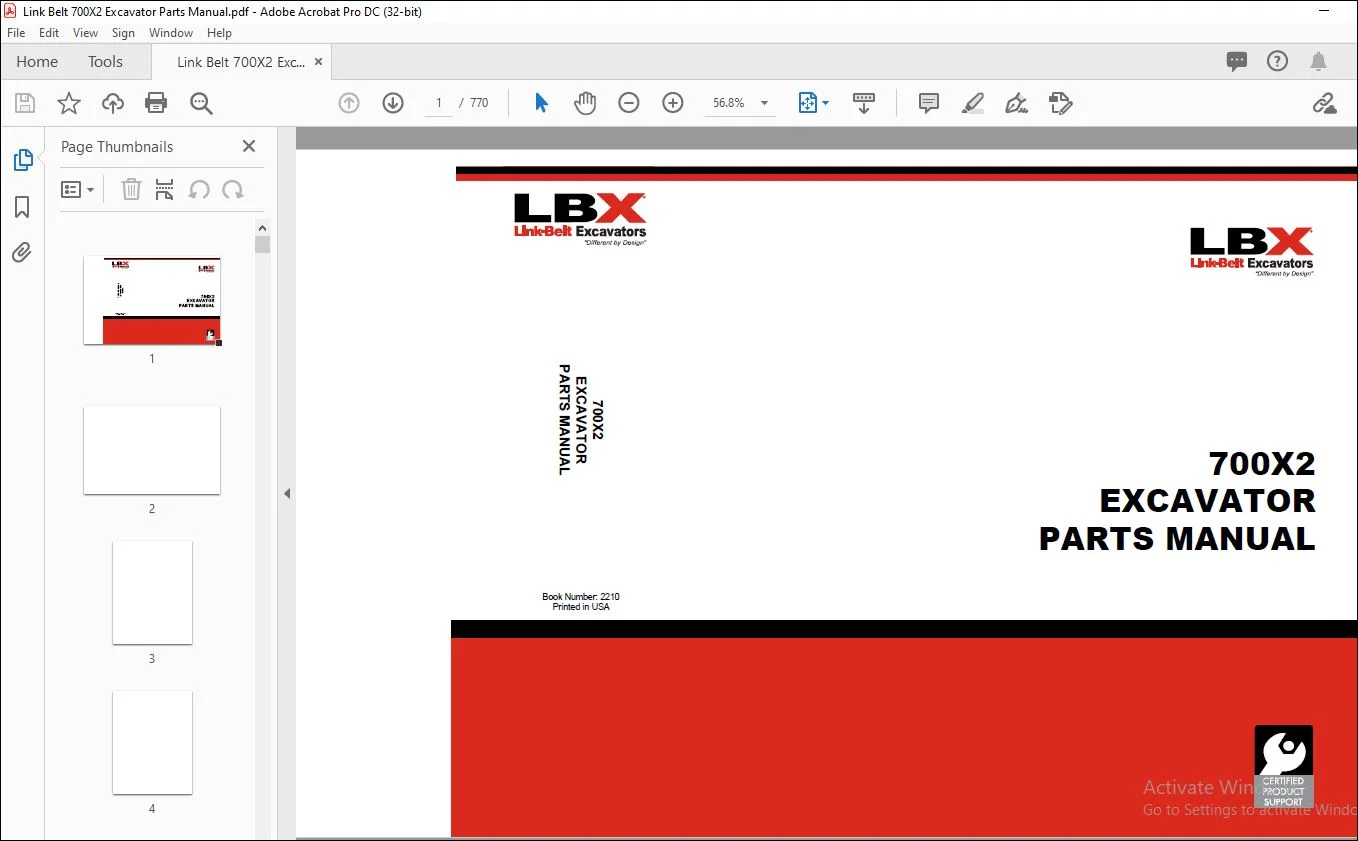

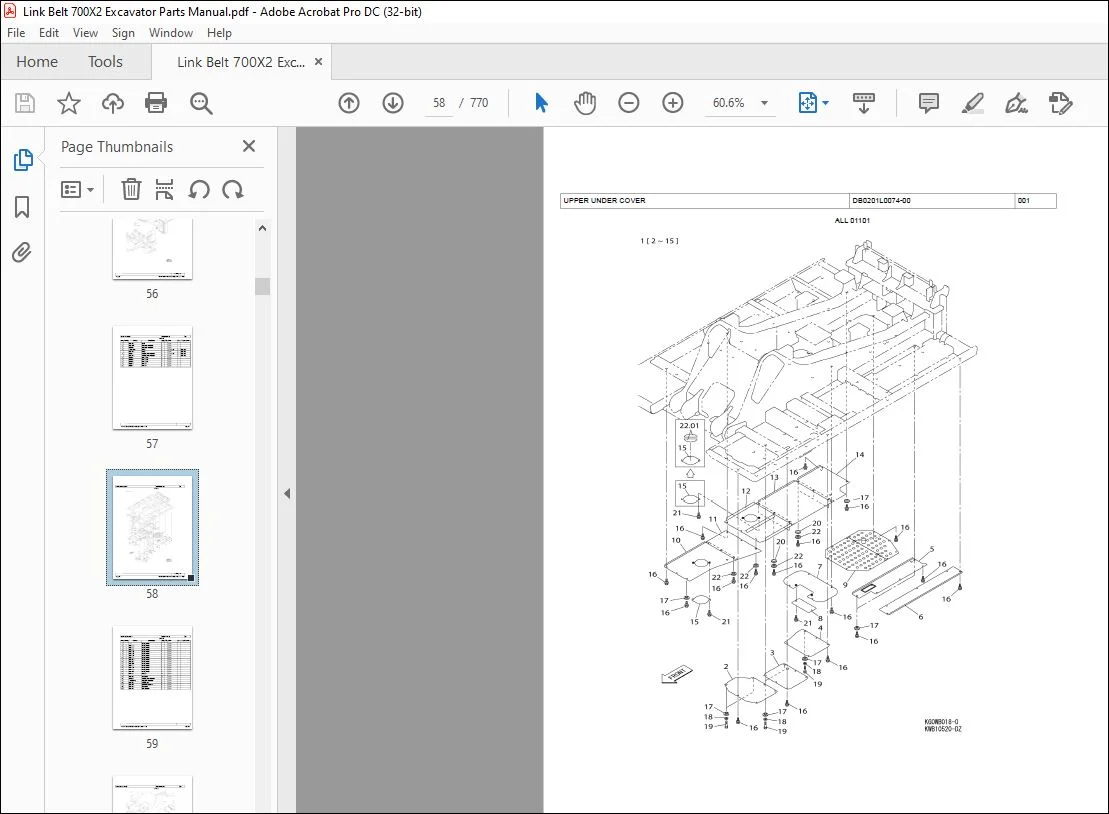

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Linkbelt 700X2 EXCAVATOR PARTS MANUAL 2210 – PDF DOWNLOAD

Preface:
 This parts manual contains the service parts used in one of the following series of excavator: LX, LX
Tier 3, Spin Ace, Spin Ace Tier 3, X2 or X3. For the LX series refer to the “Engine parts manual” issued
separately for the engine service parts. The LX Tier 3, Spin Ace Tier 3 , X2 & X3 series will contain the
“Engine parts manual” within this book.
 Only genuine “Link–Belt” parts and lubricants are recommended for service needs. The use of
high quality genuine “Link–Belt” parts maintains your machine warranty.

TABLE OF CONTENTS:

Linkbelt 700X2 EXCAVATOR PARTS MANUAL 2210 – PDF DOWNLOAD

LOWERS
GROUSER SHOE 650 SEAL DA0220L0002-00 000 01101 – ALL 2
GROUSER SHOE 750 SEAL DA02A0L0002-00 000 01101 – ALL 4
GROUSER SHOE 900 SEAL DA02A1L0002-00 000 01101 – ALL 6
LOWER UNDER COVER DA0301L0009-00 000 01101 – ALL 8
TRACK GUARD (DOUBLE) DA3803L0006-00 000 01101 – ALL 10
TRACK GUARD (FULL) DA3804L0011-00 000 01101 – ALL 12
CENTER JOINT DA8901L0020-00 001 01101 – ALL 14
RECOIL SPRING DA9401L0019-00 002 01101 – ALL 16
TRACTION EQUIPMENT DAA801L0019-00 000 01101 – ALL 18
LOWER FRAME DAE901L0067-00 000 01101 – ALL 20
TRACTION MOTOR LINE DAK301L0033-00 000 01101 – ALL 22
UPPER ROLLER DAN401L0018-00 001 01101 – ALL 24
TAKE-UP ROLLER DAN701L0018-00 000 01101 – ALL 26
LOWER ROLLER DAP201L0020-00 000 01101 – ALL 28
COVER DAZB01L0003-00 000 01101 – ALL 30
SWING FRAMES
COUNTER WEIGHT DB0199L0124-00 001 01101 – ALL 34
COUNTER WEIGHT DB0199L0125-00 001 01101 – ALL 36
UPPER UNDER COVER DB0201L0074-00 001 01101 – ALL 38
TURN TABLE BEARING DB1001L0019-00 000 01101 – ALL 40
CATWALK DB4601L0003-00 001 01101 – ALL 42
COUNTER WEIGHT EQUIPMENT DB7001L0007-00 001 01101 – ALL 44
REVOLVING FRAME DBA201L0113-00 002 01101 – ALL 56
REVOLVING FRAME DBA201L0114-00 002 01101 – ALL 58
BOLT DBC201L0004-00 002 01101 – ALL 60
GREASE LINE DBC401L0002-00 000 01101 – ALL 62
REVOLVING SHAFTS AND EQUIPMENT
REVOLVING EQUIPMENT DC4501L0043-00 002 01101 – ALL 66
ENGINES
ENGINE (ISUZU) DH0101L0037-00 005 01101 – 01101 ALL 72
ENGINE (ISUZU) DH0101L0108-00 000 01102 – ALL 76
MUFFLER (STANDARD) DH0201L0027-00 002 01101 – ALL 80
RADIATOR (STANDARD) DH0301L0044-00 001 01101 – ALL 82
AIR CLEANER (ELEMENT) DH0602L0025-00 001 01101 – ALL 90
FUEL TANK DH8101L0034-00 000 01101 – ALL 92
FUEL LINE DHE001L0057-00 001 01101 – ALL 94
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69 Page iii
CONTROL & LINES
SERVICE VALVE PORT RELIEF DJ0301L0007-00 000 01101 – ALL 100
SINGLE PEDAL CONTROL DJ4101L0003-00 001 01101 – ALL 102
SERVICE VALVE CONTROL (R ) DJ5801L0012-00 000 01101 – ALL 104
JOYSTICK CONTROL DJ6201L0073-00 003 01101 – ALL 106
DRAIN LINE DJAH01L0095-00 001 01101 – ALL 110
BUCKET & ARM LINE DJAQ01L0024-00 001 01101 – ALL 112
PILOT PRESS & RETURN LINE DJBC01L0150-00 000 01101 – ALL 114
BOOM LINE DJBV01L0035-00 000 01101 – ALL 122
SUMP TANK DJE701L0048-00 002 01101 – ALL 124
RETURN & OIL COOLER LINE DJEE01L0072-00 000 01101 – ALL 126
CONTROL VALVE DJG201L0116-00 000 01101 – ALL 130
PILOT CONTROL LINE DJHC01L0162-00 001 01101 – ALL 132
SECOND OPTION LINE S-V DJHF02L0002-00 001 01101 – ALL 142
PLUG TANK; FUEL DJK401L0463-00 000 01101 – ALL 150
PLUG DJK401L0464-00 000 01101 – ALL 152
PLUG DJK401L0465-00 000 01101 – ALL 158
PLUG DJK401L0466-00 000 01101 – ALL 164
PLUG DJK401L0467-00 000 01101 – ALL 170
PLUG DJK401L0468-00 000 01101 – ALL 176
PLUG DJK401L0469-00 001 01101 – ALL 182
PLUG DJK401L0470-00 000 01101 – ALL 186
PLUG DJK401L0471-00 001 01101 – ALL 190
SINGLE ACTING CIRCUIT DJKX01L0074-00 001 01101 – ALL 194
DOUBLE ACTING CIRCUIT DJKY01L0057-00 000 01101 – ALL 200
MULTI-PURPOSE + 3WAY VALVE DJKZ01L0091-00 001 01101 – ALL 206
HYDRAULIC PUMP DJL901L0100-00 001 01101 – ALL 212
FLOOR MAT DJM101L0053-00 000 01101 – ALL 214
PRESSURE LINE DJP801L0054-00 000 01101 – ALL 216
SUCTION LINE DJW001L0056-00 002 01101 – ALL 220
SWING LINE DJY601L0032-00 000 01101 – ALL 222
TRACTION LINE DJY901L0021-00 000 01101 – ALL 224
OPERATOR’S CAB & HOUSE
CAB GUARD (FOPS LEVEL 2) LBX DN0501L0007-00 001 01101 – ALL 228
CAB FRONT GUARD MESH LOWER DN0601L0004-00 000 01101 – ALL 230
CAB FRONT GUARD MESH UPPER DN0601L0005-00 001 01101 – ALL 232
CAB FRONT GUARD OPG LEVEL 1 DN0601L0006-00 003 01101 – ALL 234
CAB FRONT GUARD OPG LEVEL 2 DN0601L0007-00 001 01101 – ALL 236
CAB FRONT GUARD OPG LEVEL1 DN0601L0010-00 001 01101 – ALL 238
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
Page iv 700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69
OPERATOR’S CAB & HOUSE (CONTINUED)
CAB FRONT GUARD MESH UPPER DN0601L0011-00 000 01101 – ALL 240
COVER (VANDAL GUARD) DN2001L0002-00 001 01101 – ALL 242
CAB HEAD GUARD DN4001L0014-00 001 01101 – ALL 244
OPERATOR’S CAB LB POLYCA-HATCH DN4801L0103-00 001 01101 – 01101 ALL 246
OPERATOR’S CAB LB POLYCA-HATCH DN4801L0130-00 003 01102 – ALL 260
HOUSE DN7301L0263-00 002 01101 – ALL 274
HOUSE DN7301L0265-00 002 01101 – ALL 294
CONSOLE BOX & SEAT (AIR-SUS) DN9901L0070-00 002 01101 – ALL 314
DOG CHAIN DNB501L0005-00 000 01101 – ALL 324
RAIN REFLECTOR DNC701L0002-00 001 01101 – ALL 326
ACCESSORIES & NAME PLATE
PAINTING DP0103L0331-00 001 01101 – ALL 330
NAMEPLATE (PEDAL CONTROLS STD) DP0210L0007-00 000 01101 – ALL 332
NAMEPLATE (KNOB CONTROLS W/ RH DP0210L0121-00 000 01101 – ALL 334
AUX)
NAMEPLATE (KNOB CONTROLS W/ RH DP0210L0128-00 000 01101 – ALL 336
& LH AUX)
NAMEPLATE (KNOB CONTROLS W/ LH DP0210L0207-00 000 01101 – ALL 338
AUX)
NAME PLATE (ENGLISH) DP0210L0208-00 001 01101 – ALL 340
REAR VIEW MIRROR DP0701L0026-00 001 01101 – ALL 342
SPARE PARTS KIT DP5501L0070-00 001 01101 – ALL 344
REPAIR PARTS KIT DP5801L0010-00 002 01101 – ALL 346
TOOLS DPF001L0014-00 002 01101 – ALL 348
OPERATOR’S NAME PLATE DPM801L0004-00 000 01101 – ALL 350
OPERATOR’S NAME PLATE DPM801L0005-00 000 01101 – ALL 352
LABEL DPP901L0002-00 000 01102 – ALL 354
ELECTRIC PARTS
AM/FM RADIO HIGH BAND DR0103L0007-00 002 01101 – ALL 358
AIR CONDITIONER – CAB DR0205L0043-00 008 01101 – ALL 360
AIR CONDITIONER – FRAME DR0205L0059-00 001 01101 – ALL 368
WORKING LIGHT (UPPER CAB) DR1801L0023-00 000 01101 – ALL 374
WORKING LIGHT (CAB W/F.GUARD) DR1801L0024-00 001 01101 – ALL 376
WORKING LIGHT (CAB W/YF.GUARD) DR1801L0032-00 001 01101 – ALL 378
WORKING LIGHT (BOOM & HOUSE) DR1801L0033-00 000 01101 – ALL 380
WORKING LIGHT (EXP) DR1801L0035-00 000 01102 – ALL 382
BACK-UP ALARM DR4301L0006-00 000 01101 – ALL 384
WINDOW WASHER DR5001L0029-00 000 01101 – ALL 386
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69 Page v
ELECTRIC PARTS (CONTINUED)
COVER DR5901L0002-00 000 01101 – ALL 388
CONTROLLER DR9901L0013-00 006 01101 – ALL 390
DC-DC CONVERTER (12V-10A) DRA801L0008-00 000 01101 – ALL 392
STAND REAR DRCB01L0001-00 001 01101 – ALL 394
INDICATOR SENSOR DRDA01L0002-00 000 01101 – ALL 398
ELEC. PARTS & WIRE HARNESS DRJ401L0284-00 001 01101 – ALL 400
ELEC. PARTS & WIRE HARNESS DRJ401L0286-00 001 01101 – ALL 406
(FRAME)
BATTERY DRV001L0014-00 001 01101 – ALL 418
HORNS DRY003L0009-00 000 01101 – ALL 420
ATTACHMENTS
ARM (STD) (3.55M) (11′ 8″) DV0201L0166-00 001 01101 – ALL 426
ARM (STD) (3.55M) (11′ 8″) DV0201L0171-00 002 01101 – ALL 428
ARM (LONG) (4.11M) (13′ 6″) DV0210L0077-00 001 01101 – ALL 430
ARM (SUPER LONG) (5.00M) (16′ 5″) DV0220L0011-00 001 01101 – ALL 432
ARM (SHORT) (3.02M) (9′ 11″) DV0230L0098-00 001 01101 – ALL 434
ARM (SHORT) (3.02M) (9′ 11″) DV0230L0099-00 000 01101 – ALL 436
ARM (SHORT) (3.02M) (9′ 11″) DV0230L0163-00 000 01102 – ALL 438
ARM (SHORT) (3.02M) (9′ 11″) DV0230L0164-00 000 01102 – ALL 440
BOOM (BACK HOE) (7.70M) (25′ 3″) DV0301L0120-00 000 01101 – ALL 442
BOOM (BACK HOE) (7.70M) (25′ 3″) DV0301L0125-00 001 01101 – ALL 444
BOOM (SHORT) (6.58M) (21′ 7″) DV0352L0005-00 000 01101 – 01101 ALL 446
BOOM (SHORT) (6.58M) (21′ 7″) DV0352L0006-00 000 01101 – 01101 ALL 448
BOOM (SHORT) (6.58M) (21′ 7″) DV0352L0013-00 000 01102 – ALL 450
BOOM (SHORT) (6.58M) (21′ 7″) DV0352L0014-00 000 01102 – ALL 452
BUCKET LINKAGE (STANDARD) DV0401L0031-00 001 01101 – ALL 454
OPTION LINE(BAR BASE)(STD DV0601L0079-00 002 01101 – ALL 456
ARM)(3.55M)(11′ 8″)
OPTION LINE(BAR BASE)(LONG DV0601L0080-00 002 01101 – ALL 458
ARM)(4.11M)(13′ 6″)
OPTION LINE(BAR BASE)(SHORT DV0601L0085-00 001 01101 – ALL 460
ARM)(3.02M)(9′ 11″)
OPTION LINE(BAR BASE)(MASS DV0601L0086-00 002 01101 – ALL 462
ARM)(3.02M)(9′ 11″)
OPTION LINE(BAR BASE) DV0604L0017-00 002 01101 – ALL 464
OPTION LINE(BAR BASE)(SHORT DV0604L0018-00 001 01101 – ALL 466
ARM)(3.02M)(9′ 11″)
ARM CYLINDER LINE DV4601L0123-00 002 01101 – ALL 468
ARM CYLINDER LINE DV4601L0130-00 001 01101 – 01101 ALL 470
ARM CYLINDER LINE DV4601L0228-00 000 01102 – ALL 472
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
Page vi 700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69
ATTACHMENTS (CONTINUED)
GREASE LINE DV5001L0031-00 002 01101 – ALL 474
GREASE LINE DV5001L0032-00 002 01101 – ALL 476
GREASE LINE DV5001L0033-00 002 01101 – ALL 478
GREASE LINE DV5001L0034-00 001 01101 – ALL 480
GREASE LINE (BOOM SHORT)(6.58M)(21′ DV5001L0035-00 002 01101 – 01101 ALL 482
7″)
GREASE LINE (ARM SHORT) (3.02M) (9′ DV5001L0036-00 002 01101 – ALL 484
11″)
GREASE LINE (BOOM SHORT)(6.58M)(21′ DV5001L0084-00 000 01102 – ALL 486
7″)
GREASE LINE (ARM SHORT) (3.02M) (9′ DV5001L0085-00 000 01102 – ALL 488
11″)
BUCKET CYLINDER LINE DV5601L0135-00 002 01101 – ALL 490
BUCKET CYLINDER LINE (LONG DV5601L0137-00 002 01101 – ALL 492
ARM)(4.11M)(13′ 6″)
BUCKET CYLINDER LINE (SUPER LONG DV5601L0140-00 000 01101 – ALL 494
ARM)(16′ 5″)
BUCKET CYLINDER LINE (SHORT DV5601L0142-00 001 01101 – ALL 496
ARM)(3.02M)(9′ 11″)
BUCKET CYLINDER LINE (MASS DV5601L0143-00 002 01101 – ALL 498
ARM)(3.02M)(9′ 11″)
BOOM CYLINDER LINE DV6001L0074-00 001 01101 – ALL 500
SECOND OPTION LINE (STD DV7501L0038-00 001 01101 – ALL 502
ARM)(3.55M)(11′ 8″)
SECOND OPTION LINE DV7501L0039-00 001 01101 – ALL 504
SECOND OPTION LINE DV7501L0040-00 001 01101 – ALL 506
INNER PARTS
PUMP;HYD (Part# KWJ11250) ZAJ010L0089 000 – KWJ11250 EX 510
PUMP;GEAR (Part# KWH0019) ZAJ012L0004 000 – KWH0019 EX 522
SPECIAL MOTOR (HYDRAULIC FAN) ZAJ119L0001 000 – KWH0018 EX 524
(Part# KWH0018)
MOTOR (Part# KWA0018) ZAJ121L0027 000 – KWA0018 EX 526
MOTOR;SWING (Part# KWC10010) ZAJ122L0026 000 – KWC10010 EX 532
CYL;HYD (Part# KUB0156) ZAJ211L0002 001 – KUB0156 EX 536
CYL;HYD (Part# KUB0154) ZAJ211L0005 001 – KUB0154 EX 538
CYL;HYD (Part# KUB0155) ZAJ211L0006 001 – KUB0155 EX 540
CYL;BOOM (Part# KWV0019) ZAJ221L0110 000 – KWV0019 EX 542
CYL;BOOM (Part# KWV0020) ZAJ221L0111 000 – KWV0020 EX 546
CYL;BOOM (Part# KWV0010) ZAJ221L0112 000 – KWV0010 EX 550
CYL;BOOM (Part# KWV0011) ZAJ221L0113 000 – KWV0011 EX 554
CYL;ARM (Part# KWV0021) ZAJ222L0071 000 – KWV0021 EX 558
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69 Page vii
INNER PARTS (CONTINUED)
CYL;ARM (Part# KWV0012) ZAJ222L0072 000 – KWV0012 EX 562
CYL;BUCKET (Part# KWV0013) ZAJ223L0046 000 – KWV0013 EX 566
CYL;BUCKET (Part# KWV10090) ZAJ223L0048 001 – KWV10090 EX 570
CYL;BUCKET (Part# KWV0094) ZAJ223L0072 000 – KWV0094 EX 574
VALVE;CONTROL (Part# KWJ11800) ZAJ313L0148 000 – KWJ11800 EX 578
VALVE;SOLENOID (Part# KUJ0288) ZAJ314L0010 000 – KUJ0288 EX 592
SOLENOID VALVE (Part# KHJ14000) ZAJ314L0013 000 – KHJ14000 EX 594
SOLENOID VALVE (Part# KHJ14520) ZAJ314L0014 000 – KHJ14520 EX 596
SOLENOID VALVE (Part# KRJ3557) ZAJ314L0023 003 – KRJ3557 EX 598
VALVE;REMOTE CONT (Part# KTJ2034) ZAJ316L0005 000 – KTJ2034 EX 600
VALVE;REMOTE CONT (Part# KHJ10450) ZAJ316L0025 001 – KHJ10450 EX 602
VALVE;REMOTE CONT (Part# KHJ17610) ZAJ316L0026 000 – KHJ17610 EX 604
SELECTOR VALVE (Part# KHJ12080) ZAJ317L0006 001 – KHJ12080 EX 606
VALVE;STOP (Part# KUV0311) ZAJ322L0001 000 – KUV0311 EX 608
VALVE;CUSHION (Part# KWJ11300) ZAJ345L0044 000 – KWJ11300 EX 610
BLADE CONTROL VALVE (Part# ZAJ361L0001 004 – KRJ5560 EX 612
KRJ5560)
VALVE;HOLDING (Part# KHJ1473) ZAJ362L0002 001 – KHJ1473 EX 618
RADIATOR (Part# KWH0002) ZAN320L0027 001 – KWH0002 EX 622
REDUCTION GEARS TRACTION (Part# ZAN735L0001 000 – KWA0019 EX 628
KWA0019)
AREA 83: ENGINE
ENGINE GASKET KIT 83-11008-005 000 632
CYLINDER HEAD COVER 83-11008-010 000 636
CYLINDER HEAD 83-11008-011 000 638
CYLINDER BLOCK 83-11008-012 000 644
OIL PAN AND LEVEL GAUGE 83-11008-013 000 648
CAMSHAFT AND VALVE 83-11008-014 000 650
CRANKSHAFT 83-11008-015 000 656
TIMING GEAR CASE AND FLYWHEEL 83-11008-020 000 658
HOUSING
INLET MANIFOLD 83-11008-025 000 664
EXHAUST MANIFOLD 83-11008-027 000 666
VENTILATION SYSTEM 83-11008-028 000 668
WATER PUMP AND CORROSION 83-11008-030 000 670
RESISTOR
THERMOSTAT AND HOUSING 83-11008-031 000 672
WATER PIPING; ENGINE 83-11008-032 000 674
FAN AND FAN BELT 83-11008-033 000 678
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
Page viii 700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69
AREA 83: ENGINE (CONTINUED)
TURBOCHARGER SYSTEM 83-11008-036 000 682
TURBOCHARGER 83-11008-037 000 686
FUEL INJECTION SYSTEM 83-11008-040 000 688
FUEL FILTER AND BRACKET 83-11008-041 000 694
FUEL PUMP AND PIPE 83-11008-042 000 698
OIL COOLER AND OIL FILTER 83-11008-050 000 700
OIL PUMP AND OIL STRAINER 83-11008-051 000 704
OIL AND VACUUM PIPING; ENGINE 83-11008-052 000 706
EMISSION PIPING 83-11008-057 000 712
ENGINE ELECTRICAL CONTROL PARTS 83-11008-060 000 716
STARTER 83-11008-065 000 720
GENERATOR 83-11008-066 000 722
COUPLING; INJECTION PUMP 83-11008-087 000 726
POWER TAKE OFF; FLYWHEEL 83-11008-090 000 728
WIRING HARNESS AND FUSE 83-11008-810 000 730
FIXING PARTS; WIRING HARNESS 83-11008-815 000 732
Part Index 735
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69 Page ix
This page intentionally left blank.
Page x 700 X2 EXCAVATOR PARTS MANUAL Revision: 12/69
LOWERS
GROUSER SHOE 650 SEAL DA0220L0002-00 000 01101 – ALL 2
GROUSER SHOE 750 SEAL DA02A0L0002-00 000 01101 – ALL 4
GROUSER SHOE 900 SEAL DA02A1L0002-00 000 01101 – ALL 6
LOWER UNDER COVER DA0301L0009-00 000 01101 – ALL 8
TRACK GUARD (DOUBLE) DA3803L0006-00 000 01101 – ALL 10
TRACK GUARD (FULL) DA3804L0011-00 000 01101 – ALL 12
CENTER JOINT DA8901L0020-00 001 01101 – ALL 14
RECOIL SPRING DA9401L0019-00 002 01101 – ALL 16
TRACTION EQUIPMENT DAA801L0019-00 000 01101 – ALL 18
LOWER FRAME DAE901L0067-00 000 01101 – ALL 20
TRACTION MOTOR LINE DAK301L0033-00 000 01101 – ALL 22
UPPER ROLLER DAN401L0018-00 001 01101 – ALL 24
TAKE-UP ROLLER DAN701L0018-00 000 01101 – ALL 26
LOWER ROLLER DAP201L0020-00 000 01101 – ALL 28
COVER DAZB01L0003-00 000 01101 – ALL 30
Title Parts Page Code Rev Level Serial # Part # OPT Series Page #
700

Customer Support: [email protected]

https://vimeo.com/738843193

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

I.G
