Mahindra Tractor 7095 4WD TIER-4 FINAL CABIN Operator’s Manual – PDF DOWNLOAD
Original price was: $78.00.$26.95Current price is: $26.95.
Mahindra Tractor 7095 4WD TIER-4 FINAL CABIN Operator’s Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Mahindra Tractor 7095 4WD TIER-4 FINAL CABIN Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Mahindra Tractor 7095 4WD TIER-4 FINAL CABIN Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 136
Downloadable : Yes
File Type : PDF
Size: 18.2 mb
DESCRIPTION:
Mahindra Tractor 7095 4WD TIER-4 FINAL CABIN Operator’s Manual – PDF DOWNLOAD
About This Manual
- This Manual has been prepared to assist you in following the correct procedure for break-in, operation and maintenance of your new Mahindra tractor. Your tractor has been designed and built to give maximum performance, with good fuel economy and ease of operation under a wide variety of operating conditions.
- Prior to delivery, the tractor was carefully inspected, both at the factory and by your Mahindra dealer, to ensure that it reaches you in optimum condition. To maintain this condition and ensure trouble free performance, it is important that the routine services, as specified in this manual, are carried out at the recommended intervals.
- We have enclosed a page on new tractor inspection sheets. The first sheet is the dealer’s copy and should be removed by the dealer after the inspection has been carried out. The second sheet is your copy of the service performed. Ensure that you & the dealer sign both copies.
- Read this manual carefully and keep it in a convenient place for future reference. If at any time you require advice concerning your tractor, do not hesitate to contact your authorised Mahindra dealer. He has trained personnel, genuine Mahindra parts and necessary equipments to undertake all your service requirements.
- Mahindra USA Inc’s. policy is one of continuous improvement, and the right to change prices, specifications or equipments at any time without notice is reserved. All data given in this book is subject to production variations.
- Dimensions & weight are approximate only and the illustrations do not necessarily show tractors in standard condition. For exact information about any particular tractor, please consult your Mahindra dealer.
Introduction
Tractor
- Tractor The word, ‘Tractor’ has been derived from ‘traction’ which means pulling. A tractor is required to pull or haul an equipment, implement or trolley, which are coupled to the tractor chassis through suitable linkage. A tractor can also be used as a prime mover as it has a power outlet source which is also called Power Take Off or PTO shaft.
- In this book the operation and maintenance instructions for mPOWER 8090 & 8100 4WD cabin models of Mahindra diesel tractors have been compiled. This material has been prepared in detail to help you in better understanding of maintenance and efficient operation of the machine.
- If you need any information not given in this manual, or require the services of a trained mechanic, please get in touch with the Mahindra dealer in your locality. Dealers are kept informed of the latest methods of servicing tractors. They stock genuine repair parts and are backed by the company’s full support.
- Throughout this manual, the use of the terms LEFT, RIGHT, FRONT and REAR must be understood, to avoid any confusion when following the instructions. The LEFT and RIGHT means left and right sides of the tractor when facing forward in the driver’s seat. Reference to the FRONT indicates the radiator end of the tractor, while the REAR, indicates the drawbar end.
Tractor Serial Number
The tractor serial number can be identified from below
mentioned locations :
1. A plate rivetted on LH side of front axle support.
2. Number punched on the right side of Engine.
For easy reference, we suggest you to write this number in the space provided in the owner’s personal data. When spare parts are required, always specify the tractor and tractor serial number. This will facilitate faster delivery and help ensure that the correct part for your particular tractor is received.

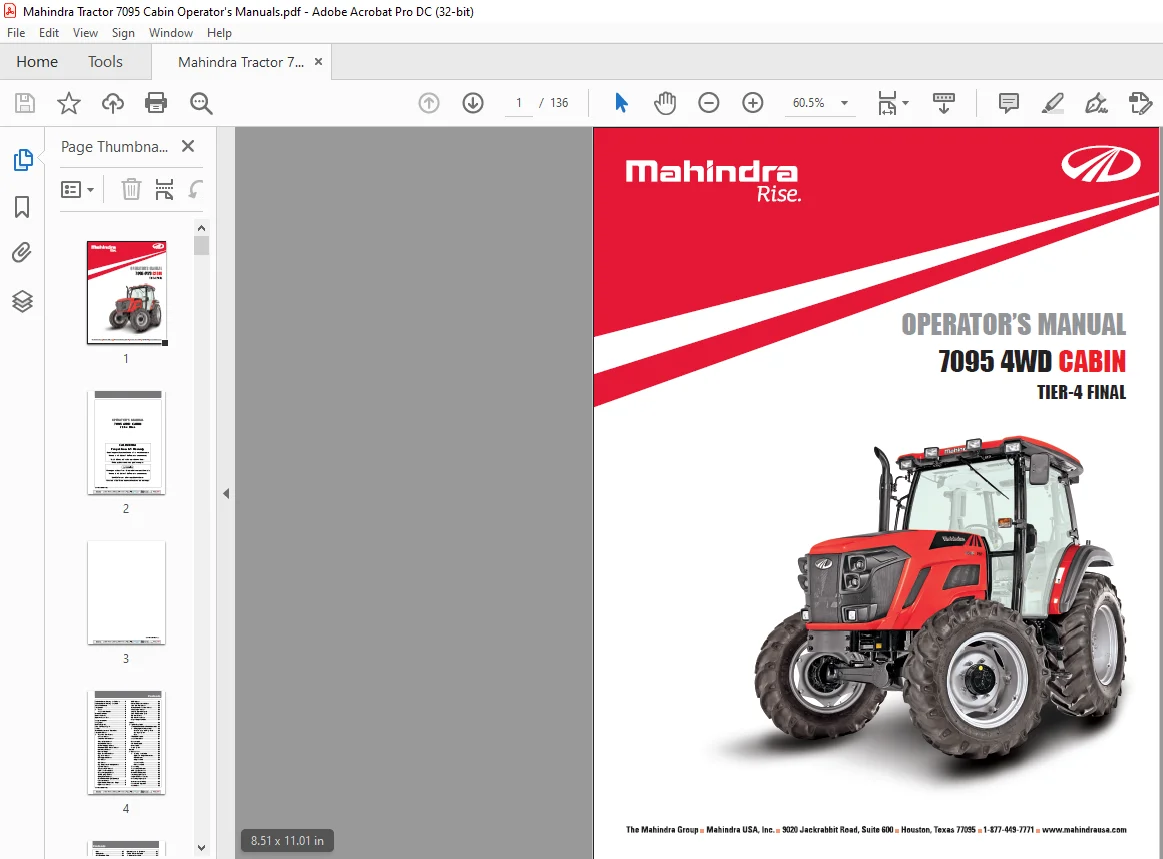

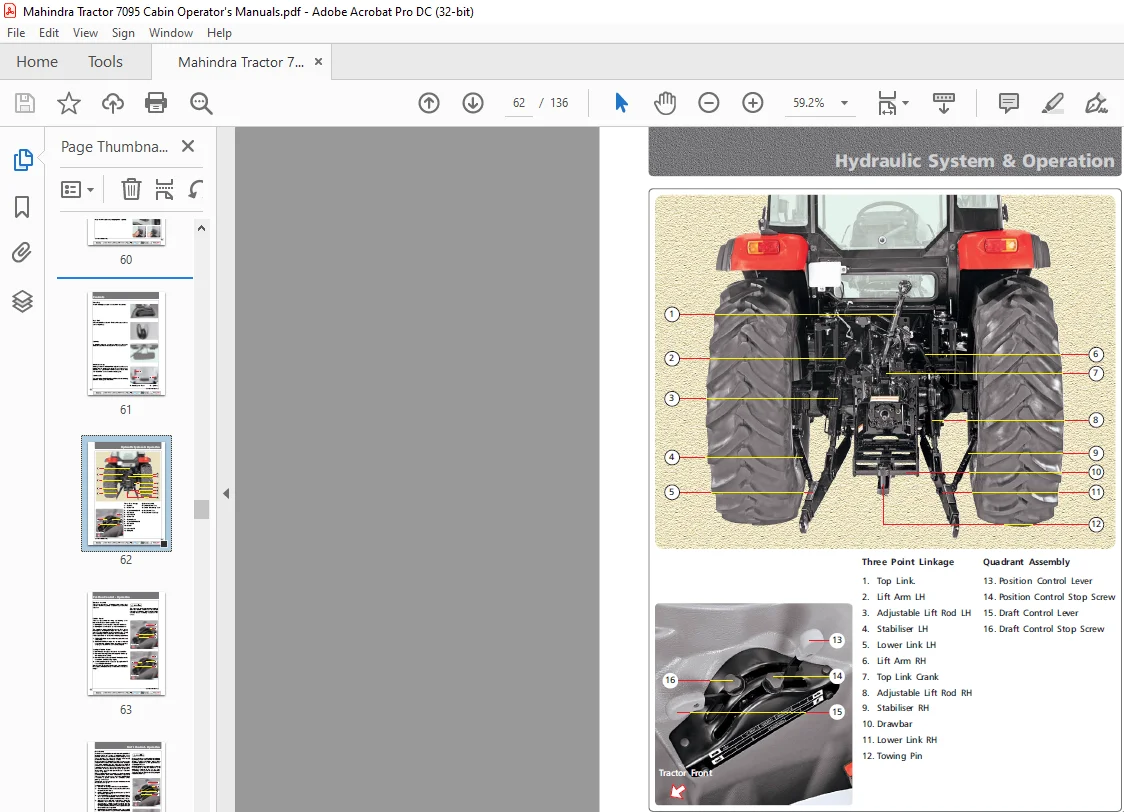

IMAGES PREVIEW OF THE MANUAL:

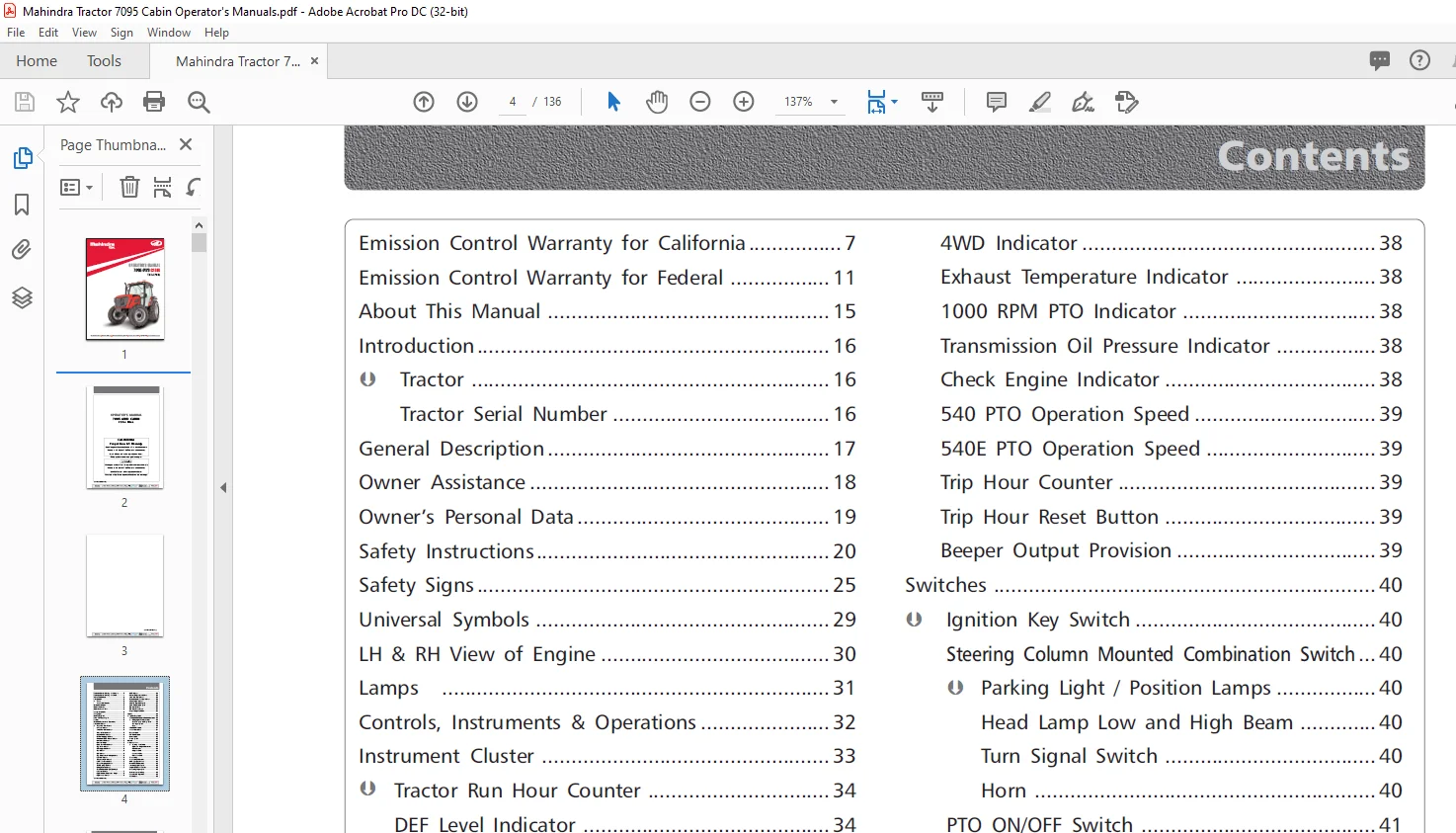

TABLE OF CONTENTS:
