Manitou 1104D EURO 3 – 80CV 100CV Engine Repair Manual 647016EN – PDF DOWNLOAD

Description

Manitou 1104D EURO 3 – 80CV 100CV Engine Repair Manual 647016EN – PDF DOWNLOAD

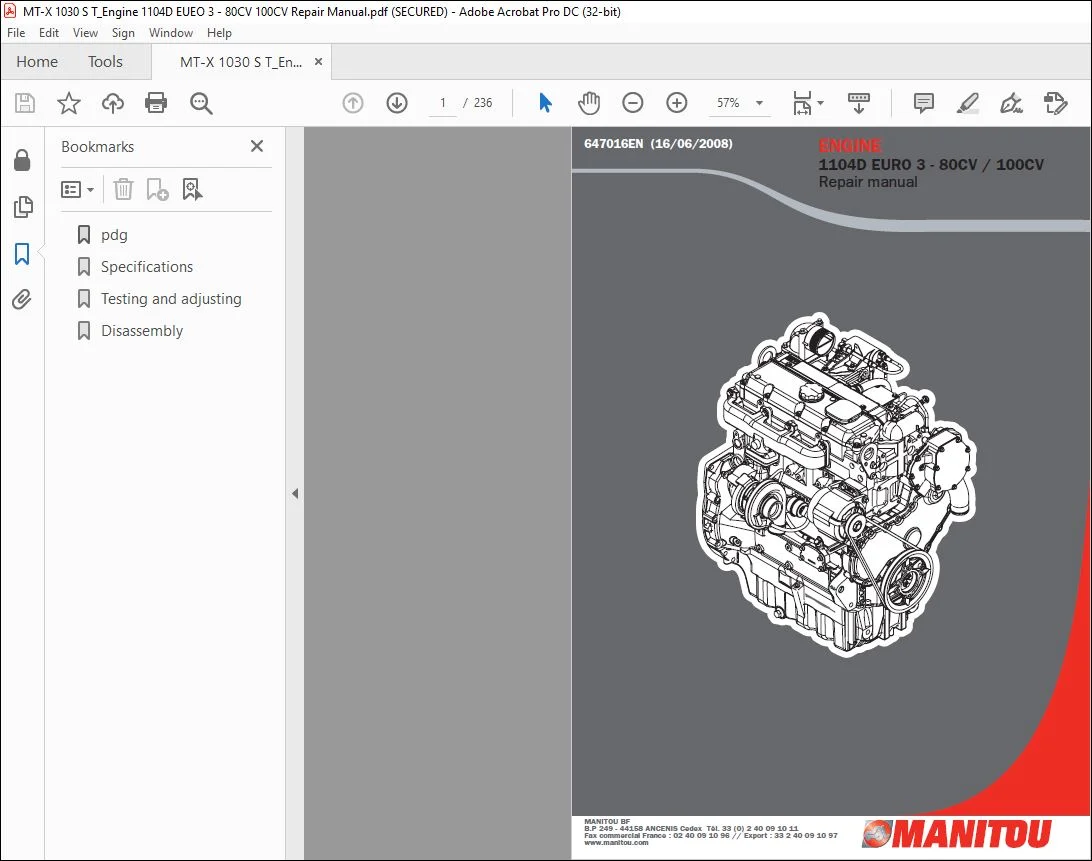

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

DESCRIPTION:

Manitou 1104D EURO 3 – 80CV 100CV Engine Repair Manual 647016EN – PDF DOWNLOAD

Important Safety Information:

• Most accidents that involve product operation, maintenance and repair are caused by failure to
  observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially
  hazardous situations before an accident occurs. A person must be alert to potential hazards. This
  person should also have the necessary training, skills and tools to perform these functions properly.
• Improper operation, lubrication, maintenance or repair of this product can be dangerous and
  could result in injury or death.
• Do not operate or perform any lubrication, maintenance or repair on this product, until you have
  read and understood the operation, lubrication, maintenance and repair information.
  Safety precautions and warnings are provided in this manual and on the product. If these hazard
  warnings are not heeded, bodily injury or death could occur to you or to other persons.
• The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as
  “DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below.

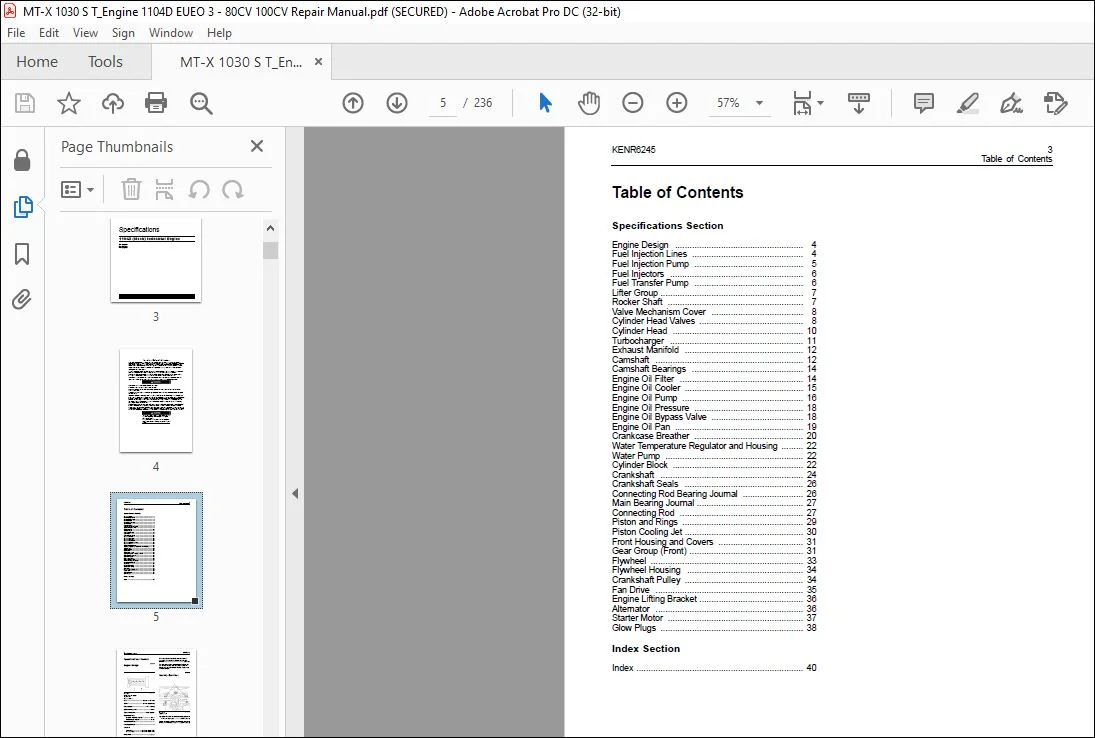

TABLE OF CONTENTS:

Manitou 1104D EURO 3 – 80CV 100CV Engine Repair Manual 647016EN – PDF DOWNLOAD

Specifications Section
Engine Design 4
Fuel Injection Lines 4
Fuel Injection Pump 5
Fuel Injectors 6
Fuel Transfer Pump 6
Lifter Group 7
Rocker Shaft 7
Valve Mechanism Cover 8
Cylinder Head Valves 8
Cylinder Head 10
Turbocharger 11
Exhaust Manifold 12
Camshaft 12
Camshaft Bearings 14
Engine Oil Filter 14
Engine Oil Cooler 15
Engine Oil Pump 16
Engine Oil Pressure 18
Engine Oil Bypass Valve 18
Engine Oil Pan 19
Crankcase Breather 20
Water Temperature Regulator and Housing 22
Water Pump 22
Cylinder Block 22

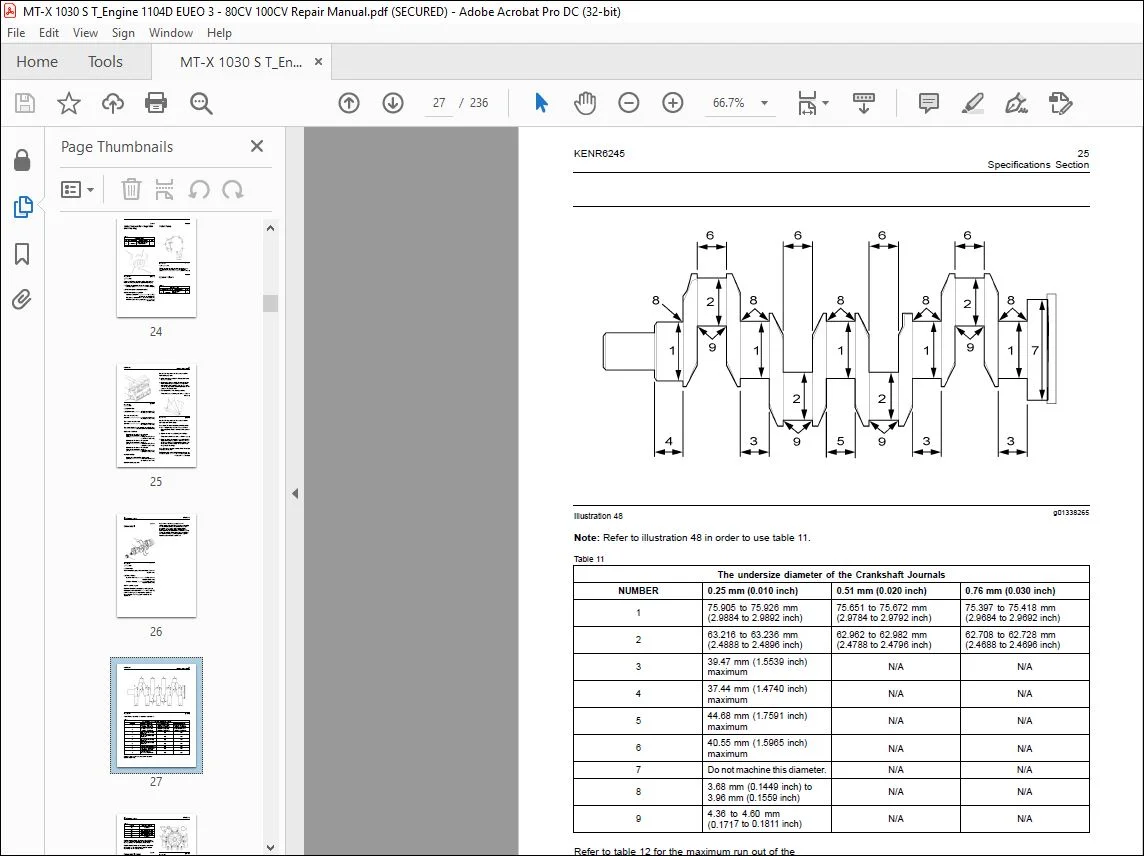

Crankshaft 24
Crankshaft Seals 26
Connecting Rod Bearing Journal 26
Main Bearing Journal 27
Connecting Rod 27
Piston and Rings 29
Piston Cooling Jet 30
Front Housing and Covers 31
Gear Group (Front) 31
Flywheel 33
Flywheel Housing 34
Crankshaft Pulley 34
Fan Drive 35
Engine Lifting Bracket 36
Alternator 36
Starter Motor 37
Glow Plugs 38
Index Section
Index 40
4 KENR6245
Specifications Section
Specifications Section
i02655068
Engine Design
Illustration 1 g01333480
Cylinder and valve location
(A) Inlet valve
(B) Exhaust valve
Bore 105 mm (4 133 inch)
Stroke 127 mm (5 000 inch)
Displacement 4 4 L (269 in3)
Cylinder arrangement In-line
Type of combustion Direct injection
Compression ratio
Naturally aspirated engines 19 3:1
Turbocharged engines 18 2:1
Number of cylinders 4
Valves per cylinder 2
Valve lash
Inlet valve 0 20 mm (0 008 inch)
Exhaust valve 0 45 mm (0 018 inch)
Firing order 1, 3, 4, 2
When the crankshaft is viewed from the front of
the engine, the crankshaft rotates in the following
direction: Clockwise
