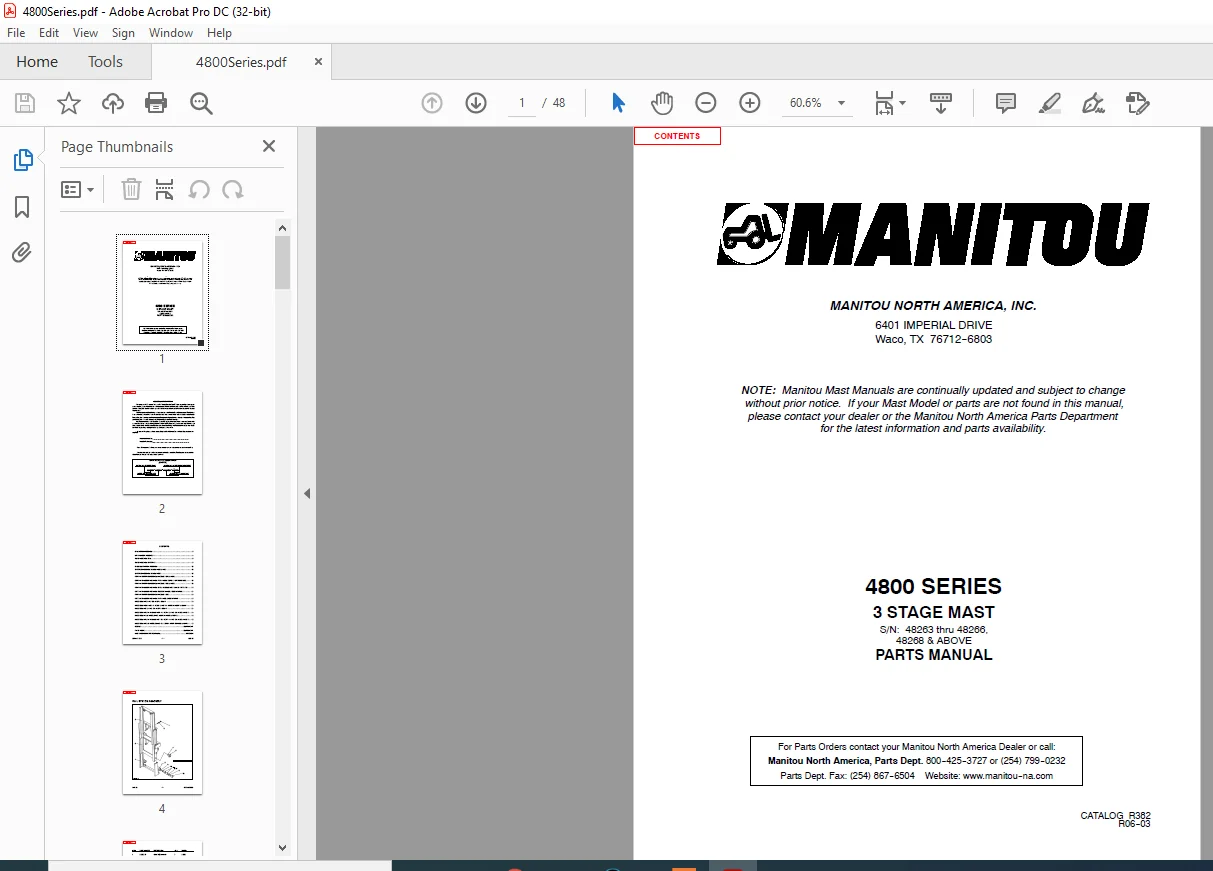

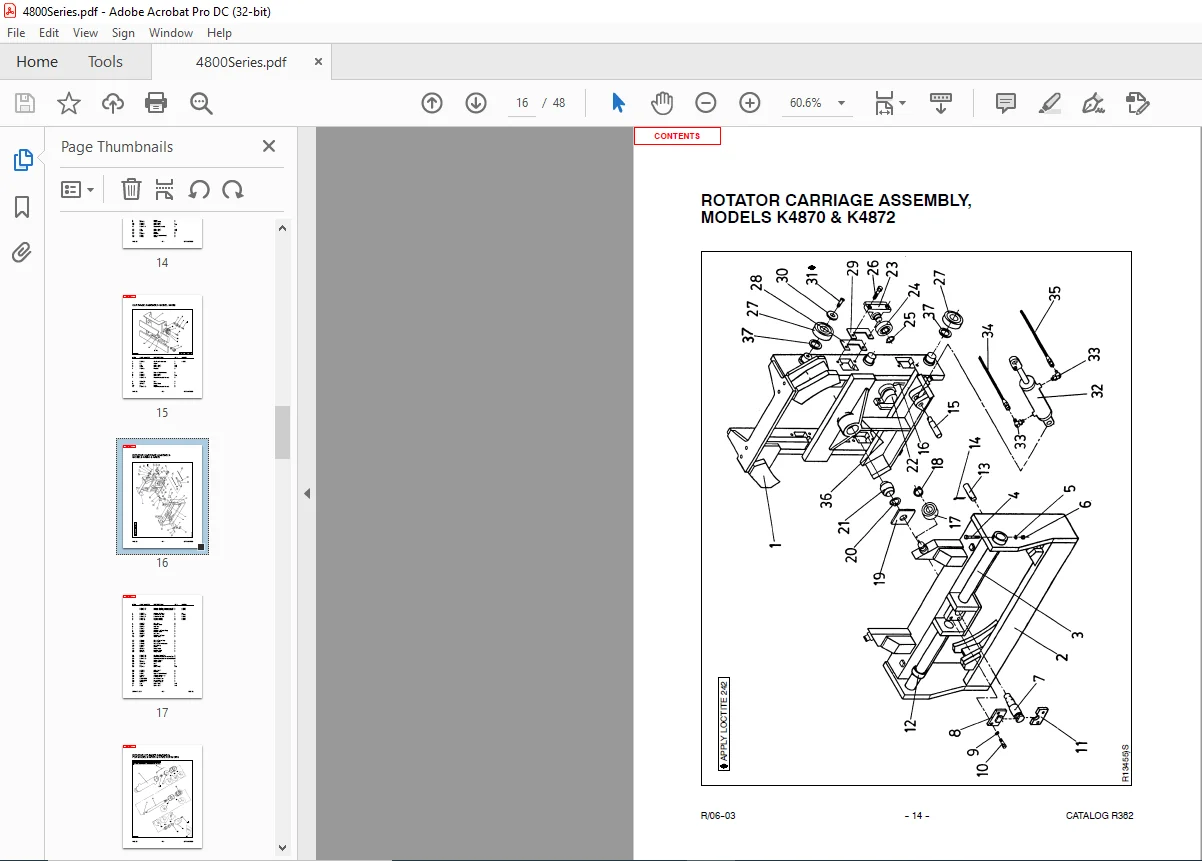

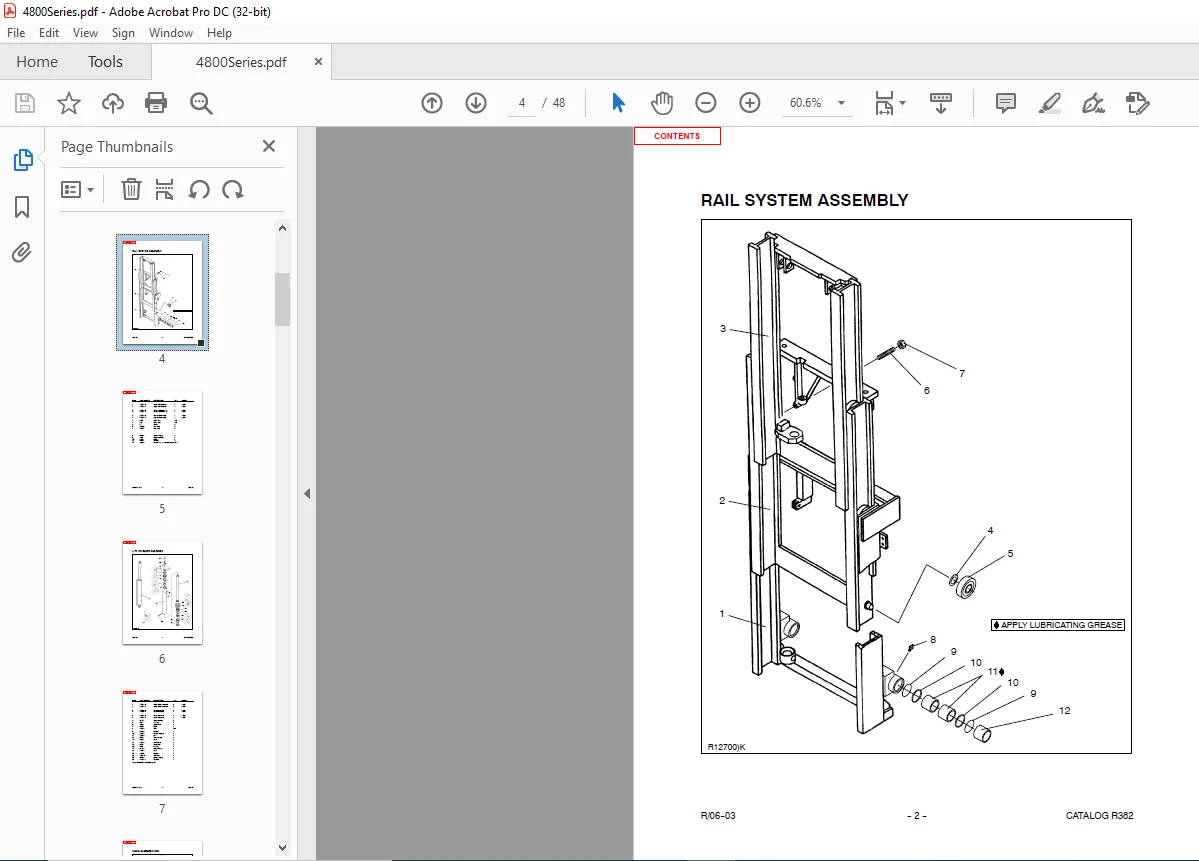

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou 4800 SERIES 3 STAGE MAST Parts Manual – PDF DOWNLOAD

S/N: 48263 thru 48266,
48268 & ABOVE

CATALOG R382

GENERAL INFORMATION :

• The purpose of this manual is to provide illustrations for identifying and ordering Mast components or parts. Many Mast Models and components listed, for this reason the illustrations provide a general description and therefore may not show the exact shape or detail of the components or parts represented. The Mast parts are identified by an Item Number on the illustration or picture page. Find the Item Number for the part desired, then locate that Item Number under the ”Items” column following the illustration. The Part Number will be located directly to the right of the Item Number.
• Also provided is a part Description, Quantity of parts required and the mast Model number. Most important when ordering parts, is providing the correct serial number as assigned to the mast at the factory. Keep accurate records of all modifications or improvements made to the mast after manufacture. (All Mast modifications must be authorized by Manitou North America, Inc.) Notify the Parts Dept. of any changes that may affect your parts order.

TABLE OF CONTENTS:

Manitou 4800 SERIES 3 STAGE MAST Parts Manual – PDF DOWNLOAD

RAIL SYSTEM ASSEMBLY 2
LIFT CYLINDER ASSEMBLY 4
CHAIN ASSEMBLY, RAIL 6
CHAIN ASSEMBLY, CARRIAGE 8
HYDRAULIC SYSTEM ASSEMBLY 10
CARRIAGE ASSEMBLY, MODEL K4890 & K4891 12
CARRIAGE ASSEMBLY, MODEL K4892 13
ROTATOR CARRIAGE ASSEMBLY, MODELS K4870 & K4872 14
ROTATOR CYLINDER ASSEMBLY, FOR MODELS K4870 & K4872 ROTATORS 16
ROTATOR CARRIAGE ASSEMBLY, MODELS K4882 & K4883 18
ROTATOR CYLINDER ASSEMBLY, EARLY MODELS K4882 & K4883 ROTATORS 22
ROTATOR CYLINDER ASSEMBLY, CURRENT MODEL K4882 ROTATOR 24
ROTATOR CARRIAGE ASSEMBLY, MODELS K4888 26
ROTATOR CYLINDER ASSEMBLY, FOR MODEL K4888 ROTATOR 28
HOSE REEL KITS, MAST S/N: 48997 & BELOW 30
HOSE REEL K4864, K4869–1, K4869–2, K4874–1, MAST S/N: 48997 & BELOW 32
HOSE REEL K4875, MAST S/N: 48997 & BELOW 34
HOSE REEL KITS, RH MODELS K4874–1 & K4874–2, MAST S/N: 48998 & ABOVE 36
HOSE REEL KIT, LH MODEL K4875, MAST S/N: 48998 & ABOVE 38
HOSE REEL KITS, RH MODELS K4877–2 & K4877–4, MAST S/N: 48998 & ABOVE 40
HOSE REEL KITS, LH MODELS K4878–2 & K4878–4, MAST S/N: 48998 & ABOVE 42
DECALS SUPPLEMENT
PARTS INDEX SUPPLEMENT
MAST OPERATOR/SERVICE MANUAL APPENDIX
