Manitou 5500ER SERIES K5504.5ER THRU K5506ER 5 STAGE MAST Parts Manual

Description

Manitou 5500ER SERIES K5504.5ER THRU K5506ER 5 STAGE MAST Parts Manual – PDF DOWNLOAD

MANITOU 5500ER SERIES K5504.5ER THRU K5506ER 5 STAGE MAST PARTS MANUAL:

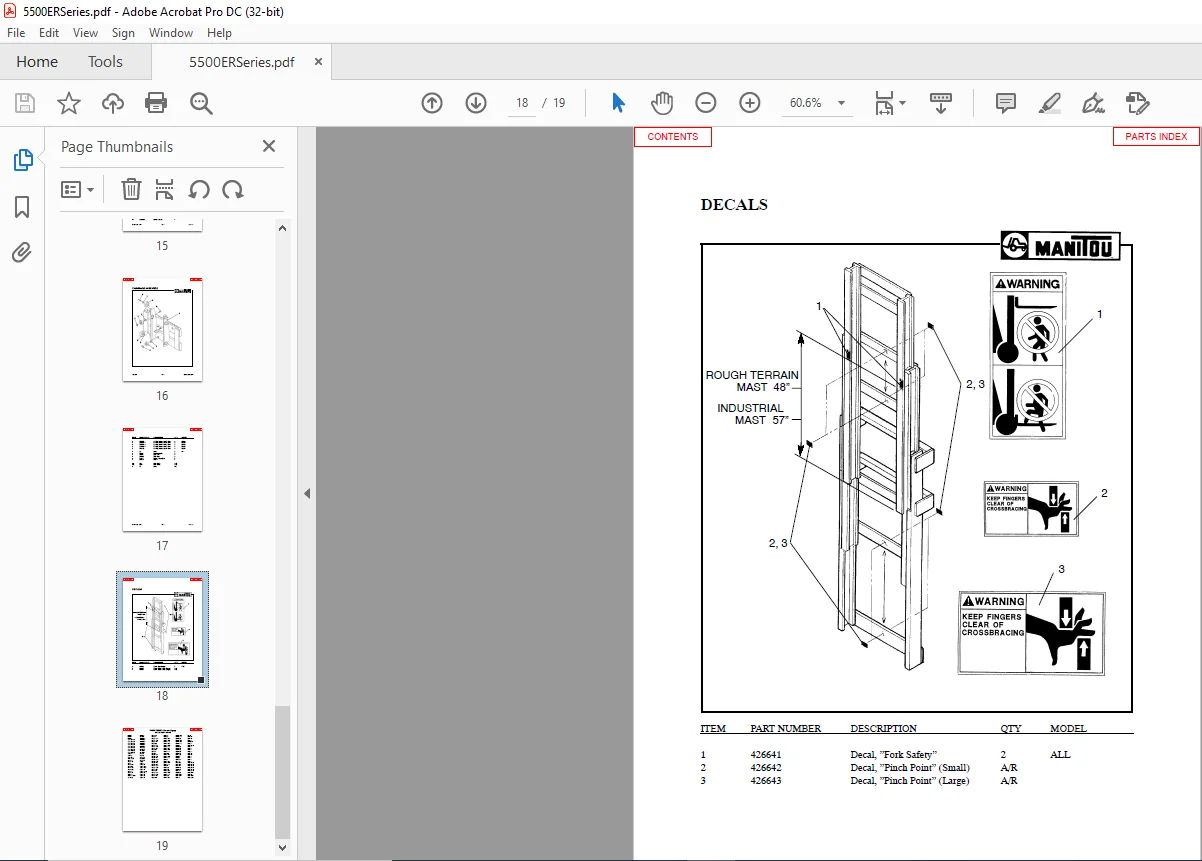

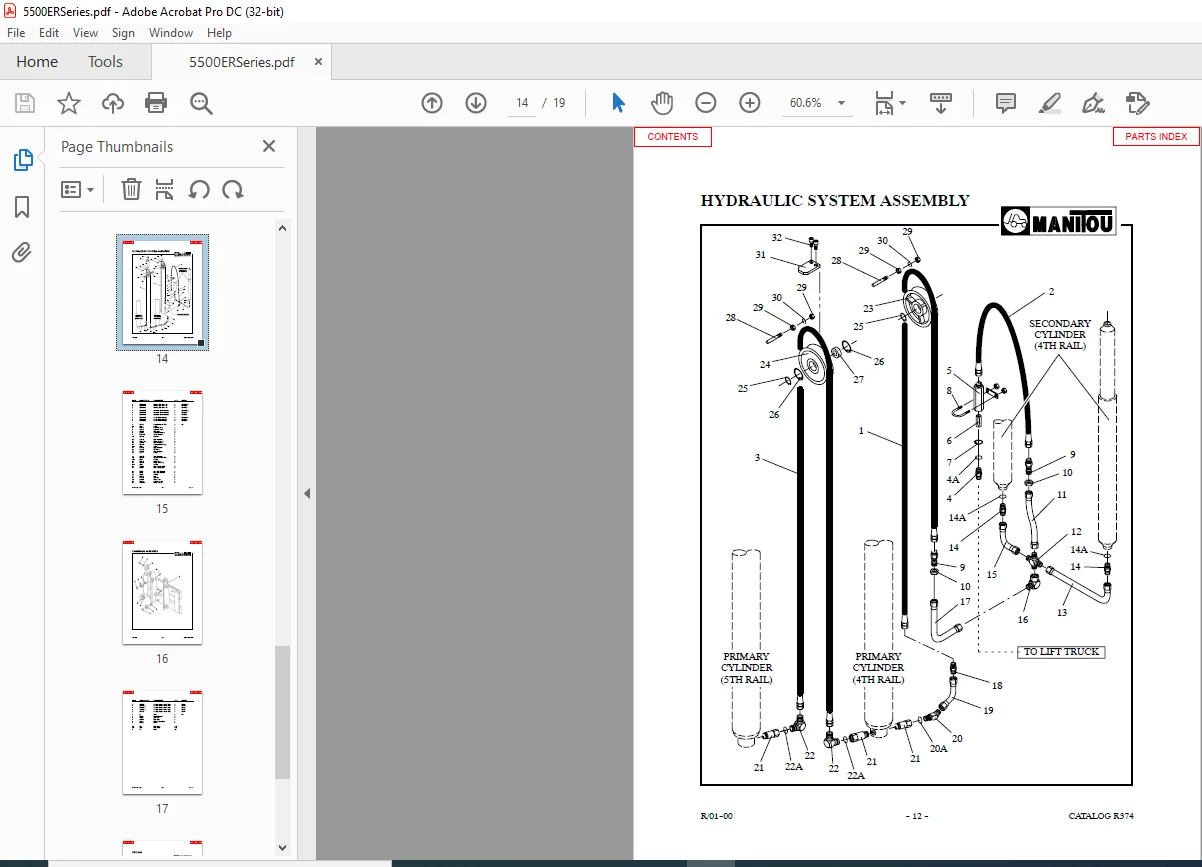

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou 5500ER SERIES K5504.5ER THRU K5506ER 5 STAGE MAST Parts Manual – PDF DOWNLOAD

• The purpose of this catalog is to provide illustrations for identifying andordering Mast components/parts. Because of the multitude of Mast Models and components utilized, the illustrations provide a general description and therefore may not show the exact shape or detail of the components/parts represented. The Mast parts are identified by an Item Number on the illustration or picture page.
• Find the Item Number for the part desired, then locate that Item Number under the ”Items” column following the illustration. The Part Number will be located directly to the right of the Item Number. Also provided is a part Description, Quantity of parts required and the mast Model number. Most important when ordering parts, is providing the correct serial number as assigned to the mast at the factory. Keep accurate records of all modifications or improvements made to the mast after manufacture. (All Mast modifications must be authorized by K–D Manitou.) Notify the Parts Dept. of any changes that may affect your parts order.

TABLE OF CONTENTS:

Manitou 5500ER SERIES K5504.5ER THRU K5506ER 5 STAGE MAST Parts Manual – PDF DOWNLOAD

RAIL SYSTEM ASSEMBLY 2
PRIMARY CYLINDER ASSEMBLY, 4TH RAIL 4
PRIMARY CYLINDER ASSEMBLY, 5TH RAIL 6
SECONDARY CYLINDER ASSEMBLY 8
CHAIN SYSTEM ASSEMBLY 10
HYDRAULIC SYSTEM ASSEMBLY 12
CARRIAGE ASSEMBLY 14
DECALS SUPPLEMENT
PARTS INDEX SUPPLEMENT
