Manitou Forklift MSI 20 25 30 35, MH 20-4 25-4 Turbo BUGGIE S2-E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

Description

Manitou Forklift MSI 20 25 30 35, MH 20-4 25-4 Turbo BUGGIE S2-E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Manitou Forklift MSI 20 25 30 35, MH 20-4 25-4 Turbo BUGGIE S2-E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

Language : English
Pages : 602
Downloadable : Yes
File Type : PDF
Size: 47.6 MB

Need help? Contact: [email protected]

https://vimeo.com/777239666

DESCRIPTION:

Manitou Forklift MSI 20 25 30 35, MH 20-4 25-4 Turbo BUGGIE S2-E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

IMPORTANT
PARTS ORDER :
When placing an order, always state :
– Spare part ref. number
– Complete description
– Quantity
– Type of machine
– Machine serial number.
– Component identification number
(mast, jib, cab, engine, etc

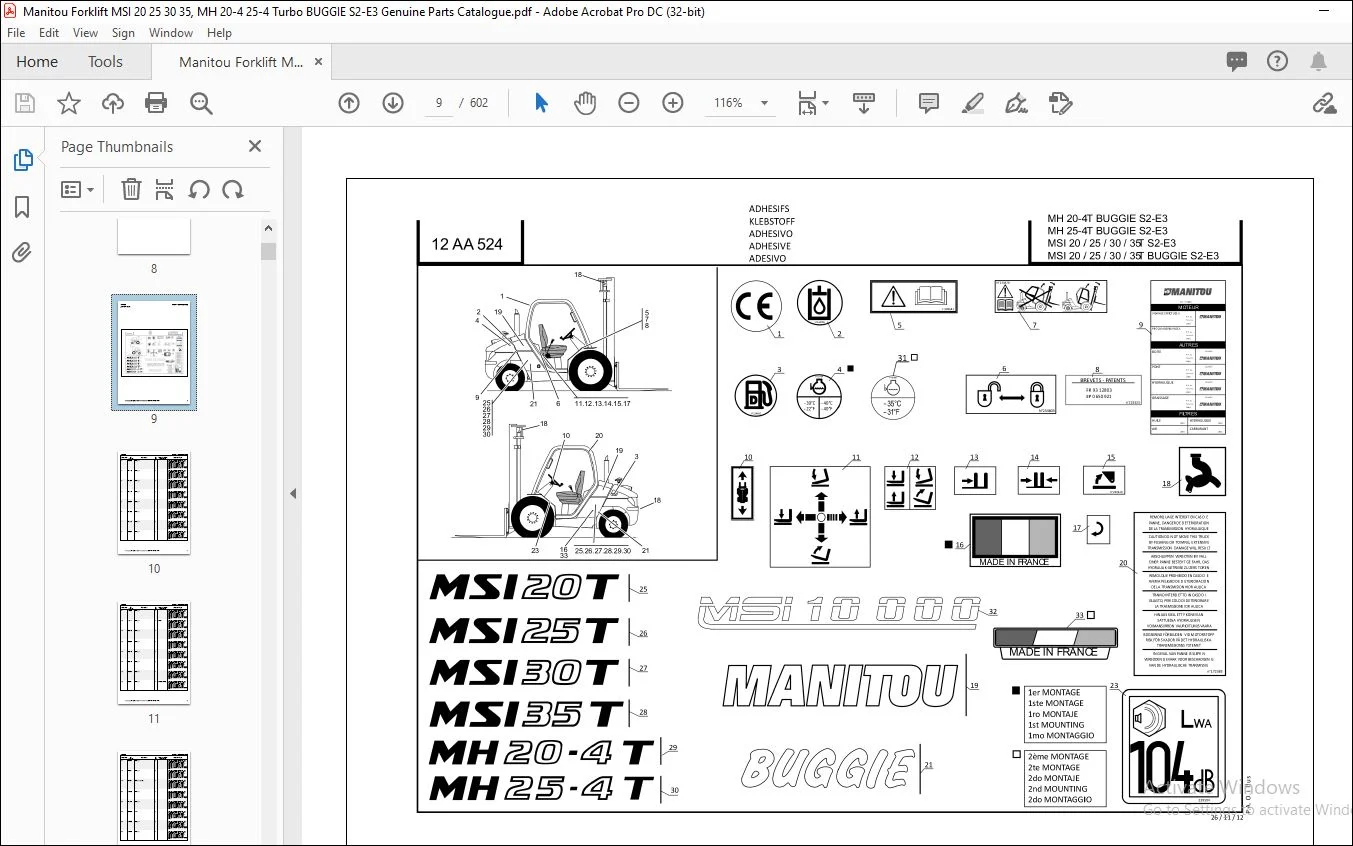

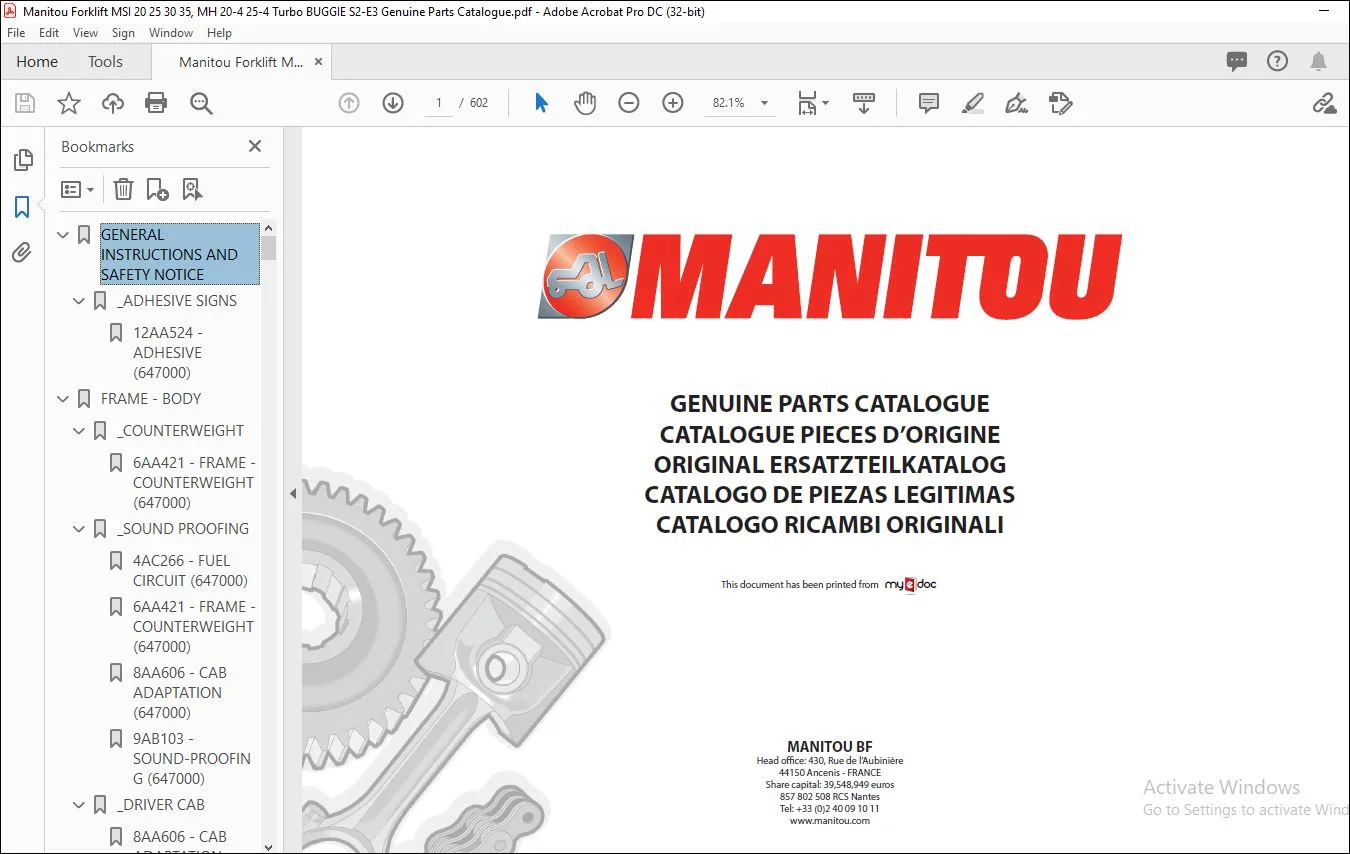

IMAGES PREVIEW OF THE MANUAL:

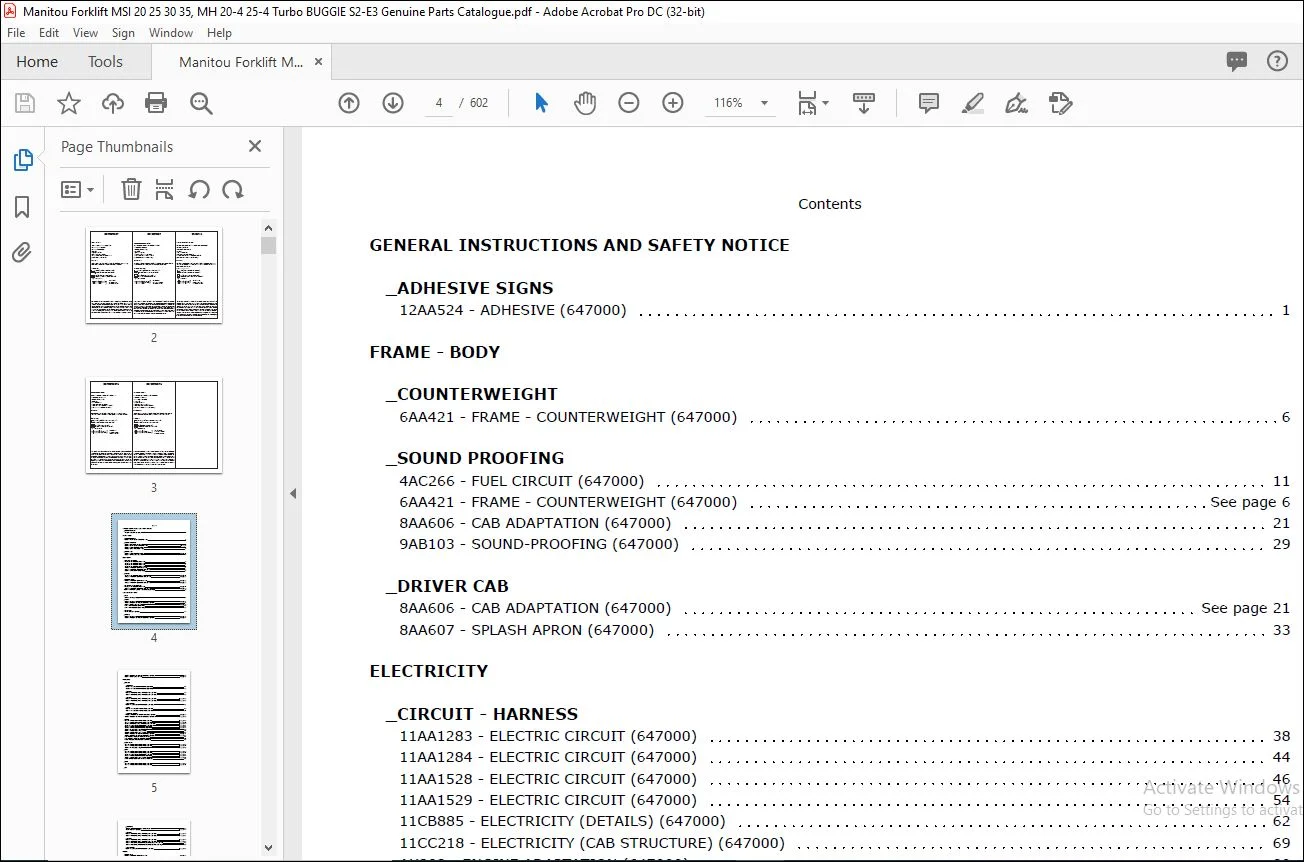

TABLE OF CONTENTS:

Manitou Forklift MSI 20 25 30 35, MH 20-4 25-4 Turbo BUGGIE S2-E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

GENERAL INSTRUCTIONS AND SAFETY NOTICE
_ADHESIVE SIGNS
12AA524 – ADHESIVE (647000) 1
FRAME – BODY
_COUNTERWEIGHT
6AA421 – FRAME – COUNTERWEIGHT (647000) 6
_SOUND PROOFING
4AC266 – FUEL CIRCUIT (647000) 11
6AA421 – FRAME – COUNTERWEIGHT (647000) See page 6
8AA606 – CAB ADAPTATION (647000) 21
9AB103 – SOUND-PROOFING (647000) 29
_DRIVER CAB
8AA606 – CAB ADAPTATION (647000) See page 21
8AA607 – SPLASH APRON (647000) 33
ELECTRICITY
_CIRCUIT – HARNESS
11AA1283 – ELECTRIC CIRCUIT (647000) 38
11AA1284 – ELECTRIC CIRCUIT (647000) 44
11AA1528 – ELECTRIC CIRCUIT (647000) 46
11AA1529 – ELECTRIC CIRCUIT (647000) 54
11CB885 – ELECTRICITY (DETAILS) (647000) 62
11CC218 – ELECTRICITY (CAB STRUCTURE) (647000) 69
AK302 – ENGINE ADAPTATION (647000) 80
_SWITCH
11AA1284 – ELECTRIC CIRCUIT (647000) See page 44
11CC218 – ELECTRICITY (CAB STRUCTURE) (647000) See page 69
_SAFETY SYSTEM
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
11CC218 – ELECTRICITY (CAB STRUCTURE) (647000) See page 69
_SELECTOR – MANIPULATOR
11AA1284 – ELECTRIC CIRCUIT (647000) See page 44
11CC218 – ELECTRICITY (CAB STRUCTURE) (647000) See page 69
11CD156 – ELECTRICITY (ENGINE – TRANSMISSION) (647000) 88
AXLE ASSEMBLY – AXLE
_REAR
3AA293 – WHEELS (647000) 90
_FRONT
3AA293 – WHEELS (647000) See page 90
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) 92
8AA607 – SPLASH APRON (647000) See page 33
BB12 – WHEEL REDUCING (229880MOD) 100
BB13 – WHEEL REDUCING (236474MOD) 116
_TRACK ROD
7AA74 – REAR AXLE (647000) 119
_WHEELS
3AA293 – WHEELS (647000) See page 90
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AB183 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) 128
8AA607 – SPLASH APRON (647000) See page 33
HYDRAULIC
_CIRCUIT
__STEERING
10BA342 – HYDRAULIC (STEERING CIRCUIT) (647000) 135
10BA402 – HYDRAULIC (STEERING CIRCUIT) (647000) 142
__LIFTING
10AB63 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) 148
10AB64 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) 155
__TILTING
10AB63 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 148
10AB64 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 155
__CAB LIFTING
10AJ12 – HYDRAULIC (CAB LIFTING CIRCUIT) (647000) 162
__MAIN
10AA741 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) 169
10AA742 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) 176
__COOLING SYSTEM
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AB183 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 128
_DETAIL
10AA741 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 169
10AA742 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 176
10AB64 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 155
10AJ12 – HYDRAULIC (CAB LIFTING CIRCUIT) (647000) See page 162
10BA342 – HYDRAULIC (STEERING CIRCUIT) (647000) See page 135
10BA402 – HYDRAULIC (STEERING CIRCUIT) (647000) See page 142
10DA92 – VALVE BANK (647000) 183
10EA224 – HYDRAULIC (DETAILS) (647000) 187
10EA308 – HYDRAULIC (DETAILS) (647000) 192
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AB183 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 128
BC50 – PRESSURE REDUCING VALVE (75498MOD) 196
BC99 – PRESSURE REDUCING VALVE (201559MOD) 201
BC166 – PRESSURE REDUCING VALVE (270373MOD) 203
_VALVE BANK
10AA741 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 169
10AA742 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 176
10DA92 – VALVE BANK (647000) See page 183
_PUMP
10AA741 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 169
10AA742 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 176
10AJ12 – HYDRAULIC (CAB LIFTING CIRCUIT) (647000) See page 162
10BA342 – HYDRAULIC (STEERING CIRCUIT) (647000) See page 135
10EA224 – HYDRAULIC (DETAILS) (647000) See page 187
BC234 – VARIABLE DISPLACEMENT PUMP (293762MOD) 205
_TANK
10AA741 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 169
10AA742 – HYDRAULIC (PRINCIPAL CIRCUIT) (647000) See page 176
_RAM
__STEERING
10CE33 – HYDRAULIC (STEERING CYLINDER) (647000) 212
7AA74 – REAR AXLE (647000) See page 119
__LIFTING
10AB63 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 148
10AB64 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 155
__TILTING
10AB63 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 148
10AB64 – HYDRAULIC (TILTING – LIFTING CIRCUIT) (647000) See page 155
10CD32 – HYDRAULIC (TILTING CYLINDER) (STANDARD 10°/10°) (647000) 215
10CD33 – HYDRAULIC (TILTING CYLINDER) (STANDARD 6°/6°) (647000) 220
__CAB LIFTING
10AJ12 – HYDRAULIC (CAB LIFTING CIRCUIT) (647000) See page 162
ENGINE
_ENGINE UNIT
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
4AA747 – ENGINE – TRANSMISSION ADAPTATION (647000) 225
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
AK144 – ENGINE ADAPTATION (647000) 229
AK237 – ROCKER LEVER COVER AND BREATHER (270516MOD) 236
AK236 – OIL SUMP – LUBRICATING OIL PUMP (270516MOD) 238
AK232 – CYLINDER BLOCK (270516MOD) 242
AK234 – CYLINDER HEAD (270516MOD) 246
AK241 – FLY WHEEL (270516MOD) 250
AK235 – ROCKER LEVER SHAFT (270516MOD) 254
AK250 – SEAL KIT (270516MOD) 257
AK239 – CAMSHAFT (270516MOD) 259
AK233 – PISTONS, CONNECTING RODS AND CRANKSHAFT (270516MOD) 262
AK154 – OIL SUMP – LUBRICATING OIL PUMP (270884MOD) 267
AK158 – OIL COOLER (270884MOD) 270
AK152 – CYLINDER HEAD (270884MOD) 273
AK159 – FLY WHEEL – STARTER MOTOR (270884MOD) 278
AK155 – ROCKER LEVER COVER AND BREATHER (270884MOD) 282
AK153 – ROCKER LEVER SHAFT (270884MOD) 286
AK150 – CYLINDER BLOCK (270884MOD) 289
AK151 – PISTONS, CONNECTING RODS AND CRANKSHAFT (270884MOD) 293
AK157 – TIMING GEAR AND CAMSHAFT (270884MOD) 302
AK292 – OIL COOLER (283390MOD) 308
AK288 – OIL SUMP – LUBRICATING OIL PUMP (283390MOD) 312
AK287 – ROCKER LEVER SHAFT (283390MOD) 316
AK286 – CYLINDER HEAD (283390MOD) 320
AK289 – ROCKER LEVER COVER AND BREATHER (283390MOD) 328
AK284 – CYLINDER BLOCK (283390MOD) 333
AK293 – FLY WHEEL – STARTER MOTOR (283390MOD) 339
AK285 – PISTONS, CONNECTING RODS AND CRANKSHAFT (283390MOD) 344
AK291 – TIMING GEAR AND CAMSHAFT (283390MOD) 358
_ELECTRICITY
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
11CD156 – ELECTRICITY (ENGINE – TRANSMISSION) (647000) See page 88
AK302 – ENGINE ADAPTATION (647000) See page 80
_FILTERS-BELT
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
2AA188 – FILTERS AND BELTS (647000) 369
4AA748 – ENGINE – TRANSMISSION ADAPTATION (647000) 372
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AC266 – FUEL CIRCUIT (647000) See page 11
AK144 – ENGINE ADAPTATION (647000) See page 229
AK302 – ENGINE ADAPTATION (647000) See page 80
AK240 – OIL FILTER (270516MOD) 378
_INTAKE SYSTEM – EXHAUST
4AA749 – ENGINE – TRANSMISSION ADAPTATION (647000) 382
AK245 – EXHAUST MANIFOLD (270516MOD) 387
AK244 – INTAKE MANIFOLD (270516MOD) 390
AK246 – TURBOCHARGER (270516MOD) 392
AK163 – EXHAUST MANIFOLD (270884MOD) 396
AK164 – TURBOCHARGER (DETAILS) (270884MOD) 398
AK162 – INTAKE MANIFOLD (270884MOD) 403
AK297 – EXHAUST MANIFOLD (283390MOD) 405
AK296 – INTAKE MANIFOLD (283390MOD) 408
AK298 – TURBOCHARGER (DETAILS) (283390MOD) 411
_FUEL SUPPLY SYSTEM
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AC266 – FUEL CIRCUIT (647000) See page 11
AK247 – FUEL CIRCUIT (270516MOD) 418
AK248 – INJECTION PUMP (270516MOD) 425
AK165 – FUEL CIRCUIT (270884MOD) 435
AK166 – FUEL CIRCUIT (270884MOD) 443
AK299 – FUEL CIRCUIT (283390MOD) 450
AK300 – FUEL CIRCUIT (283390MOD) 462
_ELECTRICAL SYSTEM
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
11CD156 – ELECTRICITY (ENGINE – TRANSMISSION) (647000) See page 88
AK302 – ENGINE ADAPTATION (647000) See page 80
AK243 – ALTERNATOR (DETAILS) (270516MOD) 475
AK242 – ALTERNATOR – PULLEY (270516MOD) 477
AK161 – ALTERNATOR (270884MOD) 480
AK160 – ALTERNATOR (270884MOD) 482
AK295 – ALTERNATOR (283390MOD) 486
AK294 – ALTERNATOR (283390MOD) 489
_COOLING SYSTEM
11CD156 – ELECTRICITY (ENGINE – TRANSMISSION) (647000) See page 88
4AA750 – ENGINE – TRANSMISSION ADAPTATION (647000) 492
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
AK144 – ENGINE ADAPTATION (647000) See page 229
AK302 – ENGINE ADAPTATION (647000) See page 80
AK238 – WATER PUMP (270516MOD) 498
AK249 – OIL COOLER (270516MOD) 501
AK156 – WATER PUMP (270884MOD) 506
AK290 – WATER PUMP (283390MOD) 512
9AB103 – SOUND-PROOFING (647000) See page 29
PEDALS
_LINKAGE
6BB188 – PEDALS – LINKAGE (647000) 520
DRIVER CAB
_HEATER – AIR CONDITIONING
_ELECTRICITY
11AA1284 – ELECTRIC CIRCUIT (647000) See page 44
11CB885 – ELECTRICITY (DETAILS) (647000) See page 62
11CC218 – ELECTRICITY (CAB STRUCTURE) (647000) See page 69
_DOOR – GLASS
8AA390 – SEAT (SYNTHETICS WOVEN) (647000) 531
8AA604 – SEAT ADAPTATION (647000) 535
8AA605 – PROTECTOR ADAPTATION (647000) 539
8AB909 – DRIVER’S OVERHEAD GUARD (DETAILS) (264509MOD) 548
8AB911 – DRIVER’S OVERHEAD GUARD (DETAILS) (264511mod) 552
8AB910 – DRIVER’S OVERHEAD GUARD (DETAILS) (264511mod) 560
8AB912 – DRIVER’S OVERHEAD GUARD (DETAILS) (264511mod) 566
8AB913 – DRIVER’S OVERHEAD GUARD (DETAILS) (264511mod) 571
TRANSMISSION
BB12 – WHEEL REDUCING (229880MOD) See page 100
BB13 – WHEEL REDUCING (236474MOD) See page 116
BF23 – WHEEL MOTOR (249355MOD) 576
_HYDROSTATIC CIRCUIT
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
4AB183 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 128
_HYDROSTATIC MOTOR
4AB182 – HYDROSTATIC TRANSMISSION CIRCUIT (647000) See page 92
BC98 – MOTOR WITH FIXED CAPACITY (201551MOD) 579
BC165 – VARIABLE DISPLACEMENT PUMP (270375MOD) 589
BC234 – VARIABLE DISPLACEMENT PUMP (293762MOD) See page 205
