Manitou Forklift MVT 665 T COMFORT LINE Parts Manual PDF

Description

Manitou Forklift MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Manitou Forklift MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

Language : English
Pages : 300
Downloadable : Yes
File Type : PDF

SERIAL NO. 7412 — 136270 & ABOVE

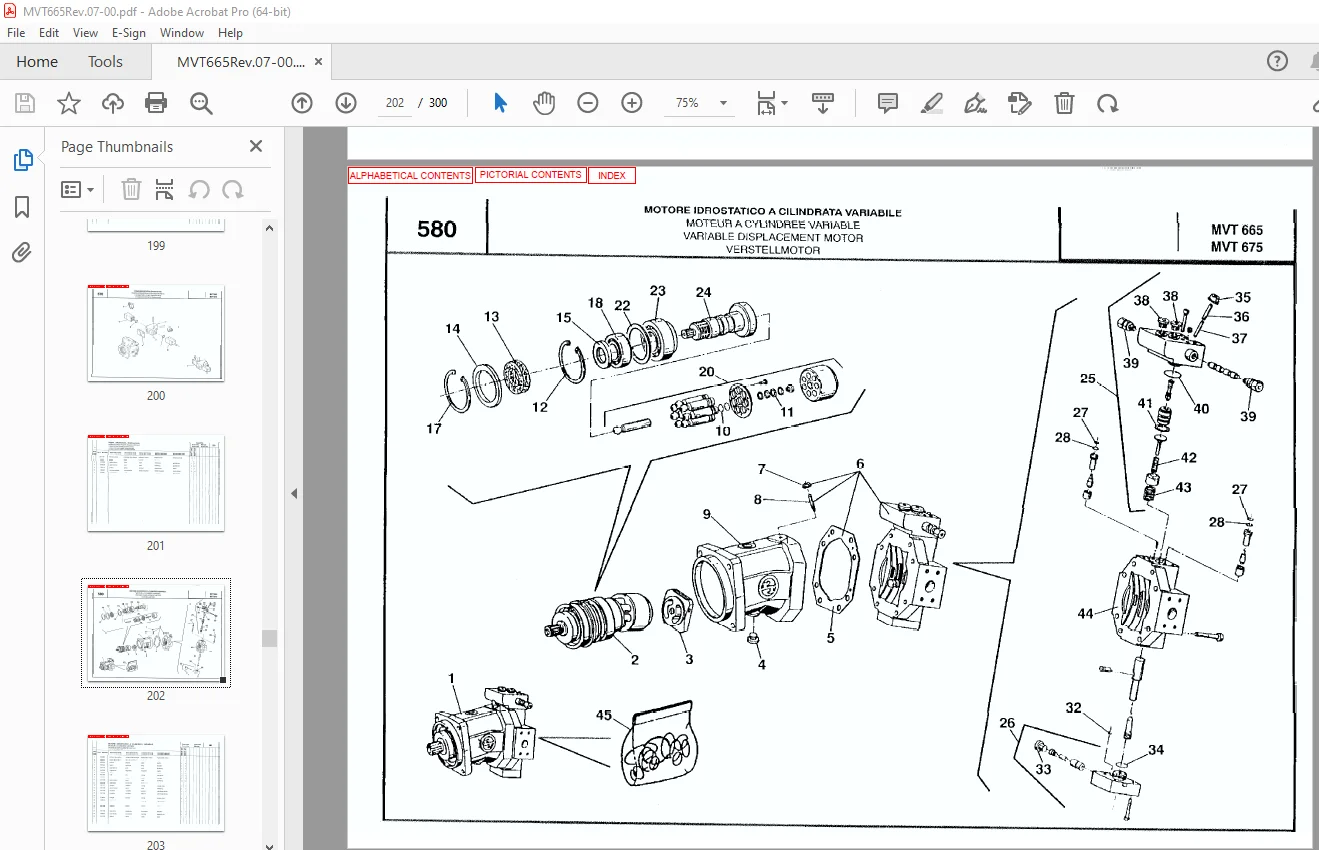

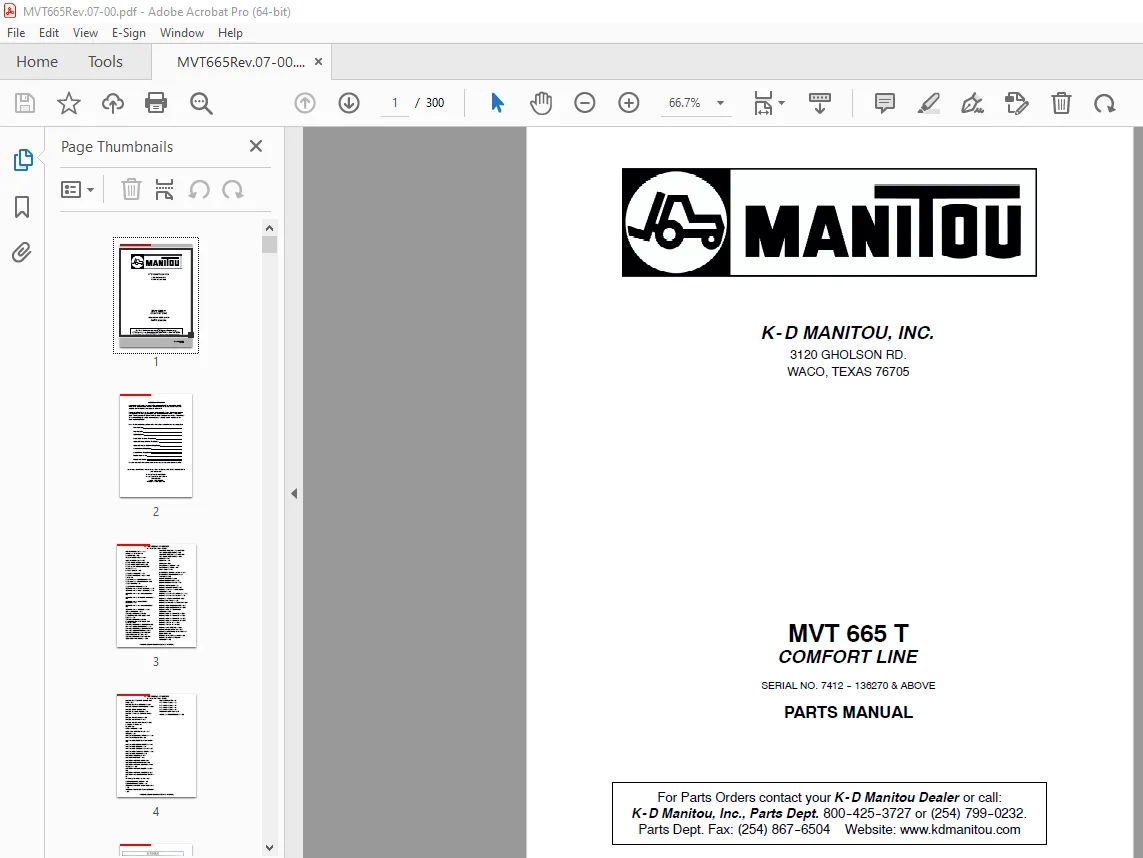

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitou Forklift MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

ACCELERATOR PEDAL – 170
AIR INTAKE SYSTEM – 20
ALTERNATOR – 770
AXLE HOUSING FRONT – 420
AXLE HOUSING REAR – 430
BRAKE DISCS, FRONT AXLE – 490
BRAKE DISCS, REAR AXLE – 500
BRAKE LEVER INSTALLATION AND
ASSEMBLY – 70
BRAKES CIRCUIT – 170
CAB, DOOR ASSEMBLY – 62
CAB, DOOR ASSEMBLY (ONLY FOR
T.U.V.) – 61
CAB, INTERNAL COMPONENTS I – 64
CAB, INTERNAL COMPONENTS II – 64A
CAB, OVERHEAD – 63
CAB, PRIMARY ASSEMBLY – 60
CONTROL VALVE (FINAL ELEMENT) – 226
CONTROL VALVE (INLET ELEMENT) – 221
CONTROL VALVE (LIFTING ELEMENT) –
225
CONTROL VALVE (OPTIONAL ELEMENT) –
224
CONTROL VALVE (TELESCOPIC
ELEMENT) – 222
CONTROL VALVE (TILTING ELEMENT) –
223
CONTROL VALVE ASSEMBLY – 220
COUNTERWEIGHT – 340
CYLINDER ASSEMBLY, BOOM
EXTENDING (S/N: 7536-136305 AND
BELOW) – 190
CYLINDER ASSEMBLY, BOOM
EXTENDING (S/N: 7695-136327 AND
ABOVE) – 190A
CYLINDER ASSEMBLY, COMPENSATING
(S/N: 7536-136305 AND BELOW) – 210
CYLINDER ASSEMBLY, COMPENSATING
(S/N: 7695-13627AND ABOVE) – 210A
CYLINDER ASSEMBLY, LIFTING (S/N:
7536-136305 AND BELOW) – 180
CYLINDER ASSEMBLY, LIFTING (S/N:
7695-136327 AND ABOVE) – 180A
CYLINDER ASSEMBLY, TILTING (S/N:
7536-136305 AND BELOW) – 200
CYLINDER ASSEMBLY, TILTING (S/N:
7695-136327 AND ABOVE) – 200A
DECALS I – 270
DECALS II – 280
DECALS III – 290
DIFFERENTIAL, FRONT – 460
DIFFERENTIAL, REAR – 470
DRIVE SHAFT – 410
ELECTRICAL, BATTERY, LIGHTS – 260
ELECTRICAL, INSTRUMENTS AND
SWITCHES – 250
ENGINE ASSEMBLY – 600
ENGINE BLOCK PLUGS – 890
ENGINE BRACKETS MISC. – 850
ENGINE INSTALLATION – 80
ENGINE, AUXILIARY DRIVE – 780
ENGINE, CAMSHAFT TIMING GEAR
ASSEMBLY – 640
ENGINE, CRANKSHAFT ASSEMBLY – 610
ENGINE, CRANKSHAFT PULLEY – 740
ENGINE, EXHAUST MANIFOLD – 800
ENGINE, FAN PULLEY – 700
ENGINE, FLYWHEEL AND HOUSING – 680
ENGINE, FUEL INJECTION MISC. – 670
ENGINE, FUEL INJECTION PUMP – 660
ENGINE, FUEL SYSTEM FILTER
ASSEMBLY – 820
ENGINE, FUEL SYSTEM MISC. I – 830
ENGINE, FUEL SYSTEM MISC. II – 860
ENGINE, FUEL SYSTEM MISC. III – 900
ENGINE, FUEL SYSTEM MISC. IV – 910
ENGINE, GASKET SET I – 920
ENGINE, GASKET SET II – 930
ENGINE, HEAD ASSEMBLY – 620
ENGINE, INTAKE MANIFOLD – 810
ENGINE, LUBRICATING OIL FILTER AND
BREATHER – 720
ENGINE, OIL FILTER AND MISC. – 730
ENGINE, OIL PAN AND PICKUP
ASSEMBLY – 710
ALPHABETICAL CONTENTS
MVT665 PTS 547683 R07-00
NUMERICAL PART NUMBERS INDEX (SEE APPENDIX)
ENGINE, OIL PRESSURE SWITCH AND
MISC. – 870
ENGINE, OIL PUMP ASSEMBLY – 650
ENGINE, ROCKER ARM ASSEMBLY – 630
ENGINE, SHORT BLOCK – 940
ENGINE, STARTER MOTOR – 690
ENGINE, THROTTLE CONTROL MISC. –
840
ENGINE, WATER OUTLET – 760
ENGINE, WATER PUMP – 750
ENGINE, WATER TEMP SENDER – 880
EXHAUST SYSTEM – 20
FILTERS – 00
FRAME ASSEMBLY – 50
FUEL TANK AND FUEL LINES – 240
FUSEBOX – 65
HYDRAULIC CONTROL ASSEMBLY – 150
HYDRAULIC SELECTOR – 152
HYDRAULICS, BOOM COMPENSATION –
120
HYDRAULICS, BOOM EXTENSION – 110
HYDRAULICS, COOLING – 160
HYDRAULICS, OPTIONAL TILTING – 130
HYDRAULICS, PRINCIPAL CIRCUIT – 100
HYDRAULICS, STEERING – 140
HYDROSTATIC MOTOR – 580
HYDROSTATIC PUMP – 520
HYDROSTATIC PUMP GEAR – 550
HYDROSTATIC PUMP ROTOR – 530
HYDROSTATIC PUMP, CONTROL VALVE
ASSEMBLY – 540
HYDROSTATIC PUMP, RELIEF VALVES –
560
HYDROSTATIC PUMP, SOLENOID – 570
HYDROSTATIC TRANSMISSION CIRCUIT –
90
JOYSTICK, CONTROL LEVER – 151
REDUCTION GEAR, FRONT – 440
REDUCTION GEAR, REAR – 450
STEERING CYLINDER FRONT AND REAR
– 480
STEERING SELECTOR VALVE ASSEMBLY
– 310
TELESCOPIC BOOM – 40
TIRES AND WHEELS – 10
TIRES AND WHEELS – 11
TIRES AND WHEELS – 12
TIRES AND WHEELS – 13
TRANSFER GEAR BOX – 510
TURBO CHARGER ASSEMBLY – 790

S.V 06/24
