Manitou GEAR BOX Series PSR09 Repair Manual 547982 – PDF DOWNLOAD

Description

Manitou GEAR BOX Series PSR09 Repair Manual 547982 – PDF DOWNLOAD

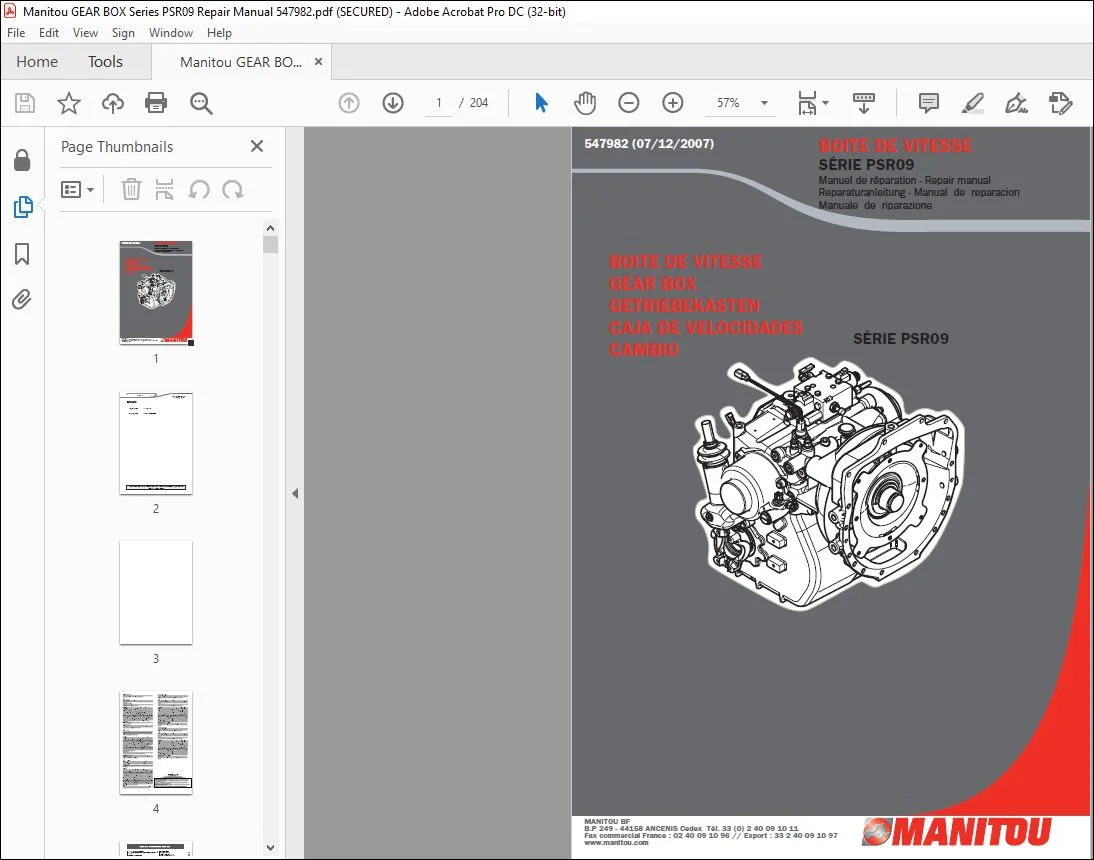

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/741746663

DESCRIPTION:

Manitou GEAR BOX Series PSR09 Repair Manual 547982 – PDF DOWNLOAD

FOREWORD:

• This manual has been prepared to provide the customer and the maintenance personnel
  with information and instructions on the maintenance and repair of the SPICER OFFHIGHWAY
  PRODUCTS product. Extreme care has been exercised in the design, selection
  of materials, and manufacturing of these units.
• The slight outlay in personal attention and
  cost required to provide regular and proper lubrication, inspection at stated intervals, and
  such adjustments as may be indicated will be reimbursed many times in low cost operation
  and trouble free service.
• In order to become familiar with the various parts of the product,
  its principle of operation, troubleshooting and adjustments, it is urged that the mechanic
  studies the instructions in this manual carefully and uses it as a reference when performing
  maintenance and repair operations.
• Whenever repair or replacement of component parts is
  required, only SPICER OFF-HIGHWAY PRODUCTS approved parts as listed in the applicable
  parts manual should be used. Use of “will-fit” or non-approved parts may endanger
  proper operation and performance of the equipment.
• SPICER OFF-HIGHWAY PRODUCTS
  does not warrant repair or replacement parts, nor failures resulting from the use of parts
  which are not supplied by or approved by SPICER OFF-HIGHWAY PRODUCTS .

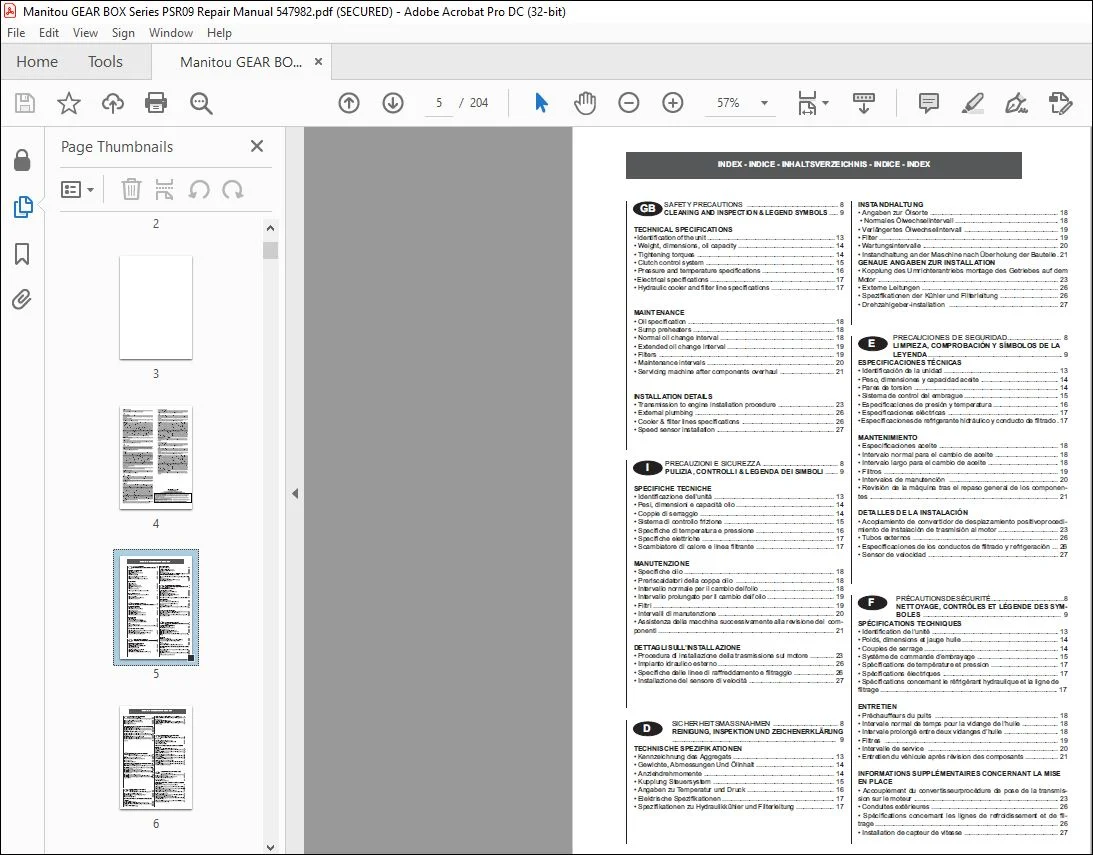

TABLE OF CONTENTS:

Manitou GEAR BOX Series PSR09 Repair Manual 547982 – PDF DOWNLOAD

SAFETY PRECAUTIONS 8
CLEANING AND INSPECTION & LEGEND SYMBOLS 9
TECHNICAL SPECIFICATIONS
• Identification of the unit 13
• Weight, dimensions, oil capacity 14
• Tightening torques 14

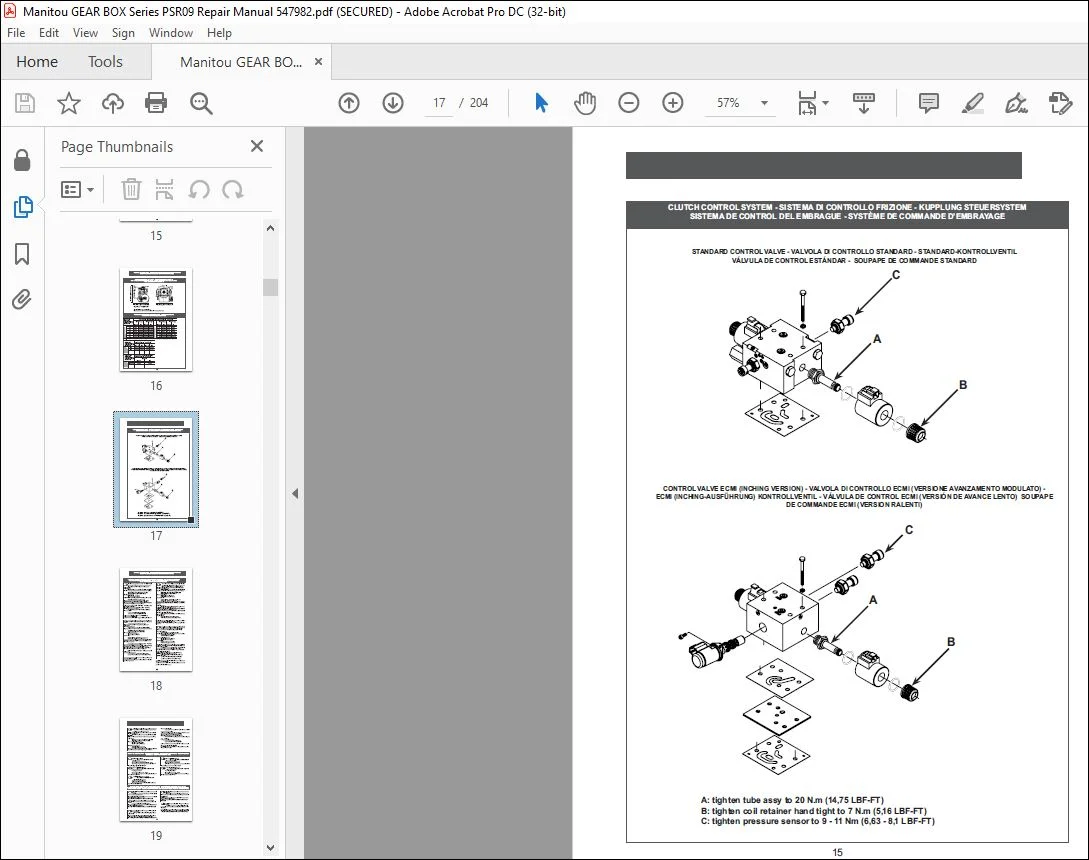

• Clutch control system 15
• Pressure and temperature specifi cations 16
• Electrical specifications 17
• Hydraulic cooler and fi lter line specifi cations 17
MAINTENANCE
• Oil specification 18
• Sump preheaters 18
• Normal oil change interval 18
• Extended oil change interval 19
• Filters 19
• Maintenance intervals 20
• Servicing machine after components overhaul 21
INSTALLATION DETAILS
• Transmission to engine installation procedure 23
• External plumbing 26
• Cooler & filter lines specifi cations 26
• Speed sensor installation 27

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
