Manitou M2/4 30 thru 50 CP-P-G M2/4 30 CP-PL-G M2 30 CP-PXL-G Lift Truck Parts Manual B238 – PDF DOWNLOAD

Description

Manitou M2/4 30 thru 50 CP-P-G M2/4 30 CP-PL-G M2 30 CP-PXL-G Lift Truck Parts Manual B238 – PDF DOWNLOAD

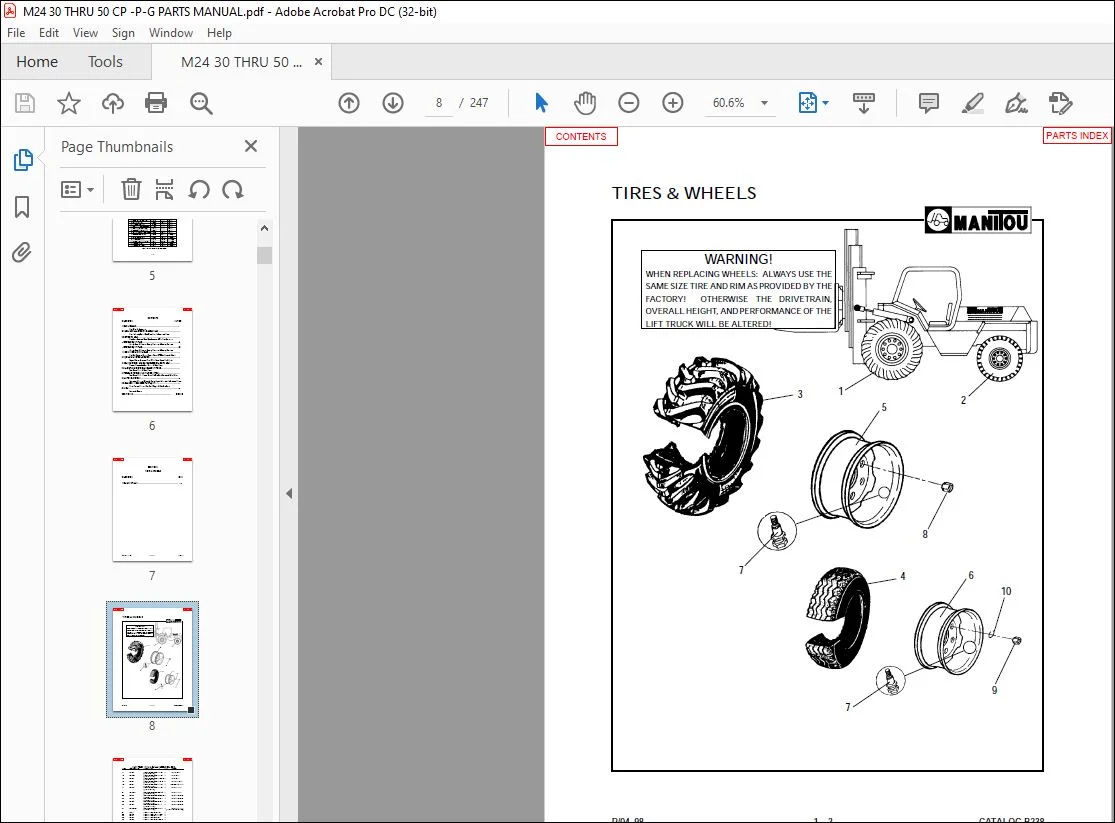

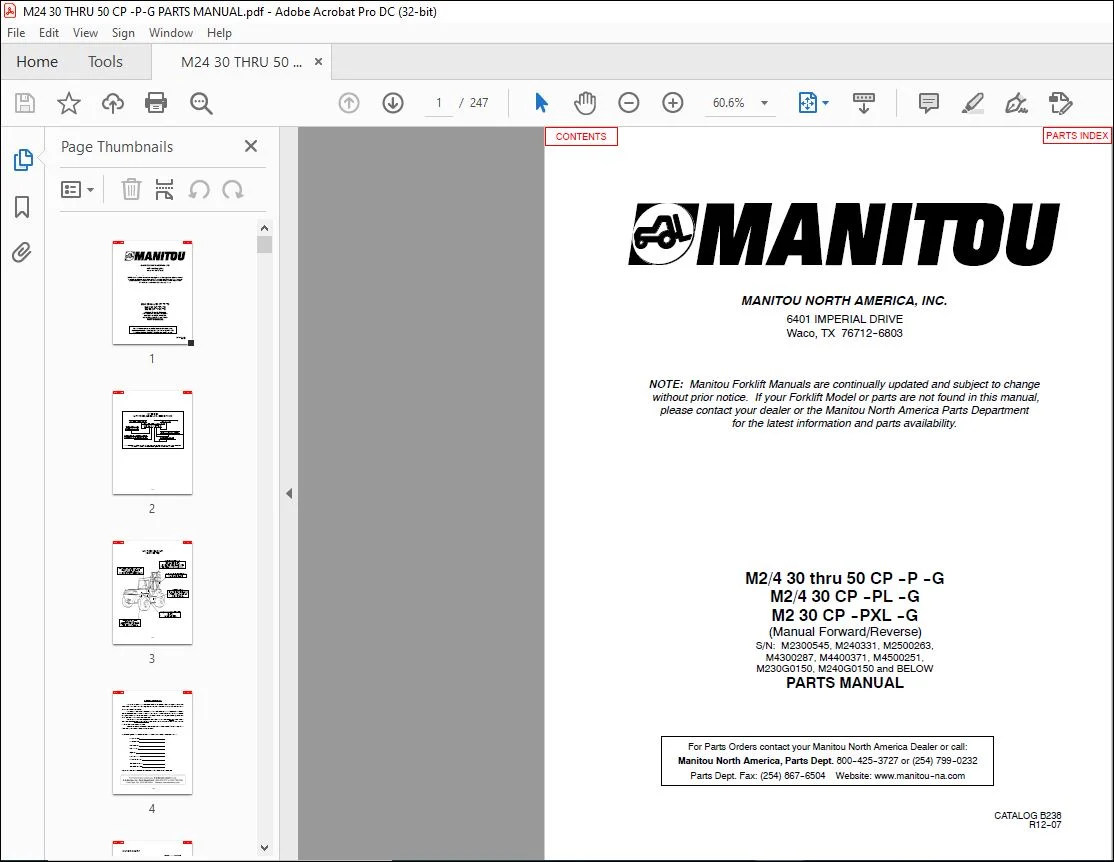

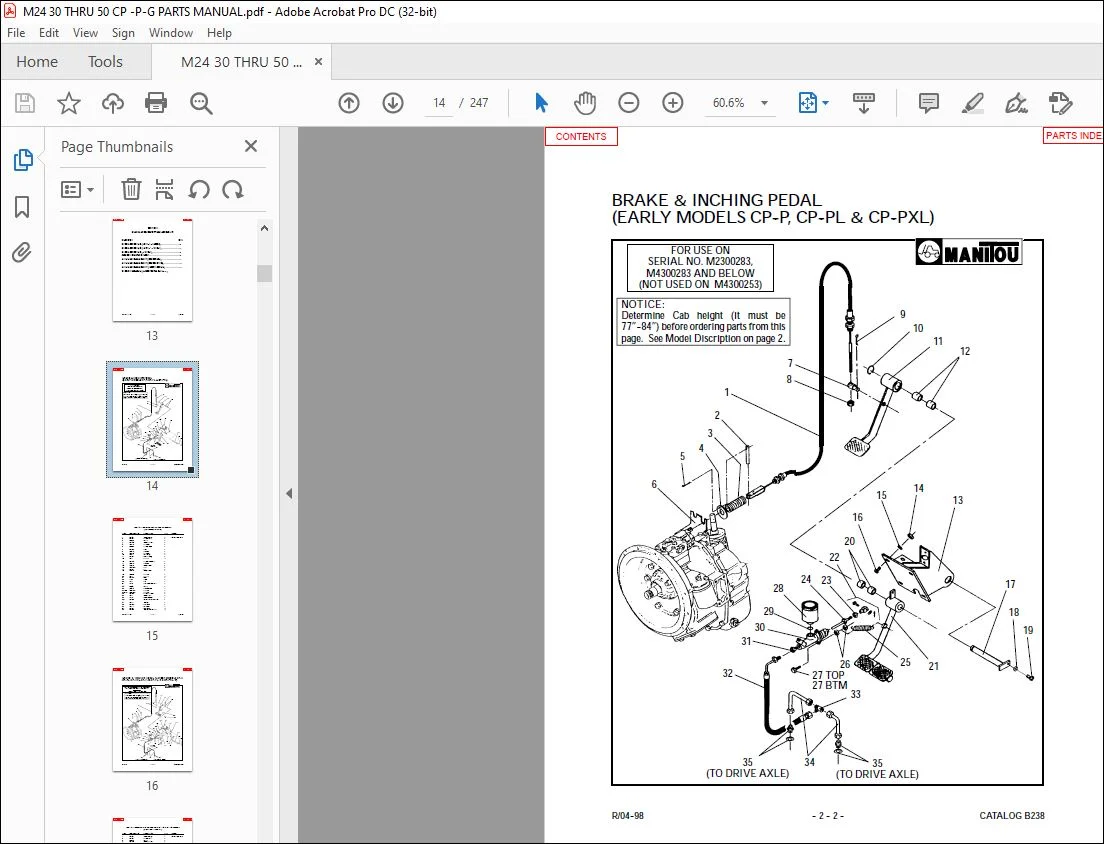

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou M2/4 30 thru 50 CP-P-G M2/4 30 CP-PL-G M2 30 CP-PXL-G Lift Truck Parts Manual B238 – PDF DOWNLOAD

GENERAL INFORMATION:

• The purpose of this catalog is to provide illustrations for identifying and ordering Lift Truck parts or
  components. The illustrations provide a general description and may not show the exact shape or detail of the
  parts or components represented.
• The parts are identified by an Item number on the Illustration Page. Find the ItemNumber for the part
  desired, then locate that ItemNumber under the ”Items” column. The part numberwill be located directly to
  the right of the ItemNumber. Also provided is a part description, dimensions (where necessary), quantity of
  parts required and the Truck Model Identification.

TABLE OF CONTENTS:

Manitou M2/4 30 thru 50 CP-P-G M2/4 30 CP-PL-G M2 30 CP-PXL-G Lift Truck Parts Manual B238 – PDF DOWNLOAD

TIRES &WHEELS 1
Tires, Rims & Assemblies
BRAKE & ACCELERATOR PEDAL ASSEMBLIES 2
Brake & Inching Pedals, Park Brake Lever & Accelerator Pedal
FRONT DRIVE AXLE 3
Drive Axle Assembly, Brake Disc Assembly & Diff Lock Assembly
2WD STEERING SYSTEMS 4A
Steering Axles & Supports, Steering Hydraulics & Steering Cylinders
4WD STEERING SYSTEMS 4B
Steering Axles & Supports, Steering Hydraulics & Steering Cylinders
TRANSMISSION & SHIFT LEVERS 5
Gear Box, Converter, Clutch, Control Valve, 4WD Box, Levers & Mounts
ENGINE, ALTERNATOR & STARTER 6
Engine, Mounts, Alternator, Filter, Water Pump, Gasket Set & Starter
COOLING SYSTEMS: ENGINE, TRANSMISSION & DRIVE AXLE 7
Radiator, Transmission/Axle Coolers & Misc Hrdwr
FUEL SYSTEM, AIR INTAKE & EXHAUST SYSTEMS 8
Tank, Pump, Filters & Misc Hrdwr
HYDRAULIC SYSTEMS (LESS STEERING SYSTEM) 9
Tank, Pump, Filters, Control Valves, Tilt/Side Shift Cylinders & Misc Hrdwr
ELECTRICAL SYSTEMS 10
Schematics, Harnesses, Battery & Cables, Lights, Instruments & Electrical Options
FRAME, HOOD, CAB & COUNTERWEIGHTS 11
Frame, Fenders, Firewall, Cab, Seat, Weights & Mast Side Shift
DECALS 12
Location & Pictures
PARTS INDEX APPENDIX

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
