Manitou M30/40/50-2T H L M30/40/50-4T H L TIER III TURBO ENGINES Operator Manual – PDF DOWNLOAD

Description

Manitou M30/40/50-2T H L M30/40/50-4T H L TIER III TURBO ENGINES Operator Manual – PDF DOWNLOAD

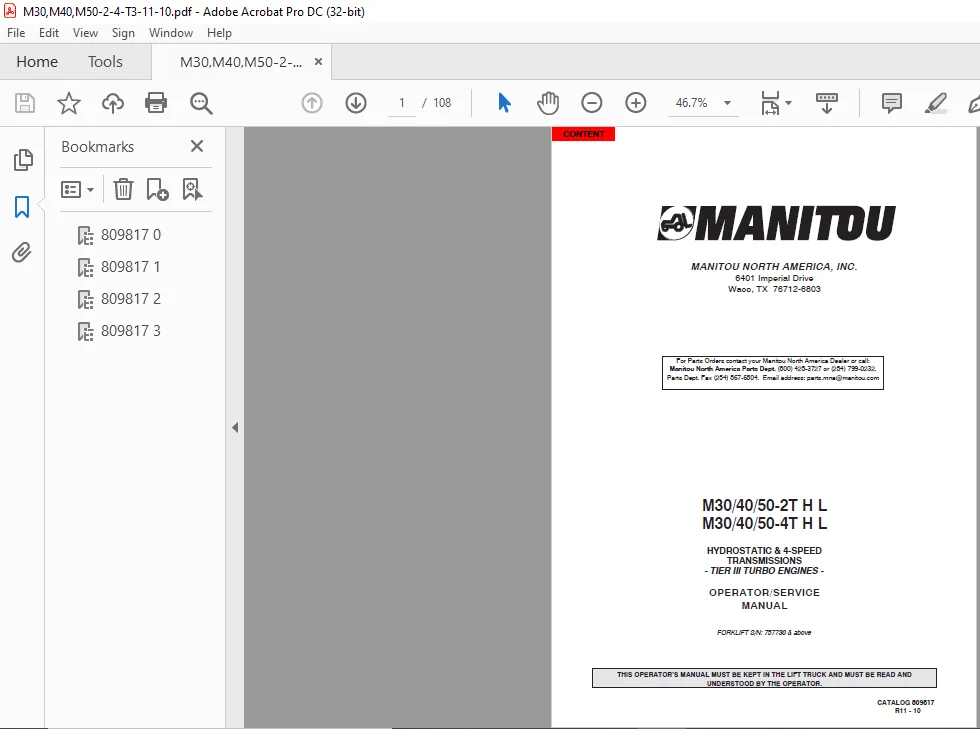

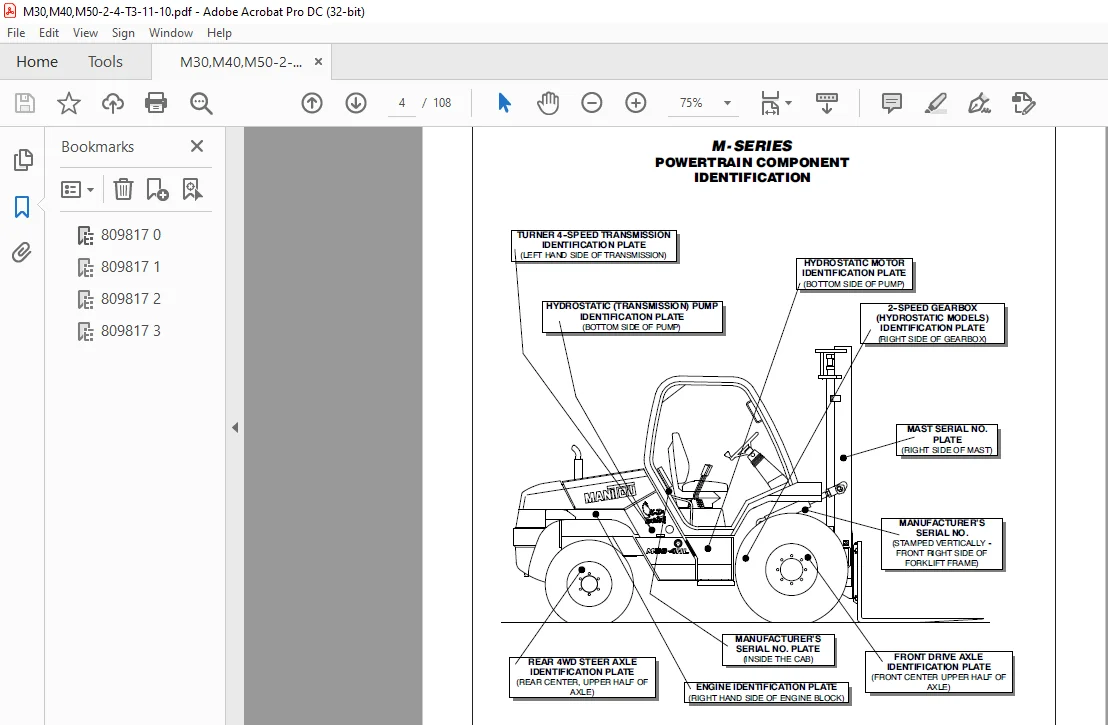

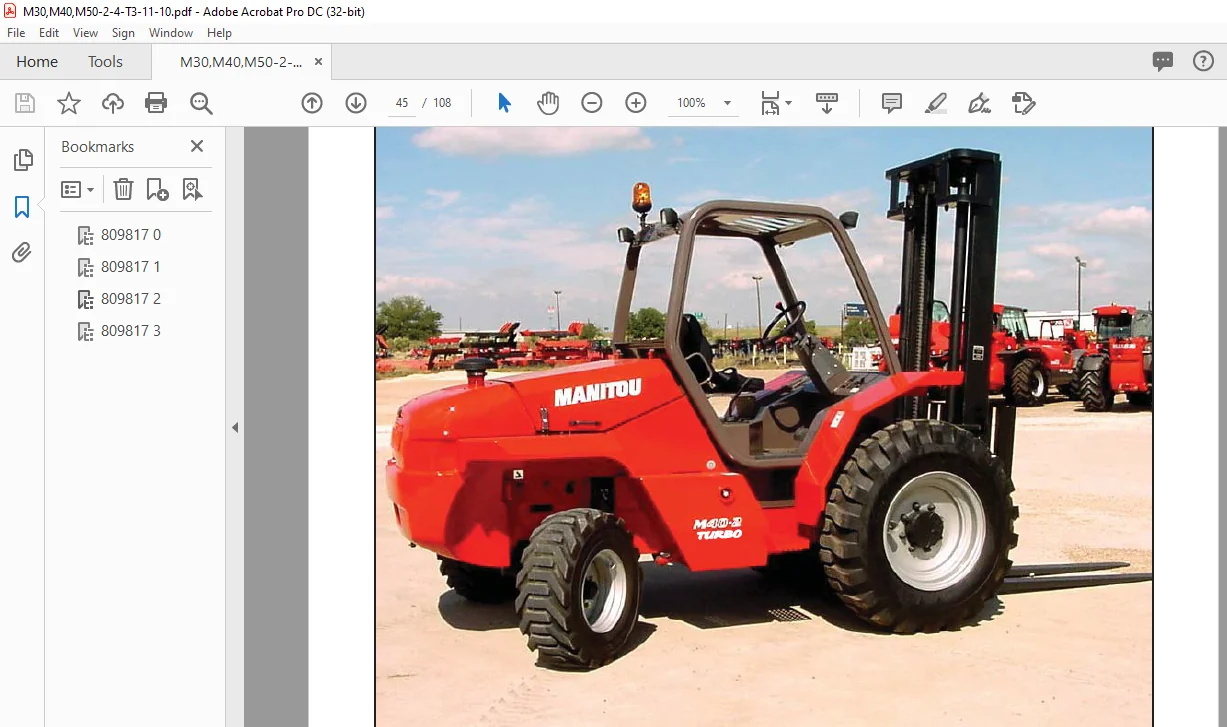

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou M30/40/50-2T H L M30/40/50-4T H L TIER III TURBO ENGINES Operator Manual – PDF DOWNLOAD

M30/40/50-2T H L
M30/40/50-4T H L
HYDROSTATIC & 4-SPEED
TRANSMISSIONS
– TIER III TURBO ENGINES –
OPERATOR/SERVICE
MANUAL
FORKLIFT S/N: 757730 & above

CATALOG 809817

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS
STUDY THE OPERATOR/SERVICE MANUALS:

• The information in this manual provides general instructions for the safe operation and maintenance of your forklift truck. This information is vital and must be clearly understood by the operator and serviceman. Study this manual and the Rough Terrain Forklift Safety Manual (part no. 422494) thoroughly and carefully before operating or servicing your forklift.
• Contact your dealer or Manitou North America, Inc. if you have any questions concerning your forklift, its operation, service or parts. Keep both manuals in the literature box on the forklift available for reference. If either manual becomes illegible or is missing, contact your dealer for replacements immediately. This manual cannot cover every situation that might result in an accident. It is the responsibility of the operator to always remain alert for potential hazards and be prepared to avoid them!

ADDITIONAL RECOMMENDED LITERATURE:

ANSI / ITSDF B56.6 is the national consensus standard for rough terrain forklift trucks. It contains rules about forklift safety, maintenance, safe operation, training, and supervision. Forklift owners should learn this standard and make it available for their operators, service personnel, and supervisors. These standards can be obtained, free of charge, from the Industrial Truck Standards Development Foundation (ITSDF) on their website at www.itsdf.org. The following references are examples from the standard, addressing forklift operators:

A.) OPERATOR TRAINING QUALIFICATIONS
1.) The user shall ensure that operators understand that safe operation is the operator’s responsibility. The user shall ensure that operators are knowledgeable of, and observe, all safety rules and practices.
2.) Create an effective operator training program centered around user company’s policies, operating conditions, and rough terrain forklift trucks. The program should be presented completely to all new operators and not be condensed for those claiming previous experience.
3.) Information on operator training is available from several sources, including rough terrain forklift truck manufacturers, users, government agencies, etc.
4.) An operator training program should consist of the following:
a.) careful selection of the operator, considering physical qualifications, job attitude, and aptitude;
b.) emphasis on safety of stock, equipment, operator, and other personnel;
c.) citing of rules and why they were formulated;
d.) basic fundamentals of rough terrain forklift truck and component design as related to safety, e.g., in.-lb (N-m) loading, mechanical limitations, center of gravity, stability, etc.;
e.) introduction to equipment, control locations, and functions. Explain how they work when used properly and problems when used improperly.
f.) supervise practice on operating course remote from normal activity and designed to simulate actual operations, e.g., lumber stacking, elevating shingles to the roof, etc.;
g.) oral, written, and operational performance tests and evaluations during and at completion of the course;
h.) refresher courses, which may be condensed versions of the primary course, and periodic “on job” operator evaluation;
i.) understanding of nameplate data and operator instructions and warning information appearing on the rough terrain forklift truck.
B.) GENERAL SAFETY PRACTICES
1.) Rough terrain forklift trucks can cause injury if improperly used or maintained.
2.) Only authorized operators trained to adhere strictly to all operating instructions shall be permitted to operate rough terrain forklift trucks. Unusual operating conditions may require additional safety precautions, training, and special operating instructions.
3.) Modifications and additions which affect capacity or safe operation shall not be preformed without the manufacturer’s prior written approval. Where such authorization is granted, capacity, operation, and maintenance
instruction plates, tags, or decals shall be changed accordingly.
4.) If the rough terrain forklift truck is equipped with front end attachment(s) or optional forks, the user shall see that the truck is marked to identify the forks or attachment(s), show the approximate weight of the truck and fork or attachment combination, and show the capacity of the truck with forks or attachment(s) at maximum elevation with load laterally centered.
5.) The user shall see that all nameplates and caution and instruction markings are in place and legible.
6.) The user shall consider that changes in load dimension may affect rough terrain forklift truck capacity.

TABLE OF CONTENTS:

Manitou M30/40/50-2T H L M30/40/50-4T H L TIER III TURBO ENGINES Operator Manual – PDF DOWNLOAD

1 – OPERATING AND SAFETY INSTRUCTIONS
– ORIGINAL REPLACEMENT PARTS AND ATTACHMENTS
– DRIVER’S OPERATING INSTRUCTIONS
• WARNING
• GENERAL INSTRUCTIONS
• OPERATING INSTRUCTIONS
• HANDLING INSTRUCTIONS
• LOAD HANDLING
– MAINTENANCE INSTRUCTIONS OF THE LIFT TRUCK
– BEFORE STARTING UP A NEW LIFT TRUCK
2 – DESCRIPTION
– IDENTIFICATION OF THE LIFT TRUCK
– LIFT TRUCK CHARACTERISTICS
M30-2T (H) L & M30-4T (H) L
M40-2T (H) L & M40-4T (H) L
M50-2T (H) L & M50-4T (H) L
– MAST CHARACTERISTICS TABLE
– LIFT TRUCK LOAD CHART
– INSTRUMENTS AND CONTROLS
– TOWING PIN
3 – MAINTENANCE
– FILTERS CARTRIDGES AND BELTS
– LUBRICANTS AND FUEL
– SERVICING SCHEDULE
– A – DAILY OR EVERY 10 HOURS SERVICE
– B – EVERY 50 HOURS SERVICE
– C – EVERY 250 HOURS SERVICE
– D – EVERY 500 HOURS SERVICE
– E – EVERY 1000 HOURS SERVICE
– F – EVERY 2000 HOURS SERVICE
– G – OCCASIONAL MAINTENANCE
4 – APPENDIX
– ELECTRICAL SCHEMATIC
– HYDRAULIC SCHEMATIC
– HYDROSTATIC SCHEMATIC

MANITOU M30/40/50-2T H L M30/40/50-4T H L TIER III TURBO ENGINES OPERATOR MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
