Manitou MHT-X 790 104JD H ST3A S1 MINING lift Truck Operator’s Manual 649021 – PDF DOWNLOAD

Description

Manitou MHT-X 790 104JD H ST3A S1 MINING lift Truck Operator’s Manual 649021 – PDF DOWNLOAD

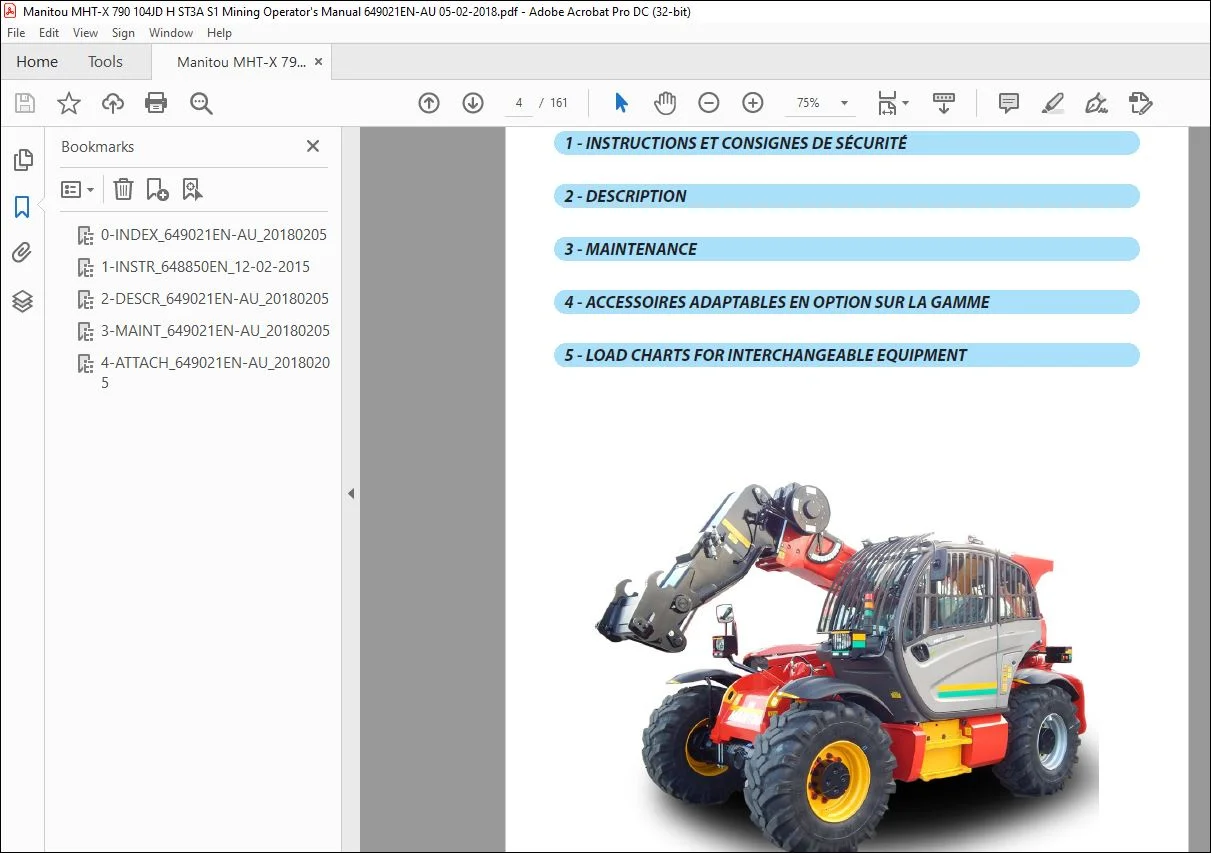

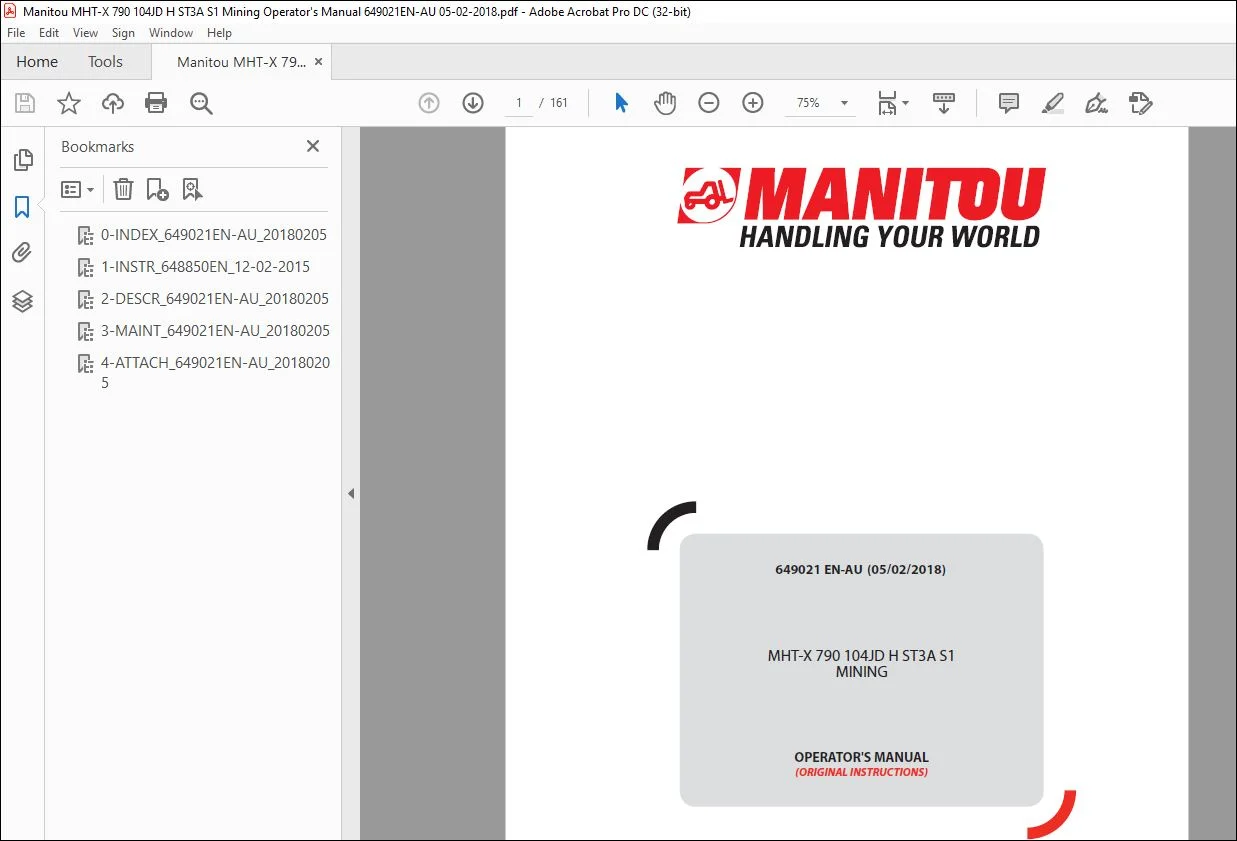

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MHT-X 790 104JD H ST3A S1 MINING lift Truck Operator’s Manual 649021 – PDF DOWNLOAD

THE LIFT TRUCK:
A – THE TRUCK’S SUITABILITY FOR THE JOB
–MANITOU has ensured that this lift truck is suitable for use under the standard operating conditions defined in
this operator’s manual, with a STATIC test coefficient OF 1,33 and a DYNAMIC test coefficient OF 1, as specified in
harmonised standard EN 1459 for variable range trucks.
–Before commissioning, the company manager must make sure that the lift truck is appropriate for the work to be
done, and perform certain tests (in accordance with current legislation).
B – ADAPTATION OF THE LIFT TRUCK TO STANDARD ENVIRONMENTAL CONDITIONS
–In addition to series equipment mounted on your lift truck, many options are available, such as: road lighting, stop
lights, revolving light, reverse lights, reverse buzzer alarm, front light, rear light, light at the jib head, etc. (according to
the lift truck model).
–The operator must take into account the operating conditions to define the lift truck’s signalling and lighting
equipment. Contact your dealer.
–Take into account climatic and atmospheric conditions of the site of utilisation.

GENERAL INSTRUCTIONS:
A – OPERATOR’S MANUAL
–Read the operator’s manual carefully.
–The operator’s manual must always be in good condition and in the place provided for it on the lift truck.
–You must report any plates and stickers which are no longer legible or which are damaged.
B – AUTHORISATION FOR USE IN FRANCE
(or see current legislation in other countries).
–Only qualified, authorized personnel can use the lift truck. This authorization is given in writing by the appropriate
person in the establishment with respect to the use of lift trucks and must be carried permanently by the operator.
–The operator is not competent to authorise the driving of the lift truck by another person.
C – MAINTENANCE
–The operator must immediately advise his superior if his lift truck is not in good working order or does not comply
with the safety notice.
–The operator is prohibited from carrying out any repairs or adjustments himself, unless he has been trained for this
purpose. He must keep the lift truck properly cleaned if this is among his responsibilities.
–The operator must carry out daily maintenance (see: 3 – MAINTENANCE: A – DAILY OR EVERY 10 HOURS SERVICE).
–The operator must ensure tyres are adapted to the nature of the ground (see area of the contact surface of the tyres in
the chapter: 2 – DESCRIPTION: FRONT AND REAR TYRES). There are optional solutions, consult your dealer.
• SAND tyres.
• LAND tyres.
• Snow chains.

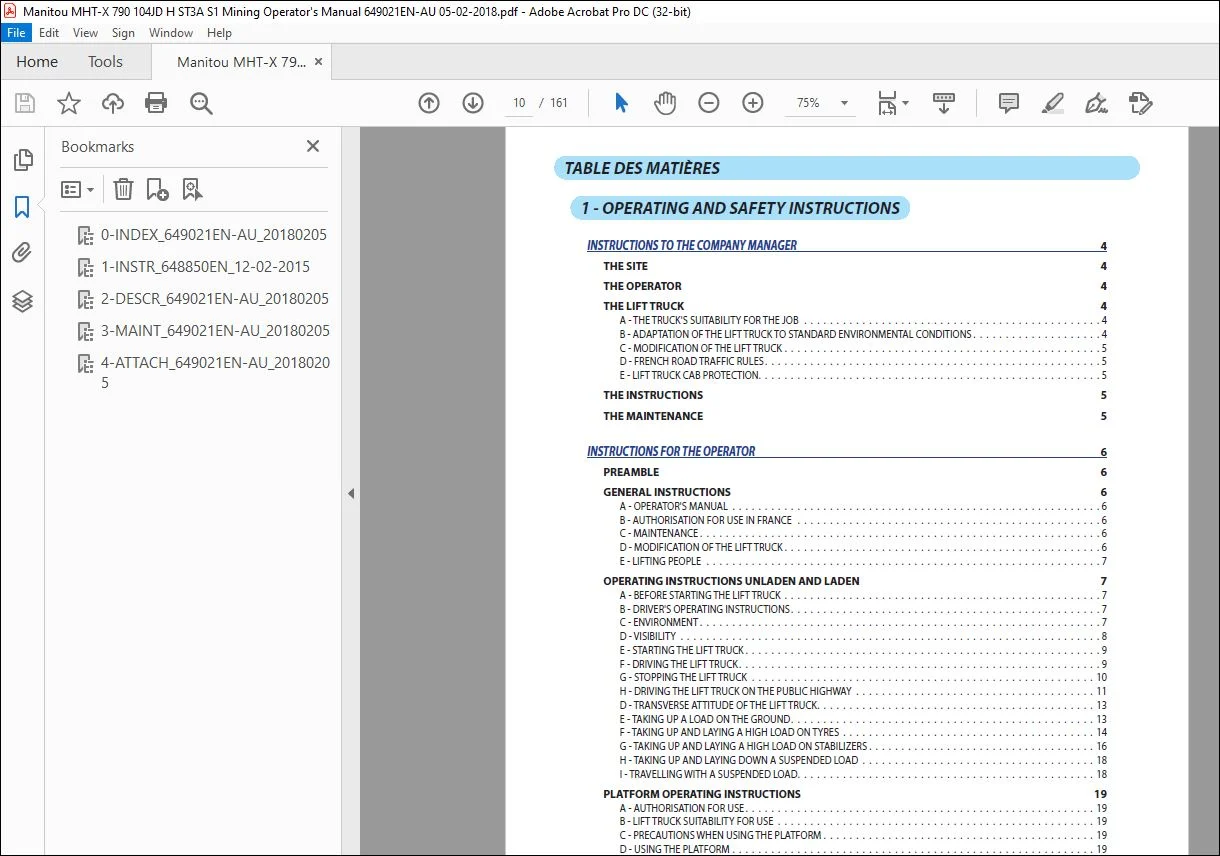

TABLE OF CONTENTS:

Manitou MHT-X 790 104JD H ST3A S1 MINING lift Truck Operator’s Manual 649021 – PDF DOWNLOAD

0-INDEX_649021EN-AU_20180205 1
1-INSTR_648850EN_12-02-2015 9
2-DESCR_649021EN-AU_20180205 39
3-MAINT_649021EN-AU_20180205 116
4-ATTACH_649021EN-AU_20180205 154
