Manitou MLT 741 120 LSU POWERSHIFT S6 E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

Description

Manitou MLT 741 120 LSU POWERSHIFT S6 E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Manitou MLT 741 120 LSU POWERSHIFT S6 E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

Language : English
Pages : 756
Downloadable : Yes
File Type : PDF
Size: 71.3 MB

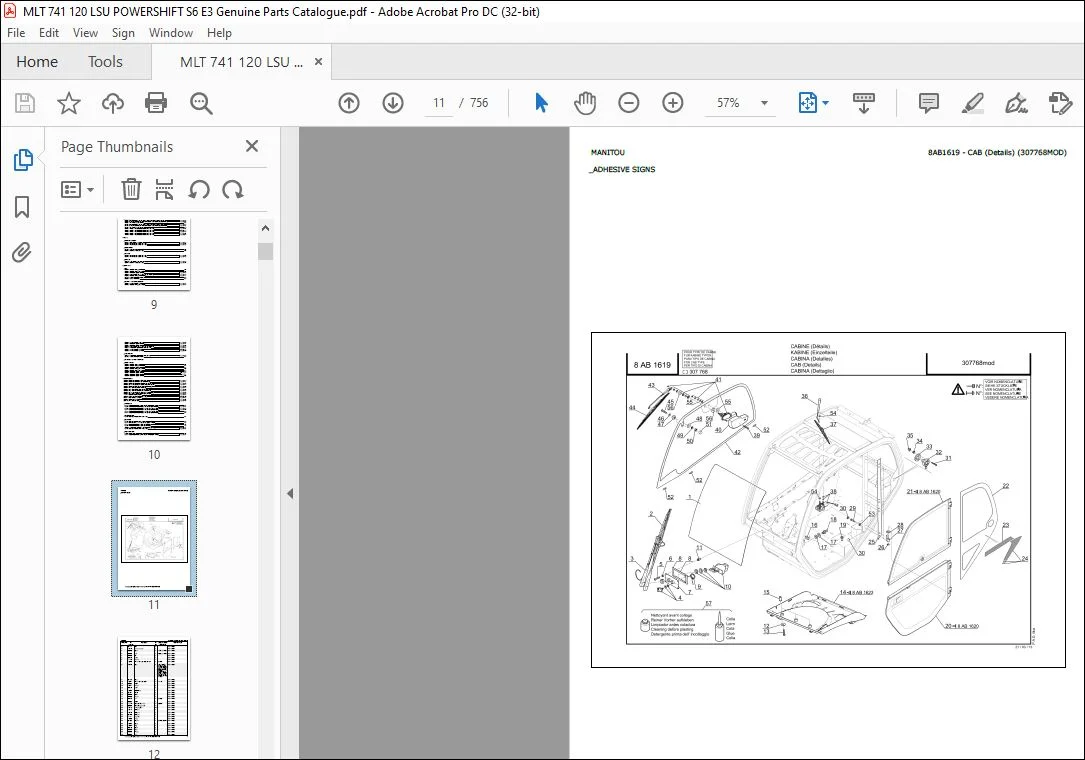

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

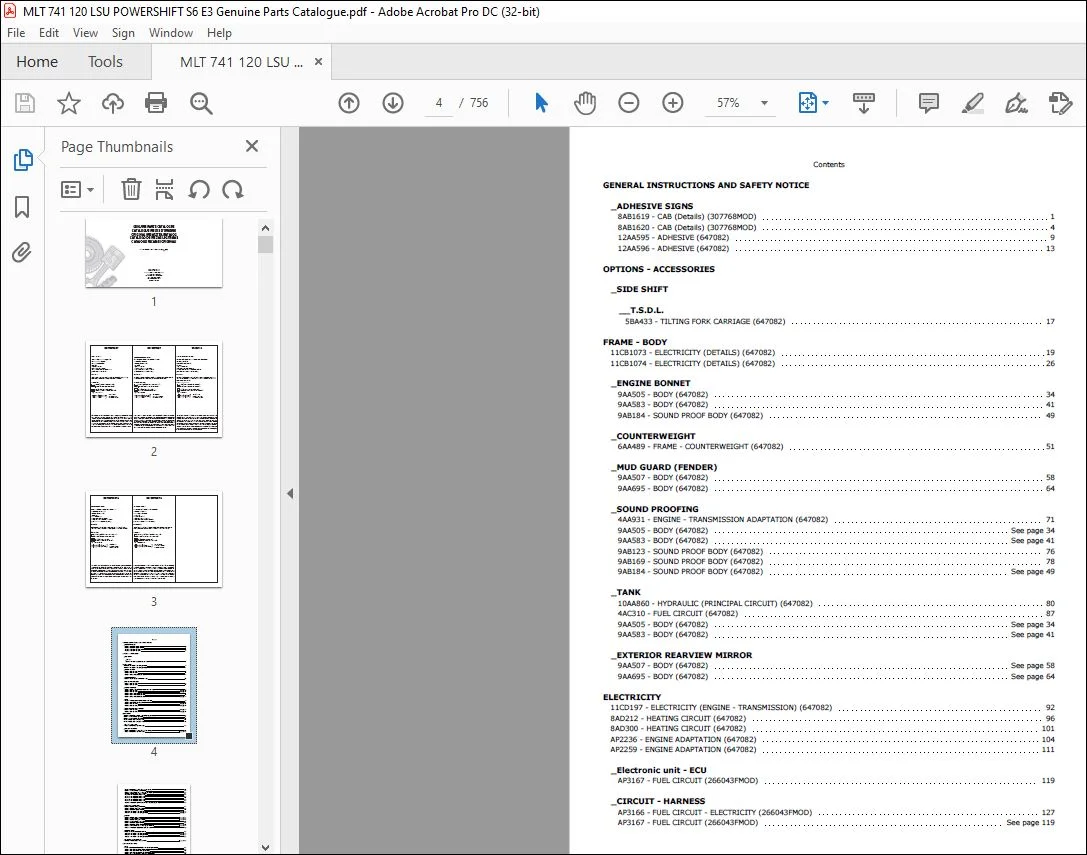

TABLE OF CONTENTS:

Manitou MLT 741 120 LSU POWERSHIFT S6 E3 Genuine Parts Catalogue Manual – PDF DOWNLOAD

GENERAL INSTRUCTIONS AND SAFETY NOTICE
_ADHESIVE SIGNS
8AB1619 – CAB (Details) (307768MOD) 1
8AB1620 – CAB (Details) (307768MOD) 4
12AA595 – ADHESIVE (647082) 9
12AA596 – ADHESIVE (647082) 13
OPTIONS – ACCESSORIES
_SIDE SHIFT
__T.S.D.L.
5BA433 – TILTING FORK CARRIAGE (647082) 17
FRAME – BODY
11CB1073 – ELECTRICITY (DETAILS) (647082) 19
11CB1074 – ELECTRICITY (DETAILS) (647082) 26
_ENGINE BONNET
9AA505 – BODY (647082) 34
9AA583 – BODY (647082) 41
9AB184 – SOUND PROOF BODY (647082) 49
_COUNTERWEIGHT
6AA489 – FRAME – COUNTERWEIGHT (647082) 51
_MUD GUARD (FENDER)
9AA507 – BODY (647082) 58
9AA695 – BODY (647082) 64
_SOUND PROOFING
4AA931 – ENGINE – TRANSMISSION ADAPTATION (647082) 71
9AA505 – BODY (647082) See page 34
9AA583 – BODY (647082) See page 41
9AB123 – SOUND PROOF BODY (647082) 76
9AB169 – SOUND PROOF BODY (647082) 78
9AB184 – SOUND PROOF BODY (647082) See page 49
_TANK
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) 80
4AC310 – FUEL CIRCUIT (647082) 87
9AA505 – BODY (647082) See page 34
9AA583 – BODY (647082) See page 41
_EXTERIOR REARVIEW MIRROR
9AA507 – BODY (647082) See page 58
9AA695 – BODY (647082) See page 64
ELECTRICITY
11CD197 – ELECTRICITY (ENGINE – TRANSMISSION) (647082) 92
8AD212 – HEATING CIRCUIT (647082) 96
8AD300 – HEATING CIRCUIT (647082) 101
AP2236 – ENGINE ADAPTATION (647082) 104
AP2259 – ENGINE ADAPTATION (647082) 111
_Electronic unit – ECU
AP3167 – FUEL CIRCUIT (266043FMOD) 119
_CIRCUIT – HARNESS
AP3166 – FUEL CIRCUIT – ELECTRICITY (266043FMOD) 127
AP3167 – FUEL CIRCUIT (266043FMOD) See page 119
AP1900 – FUEL CIRCUIT – ELECTRICITY (266043MOD) 131
8AD212 – HEATING CIRCUIT (289909MOD) 140
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) 149
10EA286 – HYDRAULIC (DETAILS) (647082) 152
11AA1449 – ELECTRIC CIRCUIT (647082) 155
11AA1451 – ELECTRIC CIRCUIT (647082) 159
11AA1452 – ELECTRIC CIRCUIT (647082) 161
11AA1453 – ELECTRIC CIRCUIT (647082) 163
11AA1455 – ELECTRIC CIRCUIT (647082) 165
11CA107 – ELECTRICITY (DETAILS PLATE RELAY AND FUSES) (647082) 168
_LIGHTING – SIGNALING
8AB1186 – CAB (DETAILS) (289909MOD) 174
8AB1416 – CAB (DETAILS) (307767MOD) 185
8AB1623 – CAB (Details) (307768MOD) 194
11CB1073 – ELECTRICITY (DETAILS) (647082) See page 19
11CB1074 – ELECTRICITY (DETAILS) (647082) See page 26
_SWITCH
8AB1186 – CAB (DETAILS) (289909MOD) See page 174
8AD212 – HEATING CIRCUIT (289909MOD) See page 140
8AB1416 – CAB (DETAILS) (307767MOD) See page 185
8AD429 – HEATING CIRCUIT (307767MOD) 197
8AB1622 – CAB (Details) (307768MOD) 206
8AB1623 – CAB (Details) (307768MOD) See page 194
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 149
11CC268 – ELECTRICITY (CAB STRUCTURE) (647082) 209
_SAFETY SYSTEM
AP3153 – CYLINDER HEAD (266043FMOD) 213
11CB1073 – ELECTRICITY (DETAILS) (647082) See page 19
11CB1074 – ELECTRICITY (DETAILS) (647082) See page 26
11CB1077 – ELECTRICITY (DETAILS) (647082) 218
_SELECTOR – MANIPULATOR
10EA286 – HYDRAULIC (DETAILS) (647082) See page 152
AXLE ASSEMBLY – AXLE
_REAR
BP108 – CARDAN COUPLING GEAR BOX – REAR AXLE (224939MOD) 226
AX1931 – REAR AXLE CASING (281546MOD) 229
AX1932 – REAR AXLE DIFFERENTIAL (281546MOD) 231
AX1933 – REAR AXLE REDUCTION GEAR (281546MOD) 233
AX1934 – OIL BATH DISC BRAKE – REAR AXLE (281546MOD) 237
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) 239
BP304 – CARDAN COUPLING GEAR BOX – REAR AXLE (295106MOD) 241
17AA37 – LUBRIFICATION (647082) 243
6BA297 – BRAKE CIRCUIT (647082) 246
AX2673 – REAR AXLE (647082) 257
_FRONT
BP188 – CARDAN COUPLING GEAR BOX – FRONT AXLE (238117MOD) 259
AX1920 – FRONT AXLE CASING (281545MOD) 263
AX1921 – FRONT AXLE DIFFERENTIAL (281545MOD) 265
AX1922 – FRONT AXLE REDUCTION GEAR (281545MOD) 267
AX1923 – OIL BATH DISC BRAKE – FRONT AXLE (281545MOD) 271
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) 273
6AA489 – FRAME – COUNTERWEIGHT (647082) See page 51
6BA297 – BRAKE CIRCUIT (647082) See page 246
AX2642 – FRONT AXLE (647082) 275
_WHEELS
3AA335 – WHEELS (647082) 277
HYDRAULIC
_CIRCUIT
11AA1453 – ELECTRIC CIRCUIT (647082) See page 163
6BA300 – TRAILER BRAKE CIRCUIT (647082) 279
6BA325 – TRAILER BRAKE CIRCUIT (647082) 283
__ATTACHMENT
10AE1150 – HYDRAULIC (JIB CIRCUIT) (647082) 287
__ACUMULATOR
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
10AA861 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) 291
10BA438 – (647082) 296
17AA40 – LUBRIFICATION (647082) 297
6BA297 – BRAKE CIRCUIT (647082) See page 246
__COMPENSATION
10AE1152 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (647082) 300
__STEERING
10BA391 – HYDRAULIC (STEERING CIRCUIT) (647082) 305
10BA438 – (647082) See page 296
10BA469 – HYDRAULIC (STEERING CIRCUIT) (647082) 313
17AA40 – LUBRIFICATION (647082) See page 297
__LIFTING
10AE1144 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (647082) 323
__TILTING
10AE1150 – HYDRAULIC (JIB CIRCUIT) (647082) See page 287
__MAIN
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
10AA861 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 291
__TELESCOPING
10AE1144 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (647082) See page 323
10AE1150 – HYDRAULIC (JIB CIRCUIT) (647082) See page 287
__FAN
4AA943 – ENGINE – TRANSMISSION ADAPTATION (647082) 333
_DETAIL
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 273
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 239
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
10AA861 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 291
10BA391 – HYDRAULIC (STEERING CIRCUIT) (647082) See page 305
10BA438 – (647082) See page 296
10BA469 – HYDRAULIC (STEERING CIRCUIT) (647082) See page 313
10DA369 – VALVE BANK (647082) 338
10DA371 – VALVE BANK (647082) 341
10EA286 – HYDRAULIC (DETAILS) (647082) See page 152
10EA287 – HYDRAULIC (DETAILS) (647082) 347
11AA1453 – ELECTRIC CIRCUIT (647082) See page 163
11CB1077 – ELECTRICITY (DETAILS) (647082) See page 218
17AA37 – LUBRIFICATION (647082) See page 243
17AA40 – LUBRIFICATION (647082) See page 297
2AA231 – FILTERS AND BELTS (647082) 351
_VALVE BANK
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
10AA861 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 291
10DA369 – VALVE BANK (647082) See page 338
10DA371 – VALVE BANK (647082) See page 341
11AA1453 – ELECTRIC CIRCUIT (647082) See page 163
_JOYSTICK
10AA861 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 291
10EA286 – HYDRAULIC (DETAILS) (647082) See page 152
_PUMP
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
_TANK
10AA860 – HYDRAULIC (PRINCIPAL CIRCUIT) (647082) See page 80
10BA438 – (647082) See page 296
17AA40 – LUBRIFICATION (647082) See page 297
_RAM
17AA37 – LUBRIFICATION (647082) See page 243
__COMPENSATION
10AE1152 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (647082) See page 300
10CB59 – HYDRAULIC (COMPENSATION CYLINDER) (647082) 354
__STEERING
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 273
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 239
__LIFTING
10CA315 – HYDRAULIC (LIFTING CYLINDER) (547972) 356
10AE1144 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (647082) See page 323
10CA315 – HYDRAULIC (LIFTING CYLINDER) (647082) 358
__TILTING
10AE1150 – HYDRAULIC (JIB CIRCUIT) (647082) See page 287
10CD124 – HYDRAULIC (TILTING CYLINDER) (647082) 360
__TELESCOPING
10AE1144 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (647082) See page 323
10CC103 – HYDRAULIC (TELESCOPE CYLINDER) (647082) 363
TELESCOPIC BOOM
_DETAIL
5BA626 – JIB (647082) 365
_FORK CARRIAGE
5BA626 – JIB (647082) See page 365
ENGINE
AP3165 – TURBOCHARGER (DETAILS) (266043FMOD) 371
AP1899 – TURBOCHARGER (DETAILS) (266043MOD) 375
_ENGINE UNIT
AP3150 – CYLINDER BLOCK (266043FMOD) 386
AP3151 – PISTONS, CONNECTING RODS AND CRANKSHAFT (266043FMOD) 390
AP3152 – PISTONS, CONNECTING RODS AND CRANKSHAFT (266043FMOD) 394
AP3153 – CYLINDER HEAD (266043FMOD) See page 213
AP3155 – TIMING GEAR AND CAMSHAFT (266043FMOD) 398
AP3156 – OIL SUMP – LUBRICATING OIL PUMP (266043FMOD) 402
AP3157 – ROCKER LEVER COVER AND BREATHER (266043FMOD) 405
AP3159 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (266043FMOD) 407
AP3163 – FLY WHEEL (266043FMOD) 410
AP1885 – CYLINDER BLOCK (266043MOD) 412
AP1886 – PISTONS, CONNECTING RODS AND CRANKSHAFT (266043MOD) 422
AP1887 – CYLINDER HEAD (266043MOD) 432
AP1888 – ROCKER LEVER SHAFT (266043MOD) 443
AP1889 – TIMING GEAR AND CAMSHAFT (266043MOD) 449
AP1890 – OIL SUMP – LUBRICATING OIL PUMP (266043MOD) 459
AP1891 – ROCKER LEVER COVER AND BREATHER (266043MOD) 465
AP1893 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (266043MOD) 469
AP1897 – FLY WHEEL (266043MOD) 475
AP3104 – PISTONS, CONNECTING RODS AND CRANKSHAFT (266043MOD) 478
11CB1073 – ELECTRICITY (DETAILS) (647082) See page 19
2AA231 – FILTERS AND BELTS (647082) See page 351
4AA897 – ENGINE – TRANSMISSION ADAPTATION (647082) 487
4AA932 – ENGINE – TRANSMISSION ADAPTATION (647082) 490
4AA933 – ENGINE – TRANSMISSION ADAPTATION (647082) 494
4AA935 – ENGINE – TRANSMISSION ADAPTATION (647082) 500
AP2236 – ENGINE ADAPTATION (647082) See page 104
AP2259 – ENGINE ADAPTATION (647082) See page 111
_TIMING GEAR – LUBRICATION
AP3154 – ROCKER LEVER SHAFT (266043FMOD) 507
AP3155 – TIMING GEAR AND CAMSHAFT (266043FMOD) See page 398
AP3156 – OIL SUMP – LUBRICATING OIL PUMP (266043FMOD) See page 402
AP1888 – ROCKER LEVER SHAFT (266043MOD) See page 443
AP1889 – TIMING GEAR AND CAMSHAFT (266043MOD) See page 449
AP1890 – OIL SUMP – LUBRICATING OIL PUMP (266043MOD) See page 459
_ELECTRICITY
AP3153 – CYLINDER HEAD (266043FMOD) See page 213
AP3166 – FUEL CIRCUIT – ELECTRICITY (266043FMOD) See page 127
AP3167 – FUEL CIRCUIT (266043FMOD) See page 119
AP1900 – FUEL CIRCUIT – ELECTRICITY (266043MOD) See page 131
11AA1455 – ELECTRIC CIRCUIT (647082) See page 165
11CB1073 – ELECTRICITY (DETAILS) (647082) See page 19
11CD197 – ELECTRICITY (ENGINE – TRANSMISSION) (647082) See page 92
AP2236 – ENGINE ADAPTATION (647082) See page 104
AP2259 – ENGINE ADAPTATION (647082) See page 111
_FILTERS-BELT
AP3158 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (266043FMOD) 510
AP1892 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (266043MOD) 513
AP1901 – FUEL CIRCUIT (266043MOD) 521
2AA231 – FILTERS AND BELTS (647082) See page 351
2AA232 – FILTERS AND BELTS (647082) 544
4AA928 – ENGINE – TRANSMISSION ADAPTATION (647082) 546
4AA933 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 494
4AA943 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 333
4AC310 – FUEL CIRCUIT (647082) See page 87
AP2236 – ENGINE ADAPTATION (647082) See page 104
AP2259 – ENGINE ADAPTATION (647082) See page 111
_INTAKE SYSTEM – EXHAUST
AP3153 – CYLINDER HEAD (266043FMOD) See page 213
AP3161 – TIMING GEAR AND CAMSHAFT (266043FMOD) 551
AP3167 – FUEL CIRCUIT (266043FMOD) See page 119
AP1895 – TIMING GEAR AND CAMSHAFT (266043MOD) 553
2AA231 – FILTERS AND BELTS (647082) See page 351
4AA928 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 546
_FUEL SUPPLY SYSTEM
AP3166 – FUEL CIRCUIT – ELECTRICITY (266043FMOD) See page 127
AP3167 – FUEL CIRCUIT (266043FMOD) See page 119
AP1900 – FUEL CIRCUIT – ELECTRICITY (266043MOD) See page 131
AP1901 – FUEL CIRCUIT (266043MOD) See page 521
11AA1455 – ELECTRIC CIRCUIT (647082) See page 165
4AA943 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 333
4AC310 – FUEL CIRCUIT (647082) See page 87
_ELECTRICAL SYSTEM
AP3153 – CYLINDER HEAD (266043FMOD) See page 213
AP3162 – ALTERNATOR (266043FMOD) 556
AP3164 – STATER MOTOR (266043FMOD) 559
AP3166 – FUEL CIRCUIT – ELECTRICITY (266043FMOD) See page 127
AP3167 – FUEL CIRCUIT (266043FMOD) See page 119
AP1896 – ALTERNATOR (266043MOD) 561
AP1898 – STATER MOTOR (266043MOD) 566
AP1900 – FUEL CIRCUIT – ELECTRICITY (266043MOD) See page 131
11AA1455 – ELECTRIC CIRCUIT (647082) See page 165
11CB1073 – ELECTRICITY (DETAILS) (647082) See page 19
11CD197 – ELECTRICITY (ENGINE – TRANSMISSION) (647082) See page 92
AP2236 – ENGINE ADAPTATION (647082) See page 104
AP2259 – ENGINE ADAPTATION (647082) See page 111
_COOLING SYSTEM
AP3158 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (266043FMOD) See page 510
AP3159 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (266043FMOD) See page 407
AP3160 – WATER PUMP (266043FMOD) 569
AP1892 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (266043MOD) See page 513
AP1893 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (266043MOD) See page 469
AP1894 – WATER PUMP (266043MOD) 571
4AA897 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 487
4AA931 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 71
4AA932 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 490
4AA933 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 494
4AA943 – ENGINE – TRANSMISSION ADAPTATION (647082) See page 333
PEDALS
_BRAKING CIRCUIT
6BA297 – BRAKE CIRCUIT (647082) See page 246
6BA300 – TRAILER BRAKE CIRCUIT (647082) See page 279
6BA325 – TRAILER BRAKE CIRCUIT (647082) See page 283
_HAND BRAKE
6BA122 – HANDBRAKE (647082) 575
6BB216 – PEDALS – LINKAGE (647082) 578
_TRAILOR
6BA300 – TRAILER BRAKE CIRCUIT (647082) See page 279
6BA325 – TRAILER BRAKE CIRCUIT (647082) See page 283
_LINKAGE
11CB1077 – ELECTRICITY (DETAILS) (647082) See page 218
6BB216 – PEDALS – LINKAGE (647082) See page 578
DRIVER CAB
_CAB
8AB1185 – CAB (DETAILS) (289909MOD) 584
8AB1415 – CAB (DETAILS) (307767MOD) 594
8AB1622 – CAB (Details) (307768MOD) See page 206
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 149
8AB1186 – CAB (DETAILS) (289909MOD) See page 174
8AA798 – CAB ADAPTATION (647082) 603
8AA386 – SEAT (751061mod) 610
_HEATER – AIR CONDITIONING
8AD212 – HEATING CIRCUIT (289909MOD) See page 140
8AB1416 – CAB (DETAILS) (307767MOD) See page 185
8AD429 – HEATING CIRCUIT (307767MOD) See page 197
8AB1622 – CAB (Details) (307768MOD) See page 206
8AB1623 – CAB (Details) (307768MOD) See page 194
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 149
11CC268 – ELECTRICITY (CAB STRUCTURE) (647082) See page 209
8AD212 – HEATING CIRCUIT (647082) See page 96
8AD300 – HEATING CIRCUIT (647082) See page 101
_ELECTRICITY
11CC268 – ELECTRICITY (CAB STRUCTURE) (647082) See page 209
8AA745 – CAB ADAPTATION (647082) 613
_FITTINGS – SOUND PROOFING
_DOOR – GLASS
8AB1182 – CAB (DETAILS) (289909MOD) 624
8AB1183 – CAB (DETAILS) (289909MOD) 635
8AB1184 – CAB (Details) (289909MOD) 652
8AB1412 – CAB (DETAILS) (307767MOD) 654
8AB1413 – CAB (DETAILS) (307767MOD) 665
8AB1414 – CAB (Details) (307767MOD) 682
8AB1619 – CAB (Details) (307768MOD) See page 1
8AB1620 – CAB (Details) (307768MOD) See page 4
8AB1621 – CAB (Details) (307768MOD) 684
TRANSMISSION
AX1920 – FRONT AXLE CASING (281545MOD) See page 263
AX1921 – FRONT AXLE DIFFERENTIAL (281545MOD) See page 265
AX1922 – FRONT AXLE REDUCTION GEAR (281545MOD) See page 267
AX1923 – OIL BATH DISC BRAKE – FRONT AXLE (281545MOD) See page 271
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 273
AX1931 – REAR AXLE CASING (281546MOD) See page 229
AX1932 – REAR AXLE DIFFERENTIAL (281546MOD) See page 231
AX1933 – REAR AXLE REDUCTION GEAR (281546MOD) See page 233
AX1934 – OIL BATH DISC BRAKE – REAR AXLE (281546MOD) See page 237
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 239
17AA37 – LUBRIFICATION (647082) See page 243
6AA489 – FRAME – COUNTERWEIGHT (647082) See page 51
6BA297 – BRAKE CIRCUIT (647082) See page 246
AX2642 – FRONT AXLE (647082) See page 275
AX2673 – REAR AXLE (647082) See page 257
_PROPSHAFT
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) 686
BP108 – CARDAN COUPLING GEAR BOX – REAR AXLE (224939MOD) See page 226
BP188 – CARDAN COUPLING GEAR BOX – FRONT AXLE (238117MOD) See page 259
BP304 – CARDAN COUPLING GEAR BOX – REAR AXLE (295106MOD) See page 241
BP305 – CARDAN COUPLING GEAR BOX – FRONT AXLE (295107MOD) 690
BP294 – CARDAN COUPLING GEAR BOX – REAR AXLE (295108MOD) 693
_TRANSFER BOX
BP299 – GEAR BOX AND CONVERTER (647082) 696
_GEAR BOX
BP300 – GEAR BOX (Details) (287421MOD) 698
BP301 – GEAR BOX (Mechanism détails – Gear) (287421MOD) 702
BP302 – ELECTRICAL CONTROL VALVE (287421MOD) 707
BP303 – ELECTRICAL CONTROL VALVE (287421MOD) 709
11CD197 – ELECTRICITY (ENGINE – TRANSMISSION) (647082) See page 92
BP299 – GEAR BOX AND CONVERTER (647082) See page 696
_ANGLE RETURN
BP110 – BEVEL DRIVE (224053MOD) 711
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) See page 686

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
