Manitou MLT-X 75 120 LSU S.6-E3 Genuine Parts Catalogue Manual 307765MOD – PDF DOWNLOAD

Description

Manitou MLT-X 75 120 LSU S.6-E3 Genuine Parts Catalogue Manual 307765MOD – PDF DOWNLOAD

FILE DETAILS:

Manitou MLT-X 75 120 LSU S.6-E3 Genuine Parts Catalogue Manual 307765MOD – PDF DOWNLOAD

Language : English
Pages : 576
Downloadable : Yes
File Type : PDF
Size: 76 MB

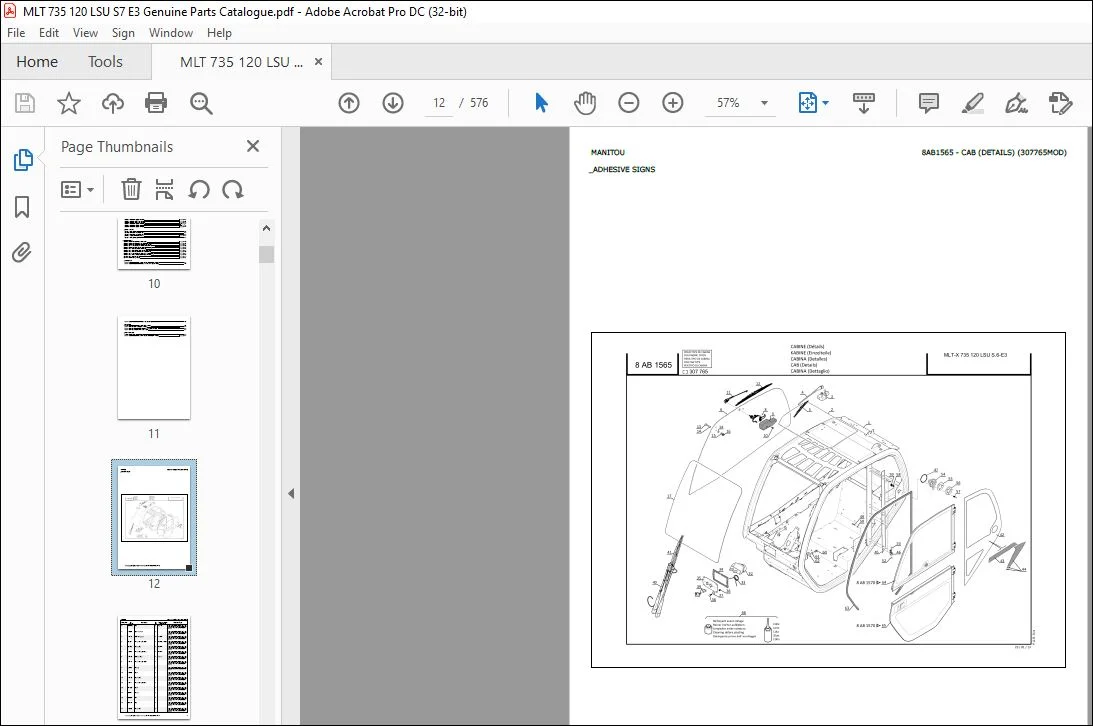

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MLT-X 75 120 LSU S.6-E3 Genuine Parts Catalogue Manual 307765MOD – PDF DOWNLOAD

PARTS ORDER :
When placing an order, always state :
– Spare part ref. number
– Complete description
– Quantity
– Type of machine
– Machine serial number.
– Component identification number
(mast, jib, cab, engine, etc

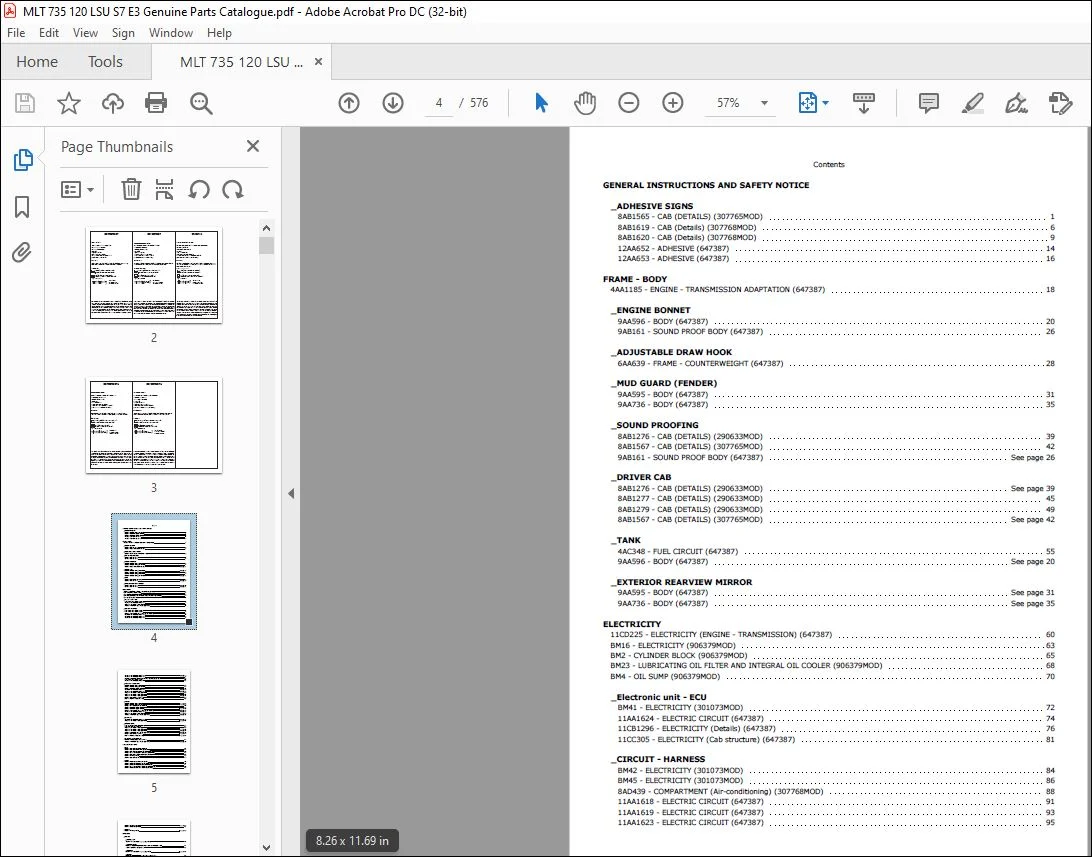

TABLE OF CONTENTS:

Manitou MLT-X 75 120 LSU S.6-E3 Genuine Parts Catalogue Manual 307765MOD – PDF DOWNLOAD

GENERAL INSTRUCTIONS AND SAFETY NOTICE
_ADHESIVE SIGNS
8AB1565 – CAB (DETAILS) (307765MOD) 1
8AB1619 – CAB (Details) (307768MOD) 6
8AB1620 – CAB (Details) (307768MOD) 9
12AA652 – ADHESIVE (647387) 14
12AA653 – ADHESIVE (647387) 16
FRAME – BODY
4AA1185 – ENGINE – TRANSMISSION ADAPTATION (647387) 18
_ENGINE BONNET
9AA596 – BODY (647387) 20
9AB161 – SOUND PROOF BODY (647387) 26
_ADJUSTABLE DRAW HOOK
6AA639 – FRAME – COUNTERWEIGHT (647387) 28
_MUD GUARD (FENDER)
9AA595 – BODY (647387) 31
9AA736 – BODY (647387) 35
_SOUND PROOFING
8AB1276 – CAB (DETAILS) (290633MOD) 39
8AB1567 – CAB (DETAILS) (307765MOD) 42
9AB161 – SOUND PROOF BODY (647387) See page 26
_DRIVER CAB
8AB1276 – CAB (DETAILS) (290633MOD) See page 39
8AB1277 – CAB (DETAILS) (290633MOD) 45
8AB1279 – CAB (DETAILS) (290633MOD) 49
8AB1567 – CAB (DETAILS) (307765MOD) See page 42
_TANK
4AC348 – FUEL CIRCUIT (647387) 55
9AA596 – BODY (647387) See page 20
_EXTERIOR REARVIEW MIRROR
9AA595 – BODY (647387) See page 31
9AA736 – BODY (647387) See page 35
ELECTRICITY
11CD225 – ELECTRICITY (ENGINE – TRANSMISSION) (647387) 60
BM16 – ELECTRICITY (906379MOD) 63
BM2 – CYLINDER BLOCK (906379MOD) 65
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) 68
BM4 – OIL SUMP (906379MOD) 70
_Electronic unit – ECU
BM41 – ELECTRICITY (301073MOD) 72
11AA1624 – ELECTRIC CIRCUIT (647387) 74
11CB1296 – ELECTRICITY (Details) (647387) 76
11CC305 – ELECTRICITY (Cab structure) (647387) 81
_CIRCUIT – HARNESS
BM42 – ELECTRICITY (301073MOD) 84
BM45 – ELECTRICITY (301073MOD) 86
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) 88
11AA1618 – ELECTRIC CIRCUIT (647387) 91
11AA1619 – ELECTRIC CIRCUIT (647387) 93
11AA1623 – ELECTRIC CIRCUIT (647387) 95
11AA1624 – ELECTRIC CIRCUIT (647387) See page 74
11AA1662 – ELECTRIC CIRCUIT (647387) 98
11CA131 – ELECTRICITY (DETAILS PLATE RELAY AND FUSES) (647387) 100
BM21 – ELECTRICITY (906379MOD) 104
11AA1621 – ELECTRIC CIRCUIT (647387) 106
_LIGHTING – SIGNALING
8AB1278 – CAB (DETAILS) (290633MOD) 109
8AB1569 – CAB (DETAILS) (307765MOD) 113
8AB1623 – CAB (Details) (307768MOD) 117
11AA1619 – ELECTRIC CIRCUIT (647387) See page 93
11AA1662 – ELECTRIC CIRCUIT (647387) See page 98
11CB1294 – ELECTRICITY (Details) (647387) 120
11CB1295 – ELECTRICITY (Details) (647387) 124
11CB1296 – ELECTRICITY (Details) (647387) See page 76
6BA334 – BRAKE CIRCUIT (647387) 129
6BB271 – PEDALS – LINKAGE (647387) 137
_SWITCH
8AB1278 – CAB (DETAILS) (290633MOD) See page 109
8AB1569 – CAB (DETAILS) (307765MOD) See page 113
8AB1571 – HEATING CIRCUIT (307765MOD) 141
8AB1622 – CAB (Details) (307768MOD) 145
8AB1623 – CAB (Details) (307768MOD) See page 117
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 88
11AA1662 – ELECTRIC CIRCUIT (647387) See page 98
11CB1294 – ELECTRICITY (Details) (647387) See page 120
11CC305 – ELECTRICITY (Cab structure) (647387) See page 81
_REAR PLUG
11AA1619 – ELECTRIC CIRCUIT (647387) See page 93
11CB1295 – ELECTRICITY (Details) (647387) See page 124
_SAFETY SYSTEM
BM27 – CYLINDER BLOCK (301073MOD) 148
BM29 – OIL SUMP (301073MOD) 152
11CB1294 – ELECTRICITY (Details) (647387) See page 120
11CB1295 – ELECTRICITY (Details) (647387) See page 124
11CB1296 – ELECTRICITY (Details) (647387) See page 76
11CC305 – ELECTRICITY (Cab structure) (647387) See page 81
6BA334 – BRAKE CIRCUIT (647387) See page 129
6BB271 – PEDALS – LINKAGE (647387) See page 137
_SELECTOR – MANIPULATOR
10EA285 – HYDRAULIC (DETAILS) (647387) 155
11CC305 – ELECTRICITY (Cab structure) (647387) See page 81
AXLE ASSEMBLY – AXLE
_REAR
AX1931 – REAR AXLE CASING (281546MOD) 157
AX1932 – REAR AXLE DIFFERENTIAL (281546MOD) 159
AX1933 – REAR AXLE REDUCTION GEAR (281546MOD) 161
AX1934 – OIL BATH DISC BRAKE – REAR AXLE (281546MOD) 165
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) 167
3AA382 – WHEELS (647387) 169
AX2730 – REAR AXLE (647387) 171
_FRONT
AX1920 – FRONT AXLE CASING (281545MOD) 173
AX1921 – FRONT AXLE DIFFERENTIAL (281545MOD) 175
AX1922 – FRONT AXLE REDUCTION GEAR (281545MOD) 177
AX1923 – OIL BATH DISC BRAKE – FRONT AXLE (281545MOD) 181
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) 183
3AA382 – WHEELS (647387) See page 169
AX2731 – FRONT AXLE (647387) 185
_WHEELS
3AA382 – WHEELS (647387) See page 169
HYDRAULIC
_CIRCUIT
__ACUMULATOR
10BA447 – HYDRAULIC (Steering circuit) (647387) 187
__COMPENSATION
10AE1321 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (647387) 192
17AA44 – LUBRIFICATION (647387) 196
__STEERING
10BA447 – HYDRAULIC (Steering circuit) (647387) See page 187
__LIFTING
10AE1320 – HYDRAULIC (Lifting – Telescope circuit) (647387) 199
17AA44 – LUBRIFICATION (647387) See page 196
__CENTRALISED GREASING
17AA44 – LUBRIFICATION (647387) See page 196
__TILTING
10AE1375 – HYDRAULIC (JIB CIRCUIT) (647387) 204
__COOLING SYSTEM
4AA1280 – ENGINE – TRANSMISSION ADAPTATION (647387) 209
__TELESCOPING
10AE1320 – HYDRAULIC (Lifting – Telescope circuit) (647387) See page 199
10AE1321 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (647387) See page 192
10AE1375 – HYDRAULIC (JIB CIRCUIT) (647387) See page 204
__FAN
4AA1280 – ENGINE – TRANSMISSION ADAPTATION (647387) See page 209
_DETAIL
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 183
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 167
BM47 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (301073MOD) 219
10AE1375 – HYDRAULIC (JIB CIRCUIT) (647387) See page 204
10BA447 – HYDRAULIC (Steering circuit) (647387) See page 187
10DA369 – VALVE BANK (647387) 222
10DA371 – VALVE BANK (647387) 224
10EA344 – HYDRAULIC (DETAILS) (647387) 228
_VALVE BANK
10BA447 – HYDRAULIC (Steering circuit) (647387) See page 187
10DA369 – VALVE BANK (647387) See page 222
10DA371 – VALVE BANK (647387) See page 224
11AA1618 – ELECTRIC CIRCUIT (647387) See page 91
_JOYSTICK
10BA447 – HYDRAULIC (Steering circuit) (647387) See page 187
10EA285 – HYDRAULIC (DETAILS) (647387) See page 155
_PUMP
4AA1166 – (647387) 231
_RAM
__COMPENSATION
10AE1321 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (647387) See page 192
10CB48 – HYDRAULIC (COMPENSATION CYLINDER) (647387) 241
17AA44 – LUBRIFICATION (647387) See page 196
__STEERING
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 183
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 167
__LIFTING
10AE1320 – HYDRAULIC (Lifting – Telescope circuit) (647387) See page 199
10CA306 – HYDRAULIC (LIFTING CYLINDER) (647387) 243
10CA375 – HYDRAULIC (LIFTING CYLINDER) (647387) 246
17AA44 – LUBRIFICATION (647387) See page 196
__TILTING
10AE1375 – HYDRAULIC (JIB CIRCUIT) (647387) See page 204
10CD129 – HYDRAULIC (TILTING CYLINDER) (647387) 249
10CD176 – HYDRAULIC (TILTING CYLINDER) (647387) 252
__TELESCOPING
10AE1320 – HYDRAULIC (Lifting – Telescope circuit) (647387) See page 199
10CC141 – HYDRAULIC (TELESCOPE CYLINDER) (647387) 255
10CC179 – HYDRAULIC (TELESCOPE CYLINDER) (647387) 257
TELESCOPIC BOOM
_DETAIL
5BA769 – BOOM (647387) 259
_FORK CARRIAGE
5BA769 – BOOM (647387) See page 259
ENGINE
BM38 – TURBOCHARGER (301073MOD) 264
BM13 – TURBOCHARGER (906379MOD) 266
_ENGINE UNIT
BP234 – GEAR BOX (DETAILS) (258799MOD) 268
BM27 – CYLINDER BLOCK (301073MOD) See page 148
BM28 – TIMING GEAR SYSTEM (301073MOD) 306
BM29 – OIL SUMP (301073MOD) See page 152
BM30 – CYLINDER HEAD (301073MOD) 308
BM31 – CYLINDER HEAD COVER (301073MOD) 312
BM32 – CRANKSHAFT AND FLY WHEEL (301073MOD) 314
BM33 – PISTONS – CONNECTING RODS (301073MOD) 317
BM34 – CAMSHAFT – ROCKER LEVER (301073MOD) 319
BM46 – LUBRICATING OIL PUMP (301073MOD) 322
BM47 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (301073MOD) See page 219
11AA1705 – ELECTRIC CIRCUIT (647387) 324
4AA1151 – ENGINE – TRANSMISSION ADAPTATION (647387) 326
BM100 – ENGINE ADAPTATION (647387) 330
BM101 – ENGINE ADAPTATION (647387) 333
BM12 – FUEL FILTER (906379MOD) 336
BM2 – CYLINDER BLOCK (906379MOD) See page 65
BM22 – LUBRICATING OIL PUMP (906379MOD) 339
BM24 – ENGINE LUBRIFICATION (906379MOD) 341
BM3 – TIMING GEAR SYSTEM (906379MOD) 343
BM4 – OIL SUMP (906379MOD) See page 70
BM5 – CYLINDER HEAD (906379MOD) 345
BM6 – CYLINDER HEAD COVER (906379MOD) 349
BM7 – CRANKSHAFT AND FLY WHEEL (906379MOD) 351
BM8 – PISTONS – CONNECTING RODS (906379MOD) 354
BM9 – CAMSHAFT – ROCKER LEVER (906379MOD) 356
_COMPLETE
BM26 – ENGINE (301073MOD) 358
11AA1705 – ELECTRIC CIRCUIT (647387) See page 324
BM100 – ENGINE ADAPTATION (647387) See page 330
BM101 – ENGINE ADAPTATION (647387) See page 333
BM1 – ENGINE (906379MOD) 360
_TIMING GEAR – LUBRICATION
BM34 – CAMSHAFT – ROCKER LEVER (301073MOD) See page 319
BM46 – LUBRICATING OIL PUMP (301073MOD) See page 322
BM47 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (301073MOD) See page 219
BM48 – ENGINE LUBRIFICATION (301073MOD) 362
BM22 – LUBRICATING OIL PUMP (906379MOD) See page 339
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) See page 68
BM3 – TIMING GEAR SYSTEM (906379MOD) See page 343
BM9 – CAMSHAFT – ROCKER LEVER (906379MOD) See page 356
_ELECTRICITY
BM27 – CYLINDER BLOCK (301073MOD) See page 148
BM29 – OIL SUMP (301073MOD) See page 152
BM42 – ELECTRICITY (301073MOD) See page 84
11AA1623 – ELECTRIC CIRCUIT (647387) See page 95
11CD225 – ELECTRICITY (ENGINE – TRANSMISSION) (647387) See page 60
BM16 – ELECTRICITY (906379MOD) See page 63
BM2 – CYLINDER BLOCK (906379MOD) See page 65
BM21 – ELECTRICITY (906379MOD) See page 104
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) See page 68
BM4 – OIL SUMP (906379MOD) See page 70
_FILTERS-BELT
BP234 – GEAR BOX (DETAILS) (258799MOD) See page 268
BM35 – FUEL CIRCUIT (301073MOD) 364
BM37 – FUEL FILTER (301073MOD) 366
BM47 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (301073MOD) See page 219
BM49 – ENGINE COOLER (301073MOD) 369
2AA274 – FILTERS AND BELTS (647387) 372
4AA1167 – ENGINE – TRANSMISSION ADAPTATION (647387) 374
4AC348 – FUEL CIRCUIT (647387) See page 55
BM12 – FUEL FILTER (906379MOD) See page 336
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) See page 68
BM25 – ENGINE COOLER (906379MOD) 378
_INTAKE SYSTEM – EXHAUST
BM30 – CYLINDER HEAD (301073MOD) See page 308
BM39 – INTAKE MANIFOLD – EXHAUST MANIFOLD (301073MOD) 381
BM40 – EXHAUST MANIFOLD (301073MOD) 383
4AA1167 – ENGINE – TRANSMISSION ADAPTATION (647387) See page 374
BM14 – INTAKE MANIFOLD – EXHAUST MANIFOLD (906379MOD) 385
BM15 – EXHAUST MANIFOLD (906379MOD) 387
BM17 – ELECTRICITY (906379MOD) 389
BM5 – CYLINDER HEAD (906379MOD) See page 345
_FUEL SUPPLY SYSTEM
BM35 – FUEL CIRCUIT (301073MOD) See page 364
BM36 – FUEL CIRCUIT (301073MOD) 391
BM37 – FUEL FILTER (301073MOD) See page 366
11AA1623 – ELECTRIC CIRCUIT (647387) See page 95
4AA1280 – ENGINE – TRANSMISSION ADAPTATION (647387) See page 209
4AC348 – FUEL CIRCUIT (647387) See page 55
BM10 – FUEL CIRCUIT (906379MOD) 393
BM11 – FUEL CIRCUIT (906379MOD) 395
BM12 – FUEL FILTER (906379MOD) See page 336
_ELECTRICAL SYSTEM
BM27 – CYLINDER BLOCK (301073MOD) See page 148
BM29 – OIL SUMP (301073MOD) See page 152
BM42 – ELECTRICITY (301073MOD) See page 84
BM43 – STARTER MOTOR (301073MOD) 397
BM44 – ALTERNATOR (301073MOD) 399
11AA1623 – ELECTRIC CIRCUIT (647387) See page 95
11CD225 – ELECTRICITY (ENGINE – TRANSMISSION) (647387) See page 60
BM16 – ELECTRICITY (906379MOD) See page 63
BM18 – STARTER MOTOR (906379MOD) 401
BM19 – ALTERNATOR (906379MOD) 403
BM2 – CYLINDER BLOCK (906379MOD) See page 65
BM21 – ELECTRICITY (906379MOD) See page 104
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) See page 68
BM4 – OIL SUMP (906379MOD) See page 70
_COOLING SYSTEM
BM47 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (301073MOD) See page 219
BM49 – ENGINE COOLER (301073MOD) See page 369
4AA1166 – (647387) See page 231
4AA1179 – ENGINE – TRANSMISSION ADAPTATION (647387) 405
4AA1185 – ENGINE – TRANSMISSION ADAPTATION (647387) See page 18
4AA1279 – ENGINE – TRANSMISSION ADAPTATION (647387) 408
4AA1280 – ENGINE – TRANSMISSION ADAPTATION (647387) See page 209
4AA1338 – ENGINE – TRANSMISSION ADAPTATION (647387) 411
8AD348 – HEATING CIRCUIT (647387) 414
BM23 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (906379MOD) See page 68
BM25 – ENGINE COOLER (906379MOD) See page 378
PEDALS
_BRAKING CIRCUIT
6BA334 – BRAKE CIRCUIT (647387) See page 129
6BA335 – TRAILER BRAKE CIRCUIT (647387) 417
_HAND BRAKE
6BA122 – HANDBRAKE (647387) 420
6BB271 – PEDALS – LINKAGE (647387) See page 137
_ACCELEARATOR PEDAL
6BB271 – PEDALS – LINKAGE (647387) See page 137
_BRAKE PEDAL
6BA334 – BRAKE CIRCUIT (647387) See page 129
_TRAILOR
6BA335 – TRAILER BRAKE CIRCUIT (647387) See page 417
_LINKAGE
6BA334 – BRAKE CIRCUIT (647387) See page 129
6BB271 – PEDALS – LINKAGE (647387) See page 137
DRIVER CAB
_CAB
8AB1277 – CAB (DETAILS) (290633MOD) See page 45
8AB1280 – HEATING CIRCUIT (290633MOD) 422
8AB1568 – CAB (DETAILS) (307765MOD) 427
8AB1571 – HEATING CIRCUIT (307765MOD) See page 141
8AB1622 – CAB (Details) (307768MOD) See page 145
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 88
8AA945 – CAB ADAPTATION (647387) 431
8AA946 – CAB ADAPTATION (647387) 436
_HEATER – AIR CONDITIONING
8AB1278 – CAB (DETAILS) (290633MOD) See page 109
8AB1569 – CAB (DETAILS) (307765MOD) See page 113
8AB1571 – HEATING CIRCUIT (307765MOD) See page 141
8AB1622 – CAB (Details) (307768MOD) See page 145
8AB1623 – CAB (Details) (307768MOD) See page 117
8AD439 – COMPARTMENT (Air-conditioning) (307768MOD) See page 88
11AA1662 – ELECTRIC CIRCUIT (647387) See page 98
11CC305 – ELECTRICITY (Cab structure) (647387) See page 81
_ELECTRICITY
8AB1276 – CAB (DETAILS) (290633MOD) See page 39
8AB1277 – CAB (DETAILS) (290633MOD) See page 45
8AB1279 – CAB (DETAILS) (290633MOD) See page 49
8AB1566 – CAB (Details) (307765MOD) 439
8AB1567 – CAB (DETAILS) (307765MOD) See page 42
8AB1568 – CAB (DETAILS) (307765MOD) See page 427
8AB1570 – CAB (DETAILS) (307765MOD) 442
8AB1619 – CAB (Details) (307768MOD) See page 6
8AB1620 – CAB (Details) (307768MOD) See page 9
8AB1621 – CAB (Details) (307768MOD) 447
8AB1622 – CAB (Details) (307768MOD) See page 145
8AB1623 – CAB (Details) (307768MOD) See page 117
11CC305 – ELECTRICITY (Cab structure) (647387) See page 81
_FITTINGS – SOUND PROOFING
8AB1274 – CAB (DETAILS) (290633MOD) 449
8AB1275 – CAB (Details) (290633MOD) 454
8AB1279 – CAB (DETAILS) (290633MOD) See page 49
8AB1565 – CAB (DETAILS) (307765MOD) See page 1
8AB1566 – CAB (Details) (307765MOD) See page 439
8AB1568 – CAB (DETAILS) (307765MOD) See page 427
8AB1570 – CAB (DETAILS) (307765MOD) See page 442
8AB1619 – CAB (Details) (307768MOD) See page 6
8AB1620 – CAB (Details) (307768MOD) See page 9
8AB1621 – CAB (Details) (307768MOD) See page 447
_DOOR – GLASS
8AA1074 – SEAT (647387) 457
8AA1151 – CAB ADAPTATION (647387) 460
8AA1198 – CAB ADAPTATION (647387) 463
8AA946 – CAB ADAPTATION (647387) See page 436
8AA1074 – SEAT (647687) 466
TRANSMISSION
AX1920 – FRONT AXLE CASING (281545MOD) See page 173
AX1921 – FRONT AXLE DIFFERENTIAL (281545MOD) See page 175
AX1922 – FRONT AXLE REDUCTION GEAR (281545MOD) See page 177
AX1923 – OIL BATH DISC BRAKE – FRONT AXLE (281545MOD) See page 181
AX1924 – FRONT AXLE STEERING SYSTEM (281545MOD) See page 183
AX1931 – REAR AXLE CASING (281546MOD) See page 157
AX1932 – REAR AXLE DIFFERENTIAL (281546MOD) See page 159
AX1933 – REAR AXLE REDUCTION GEAR (281546MOD) See page 161
AX1934 – OIL BATH DISC BRAKE – REAR AXLE (281546MOD) See page 165
AX1935 – REAR AXLE STEERING SYSTEM (281546MOD) See page 167
AX2730 – REAR AXLE (647387) See page 171
AX2731 – FRONT AXLE (647387) See page 185
_PROPSHAFT
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) 469
BP305 – CARDAN COUPLING GEAR BOX – FRONT AXLE (295107MOD) 473
BP294 – CARDAN COUPLING GEAR BOX – REAR AXLE (295108MOD) 476
_GEAR BOX
BP203 – ELECTRICAL CONTROL VALVE (258799MOD) 479
BP234 – GEAR BOX (DETAILS) (258799MOD) See page 268
BP235 – GEAR BOX (MECHANISM DETAILS – GEAR) (258799MOD) 485
BP322 – GEAR BOX AND CONVERTER (647387) 528
_ANGLE RETURN
BP110 – BEVEL DRIVE (224053MOD) 530
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) See page 469

Contact us: [email protected]

https://vimeo.com/740606510

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
