Manitou MLT-X 841 145 PS+ Y ST3A S1 MLT-X 1041 145 PS+ L Y ST3A S1 lift Truck Operator’s Manual 647874 – PDF DOWNLOAD

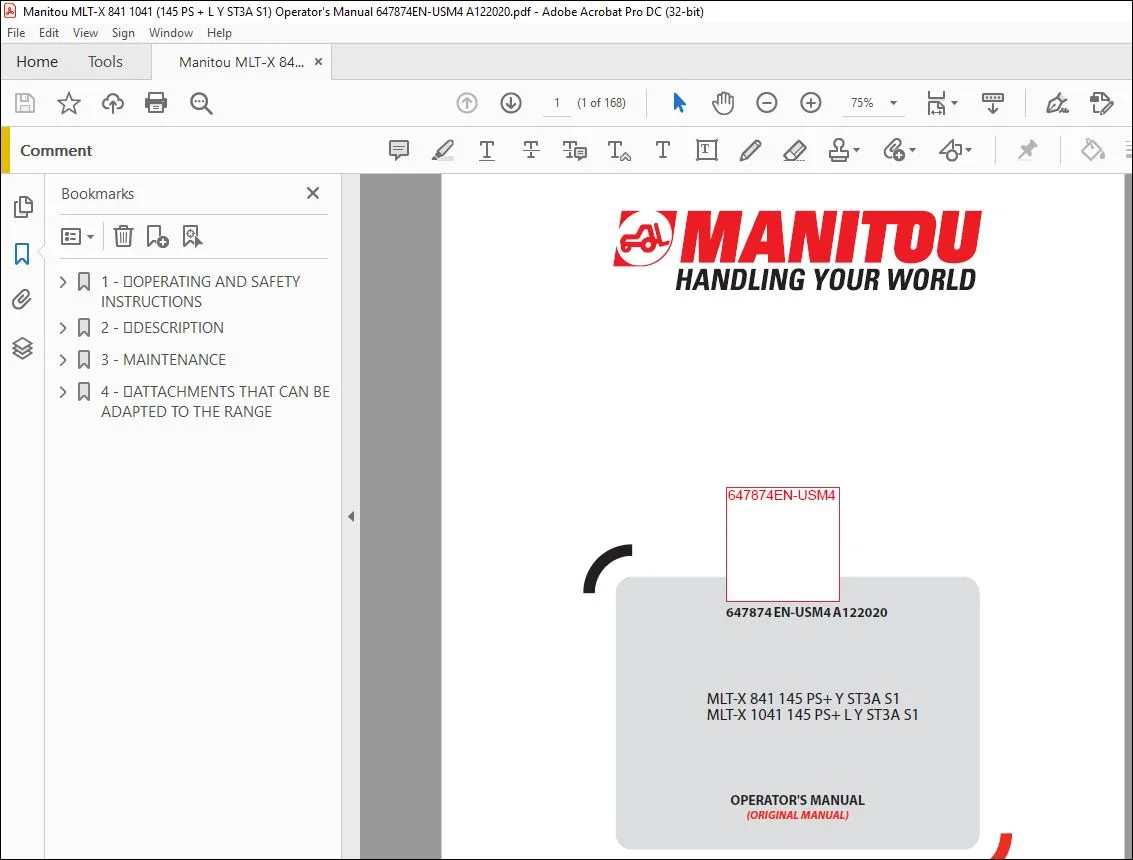

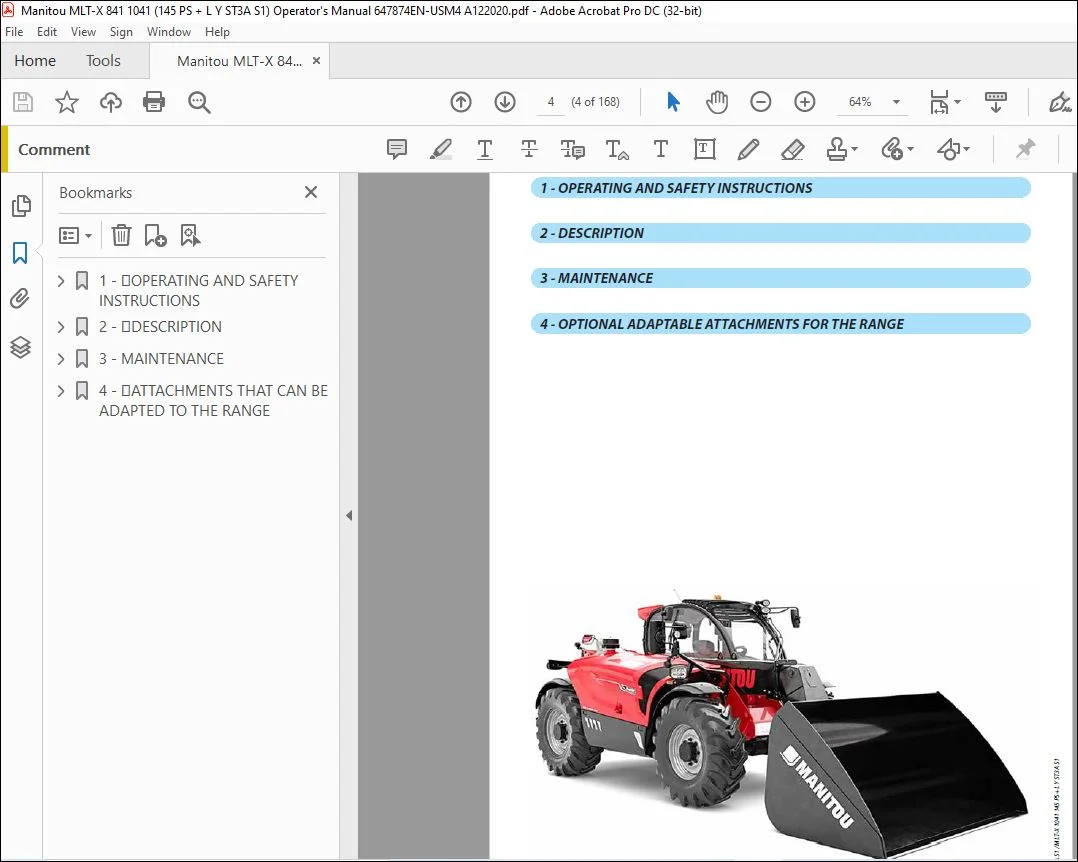

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MLT-X 841 145 PS+ Y ST3A S1 MLT-X 1041 145 PS+ L Y ST3A S1 lift Truck Operator’s Manual 647874 – PDF DOWNLOAD

THE LIFT TRUCK:
A – SUITABILITY OF THE LIFT TRUCK FOR THE JOB
– MANITOU has ensured that this lift truck is suitable for use under the standard operating conditions defined in this
operator’s manual, with a STATIC TEST COEFFICIENT 1.25 and a DYNAMIC TEST COEFFICIENT OF 1, as specified in
harmonised standard EN 1459 for mast trucks.
– Before commissioning, the company manager must make sure that the lift truck is appropriate for the work to be done,
and perform certain tests (in accordance with current legislation).
B – ADAPTATION OF THE LIFT TRUCK TO STANDARD ENVIRONMENTAL CONDITIONS
– Our lift trucks are designed to be used within a temperature range of -18 °C to +43 °C.
– In addition to standard equipment mounted on your lift truck, many options are available, such as: road lighting, brake
lights, rotating beacon light, reversing lights, reversing sound alarm, front working light, rear working light, boom head
working light, etc. (according to the lift truck model).
– The operator must take into account the operating conditions to specify the lift truck’s signalling and lighting equipment.
Contact your dealer.
– Take into account the weather and atmospheric conditions of the site in use.

FOREWORD:

Failure to respect the safety and operating instructions, or the instructions for repairing or servicing your lift truck may lead to serious, even fatal accident.
– Only the operations and manoeuvres described in these operator’s manual must be performed. The manufacturer cannot
predict all possible risky situations. Consequently, the safety instructions given in the operator’s manual and on the lift
truck itself are not exhaustive.
– At any time, as an operator, you must envisage, within reason, the possible risk to yourself, to others or to the lift truck
itself when you use it.

TABLE OF CONTENTS:

Manitou MLT-X 841 145 PS+ Y ST3A S1 MLT-X 1041 145 PS+ L Y ST3A S1 lift Truck Operator’s Manual 647874 – PDF DOWNLOAD

1 – OPERATING AND SAFETY INSTRUCTIONS 5
INSTRUCTIONS TO THE COMPANY MANAGER 10
THE SITE 10
THE OPERATOR 10
THE LIFT TRUCK 10
A – SUITABILITY OF THE LIFT TRUCK FOR THE JOB 10
B – ADAPTATION OF THE LIFT TRUCK TO STANDARD ENVIRONMENTAL CONDITIONS 10
C – MODIFICATION OF THE LIFT TRUCK 11
D – FRENCH ROAD TRAFFIC RULES 11
E – LIFT TRUCK CAB PROTECTION 11
INSTRUCTIONS 12
MAINTENANCE 12
INSTRUCTIONS FOR THE OPERATOR 14
FOREWORD 14
GENERAL INSTRUCTIONS 14
A – OPERATOR’S MANUAL 14
B – AUTHORISATION FOR USE IN FRANCE 14
C – MAINTENANCE 14
D – TYRES 14
E – MODIFICATION OF THE LIFT TRUCK 15
F – LIFTING PEOPLE 15
OPERATING INSTRUCTIONS UNLADEN AND LADEN 16
A – BEFORE STARTING THE LIFT TRUCK 16
B – AVAILABLE IN THE DRIVER’S CAB 16
C – ENVIRONMENT 16
D – VISIBILITY 17
E – STARTING THE LIFT TRUCK 18
F – DRIVING THE LIFT TRUCK 18
G – STOPPING THE LIFT TRUCK 19
H – DRIVING THE LIFT TRUCK ON THE PUBLIC HIGHWAY 20
INSTRUCTIONS FOR HANDLING A LOAD 22
A – CHOICE OF ATTACHMENTS 22
B – WEIGHT OF LOAD AND CENTRE OF GRAVITY 22
C – LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE 22
D – TRANSVERSE ATTITUDE OF THE LIFT TRUCK 23
E – PICKING UP A LOAD ON THE GROUND 23
F – PICKING UP AND PUTTING DOWN A HIGH LOAD ON TYRES 24
G – PICKING UP AND PUTTING DOWN A HIGH LOAD ON STABILISERS 26
H – PICKING UP AND PUTTING DOWN A SUSPENDED LOAD 28
I – TRAVELLING WITH A SUSPENDED LOAD 28
INSTRUCTIONS FOR USE AS A LOADER 29
A – LOADING 29
B – BACKFILLING 29
PLATFORM OPERATING INSTRUCTIONS 30
A – AUTHORISATION FOR USE 30
B – SUITABILITY OF THE PLATFORM FOR THE JOB 30
C – PROVIDED ON THE PLATFORM 30
D – USING THE PLATFORM 30
E – ENVIRONMENT 31
F – MAINTENANCE 31
INSTRUCTIONS FOR USING THE RADIO-CONTROL 32
HOW TO USE THE RADIO-CONTROL 32
PROTECTIVE DEVICES 32
LIFT TRUCK MAINTENANCE INSTRUCTIONS 34
GENERAL INSTRUCTIONS 34
PLACING THE BOOM SAFETY WEDGE 34
FITTING THE WEDGE 34
REMOVING THE WEDGE 34
MAINTENANCE 34
MAINTENANCE LOGBOOK 34
LUBRICANT AND FUEL LEVELS 35
HYDRAULICS 35
ELECTRICITY 35
WELDING 35
WASHING THE LIFT TRUCK 35
TRANSPORTING THE LIFT TRUCK 35
IF THE LIFT TRUCK IS NOT TO BE USED FOR A LONG TIME 36
INTRODUCTION 36
PREPARING THE LIFT TRUCK 36
DEF (Diesel Exhaust Fluid) TANK 36
PROTECTING THE ENGINE 36
PROTECTING THE LIFT TRUCK 36
BRINGING THE LIFT TRUCK BACK INTO SERVICE 37
LIFT TRUCK DISPOSAL 38
RECYCLING OF MATERIALS 38
METALS 38
PLASTICS 38
RUBBER 38
GLASS 38
ENVIRONMENTAL PROTECTION 38
WORN OR DAMAGED PARTS 38
USED OIL 38
USED BATTERIES 38
2 – DESCRIPTION 39
SAFETY PLATES AND STICKERS 42
IDENTIFICATION OF THE LIFT TRUCK 46
SPECIFICATIONS MLT-X 841 145 PS+ Y ST3A S1 48
SPECIFICATIONS MLT-X 1041 145 PS+ L Y ST3A S1 50
TIRES 52
DIMENSIONS AND LOAD CHARTS MLT-X 841 145 PS+ Y ST3A S1 56
DIMENSIONS AND LOAD CHARTS MLT-X 1041 145 PS+ L Y ST3A S1 58
VISIBILITY MLT-X 841 145 PS+ Y ST3A S1 60
VISIBILITY MLT-X 1041 145 PS+ L Y ST3A S1 62
INSTRUMENTS AND CONTROLS 64
TOWING DEVICE 98
DESCRIPTION AND USE OF THE OPTIONS 104
3 – MAINTENANCE 119
ORIGINAL MANITOU SPARE PARTS AND EQUIPMENT 121
FORKLIFT TRUCK MAINTENANCE 122
DAILY AND WEEKLY MAINTENANCE 122
MANDATORY FIRST 500 HOURS OR 6 MONTHS OF SERVICE 123
PERIODIC MAINTENANCE 124
OCCASIONAL MAINTENANCE AND OPERATION 126
FILTER CARTRIDGES AND BELTS 126
LUBRICANTS AND FUEL 128
Ü 10H – DAILY SERVICE OR EVERY 10 HOURS OF SERVICE 130
Ü 50H – WEEKLY SERVICE OR EVERY 50 HOURS OF OPERATION 132
܌ 500H – PERIODIC MAINTENANCE – EVERY 500 HOURS OF SERVICE OR 1 YEAR 136
܍ 1000H – PERIODIC MAINTENANCE – EVERY 1,000 HOURS OF SERVICE OR EVERY 2 YEARS 138
܎ 2000H – PERIODIC MAINTENANCE – EVERY 2,000 HOURS OF SERVICE OR EVERY 4 YEARS 145
Ü 3000H – PERIODIC MAINTENANCE – EVERY 3,000 HOURS OF SERVICE OR EVERY 6 YEARS 148
Ü 4500H – PERIODIC MAINTENANCE – EVERY 4,500 HOURS OF SERVICE OR EVERY 9 YEARS 149
Ü OCCASIONAL SERVICING 150
Ü OCCASIONAL OPERATION 152
4 – ATTACHMENTS THAT CAN BE ADAPTED TO THE RANGE 155
INTRODUCTION 157
PICKING UP THE ATTACHMENTS 158
TECHNICAL SPECIFICATIONS OF ATTACHMENTS 160
ATTACHMENT GUARDS 167
