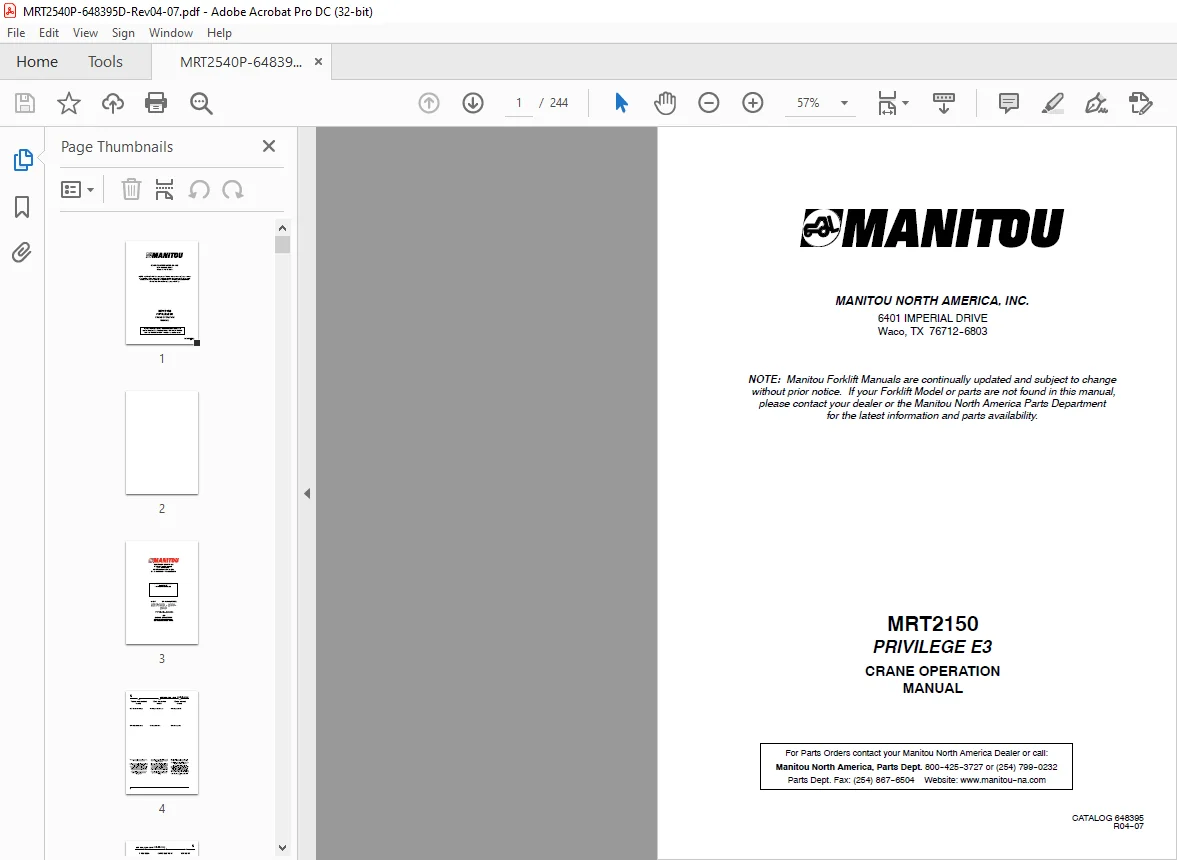

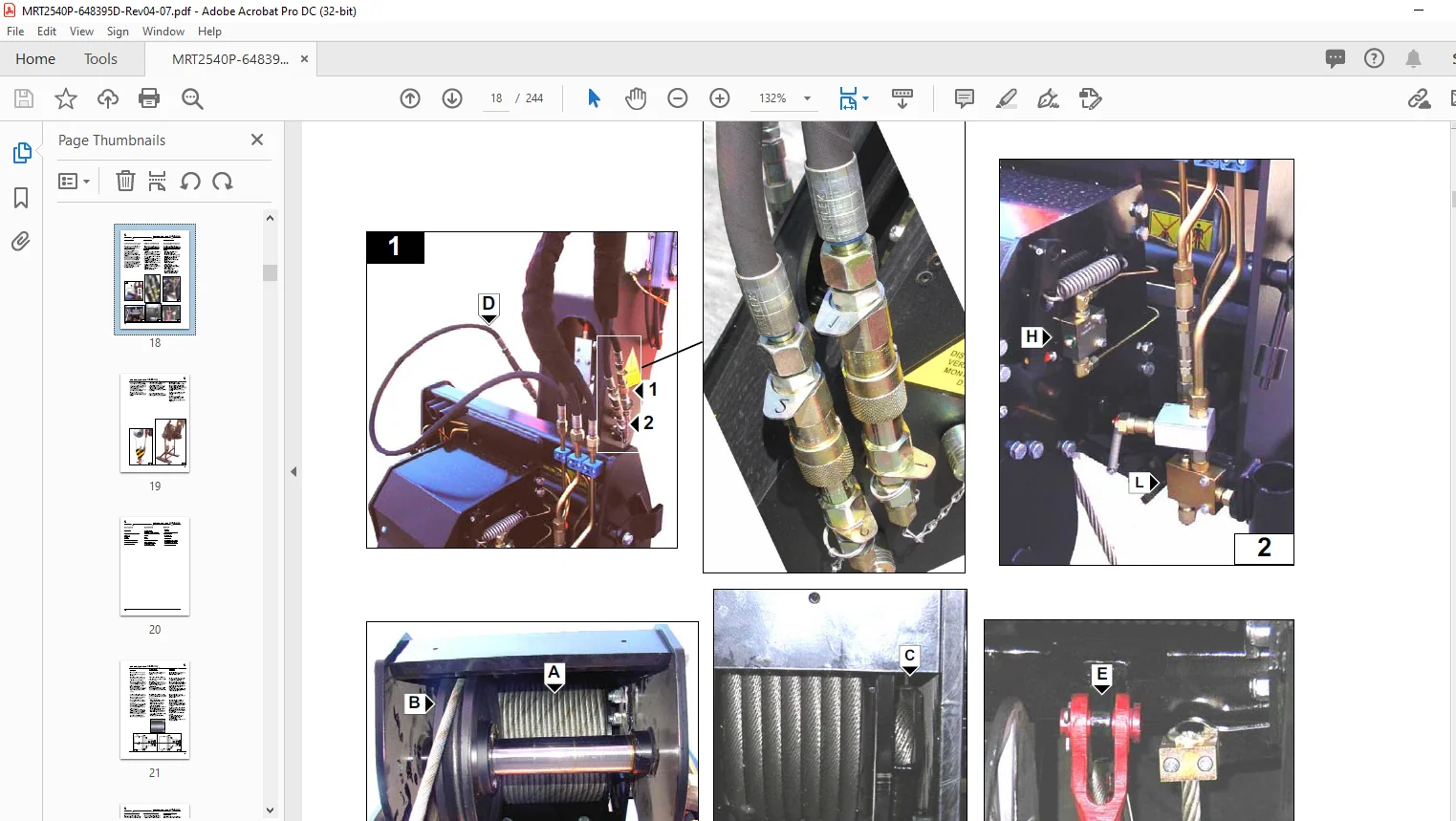

IMAGES PREVIEW OF THE MANUAL:

Manitou MRT2150 Privilege E3 Crane Operation Manual - PDF DOWNLOAD
Manitou MRT2150 Privilege E3 Crane Operation Manual – PDF DOWNLOAD
Manitou MRT2150 Privilege E3 Crane Operation Manual - PDF DOWNLOAD
Manitou MRT2150 Privilege E3 Crane Operation Manual – PDF DOWNLOAD
Manitou MRT2150 Privilege E3 Crane Operation Manual - PDF DOWNLOAD
Manitou MRT2150 Privilege E3 Crane Operation Manual – PDF DOWNLOAD

DESCRIPTION:

Manitou MRT2150 Privilege E3 Crane Operation Manual – PDF DOWNLOAD

CATALOG 648395

INTRODUCTION :

-The manufacturer supplies a large range of accessories (guarantees) perfectly suitable for your fork lift truck.
– The accessories are supplied together with a load diagram regarding your fork lift truck. The instruction leaflet and load diagram must remain in the lift truck. The use of possible accessories depends on the instructions given in this manual.
– When the accessory mounted is meant for lifting suspended loads (such as jib with hook, winch, etc…) your fork lift truck is automatically classified as a crane truck.
GENERAL RECOMMENDATIONS REGARDING THE USE OF THE CRANE :
This symbol means: Attention! Take care! Your safety and that of the crane is at stake
– Abide by the data indicated on the load diagrams. Do not try to lift loads greater than those permitted as indicated in the load diagrams enclosed with the machine.
– Keep the load lowered during transport, with the telescopic boom retracted as far as possible.
– Drive the crane at a speed suitable for the ground conditions.
– Run the crane without load, with the telescopic boom lowered and retracted to the maximum possible extent.
– Never go too fast or brake suddenly with a load applied.
– When the load is being lifted, take care to make sure there is no obstacle to the operation, and avoid incorrect manoeuvres.
– Do not try to carry out operations that are beyond the crane capacity.
– Take care with the electric wires. – Do not use the crane in storms or when there is risk of lightning.
– Do not leave the truck parked with a load raised, under any circumstances whatsoever.
– Do not approach or walk within the range of operation of the crane.
– Always keep safety in mind and transport only well balanced loads.
– Never leave the crane parked with the parking brake engaged on a slope exceeding 15%.
– With the winch or equipment with load hanging from the hook:
– Position the winch perpendicular to the load to be lifted.
HOW TO MOUNT THE ACCESSORY WITH MANUAL LOCK:
Engaging the accessory
– Check that the accessory is in a position which simplifies connection of the snap coupling. If it is badly positioned, take the necessary precautions to move it in the conditions of maximum safety.
– Check that the locking pin is engaged in the support provided on the frame.

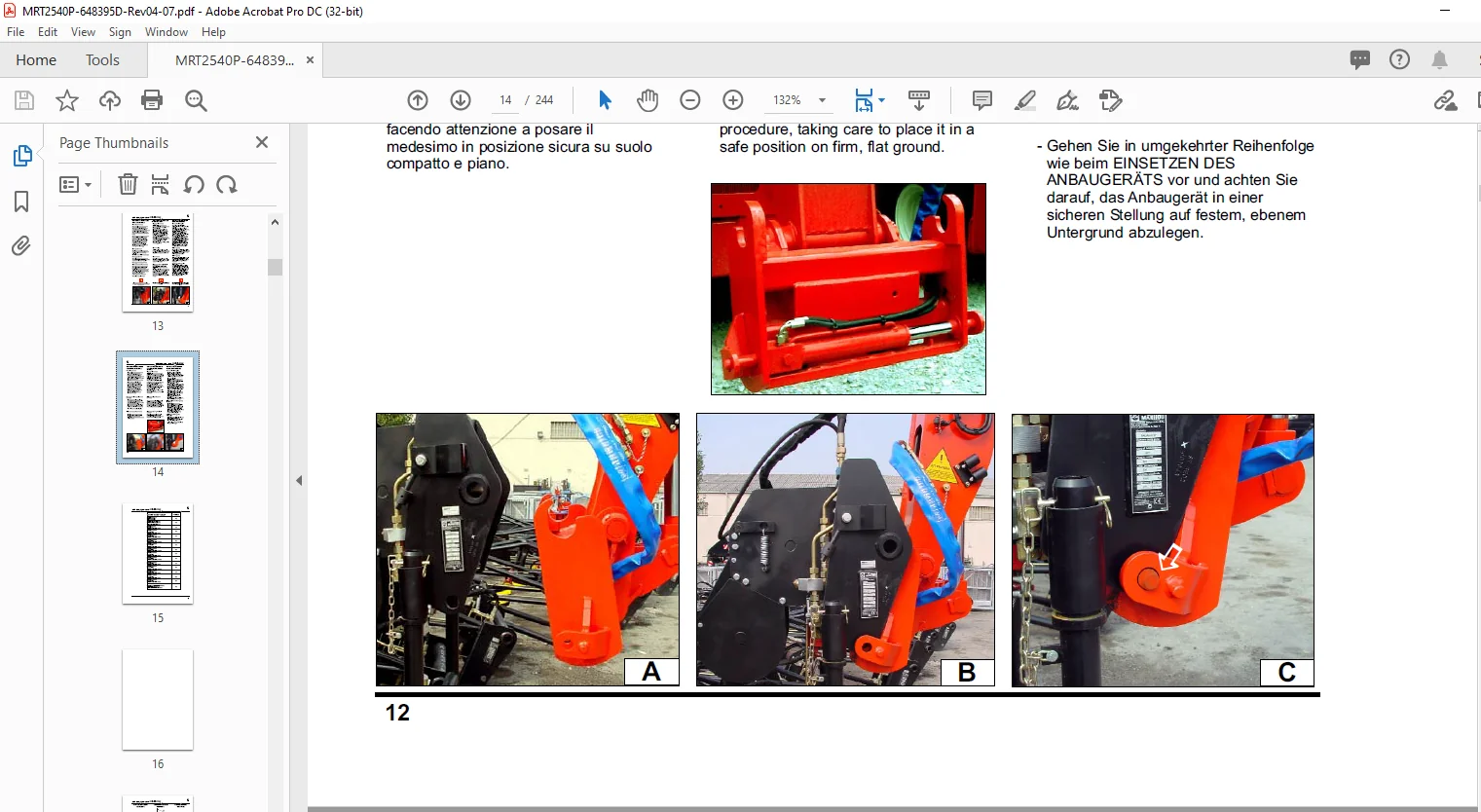

– Position the lift-truck with the boom lowered squarely in front of and parallel to the accessory and tilt the snap coupling forward(Fig.A).
– Bring the snap coupling into position below the accessory’s connection pipe, raise the boom slightly and tilt the connection back to position the accessory (Fig.B).
– Raise the accessory off the ground for easier engagement

TABLE OF CONTENTS:

Manitou MRT2150 Privilege E3 Crane Operation Manual – PDF DOWNLOAD
