Manitou MSI 30 LPG SERIES 2-E Parts Manual – PDF DOWNLOAD
Original price was: $89.95.$28.95Current price is: $28.95.
Manitou MSI 30 LPG SERIES 2-E Parts Manual – PDF DOWNLOAD
Description
Manitou MSI 30 LPG SERIES 2-E Parts Manual – PDF DOWNLOAD
MANITOU MSI 30 LPG SERIES 2-E PARTS MANUAL – PDF DOWNLOAD:

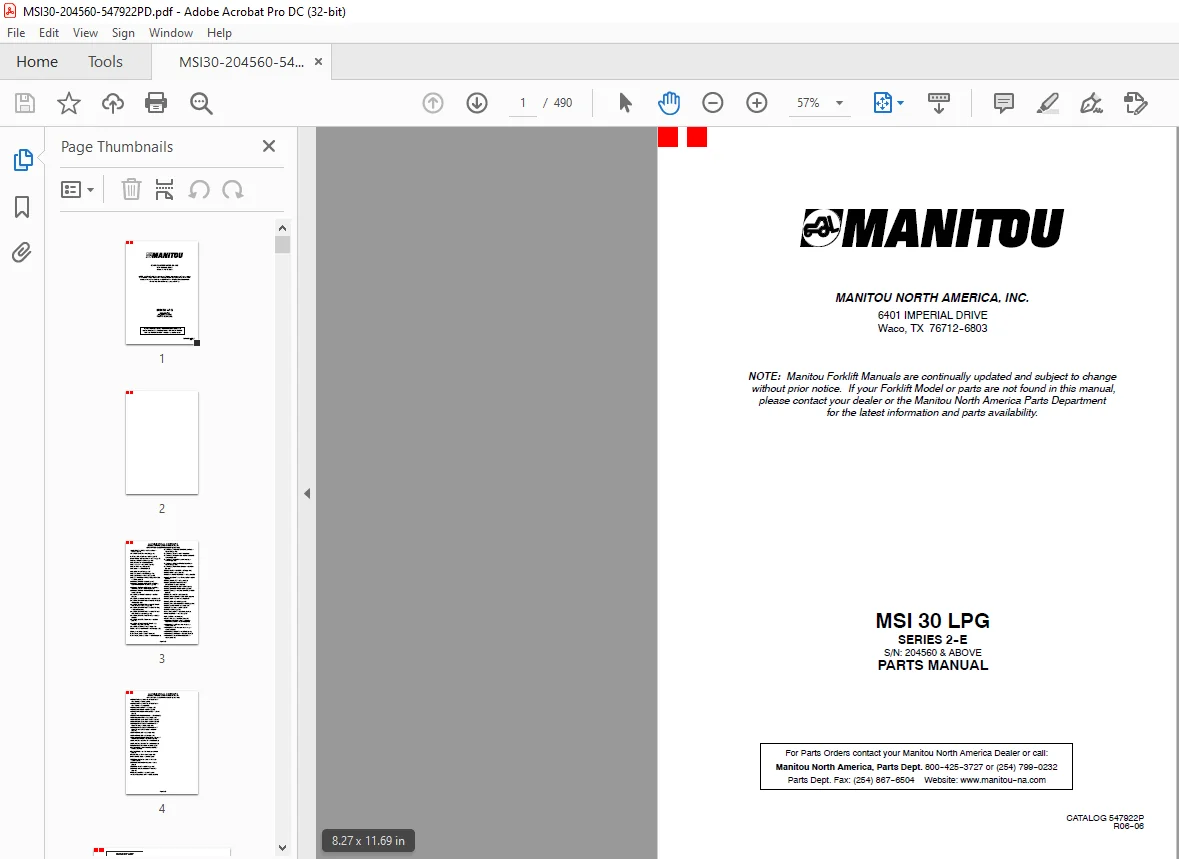

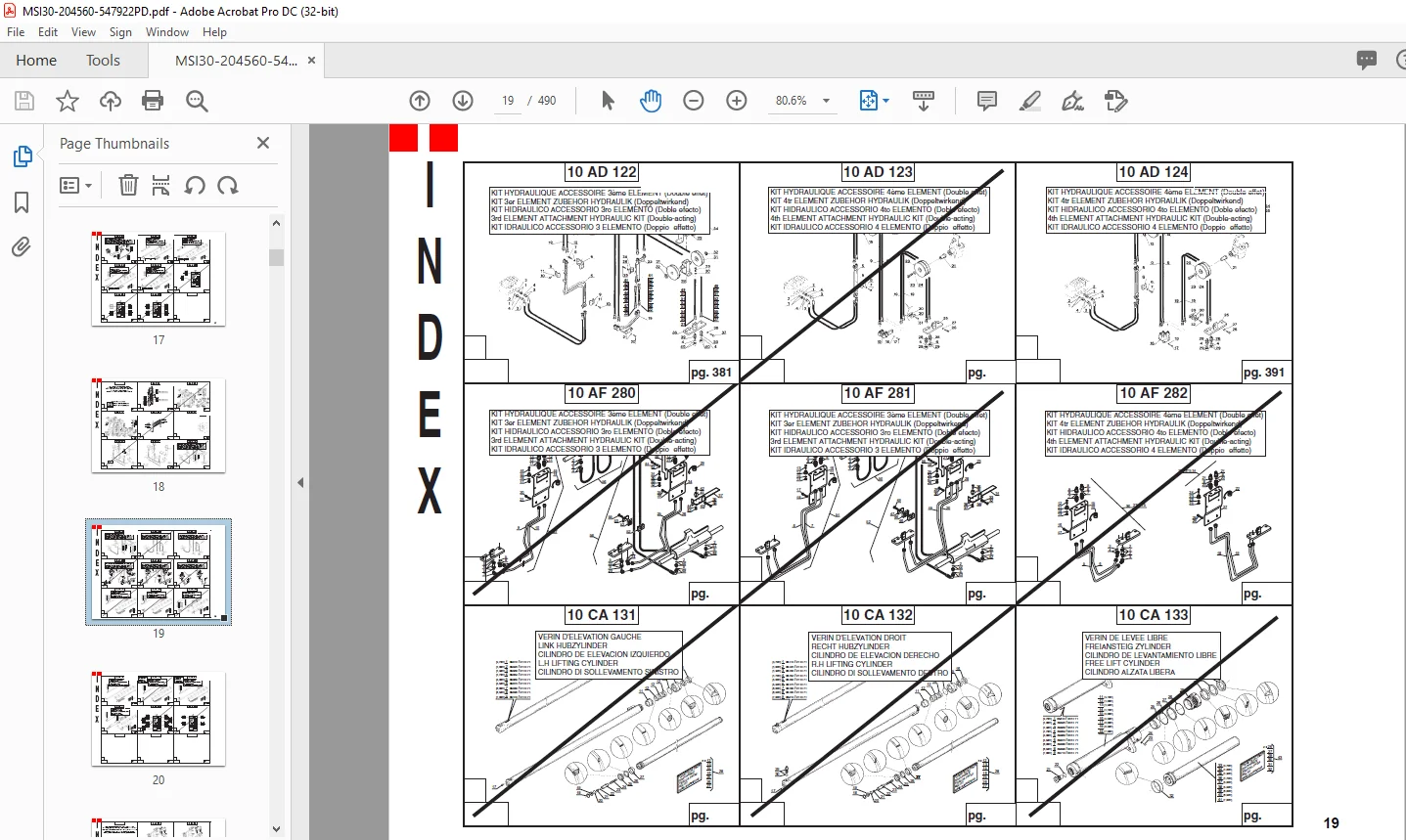

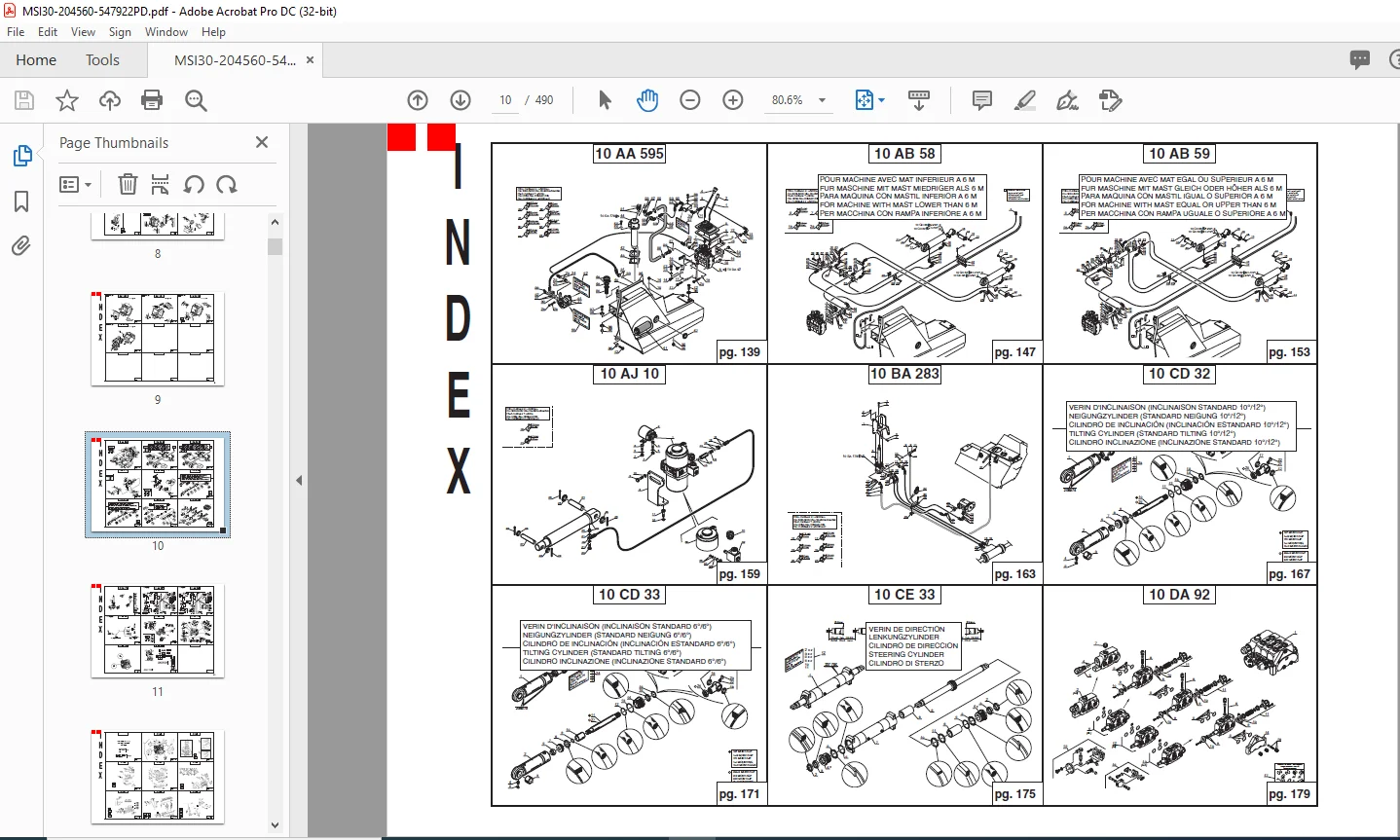

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Manitou MSI 30 LPG SERIES 2-E Parts Manual – PDF DOWNLOAD
The text pages have a figure (for example : 1) printed in the top
left corner, and a sign at the bottom (+).
• “1” means that this is the first page of text.
• “+” means that the parts list is not finished, and that there
are more pages. The last page does not have the “+” sign.
• “X” in the Quantity columns means = according to need.
PARTS ORDER :
When placing an order, always state :
– Spare part ref. number
– Complete description
– Quantity
– Type of machine
– Machine serial number.
– Component identification number
(mast, jib, cab, engine, etc
TABLE OF CONTENTS:
Manitou MSI 30 LPG SERIES 2-E Parts Manual – PDF DOWNLOAD
ACCELERATOR PEDAL INSTALLATION –
6BB142 [pg.77]
AIR INTAKE SYSTEM – 4AA550 [pg.41]
ALTERNATER, ASSEMBLY – CD54 [pg.277]
BRAKE PEDAL INSTALLATION – 6BB142 [pg.77]
CAB MOUNTINGS – 8AA424 [pg.109]
CAB, COMPLETE – 8AB590 [pg.121]
CAB, L.H. DOOR – 15CAB157 [pg.463]
CAB, LIFTING – 10AJ10 [pg.159]
CAB, MISC. I – 8AB592 [pg.129]
CAB, MISC. II – 8AB593 [pg.133]
CAB, R.H. DOOR – 15CAB158 [pg.471]
CAB, SIDE GLASS – 15CAB156 [pg.457]
CAB, TOP AND BACK WINDSHIELD, AND MISC.
– 8AB591 [pg.125]
CARRIAGE, TILTING – 5AC35 [pg.415]
CARRIAGE, TILTING HYDRAULIC CONTROL,
FOURTH ELEMENT – 10AD144 [pg.437]
CARRIAGE, TILTING HYDRAULIC CONTROL,
THIRD ELEMENT – 10AD143 [pg.427]
CARRIAGE, TILTING WITH HYDRAULIC LOCK –
5AC36 [pg.421]
CYLINDER, CARRIAGE LOCKING – 10CZ83
[pg.451]
CYLINDER, CARRIAGE TILTING – 10CZ82 [447]
CYLINDER, MAST LIFTING L.H. (MAST 517598) –
10CA168 [pg.339]
CYLINDER, MAST LIFTING L.H. (MAST 571654
AND 517656) – 10CA174 [pg.399]
CYLINDER, MAST LIFTING R.H. (MAST 517598)
– 10CA169 [pg.343]
CYLINDER, MAST LIFTING R.H. (MAST 571654
AND 571656) – 10CA218 [pg.403]
CYLINDER, MAST TILTING (10°/12°) – 10CD32
[pg.167]
CYLINDER, MAST TILTING (6°/6°) – 10CD33
[pg.171]
CYLINDER, PRIMARY (MAST 571654 AND
571656) – 10CA176 [pg.407]
CYLINDER, STEERING – 10CE33 [pg.175]
DECAL, TILTING CARRIAGE – 12AA338 [pg.455]
DECALS – 12AA436 [pg.219]
ELECTRICAL, CAB – 11CC174 [pg.209]
ELECTRICAL, ENGINE MISC. – 11CD120 [pg.217]
ELECTRICAL, FRONT OVERHEAD LIGHTING –
15CAB159 [pg.479]
ELECTRICAL, MISC. – 11CB712 [pg.203]
ELECTRICAL, PRIMARY (S/N: 216990 & ABOVE)
11AA948 [pg.193]
ELECTRICAL, PRIMARY (to S/N: 216989) –
11AA947 [pg.187]
ELECTRICAL, REAR OVERHEAD LIGHTING –
15CAB160 [pg.481]
ELECTRICAL, ROTATING BEACON – 15CAB161
[pg.483]
ENGINE IGNITION SYSTEM – CD53 [pg.271]
ENGINE MISC. – CD42 [pg.225]
ENGINE OIL FILTER ASSEMBLY – CD49 [pg.253]
ENGINE, CAMSHAFT AND TIMING GEAR – CD48
[pg.247]
ENGINE, COMPLETE – CD42 [pg.225]
ENGINE, CONNECTING RODS AND
CRANKSHAFT – CD47 [pg.243]
ENGINE, CYLINDER BLOCK – CD45 [pg.233]
ENGINE, CYLINDER HEAD – CD44 [pg.229]
ENGINE, EXHAUST / INTAKE MANIFOLD – CD51
[pg.263]
ENGINE, FLYWHEEL – CD56 [pg.285]
ENGINE, FRONT COVER, MISC – CD46 [pg.237]
ENGINE, FUEL SYSTEM – CD52 [pg.267]
ENGINE, SEAL KIT – CD43 [pg.227]
ENGINE, STARTER ASSEMBLY – CD55 [pg.281]
ENGINE, WATER PUMP – CD50 [pg.257]
EXHAUST SYSTEM – 4AA546 [pg.39]
FILTERS – 2AA134 [pg.25]
FIRE EXTINGUISHER – 15CAB162 [pg.485]
FRAME ASSEMBLY – 6AA356 [pg.73]
FUEL SYSTEM – 4AC198 [61]
HEATER KIT, CAB – 15CAB163 [pg.487]
HYDRAULIC CONTROL LEVER, LOCKING
FOURTH ELEMENT – 10AD145 [pg.443]
HYDRAULICS, MAST (less than 6M Mast) –
10AB58 [pg.147]
HYDRAULICS, MAST (more than 6M mast) –
10AB59 [pg.153]
HYDRAULICS, PRIMARY – 10AA595 [pg.139]
HYDRAULICS, STEERING – 10BA283 [pg.163]
HYDRAULICS, VALVE BANK ASSEMBLY –
10DA92 [pg.179]
ALPHABETICAL CONTENTS
MSI30G SERIES 2-E PARTS 547922P R06-06
DESCRIPTION – ILLUSTRATION CODE – [PAGE NO.]
Page 2 of 2
HYDROSTATIC INCHING VALVE ASSEMBLY
(P/N: 201559) – BC99 [pg.291]
HYDROSTATIC INCHING VALVE ASSEMBLY
(P/N: 75498) – BC50 [pg.289]
HYDROSTATIC MOTOR – BC98 [pg.295]
HYDROSTATIC PUMP – BC151 [pg.301]
HYDROSTATIC PUMP HYDRAULICS – 4AB144
[pg.45]
HYDROSTATIC PUMP INCHING – 4AB145 [pg.53]
MAST ACCUMULATOR – 10AC20 [pg.369]
MAST ASSEMBLY, 2-STAGE – 5AA67 [pg.315]
MAST ASSEMBLY, 3-STAGE – 5AB70 [pg.351]
MAST FOURTH ELEMENT HYDRAULIC KIT
(MAST 571598) – 10AD142 [pg.331]
MAST FOURTH ELEMENT HYDRAULIC KIT
(MAST 571654 AND 571656) – 10AD124
[pg.391]
MAST HYDRAULICS – 10AC61 [pg.373]
MAST HYDRAULICS – 10AC71 [pg.327]
MAST THIRD ELEMENT HYDRAULIC KIT (MAST
517654 AND 571656) – 10AD122 [pg.381]
MAST, 2-STAGE COMPLETE – 5AA65 [pg.313]
MAST, 3-STAGE COMPLETE – 5AB68 [pg.349]
RADIATOR INSTALLATION- 4AA545 [pg.33]
SEAT ASSEMBLY (S/N: 216990 & ABOVE) –
8AA390 [pg.103]
SEAT ASSEMBLY (to S/N: 216989) – 8AA109
[pg.99]
SEAT INSTALLATION – 8AA426 [pg.107]
SHEET METAL MISC. – 4AC199 [pg.69]
STEERING AXLE (S/N: 203017 & ABOVE) –
7AA54 [pg.93]
STEERING AXLE (to S/N: 203016) – 7AA46
[pg.85]
STEERING VALVE – 10EA178 [pg.183]
STEERING WHEEL ASSEMBLY – 8AA425
[pg.115]
TIRES AND WHEELS – 3AA237 [pg.29]
WHEEL REDUCTION GEAR – BB12 [pg.307]
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
S.V
