Manitou MSI 40 H Serie 1-E2 MSI 50 H Serie 1-E2 Parts Catalogue Manual – PDF DOWNLOAD
MANITOU MSI 40 H SERIE 1-E2 MSI 50 H SERIE 1-E2 PARTS CATALOGUE MANUAL – PDF DOWNLOAD:

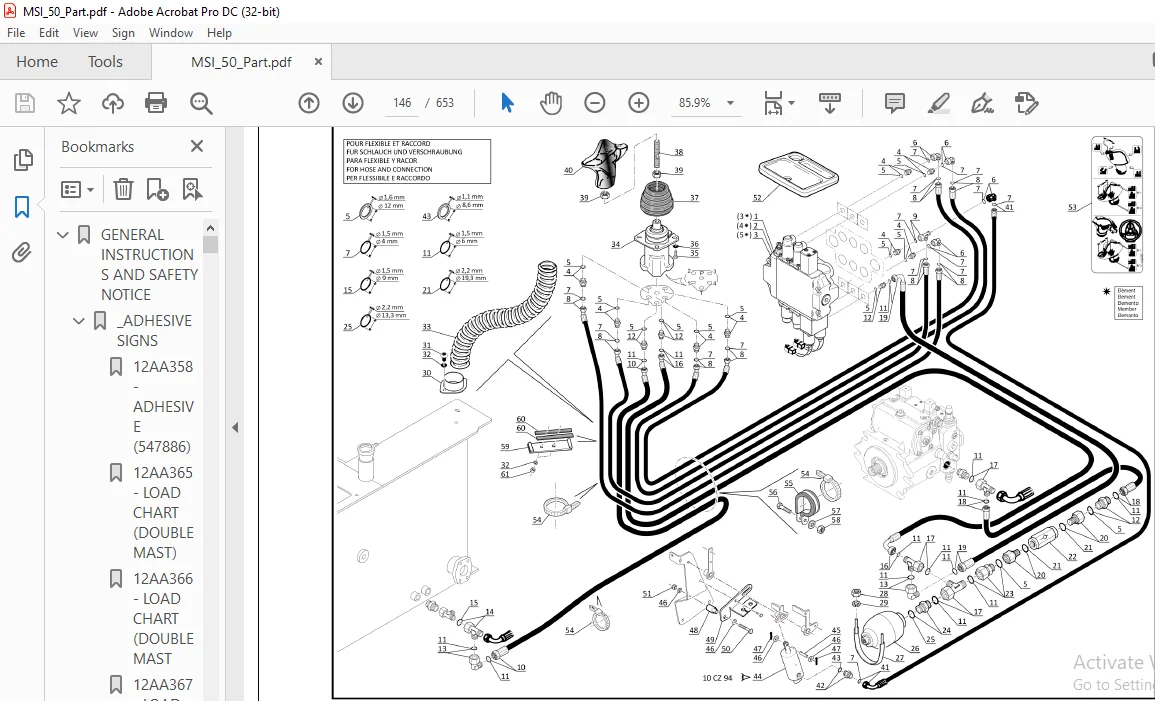

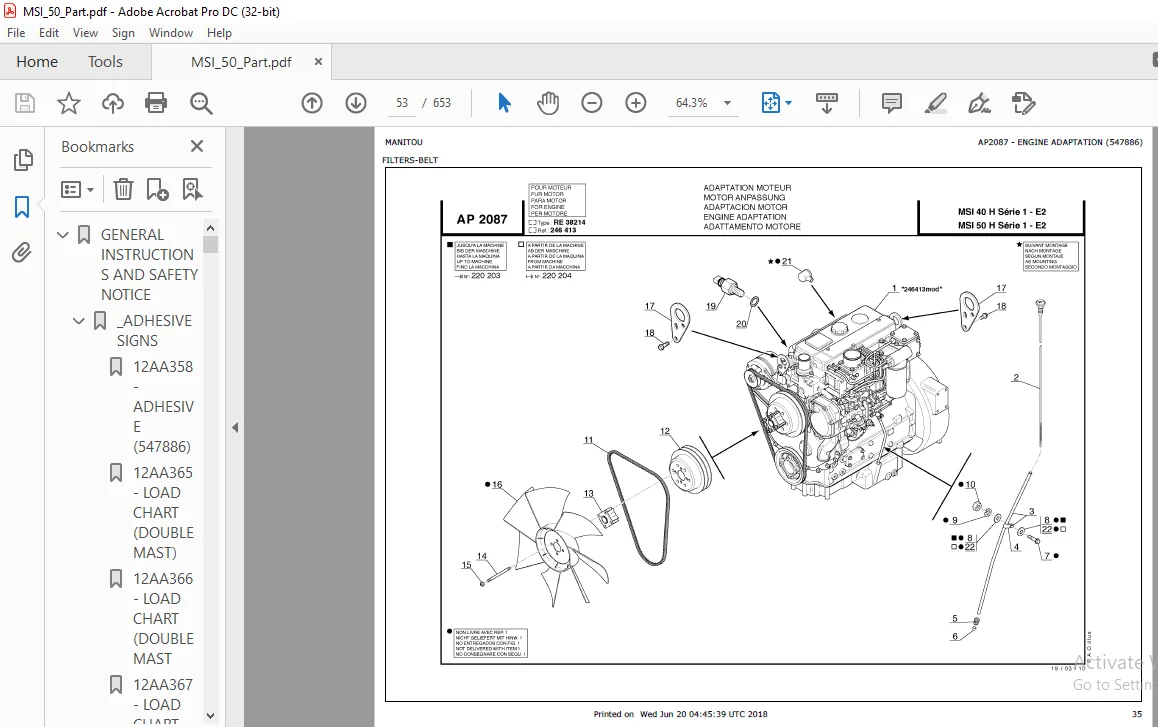

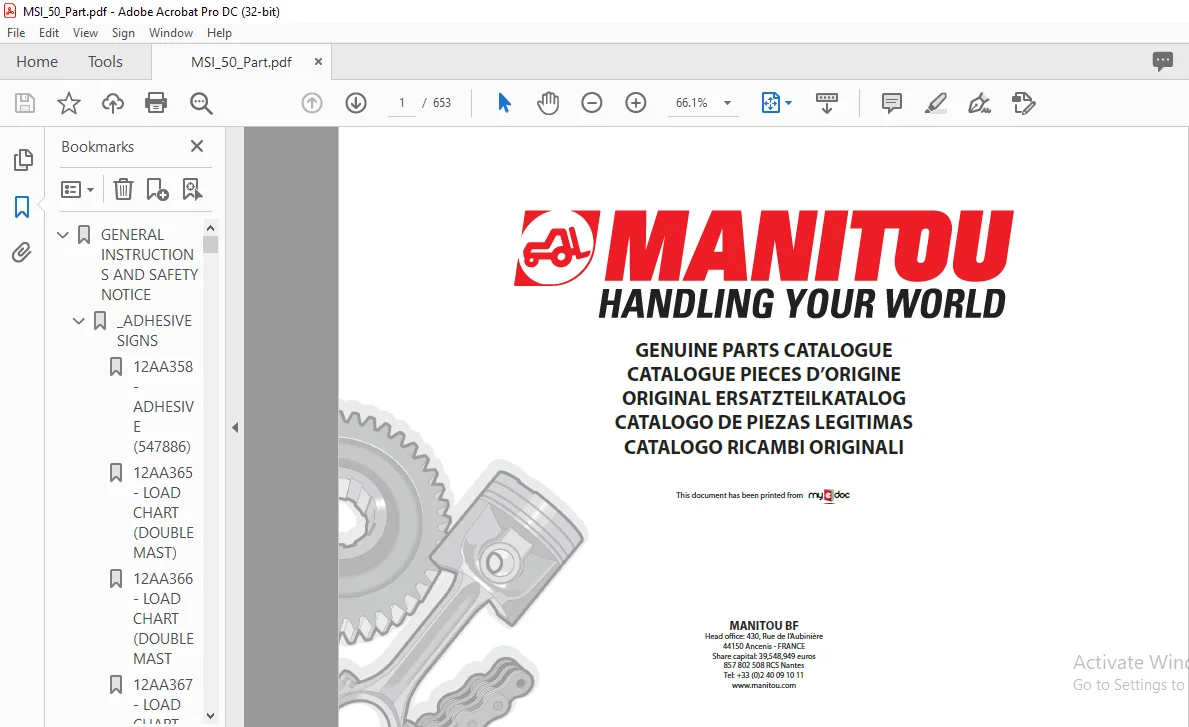

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Manitou MSI 40 H Serie 1-E2 MSI 50 H Serie 1-E2 Parts Catalogue Manual – PDF DOWNLOAD
This manual is for information purposes only. Any reproduction, copy, representation, recording, transfer, distribution, or other, in part or in whole, in any format is prohibited. The plans, designs, views, commentaries and instructions, even the document organization that are found in this document, are the intellectual property of MANITOU BF. Any violation of the aforementioned may lead to civil and criminal prosecution. The logos as well as the visual identity of the company are the property of MANITOU BF and may not be used without express and formal authorization. All rights are reserved.
TO ORDER YOUR SPARE PARTS, ALWAYS STATE :
A – The reference of the catalogue (See cover)
B – Number of the figure
C – Item of the part and quantity desired
D – Type of the machine and its number in the serie
EXAMPLE OF ORDER :
Catalogue ref : 647 XXX
Figure : 6 BA 122
Item : 2
Quantity : 1
Type of the machine : —
Number in the serie : —
With the above information, your MANITOU dealer can identify
the number and proper part required.
TABLE OF CONTENTS:
Manitou MSI 40 H Serie 1-E2 MSI 50 H Serie 1-E2 Parts Catalogue Manual – PDF DOWNLOAD
GENERAL INSTRUCTIONS AND SAFETY NOTICE............................................................ 19
_ADHESIVE SIGNS............................................................................... 19
12AA358 - ADHESIVE (547886)............................................................... 19
12AA365 - LOAD CHART (DOUBLE MAST) (547886)............................................... 21
12AA366 - LOAD CHART (DOUBLE MAST TOTAL FREE LIFT) (547886)............................... 23
12AA367 - LOAD CHART (TRIPLE MAST FREE LIFT) (547886)..................................... 25
6AA333 - (547927)......................................................................... 27
12AA338 - ADHESIVE (570402MOD)............................................................ 28
FILTERS-BELT...................................................................................... 30
AP1646 - LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (246413MOD)........................... 30
11AA1165 - ELECTRIC CIRCUIT (547886).......................................................... 32
11AA1166 - ELECTRIC CIRCUIT (547886).......................................................... 34
11CB590 - ELECTRICITY (DETAILS) (547886)...................................................... 36
2AA114 - FILTERS AND BELTS (547886)........................................................... 41
4AA418 - ENGINE - TRANSMISSION ADAPTATION (547886)............................................ 43
4AC162 - FUEL CIRCUIT (547886)................................................................ 45
4AC244 - FUEL CIRCUIT (547886)................................................................ 49
AP2087 - ENGINE ADAPTATION (547886)........................................................... 53
2AA139 - (547927)............................................................................. 55
2AA281 - CYCLONIC PRE-FILTER (547927)......................................................... 58
8AD394 - CIRCUIT AIR-CONDITIONING (547927).................................................... 60
FRAME - BODY...................................................................................... 66
6AA333 - (547927)............................................................................. 27
8AA448 - (547927)............................................................................. 66
8AA449 - (547927)............................................................................. 68
_COUNTERWEIGHT................................................................................ 69
6AA287 - FRAME - COUNTERWEIGHT (547886)................................................... 69
_MUD GUARD (FENDER)........................................................................... 71
6AA658 - REAR SPLASH APRON (547927)....................................................... 71
8AA1011 - SPLASH APRON (FRONT) (547927)................................................... 73
8AA1012 - SPLASH APRON (FRONT) (547927)................................................... 75
_SOUND PROOFING............................................................................... 77
8AB737 - CAB (DETAILS) (254225MOD)........................................................ 77
8AB1039 - CAB (DETAILS) (260449MOD)....................................................... 79
8AB1040 - CAB (DETAILS) (260449MOD)....................................................... 82
4AA426 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 84
4AA427 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 88
4AA683 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 90
8AB737 - CAB (DETAILS) (547886)........................................................... 92
8AB738 - CAB (DETAILS) (547886)........................................................... 95
9AA227 - BODY (547886).................................................................... 97
9AA709 - BODY (547927).................................................................... 99
_DRIVER CAB...................................................................................101
8AB737 - CAB (DETAILS) (254225MOD)........................................................ 77
8AB1039 - CAB (DETAILS) (260449MOD)....................................................... 79
8AB1040 - CAB (DETAILS) (260449MOD)....................................................... 82
8AB1041 - CAB (DETAILS) (260449MOD).......................................................101
4AA683 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 90
8AB737 - CAB (DETAILS) (547886)........................................................... 92
8AB738 - CAB (DETAILS) (547886)........................................................... 95
8AB739 - CAB (DETAILS) (547886)...........................................................103
8AB740 - CAB (DETAILS) (547886)...........................................................106
8AA1106 - INNER REARVIEW MIRROR (547927)..................................................110
_TANK.........................................................................................112
4AC162 - FUEL CIRCUIT (547886)............................................................ 45
9AA226 - BODY (547886)....................................................................112
9AA369 - BODY (547886)....................................................................115
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
_EXTERIOR REARVIEW MIRROR.....................................................................121
8AA1115 - CAB ADAPTATION (REARVIEW MIRROR) (547927).......................................121
ELECTRICITY.......................................................................................123
_CIRCUIT - HARNESS............................................................................123
8AB741 - CAB (DETAILS) (254225MOD)........................................................123
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1163 - ELECTRIC CIRCUIT (547886)......................................................127
11AA1164 - ELECTRIC CIRCUIT (547886)......................................................130
11AA1165 - ELECTRIC CIRCUIT (547886)...................................................... 32
11AA1166 - ELECTRIC CIRCUIT (547886)...................................................... 34
11AA64 - (547886).........................................................................132
11AA800 - ELECTRIC CIRCUIT (547886).......................................................135
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
11CC134 - ELECTRICITY (CAB STRUCTURE) (547886)............................................143
10AA553 - (547927)........................................................................146
11AA1667 - ELECTRIC CIRCUIT ("JSM" VALVE BANK 3 ELEMENT) (547927).........................147
11AA1668 - ELECTRIC CIRCUIT ("JSM" VALVE BANK 4 ELEMENT) (547927).........................150
11AA1669 - ELECTRIC CIRCUIT ("JSM" VALVE BANK 5 ELEMENT) (547927).........................153
11AA863 - (547927)........................................................................157
11AB15 - ELECTRICITY (ANTITHEFT : DIGICODE) (547927)......................................158
11AB33 - ELECTRICITY (ANTITHEFT : DIGICODE) (547927)......................................160
11BA138 - ROAD BEAMS (547927).............................................................162
11BA140 - FRONT WORKING HEADLIGHT (547927)................................................164
11BA141 - REAR WORKING HEADLIGHT (R.H. AND L.H.) (547927).................................166
11BA142 - REAR WORKING HEADLIGHT (L.H.) (547927)..........................................168
11CB1347 - HEATER FUEL ADAPTATION (547927)................................................170
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
11CB965 - REVOLVING LIGHT KIT (547927)....................................................172
8AA1111 - PNEUMATIC SEAT (OPTION) (547927)................................................174
8AA677 - (547927).........................................................................176
_LIGHTING - SIGNALING........................................................................177
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1163 - ELECTRIC CIRCUIT (547886)......................................................127
11AA1164 - ELECTRIC CIRCUIT (547886)......................................................130
11AA1166 - ELECTRIC CIRCUIT (547886)...................................................... 34
11AA800 - ELECTRIC CIRCUIT (547886).......................................................135
11CB590 - ELECTRICITY (DETAILS) (547886).................................................. 36
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
11BA138 - ROAD BEAMS (547927).............................................................162
11BA140 - FRONT WORKING HEADLIGHT (547927)................................................164
11BA141 - REAR WORKING HEADLIGHT (R.H. AND L.H.) (547927).................................166
11BA142 - REAR WORKING HEADLIGHT (L.H.) (547927)..........................................168
11CB1344 - ELECTRICITY (BACKING LIGHTS) (547927)..........................................177
11CB1346 - ELECTRICITY (REVERSING LIGHT + RUNNING BACKWARD HORN) (547927).................179
11CB652 - (547927)........................................................................181
11CB965 - REVOLVING LIGHT KIT (547927)....................................................172
_SWITCH.......................................................................................182
11AA1163 - ELECTRIC CIRCUIT (547886)......................................................127
11AA1164 - ELECTRIC CIRCUIT (547886)......................................................130
11CC134 - ELECTRICITY (CAB STRUCTURE) (547886)............................................143
11BA140 - FRONT WORKING HEADLIGHT (547927)................................................164
11BA141 - REAR WORKING HEADLIGHT (R.H. AND L.H.) (547927).................................166
11BA142 - REAR WORKING HEADLIGHT (L.H.) (547927)..........................................168
11CB1349 - BREAKER CIRCUIT ADAPTATION (547927)............................................182
11CB654 - (547927)........................................................................184
11CB965 - REVOLVING LIGHT KIT (547927)....................................................172
_SAFETY SYSTEM................................................................................185
11AA800 - ELECTRIC CIRCUIT (547886).......................................................135
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
11AB15 - ELECTRICITY (ANTITHEFT : DIGICODE) (547927)......................................158
11AB33 - ELECTRICITY (ANTITHEFT : DIGICODE) (547927)......................................160
11CB1341 - ELECTRICITY (RUNNING BACKWARD HORN) (547927)...................................185
11CB652 - (547927)........................................................................181
11CB654 - (547927)........................................................................184
11CB965 - REVOLVING LIGHT KIT (547927)....................................................172
_SELECTOR - MANIPULATOR.......................................................................187
11AA1163 - ELECTRIC CIRCUIT (547886)......................................................127
11AA1164 - ELECTRIC CIRCUIT (547886)......................................................130
11CC134 - ELECTRICITY (CAB STRUCTURE) (547886)............................................143
10AA553 - (547927)........................................................................146
10EA207 - HYDRAULIC (DETAILS) (547927)....................................................187
11AA1667 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 3 ELEMENT) (547927).......................189
11AA1668 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 4 ELEMENT) (547927).......................190
11AA1669 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 5 ELEMENT) (547927).......................192
AXLE ASSEMBLY - AXLE..............................................................................194
7AA37 - REAR AXLE (547886)....................................................................194
_REAR.........................................................................................197
3AA190 - WHEELS (547886)..................................................................197
3AB78 - REAR WHEELS (547927)..............................................................199
_FRONT........................................................................................201
AX1652 - FRONT AXLE CASING (246417MOD)....................................................201
AX1653 - FRONT AXLE DIFFERENTIAL (246417MOD)..............................................203
AX1654 - FRONT AXLE REDUCTION GEAR (246417MOD)............................................207
AX1655 - OIL BATH DISC BRAKE - FRONT AXLE (246417MOD).....................................211
AX1656 - FRONT AXLE REDUCTION GEAR (246417MOD)............................................215
3AA190 - WHEELS (547886)..................................................................197
AX1652 - FRONT AXLE CASING (547886).......................................................218
AX1653 - FRONT AXLE DIFFERENTIAL (547886).................................................221
AX1654 - FRONT AXLE REDUCTION GEAR (547886)...............................................227
AX1655 - OIL BATH DISC BRAKE - FRONT AXLE (547886)........................................231
AX1656 - FRONT AXLE REDUCTION GEAR (547886)...............................................235
AX1665 - OIL BATH DISC BRAKE - REAR AXLE (547886).........................................238
AX2565 - FRONT AXLE (547886)..............................................................243
3AB73 - FRONT WHEELS (547927).............................................................245
3AB74 - FRONT WHEELS (547927).............................................................247
_WHEELS.......................................................................................249
3AA190 - WHEELS (547886)..................................................................197
3AB73 - FRONT WHEELS (547927).............................................................245
3AB74 - FRONT WHEELS (547927).............................................................247
3AB78 - REAR WHEELS (547927)..............................................................199
HYDRAULIC.........................................................................................249
_CIRCUIT......................................................................................249
10AF490 - HYDRAULIC (BALANCING VALVE) (547886)............................................249
10AF492 - HYDRAULIC (VALVE BANK) (547927).................................................251
10CD108 - HYDRAULIC (TILTING CYLINDER) (547927)...........................................253
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
__ATTACHMENT..............................................................................257
10AD154 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............257
10AD155 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............261
10AD156 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............266
10AD157 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............270
10AD158 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............274
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............280
10AD160 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............284
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............290
10AD220 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............294
10AD221 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...............300
10AF479 - (547886)....................................................................304
10EA13 - HYDRAULIC (DETAILS) (547886).................................................307
10AA553 - (547927)....................................................................146
10AB53 - HYDRAULIC (BALANCING VALVE) (547927).........................................310
10AB54 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547927)...............................312
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)....317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)....321
__ACUMULATOR..............................................................................325
10AB46 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547886)...............................325
10AA1051 - HYDRAULIC (``JSM`` VALVE BANK 3 ELEMENT) (547927)..........................329
10AA1052 - HYDRAULIC (``JSM`` VALVE BANK 4 ELEMENT) (547927)..........................333
10AA1053 - HYDRAULIC (``JSM`` VALVE BANK 5 ELEMENT) (547927)..........................337
10AA553 - (547927)....................................................................146
__AXLE LOCKING............................................................................341
10AM9 - HYDRAULIC (DIFFERENTIAL LOCKING CIRCUIT) (547886).............................341
__STEERING................................................................................343
10BA244 - HYDRAULIC (STEERING CIRCUIT) (547886).......................................343
__LIFTING.................................................................................346
10AB46 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547886)...............................325
10AC74 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)......................346
10AC75 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)......................348
10AC76 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)......................351
10AX74 - (547886).....................................................................355
__TILTING.................................................................................357
10AB46 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547886)...............................325
10AB53 - HYDRAULIC (BALANCING VALVE) (547927).........................................310
10AB54 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547927)...............................312
10AB93 - HYDRAULIC (TILTING CIRCUIT) OPTION (14°AV / 11°AR) (547927)..................357
__CAB LIFTING.............................................................................359
10AJ6 - HYDRAULIC (CAB LIFTING CIRCUIT) (547886)......................................359
__MAIN....................................................................................361
10AA493 - HYDRAULIC (PRINCIPAL CIRCUIT) (547886)......................................361
10AA553 - (547927)....................................................................146
_DETAIL.......................................................................................366
10AA493 - HYDRAULIC (PRINCIPAL CIRCUIT) (547886)..........................................361
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................280
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................290
10AF490 - HYDRAULIC (BALANCING VALVE) (547886)............................................249
10BA244 - HYDRAULIC (STEERING CIRCUIT) (547886)...........................................343
10DA271 - VALVE BANK (547886).............................................................366
10EA13 - HYDRAULIC (DETAILS) (547886).....................................................307
10EA14 - HYDRAULIC (DETAILS) (547886).....................................................368
10EA148 - HYDRAULIC (DETAILS) (547886)....................................................370
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
BC50 - PRESSURE REDUCING VALVE (547886)...................................................372
10AB53 - HYDRAULIC (BALANCING VALVE) (547927).............................................310
10DA287 - VALVE BANK (547927).............................................................374
10DA479 - VALVE BANK (547927).............................................................376
10DA480 - VALVE BANK (547927).............................................................379
10DA482 - VALVE BANK (547927).............................................................382
10DA483 - VALVE BANK (547927).............................................................384
10EA207 - HYDRAULIC (DETAILS) (547927)....................................................187
11AA1667 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 3 ELEMENT) (547927).......................189
11AA1668 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 4 ELEMENT) (547927).......................190
11AA1669 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 5 ELEMENT) (547927).......................192
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
_VALVE BANK...................................................................................387
10AA493 - HYDRAULIC (PRINCIPAL CIRCUIT) (547886)..........................................361
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................280
10DA271 - VALVE BANK (547886).............................................................366
10EA14 - HYDRAULIC (DETAILS) (547886).....................................................368
10AA1051 - HYDRAULIC (``JSM`` VALVE BANK 3 ELEMENT) (547927)..............................329
10AA1052 - HYDRAULIC (``JSM`` VALVE BANK 4 ELEMENT) (547927)..............................333
10AA1053 - HYDRAULIC (``JSM`` VALVE BANK 5 ELEMENT) (547927)..............................337
10AA553 - (547927)........................................................................146
10AF492 - HYDRAULIC (VALVE BANK) (547927).................................................251
10DA287 - VALVE BANK (547927).............................................................374
10DA479 - VALVE BANK (547927).............................................................376
10DA480 - VALVE BANK (547927).............................................................379
10DA482 - VALVE BANK (547927).............................................................382
10DA483 - VALVE BANK (547927).............................................................384
_JOYSTICK.....................................................................................387
10EA174 - HYDRAULIC (DETAILS) (547927)....................................................387
10AA1051 - HYDRAULIC (``JSM`` VALVE BANK 3 ELEMENT) (547927)..............................329
10AA1052 - HYDRAULIC (``JSM`` VALVE BANK 4 ELEMENT) (547927)..............................333
10AA1053 - HYDRAULIC (``JSM`` VALVE BANK 5 ELEMENT) (547927)..............................337
10AA553 - (547927)........................................................................146
10AF492 - HYDRAULIC (VALVE BANK) (547927).................................................251
10EA207 - HYDRAULIC (DETAILS) (547927)....................................................187
11AA1667 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 3 ELEMENT) (547927).......................189
11AA1668 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 4 ELEMENT) (547927).......................190
11AA1669 - ELECTRIC CIRCUIT (``JSM`` VALVE BANK 5 ELEMENT) (547927).......................192
_PUMP.........................................................................................389
10AA493 - HYDRAULIC (PRINCIPAL CIRCUIT) (547886)..........................................361
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
_RAM..........................................................................................389
10CZ94 - HYDRAULIC (ACCELERATOR CYLINDER) (547927)........................................389
__STEERING................................................................................391
10BA244 - HYDRAULIC (STEERING CIRCUIT) (547886).......................................343
10CE16 - HYDRAULIC (STEERING CYLINDER) (547886).......................................391
7AA37 - REAR AXLE (547886)............................................................194
__LIFTING.................................................................................393
10AB46 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547886)...............................325
10AC75 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)......................348
10AC76 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)......................351
10AX74 - (547886).....................................................................355
10CA135 - HYDRAULIC (FREE LIFT CYLINDER) (547886).....................................393
10CA166 - HYDRAULIC (LIFTING CYLINDER) (547886).......................................395
10CA71 - HYDRAULIC (LIFTING CYLINDER) (547886)........................................397
10CA74 - HYDRAULIC (FREE LIFT CYLINDER) (547886)......................................399
10CA75 - HYDRAULIC (LIFTING CYLINDER) (547886)........................................402
__TILTING.................................................................................405
10AB46 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547886)...............................325
10CD88 - HYDRAULIC (TILTING CYLINDER) (547886)........................................405
10AB93 - HYDRAULIC (TILTING CIRCUIT) OPTION (14°AV / 11°AR) (547927)..................357
10CD108 - HYDRAULIC (TILTING CYLINDER) (547927).......................................253
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)....................................255
__CAB LIFTING.............................................................................407
10AJ6 - HYDRAULIC (CAB LIFTING CIRCUIT) (547886)......................................359
MATS..............................................................................................407
_ATTACHMENT...................................................................................407
10AD154 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................257
10AD155 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................261
10AD156 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................266
10AD157 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................270
10AD158 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................274
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................280
10AD160 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................284
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................290
10AD220 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................294
10AD221 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................300
10AF479 - (547886)........................................................................304
10EA13 - HYDRAULIC (DETAILS) (547886).....................................................307
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
12AA338 - ADHESIVE (570402MOD)............................................................ 28
5AC59 - INCLINABLE CARRIER (570402MOD)....................................................407
_DETAIL.......................................................................................410
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................280
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................290
10AF490 - HYDRAULIC (BALANCING VALVE) (547886)............................................249
10EA13 - HYDRAULIC (DETAILS) (547886).....................................................307
10EA14 - HYDRAULIC (DETAILS) (547886).....................................................368
5AA76 - DOUBLE MAST (LIFT HEIGHT : 3M00 TO 5M00) (547886).................................410
5AA77 - DOUBLE MAST TOTAL FREE LIFT (3M00 TO 4M00) (547886)...............................416
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
12AA338 - ADHESIVE (570402MOD)............................................................ 28
5AC59 - INCLINABLE CARRIER (570402MOD)....................................................407
_FRONTAL......................................................................................421
10AC74 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)..........................346
10AC75 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)..........................348
10AC76 - HYDRAULIC (BRANCH CONNECTION LIFTING CYLINDER) (547886)..........................351
10AD154 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................257
10AD155 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................261
10AD156 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................266
10AD157 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................270
10AD158 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................274
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................280
10AD160 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................284
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................290
10AD220 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................294
10AD221 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886)...................300
10AF479 - (547886)........................................................................304
10AF490 - HYDRAULIC (BALANCING VALVE) (547886)............................................249
10AX74 - (547886).........................................................................355
10CA135 - HYDRAULIC (FREE LIFT CYLINDER) (547886).........................................393
10CA166 - HYDRAULIC (LIFTING CYLINDER) (547886)...........................................395
10CA71 - HYDRAULIC (LIFTING CYLINDER) (547886)............................................397
10CA74 - HYDRAULIC (FREE LIFT CYLINDER) (547886)..........................................399
10CA75 - HYDRAULIC (LIFTING CYLINDER) (547886)............................................402
10EA13 - HYDRAULIC (DETAILS) (547886).....................................................307
10EA14 - HYDRAULIC (DETAILS) (547886).....................................................368
12AA365 - LOAD CHART (DOUBLE MAST) (547886)............................................... 21
12AA366 - LOAD CHART (DOUBLE MAST TOTAL FREE LIFT) (547886)............................... 23
12AA367 - LOAD CHART (TRIPLE MAST FREE LIFT) (547886)..................................... 25
5AA76 - DOUBLE MAST (LIFT HEIGHT : 3M00 TO 5M00) (547886).................................410
5AA77 - DOUBLE MAST TOTAL FREE LIFT (3M00 TO 4M00) (547886)...............................416
5AA81 - DOUBLE MAST (LIFT HEIGHT : 3M00 TO 5M00) (547886).................................421
5AA82 - DOUBLE MAST TOTAL FREE LIFT (3M00 TO 4M00) (547886)...............................423
5AB74 - TRIPLE MAST TOTAL FREE LIFT (3M70 TO 6M00) (547886)...............................425
5AB75 - TRIPLE MAST TOTAL FREE LIFT (3M70 TO 6M00) (547886)...............................433
5AC12 - BACK LOAD REST (547886)...........................................................436
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
12AA338 - ADHESIVE (570402MOD)............................................................ 28
5AC59 - INCLINABLE CARRIER (570402MOD)....................................................407
_FORK CARRIAGE................................................................................438
5AA76 - DOUBLE MAST (LIFT HEIGHT : 3M00 TO 5M00) (547886).................................410
5AA77 - DOUBLE MAST TOTAL FREE LIFT (3M00 TO 4M00) (547886)...............................416
5AB74 - TRIPLE MAST TOTAL FREE LIFT (3M70 TO 6M00) (547886)...............................425
5AC12 - BACK LOAD REST (547886)...........................................................436
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
12AA338 - ADHESIVE (570402MOD)............................................................ 28
5AC59 - INCLINABLE CARRIER (570402MOD)....................................................407
ENGINE............................................................................................438
_ENGINE UNIT..................................................................................438
AP1639 - CYLINDER BLOCK (246413MOD).......................................................438
AP1640 - PISTONS, CONNECTING RODS AND CRANKSHAFT (246413MOD)..............................441
AP1641 - CYLINDER HEAD (246413MOD)........................................................444
AP1642 - ROCKER LEVER SHAFT (246413MOD)...................................................447
AP1643 - TIMING GEAR AND CAMSHAFT (246413MOD).............................................449
AP1644 - OIL SUMP - LUBRICATING OIL PUMP (246413MOD)......................................452
AP1645 - ROCKER LEVER COVER AND BREATHER (246413MOD)......................................454
AP1647 - CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (246413MOD).....................456
AP1651 - FLYWHEEL HOUSING (246413MOD).....................................................458
AP1653 - SEAL KIT (WITHOUT ASBESTOS) (246413MOD)..........................................460
AP3101 - TIMING GEAR AND CAMSHAFT (246413MOD).............................................462
BC162 - VARIABLE MOTOR (254756MOD)........................................................464
11CB590 - ELECTRICITY (DETAILS) (547886).................................................. 36
4AA420 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................466
4AA682 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................468
4AA683 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 90
4AA706 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................472
AP1604 - SEAL KIT (WITHOUT ASBESTOS) (547886).............................................474
BC108 - VARIABLE MOTOR (547886)...........................................................478
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
11CB654 - (547927)........................................................................184
_COMPLETE.....................................................................................480
AP2087 - ENGINE ADAPTATION (547886)....................................................... 53
_TIMING GEAR - LUBRICATION....................................................................480
AP1643 - TIMING GEAR AND CAMSHAFT (246413MOD).............................................449
AP1644 - OIL SUMP - LUBRICATING OIL PUMP (246413MOD)......................................452
AP3101 - TIMING GEAR AND CAMSHAFT (246413MOD).............................................462
_ELECTRICITY..................................................................................480
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1165 - ELECTRIC CIRCUIT (547886)...................................................... 32
11AA1166 - ELECTRIC CIRCUIT (547886)...................................................... 34
11CB590 - ELECTRICITY (DETAILS) (547886).................................................. 36
11CB1347 - HEATER FUEL ADAPTATION (547927)................................................170
11CB1349 - BREAKER CIRCUIT ADAPTATION (547927)............................................182
11CB1350 - BREAKER CIRCUIT ADAPTATION (547927)............................................480
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
11CB654 - (547927)........................................................................184
_INTAKE SYSTEM - EXHAUST......................................................................482
AP1649 - EXHAUST MANIFOLD (246413MOD).....................................................482
4AA418 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 43
4AA419 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................484
AP1647 - CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (547886)........................486
2AA281 - CYCLONIC PRE-FILTER (547927)..................................................... 58
4AA1243 - MUFFLER (CATALYTIC) (547927)....................................................489
_FUEL SUPPLY SYSTEM...........................................................................491
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1165 - ELECTRIC CIRCUIT (547886)...................................................... 32
11AA1166 - ELECTRIC CIRCUIT (547886)...................................................... 34
4AB106 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................491
4AB168 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................495
4AC162 - FUEL CIRCUIT (547886)............................................................ 45
4AC244 - FUEL CIRCUIT (547886)............................................................ 49
11CB1347 - HEATER FUEL ADAPTATION (547927)................................................170
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
_ELECTRICAL SYSTEM............................................................................499
AP1650 - ALTERNATOR (246413MOD)...........................................................499
AP1652 - STATER MOTOR (246413MOD).........................................................501
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1165 - ELECTRIC CIRCUIT (547886)...................................................... 32
11AA1166 - ELECTRIC CIRCUIT (547886)...................................................... 34
11CB590 - ELECTRICITY (DETAILS) (547886).................................................. 36
11CB1347 - HEATER FUEL ADAPTATION (547927)................................................170
11CB1349 - BREAKER CIRCUIT ADAPTATION (547927)............................................182
11CB1350 - BREAKER CIRCUIT ADAPTATION (547927)............................................480
11CB653 - HEATER FUEL ADAPTATION (547927).................................................119
11CB654 - (547927)........................................................................184
_COOLING SYSTEM...............................................................................503
AP1646 - LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (246413MOD)....................... 30
AP1647 - CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (246413MOD).....................456
AP1648 - WATER PUMP (246413MOD)...........................................................503
11AA1162 - ELECTRIC CIRCUIT (547886)......................................................125
11AA1165 - ELECTRIC CIRCUIT (547886)...................................................... 32
4AA426 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 84
4AA682 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................468
4AA706 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................472
AP2087 - ENGINE ADAPTATION (547886)....................................................... 53
PEDALS............................................................................................505
_BRAKING CIRCUIT..............................................................................505
6BA172 - BRAKE CIRCUIT (547886)...........................................................505
6BA237 - BRAKE CIRCUIT (547886)...........................................................509
6BA292 - BRAKE CIRCUIT (547886)...........................................................513
6BB117 - PEDALS - LINKAGE (547886)........................................................517
_HAND BRAKE...................................................................................521
11CB590 - ELECTRICITY (DETAILS) (547886).................................................. 36
11CB820 - ELECTRICITY (DETAILS) (547886)..................................................138
6BA122 - HANDBRAKE (547886)...............................................................521
6BB117 - PEDALS - LINKAGE (547886)........................................................517
_ACCELEARATOR PEDAL...........................................................................523
10CZ94 - HYDRAULIC (ACCELERATOR CYLINDER) (547927)........................................389
_LINKAGE......................................................................................523
6BA172 - BRAKE CIRCUIT (547886)...........................................................505
6BA237 - BRAKE CIRCUIT (547886)...........................................................509
6BA292 - BRAKE CIRCUIT (547886)...........................................................513
6BB117 - PEDALS - LINKAGE (547886)........................................................517
DRIVER CAB........................................................................................523
_CAB..........................................................................................523
8AB573 - CAB (DETAILS) (547886)...........................................................523
8AB572 - CAB (DETAILS) (547886)...........................................................525
8AB571 - CAB (DETAILS) (547886)...........................................................529
8AA732 - CAB ADAPTATION (547886)..........................................................533
8AA731 - CAB ADAPTATION (547886)..........................................................535
8AA383 - CAB ADAPTATION (547886)..........................................................537
8AA338 - CAB ADAPTATION (547886)..........................................................540
8AB740 - CAB (DETAILS) (254225MOD)........................................................541
8AA677 - (547927).........................................................................176
8AA400 - SEAT ADAPTATION (OPTION : JSM) (547927)..........................................543
8AA386 - SEAT (547927)....................................................................546
8AA360 - SEAT (547927)....................................................................549
8AA1111 - PNEUMATIC SEAT (OPTION) (547927)................................................174
8AA1031 - PNEUMATIC SEAT (547927).........................................................551
8AA1010 - PNEUMATIC SEAT (547927).........................................................553
8AA387 - SEAT (547886)....................................................................556
8AA314 - SEAT ADAPTATION (547886).........................................................558
8AA203 - SEAT (CAB) (547886)..............................................................560
8AB1041 - CAB (DETAILS) (260449MOD).......................................................101
8AA1107 - SUN SHADE (547927)..............................................................561
8AA1113 - CAB ADAPTATION (CAR RADIO) (547927).............................................563
8AA1114 - CAB ADAPTATION (BOX) (547927)...................................................565
8AB728 - CAB (DETAILS) (254225MOD)........................................................567
8AB736 - CAB (DETAILS) (254225MOD)........................................................570
8AB742 - CAB (DETAILS) (254225MOD)........................................................573
8AB1037 - CAB (DETAILS) (260449MOD).......................................................575
8AB1038 - CAB (DETAILS) (260449MOD).......................................................578
8AB1044 - CAB (DETAILS) (260449MOD).......................................................581
8AB567 - CAB (DETAILS) (547886)...........................................................583
8AB568 - CAB (DETAILS) (547886)...........................................................587
8AB574 - CAB (DETAILS) (547886)...........................................................593
8AB728 - CAB (DETAILS) (547886)...........................................................597
8AB736 - CAB (DETAILS) (547886)...........................................................602
8AB742 - CAB (DETAILS) (547886)...........................................................607
_HEATER - AIR CONDITIONING....................................................................610
8AB741 - CAB (DETAILS) (254225MOD)........................................................123
8AB1039 - CAB (DETAILS) (260449MOD)....................................................... 79
8AB1043 - CAB (DETAILS) (260449MOD).......................................................610
11AA1163 - ELECTRIC CIRCUIT (547886)......................................................127
11AA1164 - ELECTRIC CIRCUIT (547886)......................................................130
11CC134 - ELECTRICITY (CAB STRUCTURE) (547886)............................................143
8AB736 - CAB (DETAILS) (547886)...........................................................602
8AB737 - CAB (DETAILS) (547886)........................................................... 92
8AB741 - CAB (DETAILS) (547886)...........................................................612
11AA863 - (547927)........................................................................157
8AA1111 - PNEUMATIC SEAT (OPTION) (547927)................................................174
8AD107 - HEATING CIRCUIT (547886).........................................................614
8AD394 - CIRCUIT AIR-CONDITIONING (547927)................................................ 60
8AD397 - CIRCUIT AIR-CONDITIONING (547927)................................................618
8AD398 - CIRCUIT AIR-CONDITIONING (547927)................................................621
8AA677 - (547927).........................................................................176
_ELECTRICITY..................................................................................625
8AB737 - CAB (DETAILS) (254225MOD)........................................................ 77
8AB738 - CAB (DETAILS) (254225MOD)........................................................625
8AB739 - CAB (DETAILS) (254225MOD)........................................................627
8AB1038 - CAB (DETAILS) (260449MOD).......................................................578
8AB1039 - CAB (DETAILS) (260449MOD)....................................................... 79
8AB1040 - CAB (DETAILS) (260449MOD)....................................................... 82
8AB1041 - CAB (DETAILS) (260449MOD).......................................................101
8AB1042 - CAB (DETAILS) (260449MOD).......................................................629
8AB1044 - CAB (DETAILS) (260449MOD).......................................................581
4AA682 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................468
4AA683 - ENGINE - TRANSMISSION ADAPTATION (547886)........................................ 90
8AA337 - CAB ADAPTATION (CAB STRUCTURE) (547886)..........................................631
8AB568 - CAB (DETAILS) (547886)...........................................................587
8AB569 - CAB (DETAILS) (547886)...........................................................635
8AB570 - SOUND PROOFING FOAM (547886).....................................................639
8AB574 - CAB (DETAILS) (547886)...........................................................593
8AB736 - CAB (DETAILS) (547886)...........................................................602
8AB737 - CAB (DETAILS) (547886)........................................................... 92
8AB738 - CAB (DETAILS) (547886)........................................................... 95
8AB739 - CAB (DETAILS) (547886)...........................................................103
8AB740 - CAB (DETAILS) (547886)...........................................................106
8AB742 - CAB (DETAILS) (547886)...........................................................607
8AA1106 - INNER REARVIEW MIRROR (547927)..................................................110
8AA1107 - SUN SHADE (547927)..............................................................561
8AA1113 - CAB ADAPTATION (CAR RADIO) (547927).............................................563
8AA1114 - CAB ADAPTATION (BOX) (547927)...................................................565
TRANSMISSION......................................................................................643
_HYDROSTATIC CIRCUIT..........................................................................643
10AM9 - HYDRAULIC (DIFFERENTIAL LOCKING CIRCUIT) (547886).................................341
4AB106 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................491
4AB168 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................495
_HYDROSTATIC MOTOR............................................................................643
BC108 - VARIABLE MOTOR (208701MOD)........................................................643
BC162 - VARIABLE MOTOR (254756MOD)........................................................464
4AB106 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................491
4AB168 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................495
BC108 - VARIABLE MOTOR (547886)...........................................................478
_HYDROSTYATIC PUMP............................................................................645
BC149 - VARIABLE DISPLACEMENT PUMP (249784MOD)............................................645
4AB106 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................491
4AB168 - HYDROSTATIC TRANSMISSION CIRCUIT (547886)........................................495
BC149 - VARIABLE DISPLACEMENT PUMP (547886)...............................................649
OPTIONS - ACCESSORIES............................................................................. 1
8AB1041 - CAB (DETAILS) (260449MOD)...........................................................101
10AD154 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................257
10AD155 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................261
10AD156 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................266
10AD157 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................270
10AD158 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................274
10AD159 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................280
10AD160 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................284
10AD161 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................290
10AD220 - 3RD ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................294
10AD221 - 4TH ELEMENT ATTACHMENT HYDRAULIC KIT (DOUBLE-ACTING) (547886).......................300
10AF479 - (547886)............................................................................304
10EA13 - HYDRAULIC (DETAILS) (547886).........................................................307
10AA553 - (547927)............................................................................146
10AB53 - HYDRAULIC (BALANCING VALVE) (547927).................................................310
10AB54 - HYDRAULIC (TILTING - LIFTING CIRCUIT) (547927).......................................312
10AF492 - HYDRAULIC (VALVE BANK) (547927).....................................................251
10CD108 - HYDRAULIC (TILTING CYLINDER) (547927)...............................................253
11CB652 - (547927)............................................................................181
11CB654 - (547927)............................................................................184
6AA333 - (547927)............................................................................. 27
8AA1107 - SUN SHADE (547927)..................................................................561
8AA1113 - CAB ADAPTATION (CAR RADIO) (547927).................................................563
8AA1114 - CAB ADAPTATION (BOX) (547927).......................................................565
8AA448 - (547927)............................................................................. 66
8AA449 - (547927)............................................................................. 68
_FORK CARRIAGE................................................................................ 1
10AD171 - 3RD ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........317
10AD172 - 4TH ELEMENT INCLINABLE CARRIER HYDRAULIC KIT (DOUBLE-ACTING) (570402MOD)........321
10CZ111 - HYDRAULIC (TILTING CYLINDER) (570402MOD)........................................255
12AA338 - ADHESIVE (570402MOD)............................................................ 28
5AC59 - INCLINABLE CARRIER (570402MOD)....................................................407
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
S.V
