Manitou MT 1030 S S.3 MT 1030 S Turbo S.3 Parts Catalogue Manual – PDF DOWNLOAD

Description

Manitou MT 1030 S S.3 MT 1030 S Turbo S.3 Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Manitou MT 1030 S S.3 MT 1030 S Turbo S.3 Parts Catalogue Manual – PDF DOWNLOAD

Language : English
Pages : 576
Downloadable : Yes
File Type : PDF
Size: 38.5 MB

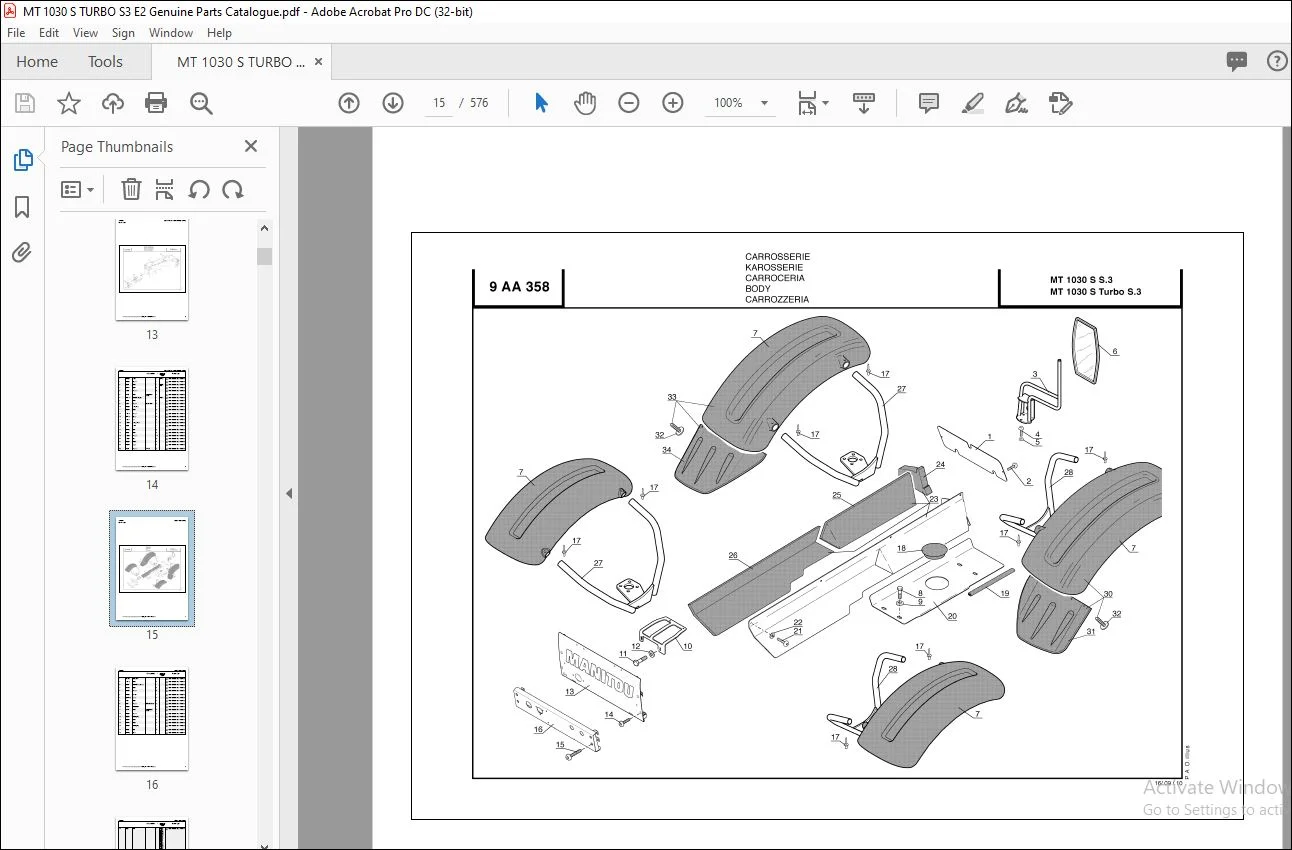

IMAGES PREVIEW OF THE MANUAL:

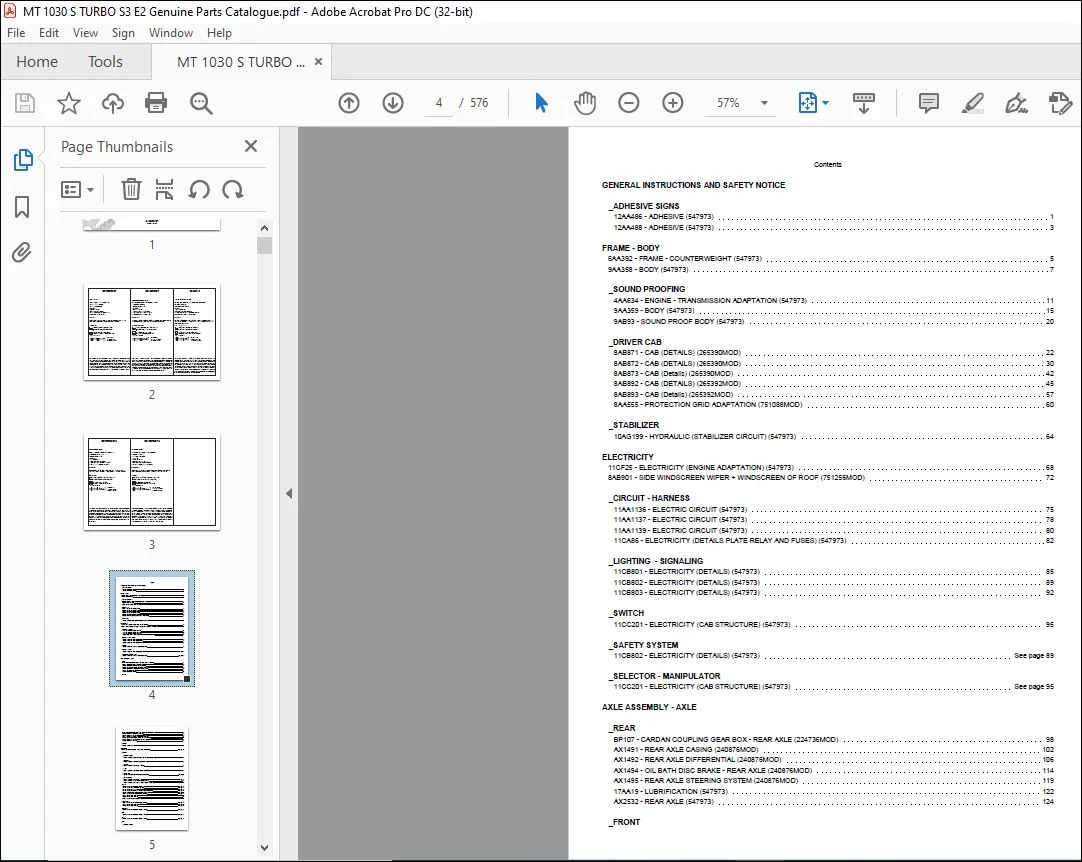

TABLE OF CONTENTS:

Manitou MT 1030 S S.3 MT 1030 S Turbo S.3 Parts Catalogue Manual – PDF DOWNLOAD

GENERAL INSTRUCTIONS AND SAFETY NOTICE
_ADHESIVE SIGNS
12AA486 – ADHESIVE (547973) 1
12AA488 – ADHESIVE (547973) 3
FRAME – BODY
6AA392 – FRAME – COUNTERWEIGHT (547973) 5
9AA358 – BODY (547973) 7
_SOUND PROOFING
4AA634 – ENGINE – TRANSMISSION ADAPTATION (547973) 11
9AA359 – BODY (547973) 15
9AB93 – SOUND PROOF BODY (547973) 20
_DRIVER CAB
8AB871 – CAB (DETAILS) (265390MOD) 22
8AB872 – CAB (DETAILS) (265390MOD) 30
8AB873 – CAB (Details) (265390MOD) 42
8AB892 – CAB (DETAILS) (265392MOD) 45
8AB893 – CAB (Details) (265392MOD) 57
8AA555 – PROTECTION GRID ADAPTATION (751088MOD) 60
_STABILIZER
10AG199 – HYDRAULIC (STABILIZER CIRCUIT) (547973) 64
ELECTRICITY
11CF25 – ELECTRICITY (ENGINE ADAPTATION) (547973) 68
8AB901 – SIDE WINDSCREEN WIPER + WINDSCREEN OF ROOF (751256MOD) 72
_CIRCUIT – HARNESS
11AA1136 – ELECTRIC CIRCUIT (547973) 75
11AA1137 – ELECTRIC CIRCUIT (547973) 78
11AA1139 – ELECTRIC CIRCUIT (547973) 80
11CA86 – ELECTRICITY (DETAILS PLATE RELAY AND FUSES) (547973) 82
_LIGHTING – SIGNALING
11CB801 – ELECTRICITY (DETAILS) (547973) 85
11CB802 – ELECTRICITY (DETAILS) (547973) 89
11CB803 – ELECTRICITY (DETAILS) (547973) 92
_SWITCH
11CC201 – ELECTRICITY (CAB STRUCTURE) (547973) 95
_SAFETY SYSTEM
11CB802 – ELECTRICITY (DETAILS) (547973) See page 89
_SELECTOR – MANIPULATOR
11CC201 – ELECTRICITY (CAB STRUCTURE) (547973) See page 95
AXLE ASSEMBLY – AXLE
_REAR
BP107 – CARDAN COUPLING GEAR BOX – REAR AXLE (224736MOD) 98
AX1491 – REAR AXLE CASING (240876MOD) 102
AX1492 – REAR AXLE DIFFERENTIAL (240876MOD) 106
AX1494 – OIL BATH DISC BRAKE – REAR AXLE (240876MOD) 114
AX1495 – REAR AXLE STEERING SYSTEM (240876MOD) 119
17AA19 – LUBRIFICATION (547973) 122
AX2532 – REAR AXLE (547973) 124
_FRONT
BP106 – CARDAN COUPLING GEAR BOX – FRONT AXLE (224735MOD) 126
AX1469 – FRONT AXLE CASING (240875MOD) 130
AX1470 – FRONT AXLE DIFFERENTIAL (240875MOD) 133
AX1471 – FRONT AXLE REDUCTION GEAR (240875MOD) 141
AX1472 – OIL BATH DISC BRAKE – FRONT AXLE (240875MOD) 144
AX1473 – FRONT AXLE STEERING SYSTEM (240875MOD) 149
AX2528 – FRONT AXLE (547973) 152
_WHEELS
3AA259 – WHEELS (547973) 154
HYDRAULIC
AX1472 – OIL BATH DISC BRAKE – FRONT AXLE (240875MOD) See page 144
_CIRCUIT
__COMPENSATION
10AE824 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (547973) 156
__STEERING
10BA315 – HYDRAULIC (STEERING CIRCUIT) (547973) 158
__TILTING
10AE829 – HYDRAULIC (JIB CIRCUIT) (547973) 162
__MAIN
10AA674 – HYDRAULIC (PRINCIPAL CIRCUIT) (547973) 165
__STABILIZER
10AG199 – HYDRAULIC (STABILIZER CIRCUIT) (547973) See page 64
__TELESCOPING
10AE829 – HYDRAULIC (JIB CIRCUIT) (547973) See page 162
10AE833 – HYDRAULIC (TELESCOPE CIRCUIT) (547973) 169
10AE836 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (547973) 172
_DETAIL
10AA674 – HYDRAULIC (PRINCIPAL CIRCUIT) (547973) See page 165
10AE829 – HYDRAULIC (JIB CIRCUIT) (547973) See page 162
10AE833 – HYDRAULIC (TELESCOPE CIRCUIT) (547973) See page 169
10AE836 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (547973) See page 172
10AG199 – HYDRAULIC (STABILIZER CIRCUIT) (547973) See page 64
10BA315 – HYDRAULIC (STEERING CIRCUIT) (547973) See page 158
10DA118 – VALVE BANK (547973) 175
10DA330 – VALVE BANK (547973) 178
10EA213 – HYDRAULIC (DETAILS) (547973) 181
_VALVE BANK
10BA315 – HYDRAULIC (STEERING CIRCUIT) (547973) See page 158
10DA118 – VALVE BANK (547973) See page 175
10DA330 – VALVE BANK (547973) See page 178
_JOYSTICK
10AA674 – HYDRAULIC (PRINCIPAL CIRCUIT) (547973) See page 165
_PUMP
10AA674 – HYDRAULIC (PRINCIPAL CIRCUIT) (547973) See page 165
_TANK
10AA674 – HYDRAULIC (PRINCIPAL CIRCUIT) (547973) See page 165
_RAM
__COMPENSATION
10AE824 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (547973) See page 156
10CB51 – HYDRAULIC (COMPENSATION CYLINDER) (547973) 183
__STEERING
AX1473 – FRONT AXLE STEERING SYSTEM (240875MOD) See page 149
AX1495 – REAR AXLE STEERING SYSTEM (240876MOD) See page 119
__LIFTING
10CA279 – HYDRAULIC (LIFTING CYLINDER) (547973) 185
__TILTING
10AE829 – HYDRAULIC (JIB CIRCUIT) (547973) See page 162
10CD127 – HYDRAULIC (TILTING CYLINDER) (547973) 188
__STABILIZER
10AG199 – HYDRAULIC (STABILIZER CIRCUIT) (547973) See page 64
10CF40 – HYDRAULIC (STABILIZER CYLINDER) (547973) 191
__TELESCOPING
10AE833 – HYDRAULIC (TELESCOPE CIRCUIT) (547973) See page 169
10AE836 – HYDRAULIC (LIFTING – TELESCOPE CIRCUIT) (547973) See page 172
10CC104 – HYDRAULIC (OUTER TELESCOPE CYLINDER) (547973) 193
10CC105 – HYDRAULIC (INNER TELESCOPE CYLINDER) (547973) 195
TELESCOPIC BOOM
_DETAIL
5BA452 – JIB (SIMULTANEOUS TELESCOPING) (547973) 197
ENGINE
_ENGINE UNIT
AP1490 – CYLINDER BLOCK (242481MOD) 202
AP1491 – PISTONS, CONNECTING RODS AND CRANKSHAFT (242481MOD) 215
AP1492 – CYLINDER HEAD (242481MOD) 233
AP1493 – ROCKER LEVER SHAFT (242481MOD) 252
AP1494 – TIMING GEAR AND CAMSHAFT (242481MOD) 262
AP1495 – OIL SUMP – LUBRICATING OIL PUMP (242481MOD) 282
AP1496 – ROCKER LEVER COVER AND BREATHER (242481MOD) 292
AP1498 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (242481MOD) 307
AP1499 – WATER PUMP (242481MOD) 316
AP1502 – FLY WHEEL (242481MOD) 321
AP1504 – TURBOCHARGER (DETAILS) (242481MOD) 329
AP1505 – SEAL KIT (WITHOUT ASBESTOS) (242481MOD) 340
AP3083 – TIMING GEAR AND CAMSHAFT (242481MOD) 343
BP234 – GEAR BOX (DETAILS) (258799MOD) 359
11CB801 – ELECTRICITY (DETAILS) (547973) See page 85
4AA632 – ENGINE – TRANSMISSION ADAPTATION (547973) 397
AP2131 – ENGINE ADAPTATION (547973) 401
_COMPLETE
AP2131 – ENGINE ADAPTATION (547973) See page 401
_TIMING GEAR – LUBRICATION
AP1494 – TIMING GEAR AND CAMSHAFT (242481MOD) See page 262
AP1495 – OIL SUMP – LUBRICATING OIL PUMP (242481MOD) See page 282
AP3083 – TIMING GEAR AND CAMSHAFT (242481MOD) See page 343
_ELECTRICITY
11CB801 – ELECTRICITY (DETAILS) (547973) See page 85
11CF25 – ELECTRICITY (ENGINE ADAPTATION) (547973) See page 68
_FILTERS-BELT
AP1497 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (242481MOD) 405
BP234 – GEAR BOX (DETAILS) (258799MOD) See page 359
11CB801 – ELECTRICITY (DETAILS) (547973) See page 85
2AA177 – FILTERS AND BELTS (547973) 417
4AA630 – ENGINE – TRANSMISSION ADAPTATION (547973) 419
4AA631 – ENGINE – TRANSMISSION ADAPTATION (547973) 422
4AC230 – FUEL CIRCUIT (547973) 426
AP2131 – ENGINE ADAPTATION (547973) See page 401
_INTAKE SYSTEM – EXHAUST
AP1500 – EXHAUST MANIFOLD (242481MOD) 431
4AA630 – ENGINE – TRANSMISSION ADAPTATION (547973) See page 419
_FUEL SUPPLY SYSTEM
4AC230 – FUEL CIRCUIT (547973) See page 426
_ELECTRICAL SYSTEM
AP1501 – ALTERNATOR (242481MOD) 434
AP1503 – STATER MOTOR (242481MOD) 442
11CB801 – ELECTRICITY (DETAILS) (547973) See page 85
11CF25 – ELECTRICITY (ENGINE ADAPTATION) (547973) See page 68
_COOLING SYSTEM
AP1497 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (242481MOD) See page 405
AP1498 – CYLINDER HEAD COVER AND WATER OUTLET CONNECTIONS (242481MOD) See page 307
AP1499 – WATER PUMP (242481MOD) See page 316
4AA631 – ENGINE – TRANSMISSION ADAPTATION (547973) See page 422
4AA633 – ENGINE – TRANSMISSION ADAPTATION (547973) 446
PEDALS
_BRAKING CIRCUIT
6BA225 – BRAKE CIRCUIT (547973) 451
_HAND BRAKE
6BA122 – HANDBRAKE (547973) 456
6BB166 – PEDALS – LINKAGE (547973) 458
_LINKAGE
6BB166 – PEDALS – LINKAGE (547973) See page 458
DRIVER CAB
8AB874 – CAB (DETAILS) (265390MOD) 463
8AB875 – CAB (DETAILS) (265390MOD) 469
8AA555 – PROTECTION GRID ADAPTATION (751088MOD) See page 60
_CAB
8AB891 – CAB (DETAILS) (265392MOD) 473
8AB892 – CAB (DETAILS) (265392MOD) See page 45
8AB893 – CAB (Details) (265392MOD) See page 57
8AB894 – CAB (DETAILS) (265392MOD) 481
8AB895 – CAB (DETAILS) (265392MOD) 487
8AD195 – HEATING CIRCUIT (547973) 491
8AD208 – HEATING CIRCUIT (547973) 495
8AD221 – CIRCUIT AIR-CONDITIONING (547973) 498
_HEATER – AIR CONDITIONING
11CC201 – ELECTRICITY (CAB STRUCTURE) (547973) See page 95
8AB901 – SIDE WINDSCREEN WIPER + WINDSCREEN OF ROOF (751256MOD) See page 72
_ELECTRICITY
8AB871 – CAB (DETAILS) (265390MOD) See page 22
8AB872 – CAB (DETAILS) (265390MOD) See page 30
8AB873 – CAB (Details) (265390MOD) See page 42
8AB891 – CAB (DETAILS) (265392MOD) See page 473
8AB892 – CAB (DETAILS) (265392MOD) See page 45
8AB893 – CAB (Details) (265392MOD) See page 57
8AB895 – CAB (DETAILS) (265392MOD) See page 487
8AA529 – CAB ADAPTATION (547973) 503
8AA532 – CAB ADAPTATION (547973) 505
_FITTINGS – SOUND PROOFING
8AB871 – CAB (DETAILS) (265390MOD) See page 22
8AB872 – CAB (DETAILS) (265390MOD) See page 30
8AB873 – CAB (Details) (265390MOD) See page 42
8AB891 – CAB (DETAILS) (265392MOD) See page 473
8AB892 – CAB (DETAILS) (265392MOD) See page 45
8AB893 – CAB (Details) (265392MOD) See page 57
_DOOR – GLASS
8AA378 – SEAT (SYNTHETICS WOVEN) (547973) 509
8AA529 – CAB ADAPTATION (547973) See page 503
TRANSMISSION
AX1469 – FRONT AXLE CASING (240875MOD) See page 130
AX1470 – FRONT AXLE DIFFERENTIAL (240875MOD) See page 133
AX1472 – OIL BATH DISC BRAKE – FRONT AXLE (240875MOD) See page 144
AX1473 – FRONT AXLE STEERING SYSTEM (240875MOD) See page 149
AX1491 – REAR AXLE CASING (240876MOD) See page 102
AX1492 – REAR AXLE DIFFERENTIAL (240876MOD) See page 106
AX1494 – OIL BATH DISC BRAKE – REAR AXLE (240876MOD) See page 114
AX1495 – REAR AXLE STEERING SYSTEM (240876MOD) See page 119
17AA19 – LUBRIFICATION (547973) See page 122
AX2528 – FRONT AXLE (547973) See page 152
AX2532 – REAR AXLE (547973) See page 124
_PROPSHAFT
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) 511
BP106 – CARDAN COUPLING GEAR BOX – FRONT AXLE (224735MOD) See page 126
BP107 – CARDAN COUPLING GEAR BOX – REAR AXLE (224736MOD) See page 98
AX1471 – FRONT AXLE REDUCTION GEAR (240875MOD) See page 141
BP190 – CARDAN COUPLING GEAR BOX – FRONT AXLE (241448MOD) 515
_GEAR BOX
BP106 – CARDAN COUPLING GEAR BOX – FRONT AXLE (224735MOD) See page 126
BP203 – ELECTRICAL CONTROL VALVE (258799MOD) 517
BP234 – GEAR BOX (DETAILS) (258799MOD) See page 359
BP235 – GEAR BOX (MECHANISM DETAILS – GEAR) (258799MOD) 523
BP237 – GEAR BOX AND CONVERTER (547973) 566
_ANGLE RETURN
BP165 – CARDAN COUPLING ENGINE – ANGLE RETURN (224734MOD) See page 511
