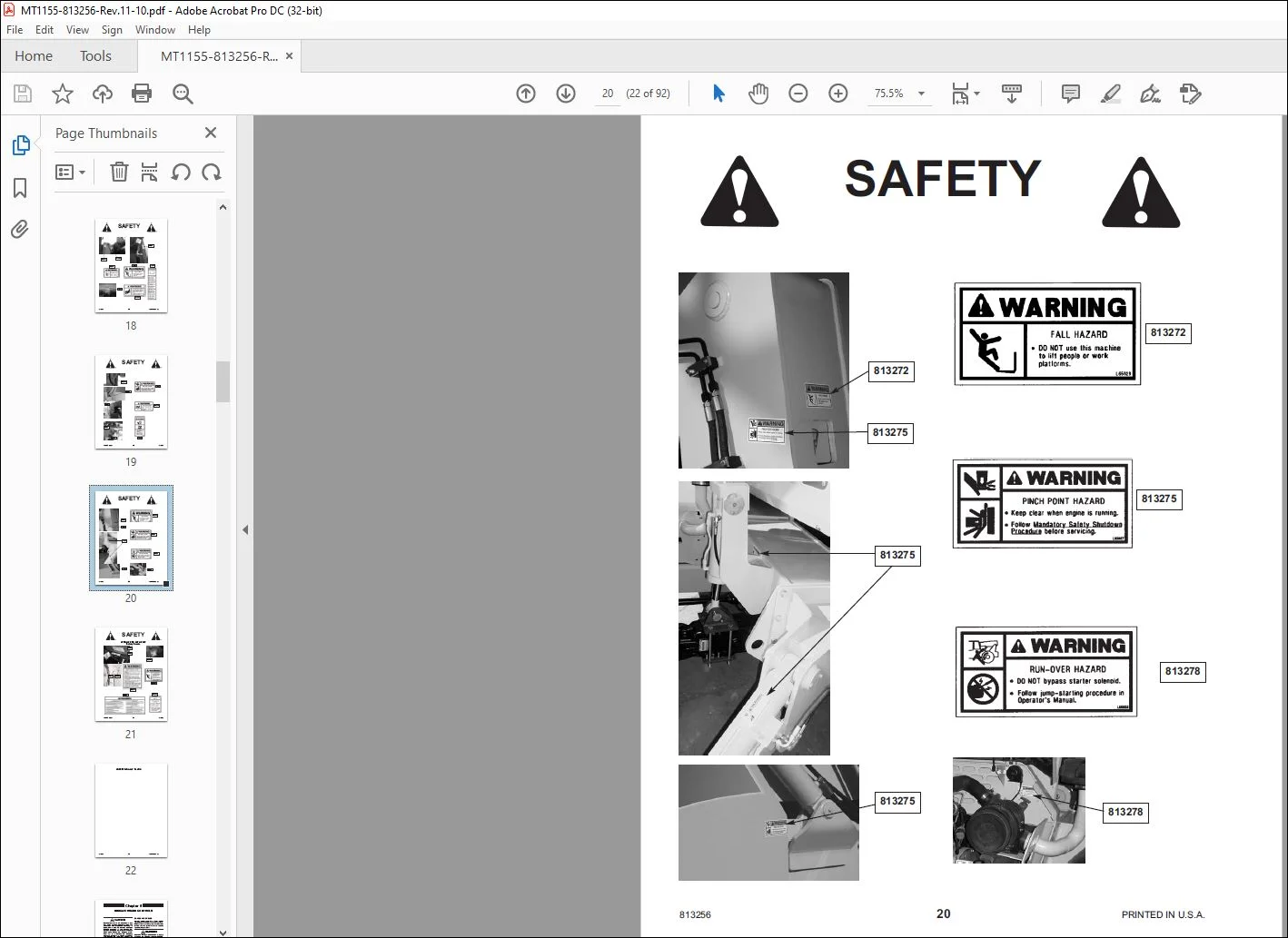

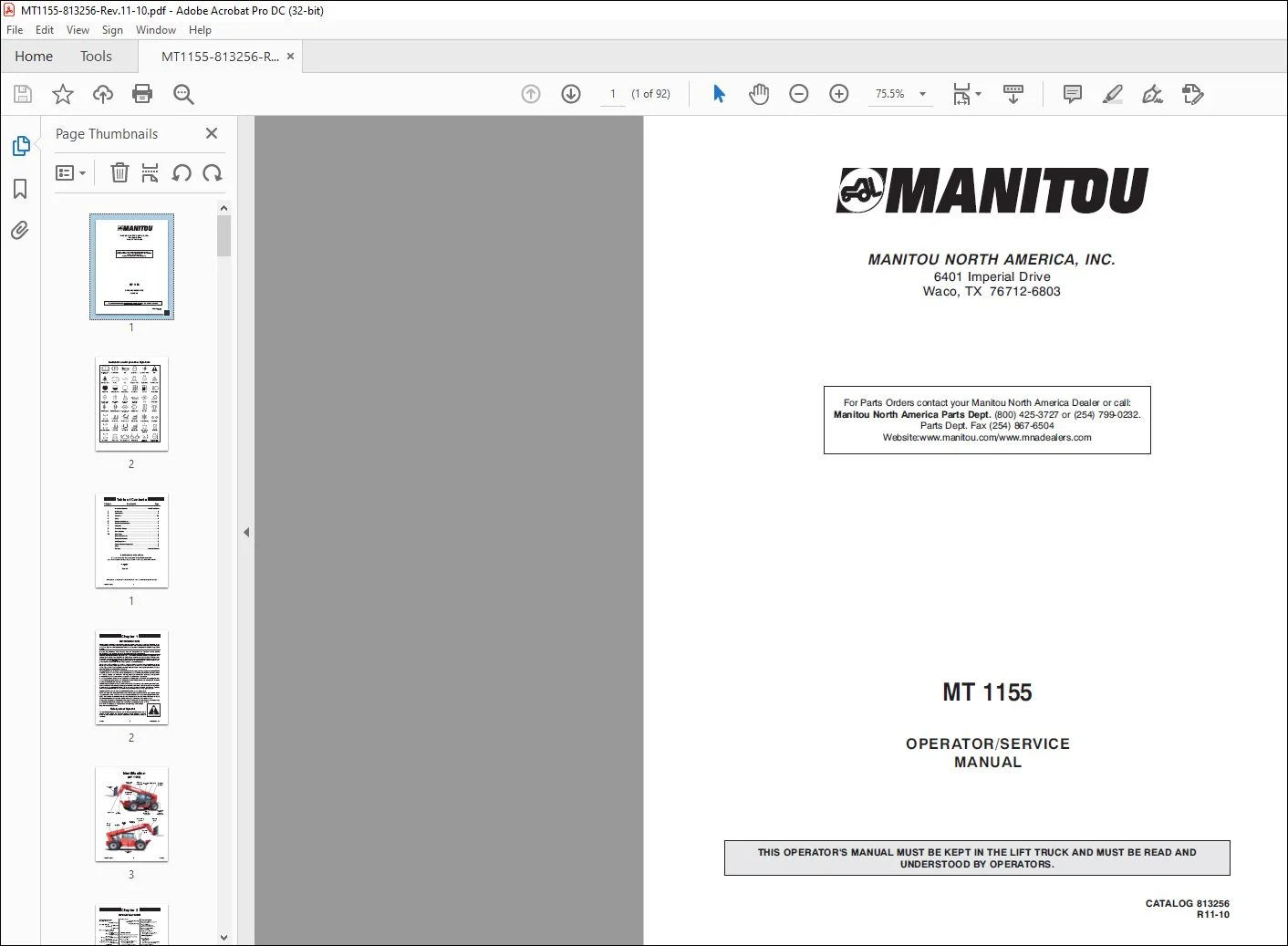

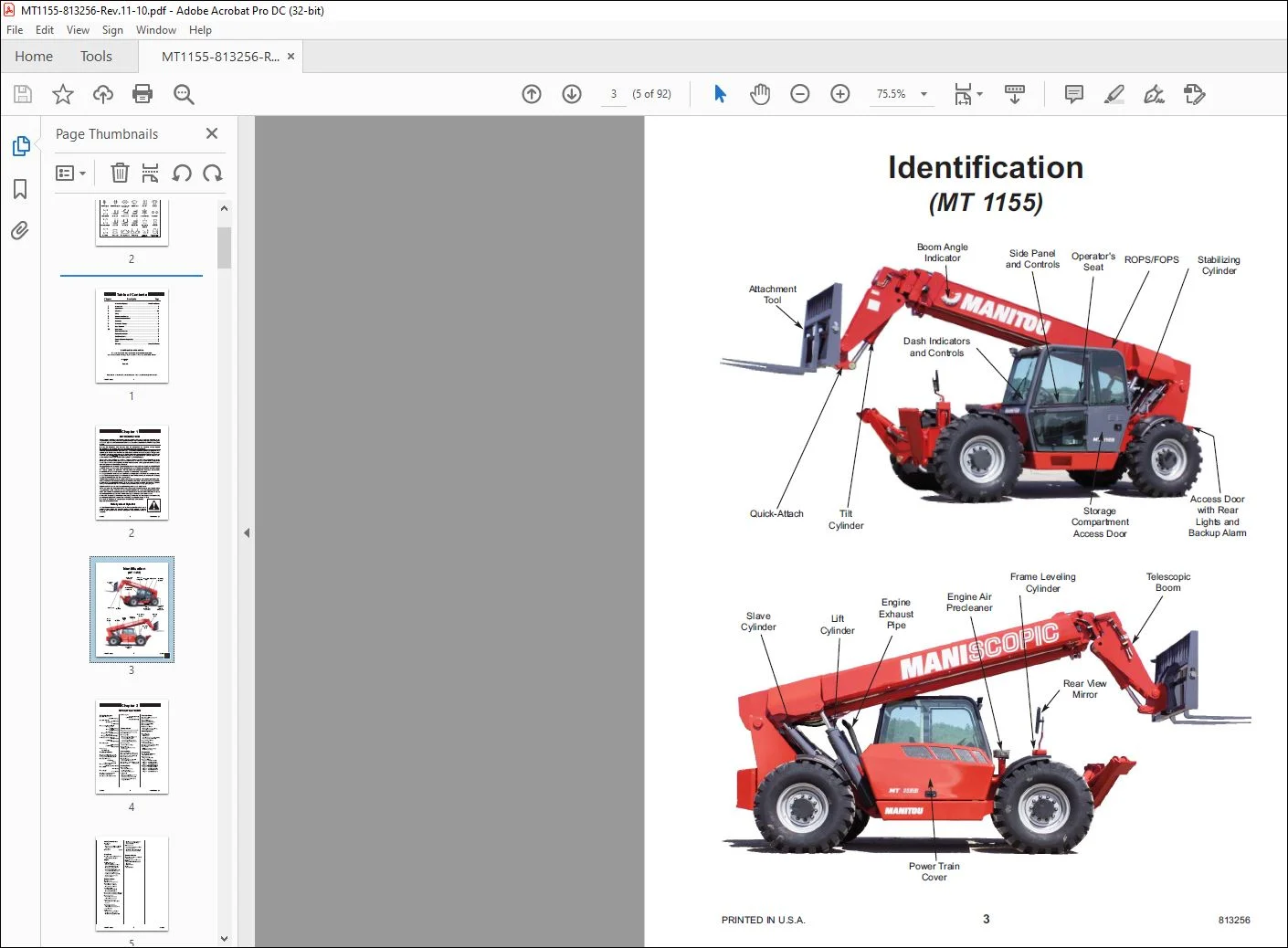

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MT 1155 Forklift Truck Operator Manual 813256 – PDF DOWNLOAD

INTRODUCTION:

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting,
  maintaining and servicing of the Telescopic Handler. More important, this manual provides an operating plan
  for safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this
  manual.
• This Telescopic Handler is primarily intended for use as a material handler. However, it may be equipped with an optional system: the Personnel Work Platform (PWP) System, which is intended for use when lifting personnel.
  When there is no other practical option available, this machine, when equipped with the PWP System, is approved
  for use to lift personnel, but only with an approved work platform, with the PWP System activated, and in full compliance with the “Mandatory Work Platform Safety Rules” (see SAFETY chapter).
• The use of this Telescopic Handler is subject to certain hazards that cannot be eliminated by mechanical means,
  but only by the exercise of intelligence, care and common sense. It is therefore essential to have competent and
  careful operators, who are not physically or mentally impaired, and who are thoroughly trained in the safe operation
  of the equipment and the handling of the loads.
• Throughout this manual information is provided that is set in italic type and introduced by the word IMPORTANT
  or NOTE. Be sure to read carefully and comply with the message or directive given. Following this information
  will improve operating and maintenance efficiency, help to avoid breakdowns and damage, and extend the
  machine’s life. A chart of standard hardware torques is located in the back of this manual.
• A storage pocket in the back of the seat is provided for storing the Operator’s Manual. After using the manual,
  please return it to the pocket and keep it with the unit at all times! If this machine is resold, Manitou N.A. Company
  recommends that this manual be given to the new owner.
• If this machine was purchased “used,” or if the owner’s address has changed, please provide your Manitou N.A.
  dealer or Manitou N.A. Company Service Department with the owner’s name and current address, along with the
  machine model and serial number. This will allow the registered owner information to be updated, so that the
  owner can be notified directly in case of an important product issue, such as a safety update program.
  “Right” and “left” are determined from a position sitting on the seat and facing forward.
• The wide Manitou N.A. dealership network stands ready to provide any assistance that may be required, including
  genuine Manitou N.A. service parts. All parts should be obtained from or ordered through your Manitou N.A.
  dealer. Give complete information about the part and include the model and serial number of the machine. Record
  the serial number in the space provided on the previous page, as a handy record for quick reference.

TABLE OF CONTENTS:

Manitou MT 1155 Forklift Truck Operator Manual 813256 – PDF DOWNLOAD

International Symbols Inside Front Cover
1 Introduction 2
2 Specifications 4
3 Checklists 6,7
4 Safety 9
5 Indicators and Controls 23
6 Operation and Adjustments 32
7 Lubrication 47
8 Service and Storage 50
9 Decal Locations 66
10 Maintenance 67
Electrical Schematics 78
Hydraulic Schematics 82
Load Zone Charts 84
Standard Hardware Torque Data 85
Index 86
Warranty Inside Back Cover
