Manitou MT 6642 MT 8044 MT 10044 MT 10055 MT 12042 Telescopic Handler Service Manual 50960082 – PDF DOWNLOAD

Description

Manitou MT 6642 MT 8044 MT 10044 MT 10055 MT 12042 Telescopic Handler Service Manual 50960082 – PDF DOWNLOAD

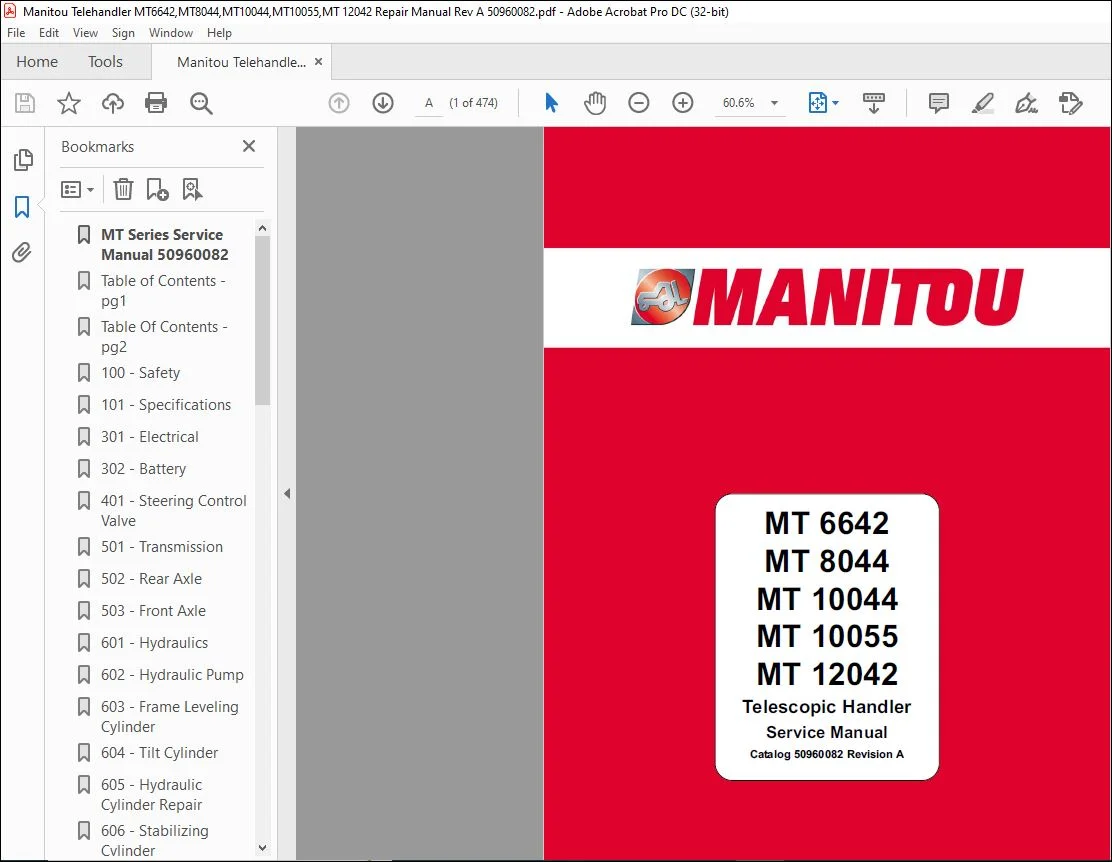

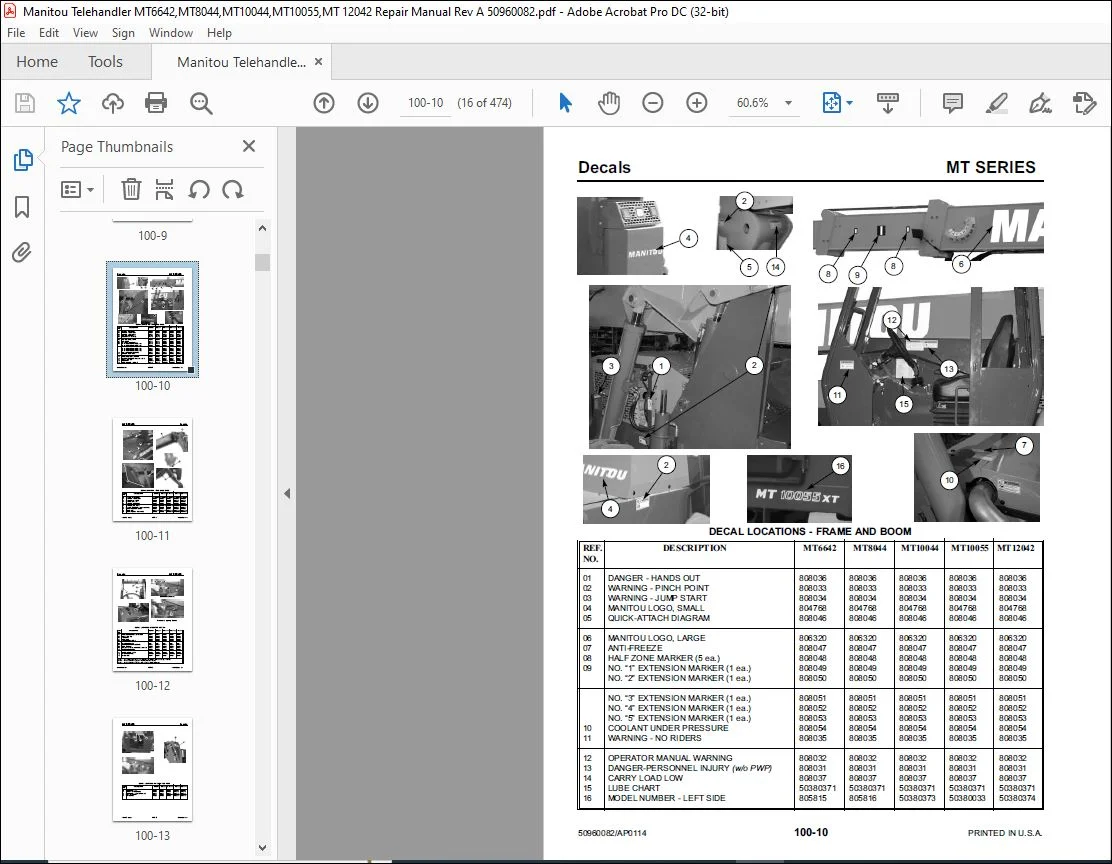

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MT 6642 MT 8044 MT 10044 MT 10055 MT 12042 Telescopic Handler Service Manual 50960082 – PDF DOWNLOAD

INTRODUCTION:

• With correct maintenance and proper use, this manitou MT Telescopic Handler will give years of dependable service.
  This service manual is intended to be a guide in the assembly and disassembly, installation and removal,
  adjustment and testing, troubleshooting and replacement of components that together make up the Manitou
  MT6642, MT8044, MT 10044, MT10055 and MT12042 Telescopic Handler.
• The Table of Contents can be used to make the procedure you need to find an easier process. Many photographs,
  schematics and line art drawings are used to help perform the necessary repairs, tests, or adjustments that this MT
  Series Telescopic Handler needs to keep it in good running condition.
• If you have any additional questions, please
  contact your authorized Manitou Americas dealer or call the Manitou Americas Service Department for assistance.

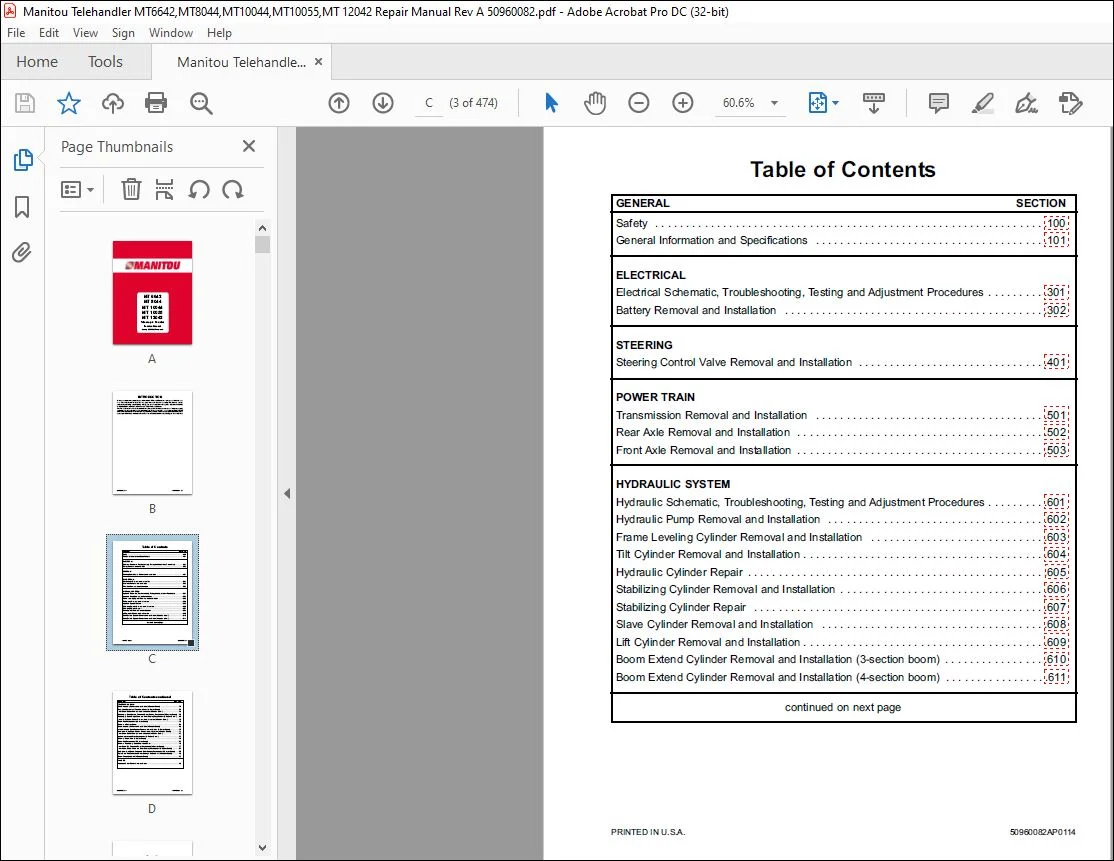

TABLE OF CONTENTS:

Manitou MT 6642 MT 8044 MT 10044 MT 10055 MT 12042 Telescopic Handler Service Manual 50960082 – PDF DOWNLOAD

GENERAL SECTION
Safety 100
General Information and Specifications 101
ELECTRICAL
Electrical Schematic, Troubleshooting, Testing and Adjustment Procedures 301
Battery Removal and Installation 302
STEERING
Steering Control Valve Removal and Installation 401
POWER TRAIN
Transmission Removal and Installation 501
Rear Axle Removal and Installation 502
Front Axle Removal and Installation 503
HYDRAULIC SYSTEM
Hydraulic Schematic, Troubleshooting, Testing and Adjustment Procedures 601
Hydraulic Pump Removal and Installation 602
Frame Leveling Cylinder Removal and Installation 603
Tilt Cylinder Removal and Installation 604
Hydraulic Cylinder Repair 605
Stabilizing Cylinder Removal and Installation 606
Stabilizing Cylinder Repair 607
Slave Cylinder Removal and Installation 608
Lift Cylinder Removal and Installation 609
Boom Extend Cylinder Removal and Installation (3-section boom) 610
Boom Extend Cylinder Removal and Installation (4-section boom) 611
GENERAL SECTION
TELESCOPING BOOM
Boom Assembly Removal and Installation (3-Section Boom) 701
Single and Double Leaf Chain Adjustment (3-Section Boom) 702
Inner Boom Section Removal and Installation (3-Section Boom) 703
Telescoping Boom Double Chain and Roller Bearing Replacement (3-Section Boom) 704
Telescoping Boom Single Chain and Roller Bearing Replacement (3-Section Boom) 705
Intermediate Boom Section Removal and Installation (3-Section Boom) 706
Boom Pad Replacement (3-Section Boom) 707
Overview 4-Section Boom 708
Boom Assembly Removal and Installation (4-Section Boom) 709
1st Intermediate Boom Section Removal and Installation (4-Section Boom) 710
2nd Intermediate Boom Section Removal and Installation (4-Section Boom) 711
Inner Boom Section Removal and Installation (4-Section Boom) 712
Hydraulic Hose and Tube Replacement (4-Section Boom) 713
Overview Boom Pads (4-Section Boom) 714
Boom Pad Replacement (4-Section Boom) 715
Overview Telescoping Boom Chain and Roller 716
Inner Boom Top Chain and Roller Replacement (4-Section Boom) 717
Inner Boom Bottom Chain and Roller Bearing Replacement (4-Section Boom) 718
2nd Intermediate Boom Chain and Roller Bearing Replacement (4-Section Boom) 719
Outer Boom Top Chains and Roller Bearings Replacement (4-Section Boom) 720
Boom Chain Adjustment (4-Section Boom) 721
CHASSIS
Hood and Cover Removal and Installation 800
