Manitou MT 845 MT 940 L MT 1233 S MT 1240 L MT 1330 SL MT 1337 SL + Turbo Genuine Parts Catalogue Manual 547762 – PDF DOWNLOAD

Description

Manitou MT 845 MT 940 L MT 1233 S MT 1240 L MT 1330 SL MT 1337 SL + Turbo Genuine Parts Catalogue Manual 547762 – PDF DOWNLOAD

FILE DETAILS:

Manitou MT 845 MT 940 L MT 1233 S MT 1240 L MT 1330 SL MT 1337 SL + Turbo Genuine Parts Catalogue Manual 547762 – PDF DOWNLOAD

Language : English
Pages : 1310
Downloadable : Yes
File Type : PDF
Size: 40 MB

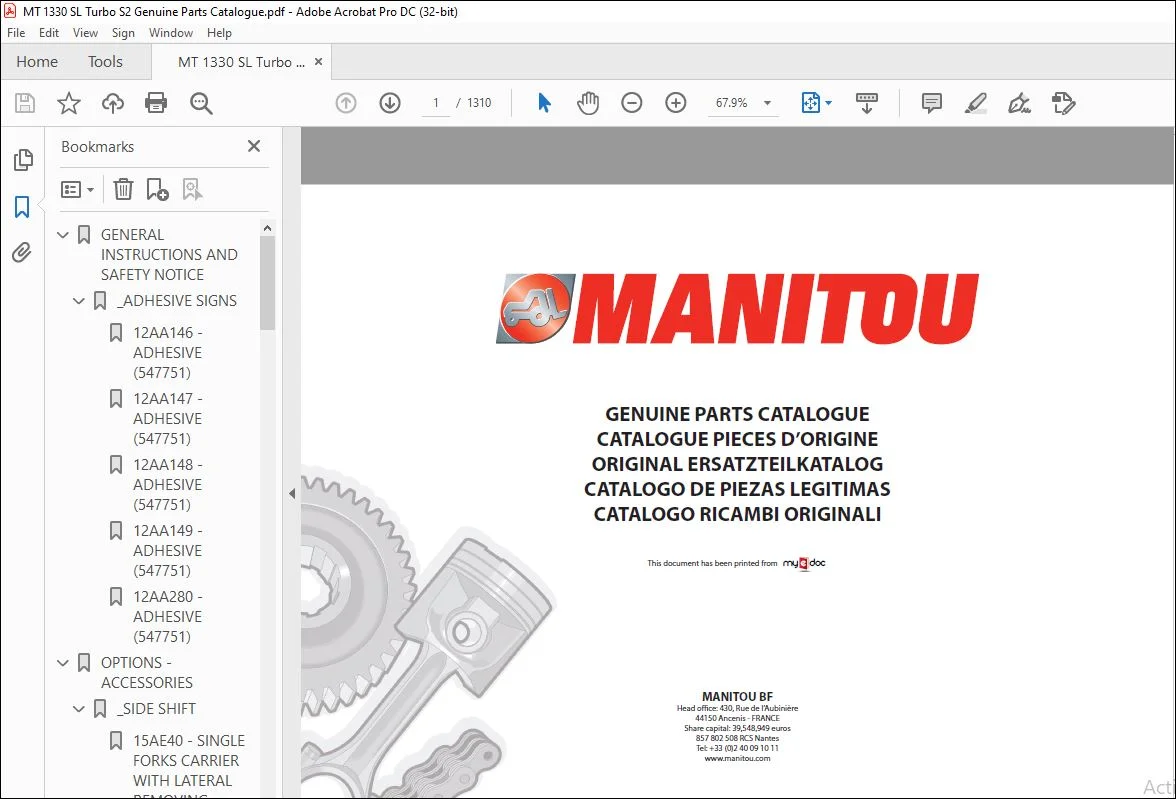

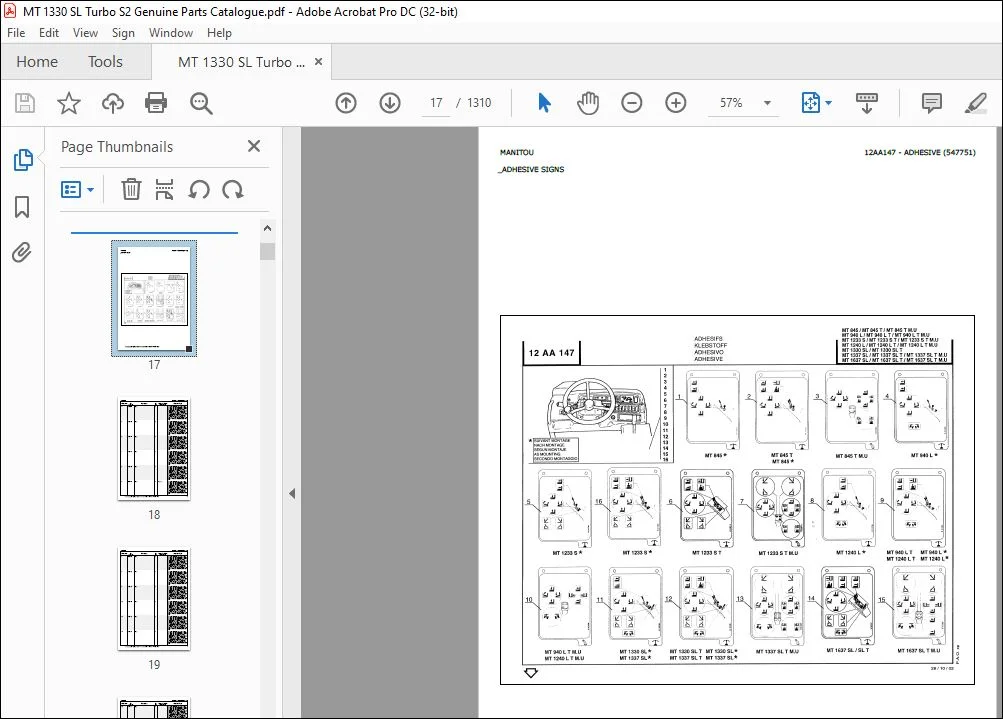

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MT 845 MT 940 L MT 1233 S MT 1240 L MT 1330 SL MT 1337 SL + Turbo Genuine Parts Catalogue Manual 547762 – PDF DOWNLOAD

IMPORTANT:
PARTS ORDER :
When placing an order, always state :
– Spare part ref. number
– Complete description
– Quantity
– Type of machine
– Machine serial number.
– Component identification number
(mast, jib, cab, engine, etc

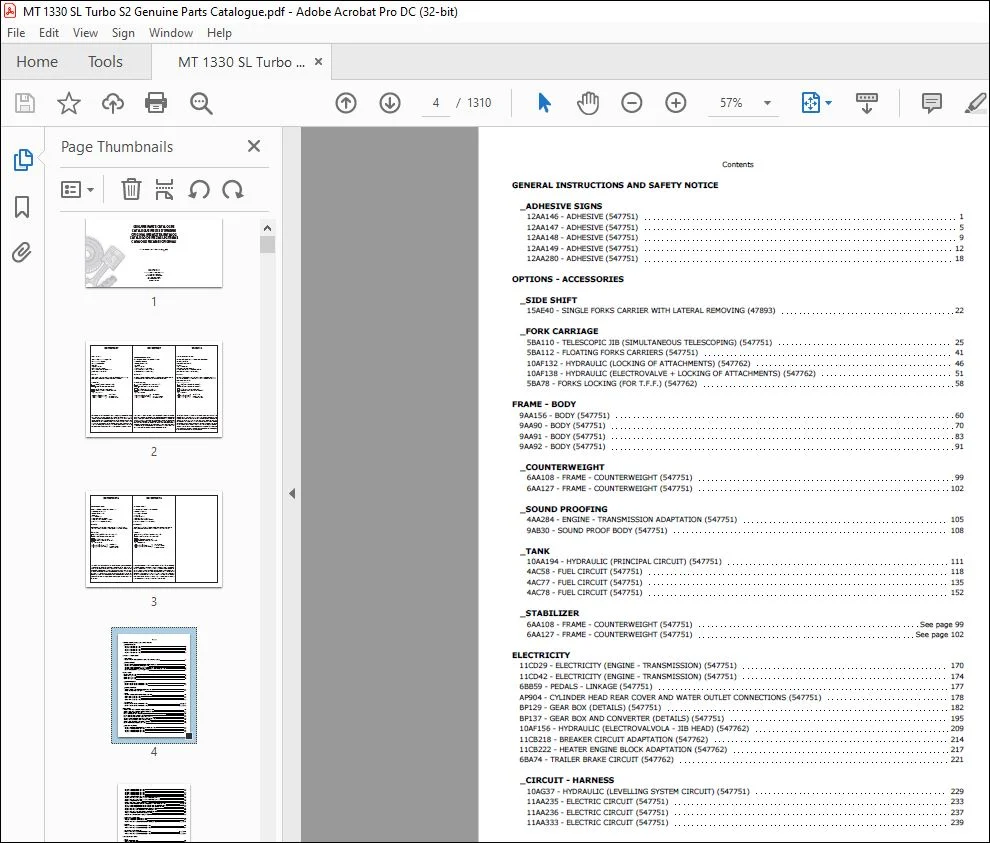

TABLE OF CONTENTS:

Manitou MT 845 MT 940 L MT 1233 S MT 1240 L MT 1330 SL MT 1337 SL + Turbo Genuine Parts Catalogue Manual 547762 – PDF DOWNLOAD

GENERAL INSTRUCTIONS AND SAFETY NOTICE
_ADHESIVE SIGNS
12AA146 – ADHESIVE (547751) 1
12AA147 – ADHESIVE (547751) 5
12AA148 – ADHESIVE (547751) 9
12AA149 – ADHESIVE (547751) 12
12AA280 – ADHESIVE (547751) 18
OPTIONS – ACCESSORIES
_SIDE SHIFT
15AE40 – SINGLE FORKS CARRIER WITH LATERAL REMOVING (47893) 22
_FORK CARRIAGE
5BA110 – TELESCOPIC JIB (SIMULTANEOUS TELESCOPING) (547751) 25
5BA112 – FLOATING FORKS CARRIERS (547751) 41
10AF132 – HYDRAULIC (LOCKING OF ATTACHMENTS) (547762) 46
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) 51
5BA78 – FORKS LOCKING (FOR T.F.F.) (547762) 58
FRAME – BODY
9AA156 – BODY (547751) 60
9AA90 – BODY (547751) 70
9AA91 – BODY (547751) 83
9AA92 – BODY (547751) 91
_COUNTERWEIGHT
6AA108 – FRAME – COUNTERWEIGHT (547751) 99
6AA127 – FRAME – COUNTERWEIGHT (547751) 102
_SOUND PROOFING
4AA284 – ENGINE – TRANSMISSION ADAPTATION (547751) 105
9AB30 – SOUND PROOF BODY (547751) 108
_TANK
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) 111
4AC58 – FUEL CIRCUIT (547751) 118
4AC77 – FUEL CIRCUIT (547751) 135
4AC78 – FUEL CIRCUIT (547751) 152
_STABILIZER
6AA108 – FRAME – COUNTERWEIGHT (547751) See page 99
6AA127 – FRAME – COUNTERWEIGHT (547751) See page 102
ELECTRICITY
11CD29 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) 170
11CD42 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) 174
6BB59 – PEDALS – LINKAGE (547751) 177
AP904 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) 178
BP129 – GEAR BOX (DETAILS) (547751) 182
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) 195
10AF156 – HYDRAULIC (ELECTROVALVOLA – JIB HEAD) (547762) 209
11CB218 – BREAKER CIRCUIT ADAPTATION (547762) 214
11CB222 – HEATER ENGINE BLOCK ADAPTATION (547762) 217
6BA74 – TRAILER BRAKE CIRCUIT (547762) 221
_CIRCUIT – HARNESS
10AG37 – HYDRAULIC (LEVELLING SYSTEM CIRCUIT) (547751) 229
11AA235 – ELECTRIC CIRCUIT (547751) 233
11AA236 – ELECTRIC CIRCUIT (547751) 237
11AA333 – ELECTRIC CIRCUIT (547751) 239
11AA334 – ELECTRIC CIRCUIT (547751) 243
11AA335 – ELECTRIC CIRCUIT (547751) 247
11AA575 – ELECTRIC CIRCUIT (547751) 249
11AA576 – ELECTRIC CIRCUIT (547751) 253
11AA577 – ELECTRIC CIRCUIT (547751) 257
11AA578 – ELECTRIC CIRCUIT (547751) 259
11CA29 – ELECTRICITY (DETAILS PLATE RELAY AND FUSES) (547751) 261
11CA50 – ELECTRICITY (DETAILS PLATE RELAY AND FUSES) (547751) 268
8AB334 – CAB (DETAILS) (547751) 276
AX1311 – REAR AXLE STEERING SYSTEM (547751) 285
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) See page 51
10AF141 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : AGGRAVATING) (547762) 288
10AF145 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : SINGLE) (547762) 293
11BA29 – ELECTRICITY (WORKING HEADLIGHT ON JIB) (547762) 297
11BA30 – ELECTRICITY (ELECTRICAL PRE-FITTING JIB) (547762) 301
11BA33 – ELECTRICITY (ELECTROVALVOLA – JIB HEAD) (547762) 304
11CB219 – ELECTRICITY (REAR CONNECTOR) (547762) 307
11CB221 – HEATER FUEL ADAPTATION (547762) 310
_LIGHTING – SIGNALING
11CB210 – ELECTRICITY (DETAILS) (547751) 314
11CB211 – ELECTRICITY (DETAILS) (547751) 320
11BA29 – ELECTRICITY (WORKING HEADLIGHT ON JIB) (547762) See page 297
_SWITCH
11CC51 – ELECTRICITY (CAB STRUCTURE) (547751) 327
11CC66 – ELECTRICITY (CAB STRUCTURE) (547751) 335
_SELECTOR – MANIPULATOR
11CC51 – ELECTRICITY (CAB STRUCTURE) (547751) See page 327
11CC66 – ELECTRICITY (CAB STRUCTURE) (547751) See page 335
AXLE ASSEMBLY – AXLE
_REAR
3AA86 – WHEELS (547751) 344
AX1178 – REAR AXLE DIFFERENTIAL (547751) 346
AX1179 – REAR AXLE REDUCTION GEAR (547751) 354
AX1180 – OIL BATH DISC BRAKE – REAR AXLE (547751) 366
AX1181 – REAR AXLE STEERING SYSTEM (547751) 369
AX1307 – REAR AXLE CASING (547751) 372
AX1308 – REAR AXLE DIFFERENTIAL (547751) 375
AX1309 – REAR AXLE REDUCTION GEAR (547751) 382
AX1310 – OIL BATH DISC BRAKE – REAR AXLE (547751) 395
AX1311 – REAR AXLE STEERING SYSTEM (547751) See page 285
AX1428 – REAR AXLE REDUCTION GEAR (547751) 399
AX386 – REAR AXLE CASING (547751) 409
AX975 – REAR AXLE (547751) 413
AX996 – REAR AXLE (547751) 417
BP160 – CARDAN COUPLING GEAR BOX – REAR AXLE (547751) 420
BP63 – CARDAN COUPLING GEAR BOX – REAR AXLE (547751) 423
7AB10 – REAR STEERING LOCKING (547762) 426
_FRONT
3AA86 – WHEELS (547751) See page 344
AX1162 – FRONT AXLE CASING (547751) 429
AX1163 – FRONT AXLE DIFFERENTIAL (547751) 433
AX1164 – FRONT AXLE REDUCTION GEAR (547751) 441
AX1165 – OIL BATH DISC BRAKE – FRONT AXLE (547751) 455
AX1166 – FRONT AXLE STEERING SYSTEM (547751) 461
AX1302 – FRONT AXLE CASING (547751) 464
AX1303 – FRONT AXLE DIFFERENTIAL (547751) 467
AX1304 – FRONT AXLE REDUCTION GEAR (547751) 473
AX1305 – OIL BATH DISC BRAKE – FRONT AXLE (547751) 483
AX1306 – FRONT AXLE STEERING SYSTEM (547751) 488
AX1427 – FRONT AXLE REDUCTION GEAR (547751) 490
AX971 – FRONT AXLE (547751) 499
AX995 – FRONT AXLE (547751) 501
BP159 – CARDAN COUPLING GEAR BOX – FRONT AXLE (547751) 504
BP62 – CARDAN COUPLING GEAR BOX – FRONT AXLE (547751) 507
_WHEELS
3AA86 – WHEELS (547751) See page 344
HYDRAULIC
AX1305 – OIL BATH DISC BRAKE – FRONT AXLE (547751) See page 483
AX1310 – OIL BATH DISC BRAKE – REAR AXLE (547751) See page 395
_ATTACHMENT
10AF132 – HYDRAULIC (LOCKING OF ATTACHMENTS) (547762) See page 46
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) See page 51
10CZ53 – HYDRAULIC (LOCKING CYLINDER OF ATTACHMENTS) (547762) 510
5BA78 – FORKS LOCKING (FOR T.F.F.) (547762) See page 58
_CIRCUIT
10CZ53 – HYDRAULIC (LOCKING CYLINDER OF ATTACHMENTS) (547762) See page 510
__ATTACHMENT
10AF314 – BUCKET WITH GRAB (HYDRAULIC) (47893) 514
10AF132 – HYDRAULIC (LOCKING OF ATTACHMENTS) (547762) See page 46
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) See page 51
10AF141 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : AGGRAVATING) (547762) See page 288
10AF145 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : SINGLE) (547762) See page 293
10AF151 – HYDRAULIC (TAIL PRE-FITTING : SINGLE-ACTING) (547762) 528
10AF152 – HYDRAULIC (TAIL PRE-FITTING : DOUBLE-ACTING) (547762) 535
__ACUMULATOR
10BA115 – HYDRAULIC (STEERING CIRCUIT) (547751) 541
10BA91 – HYDRAULIC (STEERING CIRCUIT) (547751) 548
__COMPENSATION
10AE234 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (547751) 554
__LEVELLING
10AG37 – HYDRAULIC (LEVELLING SYSTEM CIRCUIT) (547751) See page 229
__STEERING
10BA115 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 541
10BA91 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 548
__LIFTING
10AE238 – HYDRAULIC (LIFTING CIRCUIT) (547751) 560
__TILTING
10AE126 – HYDRAULIC (JIB CIRCUIT) (547751) 564
__MAIN
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) See page 111
__STABILIZER
10AG39 – HYDRAULIC (STABILIZER CIRCUIT) (547751) 569
10AG84 – HYDRAULIC (STABILIZER CIRCUIT) (547751) 573
__TELESCOPING
10AE126 – HYDRAULIC (JIB CIRCUIT) (547751) See page 564
10AE127 – HYDRAULIC (TELESCOPE CIRCUIT) (547751) 577
10AE234 – HYDRAULIC (COMPENSATION – JIB FEED CIRCUIT) (547751) See page 554
10AF148 – HYDRAULIC (RETURN LINE CIRCUIT : OUTER) (547762) 581
10AF150 – HYDRAULIC (RETURN LINE CIRCUIT : INNER) (547762) 588
_DETAIL
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) See page 111
10AE126 – HYDRAULIC (JIB CIRCUIT) (547751) See page 564
10AE127 – HYDRAULIC (TELESCOPE CIRCUIT) (547751) See page 577
10AE238 – HYDRAULIC (LIFTING CIRCUIT) (547751) See page 560
10AG37 – HYDRAULIC (LEVELLING SYSTEM CIRCUIT) (547751) See page 229
10AG39 – HYDRAULIC (STABILIZER CIRCUIT) (547751) See page 569
10AG84 – HYDRAULIC (STABILIZER CIRCUIT) (547751) See page 573
10BA115 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 541
10BA91 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 548
10DA135 – VALVE BANK (547751) 593
10DA229 – VALVE BANK (547751) 597
10EA67 – HYDRAULIC (DETAILS) (547751) 601
BP203 – ELECTRICAL CONTROL VALVE (547751) 606
10AE269 – HYDRAULIC (KIT QUICK COUPLINGS) (547762) 609
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) See page 51
10AF141 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : AGGRAVATING) (547762) See page 288
10AF145 – HYDRAULIC (HYDRAULIC MOVEMENTS CUT OUT : SINGLE) (547762) See page 293
10AF148 – HYDRAULIC (RETURN LINE CIRCUIT : OUTER) (547762) See page 581
10AF151 – HYDRAULIC (TAIL PRE-FITTING : SINGLE-ACTING) (547762) See page 528
10AF152 – HYDRAULIC (TAIL PRE-FITTING : DOUBLE-ACTING) (547762) See page 535
10AF156 – HYDRAULIC (ELECTROVALVOLA – JIB HEAD) (547762) See page 209
6BA74 – TRAILER BRAKE CIRCUIT (547762) See page 221
_VALVE BANK
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) See page 111
10BA115 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 541
10BA91 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 548
10DA10 – VALVE BANK (547751) 613
10DA135 – VALVE BANK (547751) See page 593
10DA229 – VALVE BANK (547751) See page 597
10AF151 – HYDRAULIC (TAIL PRE-FITTING : SINGLE-ACTING) (547762) See page 528
10AF152 – HYDRAULIC (TAIL PRE-FITTING : DOUBLE-ACTING) (547762) See page 535
_PUMP
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) See page 111
10BA115 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 541
10BA91 – HYDRAULIC (STEERING CIRCUIT) (547751) See page 548
_TANK
10AA194 – HYDRAULIC (PRINCIPAL CIRCUIT) (547751) See page 111
_RAM
__COMPENSATION
10CB16 – HYDRAULIC (COMPENSATION CYLINDER) (547751) 617
10CB36 – HYDRAULIC (COMPENSATION CYLINDER) (547751) 621
__LEVELLING
10CF30 – HYDRAULIC – CYLINDER OF LEVELLING SYSTEM (547751) 625
__STEERING
AX1166 – FRONT AXLE STEERING SYSTEM (547751) See page 461
AX1181 – REAR AXLE STEERING SYSTEM (547751) See page 369
AX1306 – FRONT AXLE STEERING SYSTEM (547751) See page 488
AX1311 – REAR AXLE STEERING SYSTEM (547751) See page 285
__LIFTING
10CA125 – HYDRAULIC (LIFTING CYLINDER) (547751) 628
10CA126 – HYDRAULIC (LIFTING CYLINDER) (547751) 631
__TILTING
10CD30 – HYDRAULIC (TILTING CYLINDER) (547751) 634
__STABILIZER
10CF13 – HYDRAULIC (STABILIZER CYLINDER) (547751) 639
10CF39 – HYDRAULIC (STABILIZER CYLINDER) (547751) 642
__TELESCOPING
10CC37 – HYDRAULIC (OUTER TELESCOPE CYLINDER) (547751) 645
10CC38 – HYDRAULIC (INNER TELESCOPE CYLINDER) (547751) 648
10CC93 – HYDRAULIC (OUTER TELESCOPE CYLINDER) (547751) 651
10CC94 – HYDRAULIC (INNER TELESCOPE CYLINDER) (547751) 653
__LOCKING OF ATTACHMENT
10AF132 – HYDRAULIC (LOCKING OF ATTACHMENTS) (547762) See page 46
10AF138 – HYDRAULIC (ELECTROVALVE + LOCKING OF ATTACHMENTS) (547762) See page 51
10CZ53 – HYDRAULIC (LOCKING CYLINDER OF ATTACHMENTS) (547762) See page 510
TELESCOPIC BOOM
_ATTACHMENT
5BA110 – TELESCOPIC JIB (SIMULTANEOUS TELESCOPING) (547751) See page 25
5BA101 – SEALING KIT ON JIB (547762) 655
_DETAIL
5BA110 – TELESCOPIC JIB (SIMULTANEOUS TELESCOPING) (547751) See page 25
5BA101 – SEALING KIT ON JIB (547762) See page 655
_FORK CARRIAGE
5BA110 – TELESCOPIC JIB (SIMULTANEOUS TELESCOPING) (547751) See page 25
ENGINE
AP1311 – TURBOCHARGER (DETAILS) (547751) 658
AP1384 – TURBOCHARGER (DETAILS) (547751) 661
AP664 – TURBOCHARGER (DETAILS) (547751) 664
AP909 – TURBOCHARGER (DETAILS) (547751) 667
_ENGINE UNIT
4AA158 – (547751) 670
4AA285 – ENGINE – TRANSMISSION ADAPTATION (547751) 671
AP1294 – CYLINDER BLOCK (547751) 682
AP1295 – PISTONS, CONNECTING RODS AND CRANKSHAFT (547751) 690
AP1296 – CYLINDER HEAD (547751) 695
AP1297 – ROCKER LEVER SHAFT (547751) 700
AP1298 – TIMING GEAR AND CAMSHAFT (547751) 705
AP1300 – FLYWHEEL HOUSING (547751) 711
AP1302 – OIL SUMP (547751) 713
AP1303 – ROCKER LEVER COVER AND BREATHER (547751) 718
AP1306 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) 721
AP1312 – SEAL KIT (WITHOUT ASBESTOS) (547751) 725
AP1367 – CYLINDER BLOCK (547751) 727
AP1368 – PISTONS, CONNECTING RODS AND CRANKSHAFT (547751) 735
AP1369 – CYLINDER HEAD (547751) 740
AP1370 – ROCKER LEVER SHAFT (547751) 745
AP1371 – TIMING GEAR AND CAMSHAFT (547751) 750
AP1373 – FLYWHEEL HOUSING (547751) 756
AP1375 – OIL SUMP (547751) 758
AP1376 – ROCKER LEVER COVER AND BREATHER (547751) 763
AP1379 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) 766
AP1385 – SEAL KIT (WITHOUT ASBESTOS) (547751) 770
AP2011 – ENGINE ADAPTATION (547751) 772
AP2012 – ENGINE ADAPTATION (547751) 779
AP2047 – ENGINE ADAPTATION (547751) 786
AP648 – CYLINDER BLOCK (547751) 793
AP649 – PISTONS, CONNECTING RODS AND CRANKSHAFT (547751) 801
AP650 – CYLINDER HEAD (547751) 806
AP651 – ROCKER LEVER SHAFT (547751) 811
AP652 – TIMING GEAR AND CAMSHAFT (547751) 816
AP656 – OIL SUMP (547751) 821
AP657 – ROCKER LEVER COVER AND BREATHER (547751) 827
AP660 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) 831
AP665 – SEAL KIT (WITHOUT ASBESTOS) (547751) 836
AP751 – FLYWHEEL HOUSING (547751) 838
AP810 – ALTERNATOR – CRANKSHAFT PULLEY (547751) 840
AP892 – CYLINDER BLOCK (547751) 849
AP893 – PISTONS, CONNECTING RODS AND CRANKSHAFT (547751) 857
AP894 – CYLINDER HEAD (547751) 862
AP895 – ROCKER LEVER SHAFT (547751) 867
AP896 – TIMING GEAR AND CAMSHAFT (547751) 872
AP898 – FLYWHEEL HOUSING (547751) 877
AP900 – OIL SUMP (547751) 879
AP901 – ROCKER LEVER COVER AND BREATHER (547751) 884
AP904 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 178
AP905 – ALTERNATOR – CRANKSHAFT PULLEY (547751) 887
AP910 – SEAL KIT (WITHOUT ASBESTOS) (547751) 891
BP129 – GEAR BOX (DETAILS) (547751) See page 182
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) See page 195
11CB221 – HEATER FUEL ADAPTATION (547762) See page 310
_COMPLETE
AP2047 – ENGINE ADAPTATION (547751) See page 786
AP648 – CYLINDER BLOCK (547751) See page 793
AP892 – CYLINDER BLOCK (547751) See page 849
_TIMING GEAR – LUBRICATION
AP1298 – TIMING GEAR AND CAMSHAFT (547751) See page 705
AP1299 – LUBRICATING OIL PUMP AND DELIVERY VALVE (547751) 893
AP1372 – LUBRICATING OIL PUMP AND DELIVERY VALVE (547751) 897
AP652 – TIMING GEAR AND CAMSHAFT (547751) See page 816
AP653 – LUBRICATING OIL PUMP AND DELIVERY VALVE (547751) 901
AP896 – TIMING GEAR AND CAMSHAFT (547751) See page 872
AP897 – LUBRICATING OIL PUMP AND DELIVERY VALVE (547751) 905
_ELECTRICITY
11CD29 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) See page 170
11CD42 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) See page 174
AP904 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 178
BP129 – GEAR BOX (DETAILS) (547751) See page 182
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) See page 195
11CB221 – HEATER FUEL ADAPTATION (547762) See page 310
_FILTERS-BELT
2AA44 – FILTERS AND BELTS (547751) 909
2AA45 – FILTER (547751) 915
4AA155 – ENGINE – TRANSMISSION ADAPTATION (547751) 919
4AA157 – ENGINE – TRANSMISSION ADAPTATION (547751) 928
4AC113 – FUEL CIRCUIT (547751) 936
4AC114 – FUEL CIRCUIT (547751) 954
4AC58 – FUEL CIRCUIT (547751) See page 118
4AC77 – FUEL CIRCUIT (547751) See page 135
4AC78 – FUEL CIRCUIT (547751) See page 152
AP1304 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) 972
AP1307 – ALTERNATOR – CRANKSHAFT PULLEY (547751) 978
AP1377 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) 982
AP1380 – ALTERNATOR – CRANKSHAFT PULLEY (547751) 987
AP658 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) 991
AP810 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 840
AP902 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) 998
AP905 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 887
BP129 – GEAR BOX (DETAILS) (547751) See page 182
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) See page 195
2AA51 – FILTER (OPTION) (547762) 1005
_INTAKE SYSTEM – EXHAUST
4AA157 – ENGINE – TRANSMISSION ADAPTATION (547751) See page 928
AP1309 – INTAKE MANIFOLD (547751) 1008
AP1310 – COOLING MANIFOLD AND EXHAUST (547751) 1011
AP1382 – INTAKE MANIFOLD (547751) 1017
AP1383 – COOLING MANIFOLD AND EXHAUST (547751) 1020
AP662 – INTAKE MANIFOLD (547751) 1026
AP663 – COOLING MANIFOLD AND EXHAUST (547751) 1029
AP907 – INTAKE MANIFOLD (547751) 1035
AP908 – COOLING MANIFOLD AND EXHAUST (547751) 1038
_FUEL SUPPLY SYSTEM
4AC113 – FUEL CIRCUIT (547751) See page 936
4AC114 – FUEL CIRCUIT (547751) See page 954
4AC58 – FUEL CIRCUIT (547751) See page 118
4AC77 – FUEL CIRCUIT (547751) See page 135
4AC78 – FUEL CIRCUIT (547751) See page 152
11CB221 – HEATER FUEL ADAPTATION (547762) See page 310
_ELECTRICAL SYSTEM
11CD29 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) See page 170
11CD42 – ELECTRICITY (ENGINE – TRANSMISSION) (547751) See page 174
AP1301 – STATER MOTOR (547751) 1044
AP1307 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 978
AP1308 – ALTERNATOR (547751) 1047
AP1374 – STATER MOTOR (547751) 1049
AP1380 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 987
AP1381 – ALTERNATOR (547751) 1052
AP698 – STATER MOTOR (547751) 1054
AP752 – ALTERNATOR (547751) 1057
AP810 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 840
AP899 – STATER MOTOR (547751) 1059
AP904 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 178
AP905 – ALTERNATOR – CRANKSHAFT PULLEY (547751) See page 887
AP906 – ALTERNATOR (547751) 1062
BP129 – GEAR BOX (DETAILS) (547751) See page 182
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) See page 195
11CB221 – HEATER FUEL ADAPTATION (547762) See page 310
_COOLING SYSTEM
4AA154 – ENGINE – TRANSMISSION ADAPTATION (547751) 1064
4AA155 – ENGINE – TRANSMISSION ADAPTATION (547751) See page 919
4AA202 – ENGINE – TRANSMISSION ADAPTATION (547751) 1074
4AA282 – ENGINE – TRANSMISSION ADAPTATION (547751) 1083
4AA283 – ENGINE – TRANSMISSION ADAPTATION (547751) 1086
AP1305 – WATER PUMP (547751) 1096
AP1306 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 721
AP1310 – COOLING MANIFOLD AND EXHAUST (547751) See page 1011
AP1378 – WATER PUMP (547751) 1099
AP1379 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 766
AP1383 – COOLING MANIFOLD AND EXHAUST (547751) See page 1020
AP658 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) See page 991
AP660 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 831
AP663 – COOLING MANIFOLD AND EXHAUST (547751) See page 1029
AP699 – WATER PUMP (547751) 1102
AP902 – LUBRICATING OIL FILTER AND INTEGRAL OIL COOLER (547751) See page 998
AP903 – WATER PUMP (547751) 1105
AP904 – CYLINDER HEAD REAR COVER AND WATER OUTLET CONNECTIONS (547751) See page 178
AP908 – COOLING MANIFOLD AND EXHAUST (547751) See page 1038
PEDALS
_BRAKING CIRCUIT
6BA83 – BRAKE CIRCUIT ( 547751) 1107
6BA119 – BRAKE CIRCUIT (547751) 1115
6BA63 – BRAKE CIRCUIT (547751) 1130
6BA74 – TRAILER BRAKE CIRCUIT (547762) See page 221
_HAND BRAKE
6BA54 – HANDBRAKE (547751) 1144
6BB59 – PEDALS – LINKAGE (547751) See page 177
6BB85 – PEDALS – LINKAGE (547751) 1148
_TRAILOR
6BA74 – TRAILER BRAKE CIRCUIT (547762) See page 221
_LINKAGE
6BB59 – PEDALS – LINKAGE (547751) See page 177
6BB85 – PEDALS – LINKAGE (547751) See page 1148
DRIVER CAB
8AA139 – CAB ADAPTATION (547751) 1162
_CAB
8AB337 – CAB (DETAILS) (547751) 1166
_HEATER – AIR CONDITIONING
11CC51 – ELECTRICITY (CAB STRUCTURE) (547751) See page 327
11CC66 – ELECTRICITY (CAB STRUCTURE) (547751) See page 335
8AB334 – CAB (DETAILS) (547751) See page 276
_ELECTRICITY
8AA137 – CAB ADAPTATION (547751) 1176
8AA187 – PROTECTION GRID ADAPTATION (547762) 1183
_FITTINGS – SOUND PROOFING
8AB335 – CAB (DETAILS) (547751) 1190
8AB336 – CAB (DETAILS) (547751) 1202
8AB338 – CAB (DETAILS) (547751) 1213
_DOOR – GLASS
8AA119 – SEAT (547751) 1229
8AB335 – CAB (DETAILS) (547751) See page 1190
8AB336 – CAB (DETAILS) (547751) See page 1202
8AB338 – CAB (DETAILS) (547751) See page 1213
TRANSMISSION
AX1162 – FRONT AXLE CASING (547751) See page 429
AX1163 – FRONT AXLE DIFFERENTIAL (547751) See page 433
AX1164 – FRONT AXLE REDUCTION GEAR (547751) See page 441
AX1165 – OIL BATH DISC BRAKE – FRONT AXLE (547751) See page 455
AX1166 – FRONT AXLE STEERING SYSTEM (547751) See page 461
AX1178 – REAR AXLE DIFFERENTIAL (547751) See page 346
AX1179 – REAR AXLE REDUCTION GEAR (547751) See page 354
AX1180 – OIL BATH DISC BRAKE – REAR AXLE (547751) See page 366
AX1181 – REAR AXLE STEERING SYSTEM (547751) See page 369
AX1302 – FRONT AXLE CASING (547751) See page 464
AX1303 – FRONT AXLE DIFFERENTIAL (547751) See page 467
AX1304 – FRONT AXLE REDUCTION GEAR (547751) See page 473
AX1305 – OIL BATH DISC BRAKE – FRONT AXLE (547751) See page 483
AX1306 – FRONT AXLE STEERING SYSTEM (547751) See page 488
AX1307 – REAR AXLE CASING (547751) See page 372
AX1308 – REAR AXLE DIFFERENTIAL (547751) See page 375
AX1309 – REAR AXLE REDUCTION GEAR (547751) See page 382
AX1310 – OIL BATH DISC BRAKE – REAR AXLE (547751) See page 395
AX1311 – REAR AXLE STEERING SYSTEM (547751) See page 285
AX386 – REAR AXLE CASING (547751) See page 409
AX971 – FRONT AXLE (547751) See page 499
AX975 – REAR AXLE (547751) See page 413
AX995 – FRONT AXLE (547751) See page 501
AX996 – REAR AXLE (547751) See page 417
7AB10 – REAR STEERING LOCKING (547762) See page 426
_PROPSHAFT
AX1427 – FRONT AXLE REDUCTION GEAR (547751) See page 490
AX1428 – REAR AXLE REDUCTION GEAR (547751) See page 399
BP131 – CARDAN COUPLING ENGINE – ANGLE RETURN (547751) 1233
BP159 – CARDAN COUPLING GEAR BOX – FRONT AXLE (547751) See page 504
BP160 – CARDAN COUPLING GEAR BOX – REAR AXLE (547751) See page 420
BP62 – CARDAN COUPLING GEAR BOX – FRONT AXLE (547751) See page 507
BP63 – CARDAN COUPLING GEAR BOX – REAR AXLE (547751) See page 423
_TRANSFER BOX
BP61 – TRANSFER BOX 4 WHELL DRIVES (547751) 1236
_GEAR BOX
BP127 – ELECTRICAL CONTROL VALVE (547751) 1243
BP128 – GEAR BOX AND CONVERTER (547751) 1246
BP129 – GEAR BOX (DETAILS) (547751) See page 182
BP130 – GEAR BOX (MECHANISM DETAILS – GEAR) (547751) 1249
BP135 – ELECTRICAL CONTROL VALVE (547751) 1266
BP136 – GEAR BOX (547751) 1270
BP137 – GEAR BOX AND CONVERTER (DETAILS) (547751) See page 195
BP203 – ELECTRICAL CONTROL VALVE (547751) See page 606
BP60 – GEAR BOX (MECHANISM DETAILS – GEAR) (547751) 1272
_ANGLE RETURN
BP109 – BEVEL DRIVE (547751) 1288
BP131 – CARDAN COUPLING ENGINE – ANGLE RETURN (547751) See page 1233

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
