Manitou MT6034, MT6642 & MT8044 RADIO REMOTE BOOM CONTROL SYSTEM Operator’s Manual

Description

Manitou MT6034, MT6642 & MT8044 RADIO REMOTE BOOM CONTROL SYSTEM Operator’s Manual – PDF DOWNLOAD

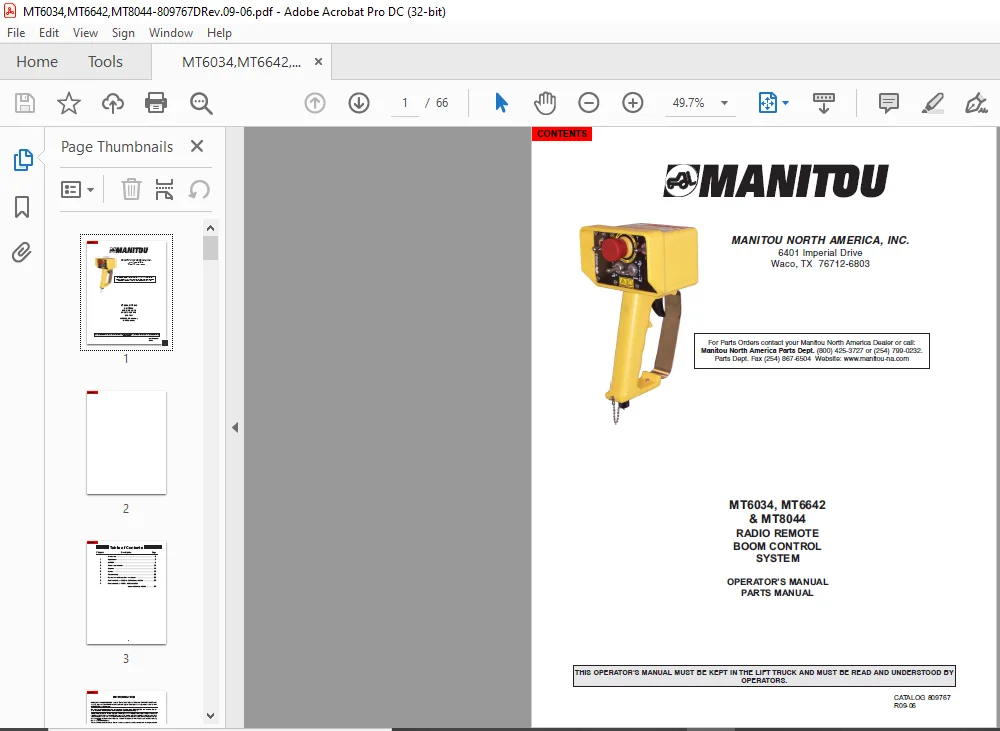

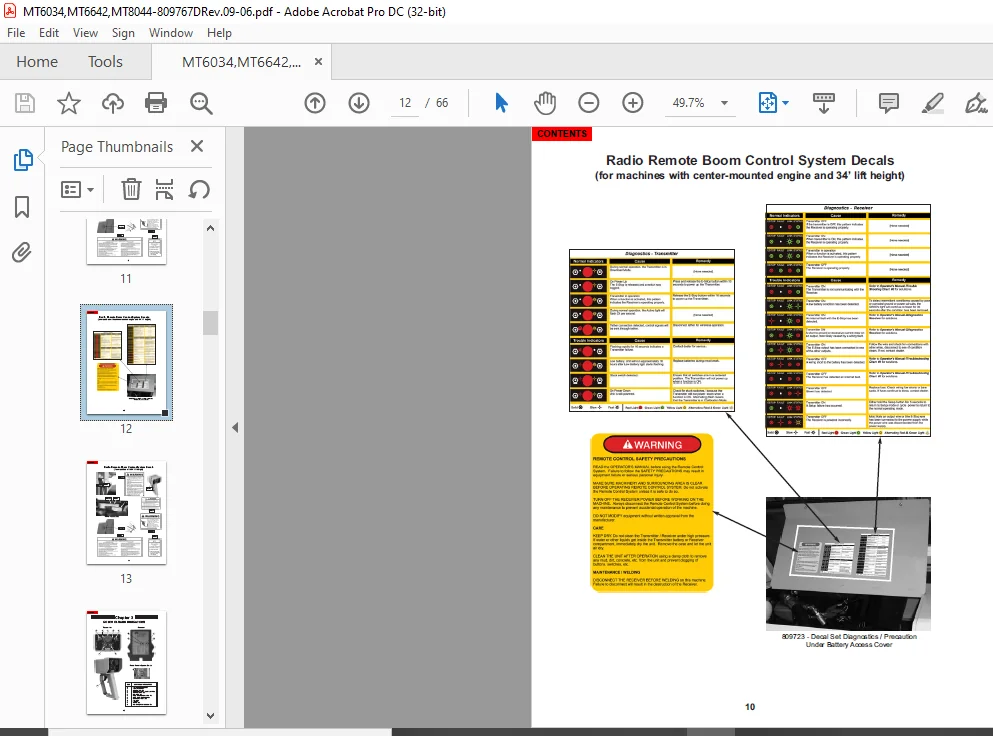

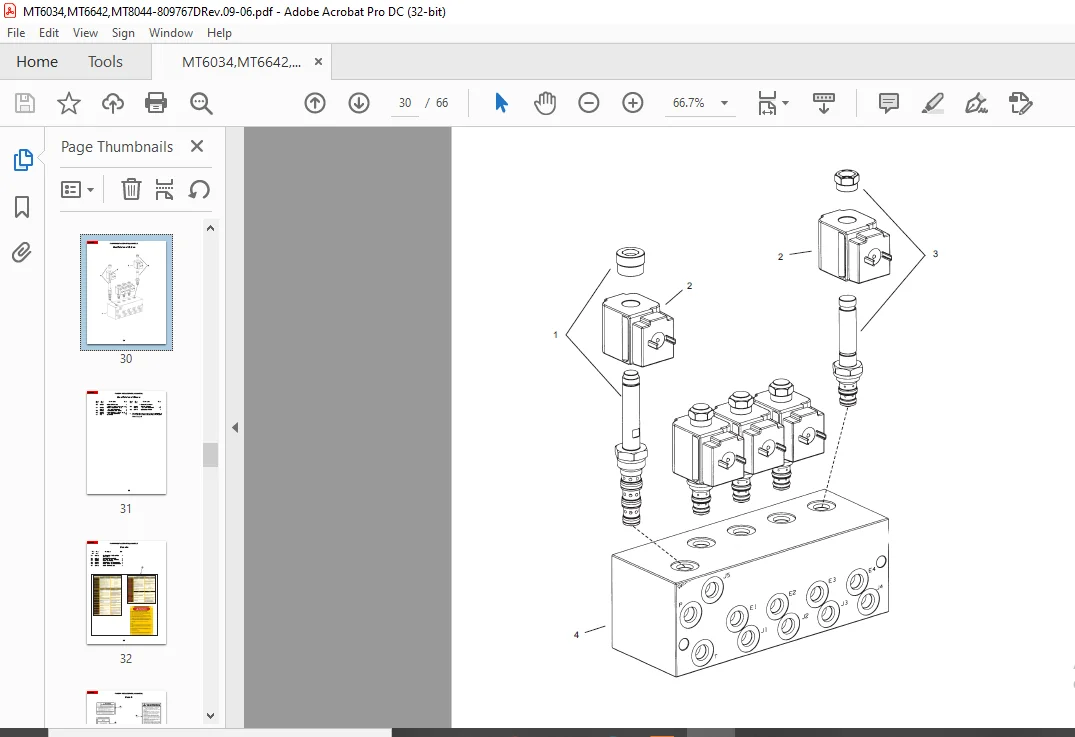

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MT6034, MT6642 & MT8044 RADIO REMOTE BOOM CONTROL SYSTEM Operator’s Manual – PDF DOWNLOAD

CATALOG 809767

INTRODUCTION :

The information in this manual was written to give the owner/operator assistance in preparing, adjusting, maintaining and servicing the Radio Remote Boom Control. More important, this manual provides information on the safe and proper use of the Radio Remote Boom Control System. Major points of safe operation are detailed in the SAFETY chapter of this manual. This Radio Remote Boom Control System allows the operator to remotely start the engine and operate the boom lift, lower, extend and retract functions.

• The operator can position a loaded attachment or raise personnel in an approved work platform from a safe position outside the operator’s station or from within the work platform. Lift personnel only with an approved work platform, and in full compliance with the “Mandatory Work Platform Safety Rules” (see SAFETY chapter). The use of this Radio Remote Boom Control is subject to certain hazards that cannot be eliminated by mechanical means, but only by the exercise of intelligence, care and common sense.
• It is therefore essential to have competent and careful operators, who are not physically or mentally impaired, and who are thoroughly trained in the safe operation of the Radio Remote Boom Control and the handling of the loads. A storage pocket in the back of the seat of the telescopic handler is provided for storing this manual. After using the manual, please return it to the pocket and keep it with the unit at all times! If the machine is resold, give this manual to the new owner.

TABLE OF CONTENTS:

Manitou MT6034, MT6642 & MT8044 RADIO REMOTE BOOM CONTROL SYSTEM Operator’s Manual – PDF DOWNLOAD

Introduction 2
1 Specifications 3
2 SAFETY 4
3 Controls and Indicators 12
4 Operation 14
5 Service 16
6 Troubleshooting 22
7 Factory Installed Service Parts – All Models 26
8 Field Installed Kits – 806841 & 806842 Model MT6034 33
9 Field Installed Kits – 806621, 806622 & 806623
Models MT6642 & MT8044 49

MANITOU MT6034, MT6642 & MT8044 RADIO REMOTE BOOM CONTROL SYSTEM OPERATOR’S MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
