Manitou MT940L-TW(120)LS SERIES 2 Parts Manual – PDF DOWNLOAD

Description

Manitou MT940L-TW(120)LS SERIES 2 Parts Manual – PDF DOWNLOAD

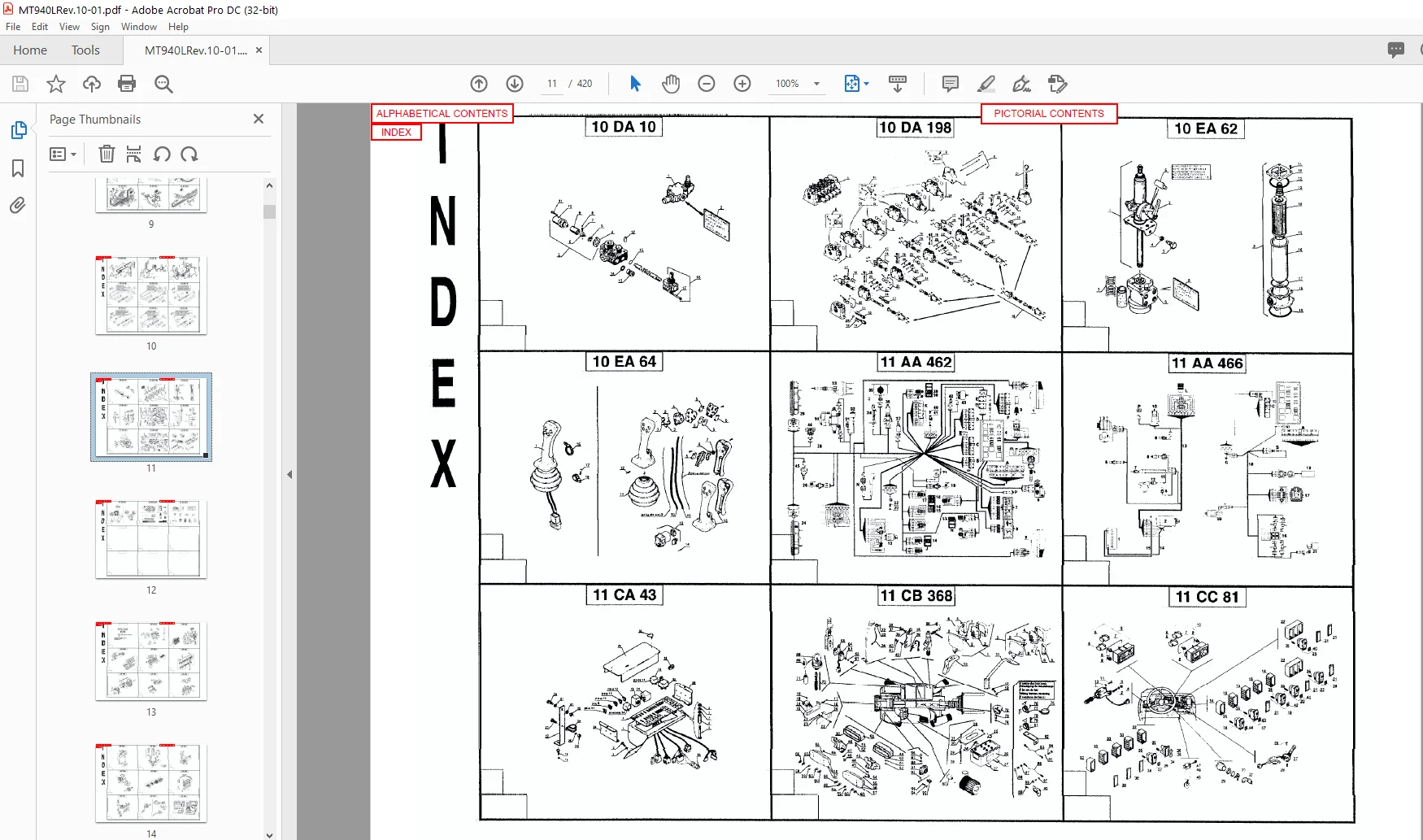

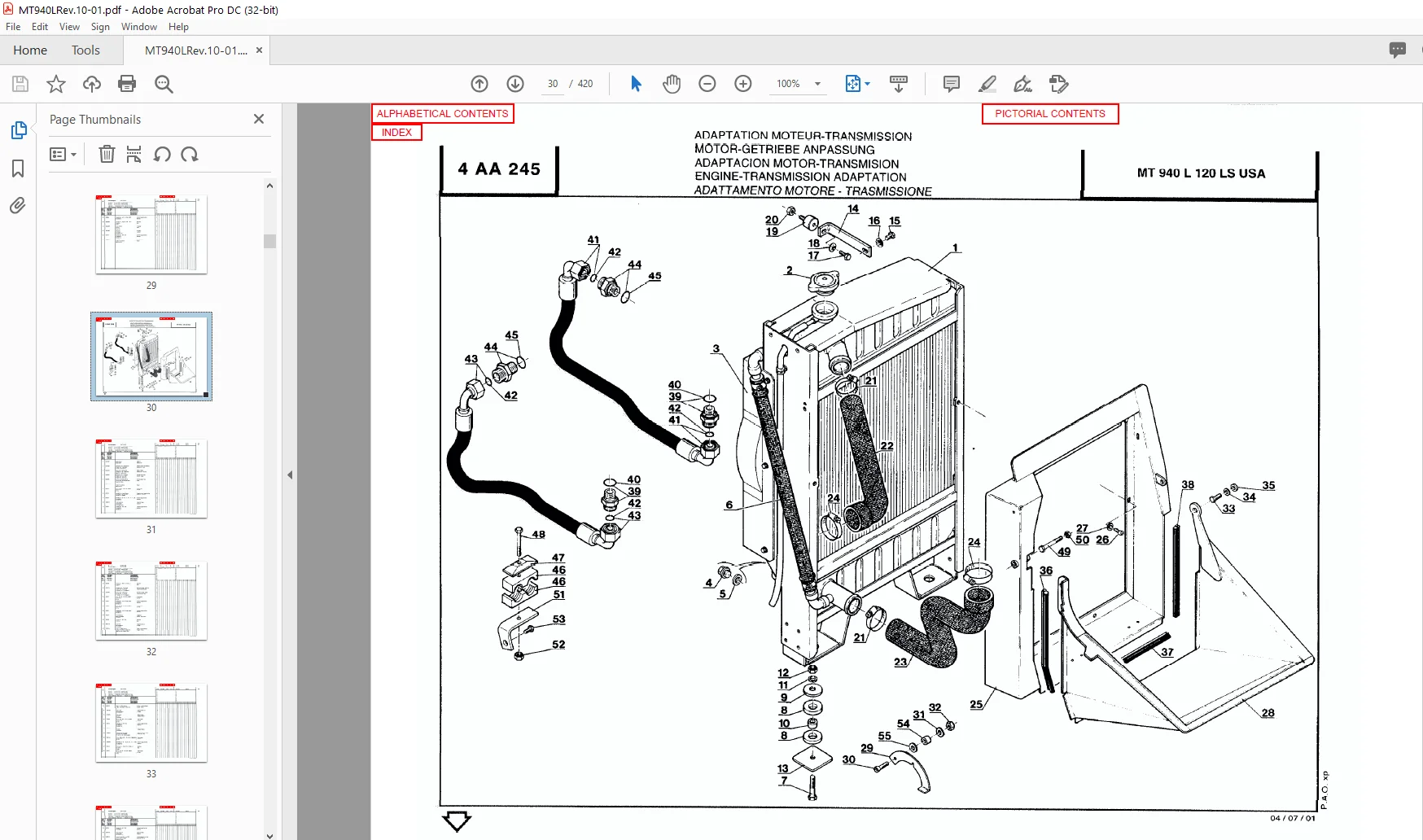

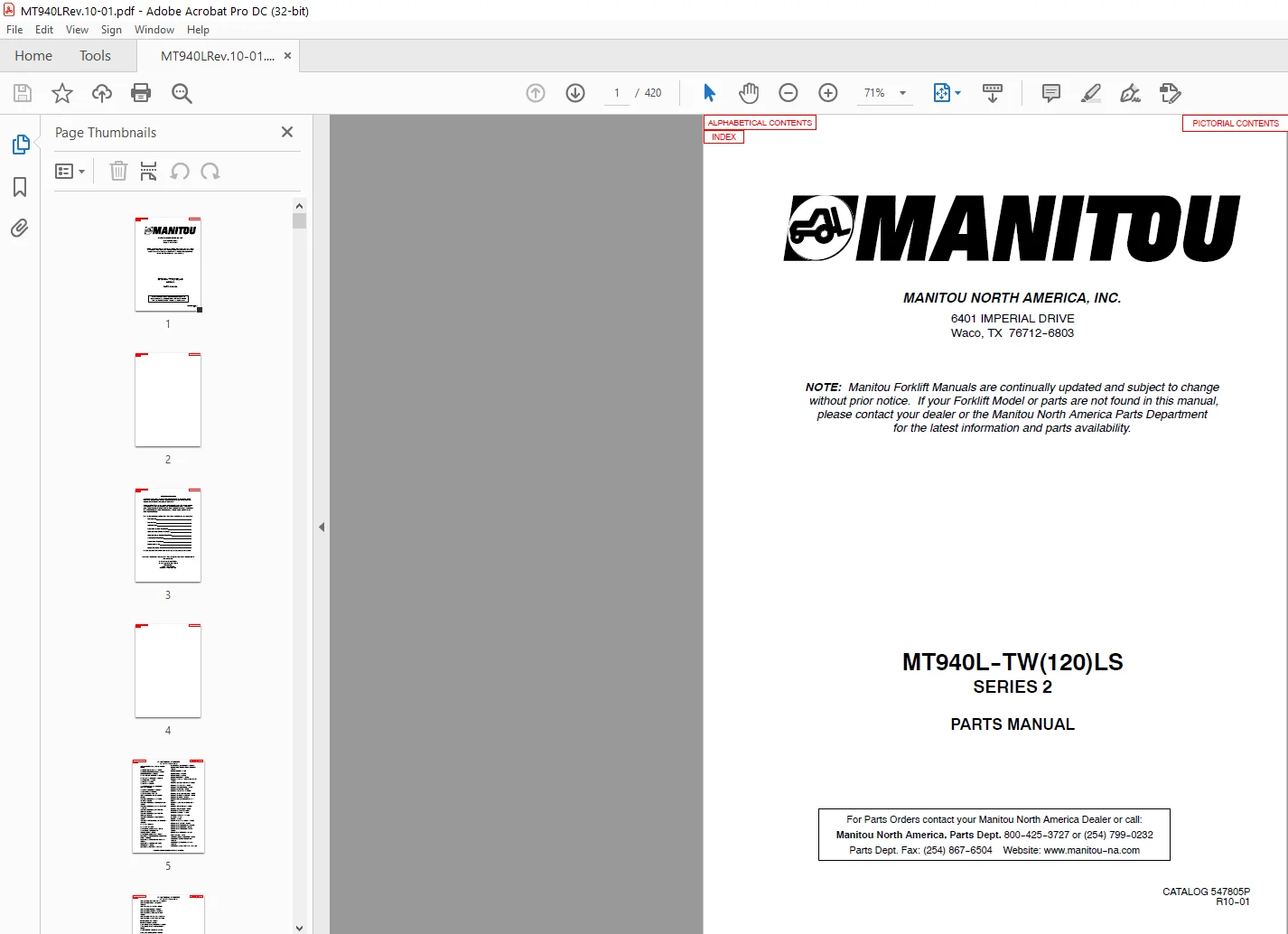

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MT940L-TW(120)LS SERIES 2 Parts Manual – PDF DOWNLOAD

CATALOG 547805P

GENERAL INFORMATION;

The purpose of this catalog is to provide illustrations for identifying and ordering Forklift Truck parts. The illustrations provide a general description and may not show the exact shape or detail of the parts or components represented. The parts are identified by an Item number on the Illustration Page. Find the Item number for the part desired, then locate that Item Number under the ”Item” column on the parts page. The part number will be located directly to the right of the Item number. Also provided is a part description, dimensions (where necessary), quantity of parts required and the Truck Model Identification.

TABLE OF CONTENTS:

Manitou MT940L-TW(120)LS SERIES 2 Parts Manual – PDF DOWNLOAD

ACCELERATOR PEDAL INSTALLATION –
6BB78
ALTERNATOR ASSEMBLY – AP939
ALTERNATOR INSTALLATION – AP938
BOOM ASSEMBLY – 5BA226
BRAKE CIRCUIT ASSEMBLY – 6BA103
BRAKE PEDAL ASSEMBLY – 6BA103
CAB HEATING – 8AB475
CAB MISC. I – 8AB431
CAB MISC. II – 8AB474
CAB, DASHBOARD AND STEERING
COLUMN – 8AA201
CAB, DOOR ASSEMBLY – 8AB338
CAB, EXTERIOR – 8AB336
CAB, MOUNTING – 8AA 202
COUNTERWEIGHT INSTALLATION –
6AA182
CYLINDER ASSEMBLY, CARRIAGE
TILTING – 10CD30
CYLINDER ASSEMBLY, COMPENSATION –
10CB19
CYLINDER ASSEMBLY, FRAME LEVELING
– 10CF29
CYLINDER ASSEMBLY, LIFTING (P/N:
208924) – 10CA48
CYLINDER ASSEMBLY, LIFTING (P/N:
224933) – 10CA123
CYLINDER ASSEMBLY, TELESCOPIC –
10CC41
CYLINDER INSTALLATION, TELESCOPIC –
10AE353
DECALS I – 12AA223
DECALS II – 12AA224
DRIVESHAFT, FRONT AXLE – BP159
DRIVESHAFT, GEARBOX TO
TRANSMISSION – BP131
DRIVESHAFT, REAR AXLE – BP160
ELECTRICAL COMPONENTS, LIGHTS AND
MISC. – 11CB368
ELECTRICAL, FUSEBOX AND RELAYS –
11CA43
ELECTRICAL, INSTRUMENTS AND
SWITCHES – 11CC81
ELECTRICAL, PRIMARY – 11AA462
ELECTRICAL, SECONDARY – 11AA466
ENGINE AND TRANSMISSION MOUNTS –
4AA247
ENGINE BLOCK – AP928
ENGINE MISC. – 4AA246
ENGINE MISC. – AP2013
ENGINE SENSORS – 11CD55
ENGINE, CAMSHAFT AND TIMING GEARS
– AP932
ENGINE, CONNECTING RODS – AP929
ENGINE, CRANKSHAFT – AP929
ENGINE, CYLINDER HEAD – AP930
ENGINE, FLYWHEEL – AP946
ENGINE, GASKET SETS – AP943
ENGINE, OIL FILTER HOUSING – AP936
ENGINE, OIL PAN AND PICKUP – AP934
ENGINE, OIL PUMP – AP 933
ENGINE, ROCKER ARM ASSEMBLY –
AP931
ENGINE, VALVE COVER AND MISC. –
AP935
ENGINE, WATER OUTLET – AP937
ENGINE, WATER PUMP – AP944
EXHAUST MANIFOLD – AP941
EXHAUST SYSTEM – 4AA244
FENDER ASSEMBLY – 9AA137
FILTERS – 2AA75
FRAME – 6AA182
FRONT AXLE BRAKE DISCS – AX1305
FRONT AXLE CASING – AX1302
FRONT AXLE DIFFERENTIAL – AX1303
FRONT AXLE MOUNTING – AX995
FRONT AXLE REDUCTION GEARS –
AX1304
FRONT AXLE STEERING – AX1306
FUEL SYSTEM – 4AC97
GEARBOX, ENGINE MOUNTED – BP110
HYDRAULICS, BOOM EXTENTION –
10AE352
HYDRAULICS, CARRIAGE TILTING –
10AE353
HYDRAULICS, COMPENSATON – 10AE352
HYDRAULICS, CONTROL VALVE – 10DA10
HYDRAULICS, FRAME LEVELING –
10AG79
HYDRAULICS, JOY STICK – 10EA64
HYDRAULICS, LIFTING – 10AE351
HYDRAULICS, PRIMARY – 10AA315
HYDRAULICS, RETURN OIL FILTER –
10EA62
HYDRAULICS, SECONDARY – 10AA314
HYDRAULICS, VALVE BANK – 10DA198
INTAKE MANIFOLD – AP940
INTAKE SYSTEM – 4AA244
PARK BRAKE LEVER ASSEMBLY – 6BA54
PARK BRAKE LEVER INSTALLATION –
6BB78
RADIATOR INSTALLATION – 4AA245
REAR AXLE BRAKE DISCS – AX1310
REAR AXLE CASING – AX1307
REAR AXLE DIFFERENTIAL – 1308
REAR AXLE MOUNTING – AX996
REAR AXLE REDUCTION GEARS – AX1309
REAR AXLE STEERING – AX1311
SEAT ASSEMBLY AND INSTALLATION –
8AA119
SHEETMETAL, ENGINE COMPARTMENT –
9AA135
SHEETMETAL, MISC. BODY – 9AA136
STARTER – AP945
STEERING CIRCUIT – 10BA153
STEERING COLUMN ASSEMBLY – 10EA62
TIRES AND WHEELS – 3AA121
TRANSMISSION AND CONVERTER –
BP128
TRANSMISSION ASSEMBLY – BP130
TRANSMISSION CONTROL VALVE –
BP127
TRANSMISSION MISC – BP129
TRANSMISSION SENSORS – 11CD55
TURBOCHARGER ASSEMBLY – AP942
