Manitou MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

Description

Manitou MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

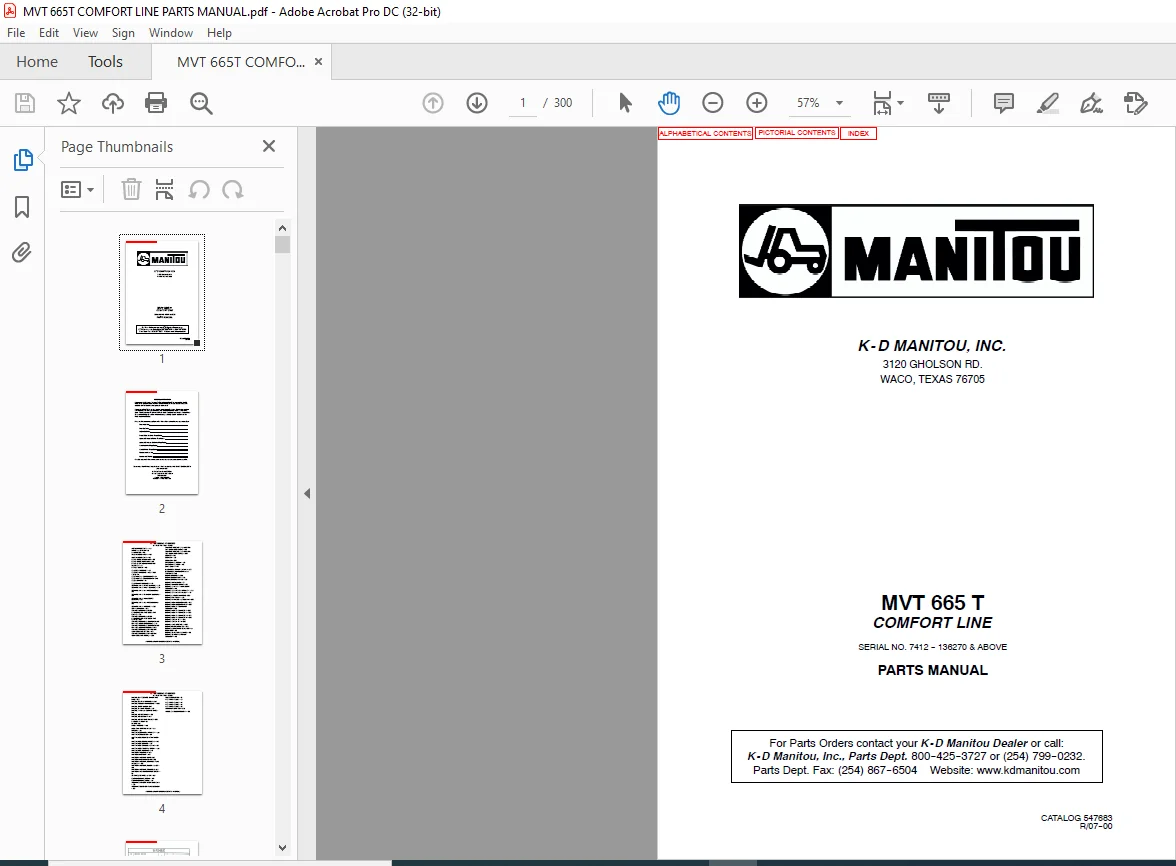

MANITOU MVT 665 T COMFORT LINE PARTS MANUAL – PDF DOWNLOAD:

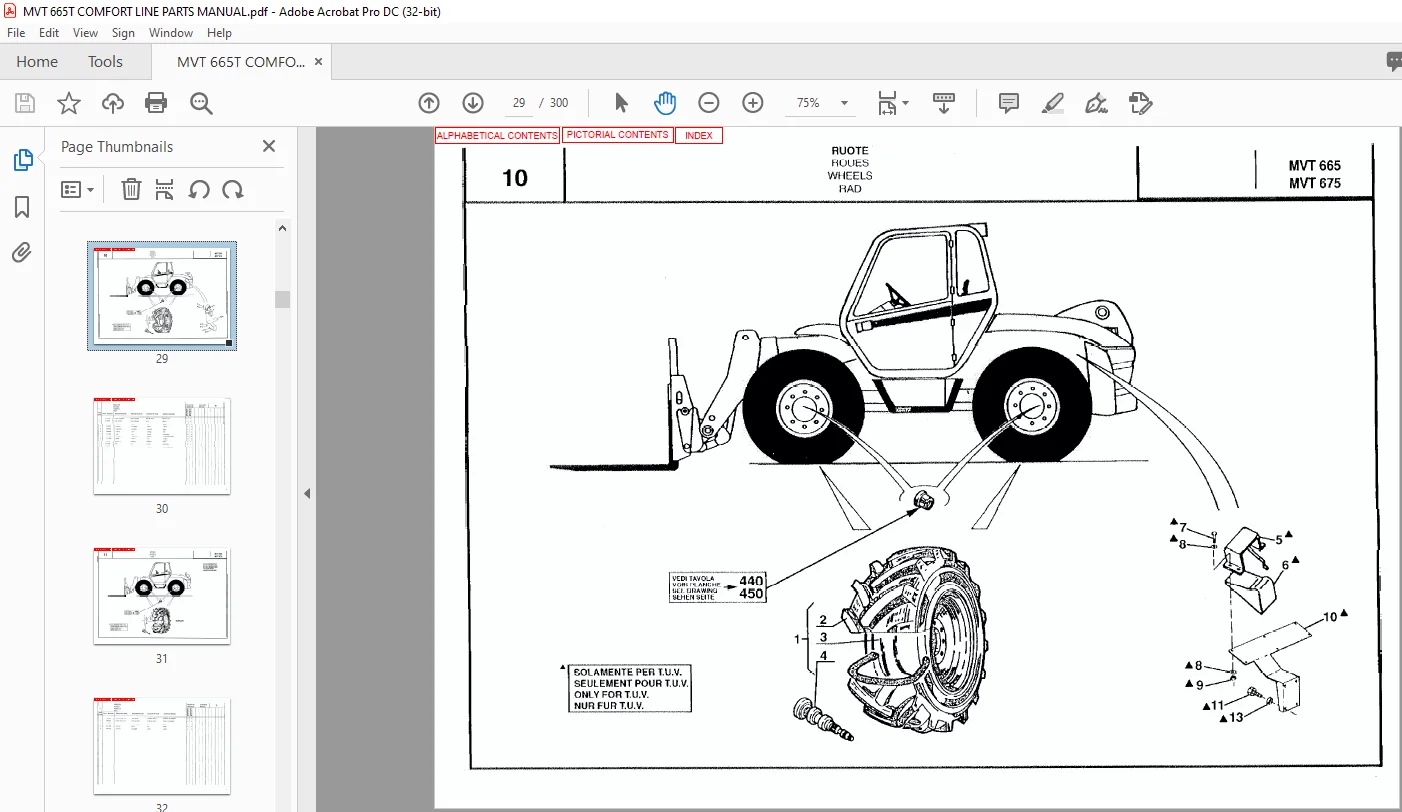

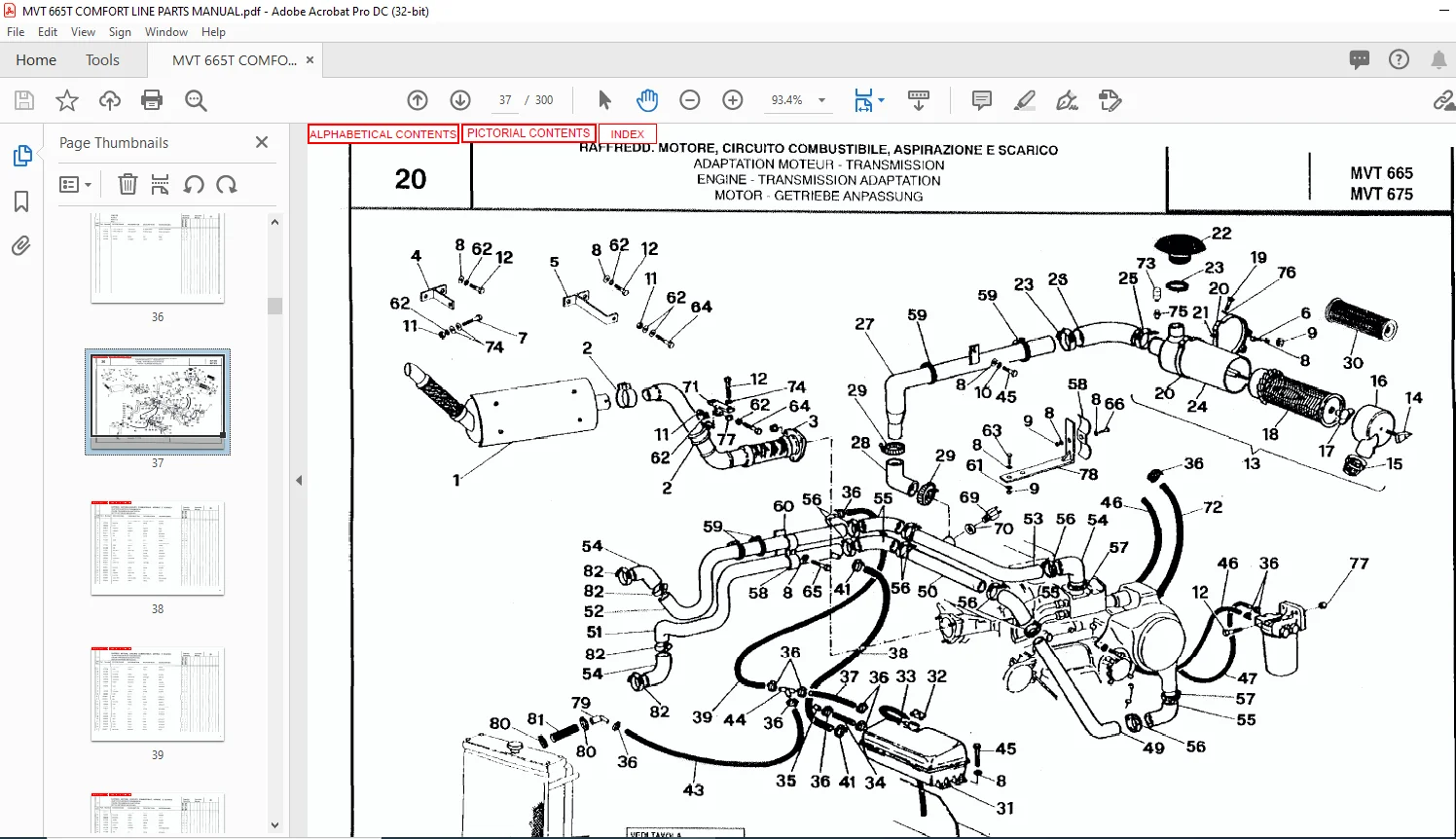

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Manitou MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

• The purpose of this catalog is to provide illustrations for identifying and ordering Forklift Truck parts. The illustrations provide a general description and may not show the exact shape or detail of the parts or components represented. The parts are identified by an Item number on the Illustration Page.
• Find the Item number for the part desired, then locate that Item Number under the ”Item” column on the parts page. The part number will be located directly to the right of the Item number. Also provided is a part description, dimensions (where necessary), quantity of parts required and the Truck Model Identification.

TABLE OF CONTENTS:

Manitou MVT 665 T COMFORT LINE Parts Manual – PDF DOWNLOAD

ACCELERATOR PEDAL – 170
AIR INTAKE SYSTEM – 20
ALTERNATOR – 770
AXLE HOUSING FRONT – 420
AXLE HOUSING REAR – 430
BRAKE DISCS, FRONT AXLE – 490
BRAKE DISCS, REAR AXLE – 500
BRAKE LEVER INSTALLATION AND
ASSEMBLY – 70
BRAKES CIRCUIT – 170
CAB, DOOR ASSEMBLY – 62
CAB, DOOR ASSEMBLY (ONLY FOR
T.U.V.) – 61
CAB, INTERNAL COMPONENTS I – 64
CAB, INTERNAL COMPONENTS II – 64A
CAB, OVERHEAD – 63
CAB, PRIMARY ASSEMBLY – 60
CONTROL VALVE (FINAL ELEMENT) – 226
CONTROL VALVE (INLET ELEMENT) – 221
CONTROL VALVE (LIFTING ELEMENT) –
225
CONTROL VALVE (OPTIONAL ELEMENT) –
224
CONTROL VALVE (TELESCOPIC
ELEMENT) – 222
CONTROL VALVE (TILTING ELEMENT) –
223
CONTROL VALVE ASSEMBLY – 220
COUNTERWEIGHT – 340
CYLINDER ASSEMBLY, BOOM
EXTENDING (S/N: 7536-136305 AND
BELOW) – 190
CYLINDER ASSEMBLY, BOOM
EXTENDING (S/N: 7695-136327 AND
ABOVE) – 190A
CYLINDER ASSEMBLY, COMPENSATING
(S/N: 7536-136305 AND BELOW) – 210
CYLINDER ASSEMBLY, COMPENSATING
(S/N: 7695-13627AND ABOVE) – 210A
CYLINDER ASSEMBLY, LIFTING (S/N:
7536-136305 AND BELOW) – 180
CYLINDER ASSEMBLY, LIFTING (S/N:
7695-136327 AND ABOVE) – 180A
CYLINDER ASSEMBLY, TILTING (S/N:
7536-136305 AND BELOW) – 200
CYLINDER ASSEMBLY, TILTING (S/N:
7695-136327 AND ABOVE) – 200A
DECALS I – 270
DECALS II – 280
DECALS III – 290
DIFFERENTIAL, FRONT – 460
DIFFERENTIAL, REAR – 470
DRIVE SHAFT – 410
ELECTRICAL, BATTERY, LIGHTS – 260
ELECTRICAL, INSTRUMENTS AND
SWITCHES – 250
ENGINE ASSEMBLY – 600
ENGINE BLOCK PLUGS – 890
ENGINE BRACKETS MISC. – 850
ENGINE INSTALLATION – 80
ENGINE, AUXILIARY DRIVE – 780
ENGINE, CAMSHAFT TIMING GEAR
ASSEMBLY – 640
ENGINE, CRANKSHAFT ASSEMBLY – 610
ENGINE, CRANKSHAFT PULLEY – 740
ENGINE, EXHAUST MANIFOLD – 800
ENGINE, FAN PULLEY – 700
ENGINE, FLYWHEEL AND HOUSING – 680
ENGINE, FUEL INJECTION MISC. – 670
ENGINE, FUEL INJECTION PUMP – 660
ENGINE, FUEL SYSTEM FILTER
ASSEMBLY – 820
ENGINE, FUEL SYSTEM MISC. I – 830
ENGINE, FUEL SYSTEM MISC. II – 860
ENGINE, FUEL SYSTEM MISC. III – 900
ENGINE, FUEL SYSTEM MISC. IV – 910
ENGINE, GASKET SET I – 920
ENGINE, GASKET SET II – 930
ENGINE, HEAD ASSEMBLY – 620
ENGINE, INTAKE MANIFOLD – 810
ENGINE, LUBRICATING OIL FILTER AND
BREATHER – 720
ENGINE, OIL FILTER AND MISC. – 730
ENGINE, OIL PAN AND PICKUP
ASSEMBLY – 710
ALPHABETICAL CONTENTS
MVT665 PTS 547683 R07-00
NUMERICAL PART NUMBERS INDEX (SEE APPENDIX)
ENGINE, OIL PRESSURE SWITCH AND
MISC. – 870
ENGINE, OIL PUMP ASSEMBLY – 650
ENGINE, ROCKER ARM ASSEMBLY – 630
ENGINE, SHORT BLOCK – 940
ENGINE, STARTER MOTOR – 690
ENGINE, THROTTLE CONTROL MISC. –
840
ENGINE, WATER OUTLET – 760
ENGINE, WATER PUMP – 750
ENGINE, WATER TEMP SENDER – 880
EXHAUST SYSTEM – 20
FILTERS – 00
FRAME ASSEMBLY – 50
FUEL TANK AND FUEL LINES – 240
FUSEBOX – 65
HYDRAULIC CONTROL ASSEMBLY – 150
HYDRAULIC SELECTOR – 152
HYDRAULICS, BOOM COMPENSATION –
120
HYDRAULICS, BOOM EXTENSION – 110
HYDRAULICS, COOLING – 160
HYDRAULICS, OPTIONAL TILTING – 130
HYDRAULICS, PRINCIPAL CIRCUIT – 100
HYDRAULICS, STEERING – 140
HYDROSTATIC MOTOR – 580
HYDROSTATIC PUMP – 520
HYDROSTATIC PUMP GEAR – 550
HYDROSTATIC PUMP ROTOR – 530
HYDROSTATIC PUMP, CONTROL VALVE
ASSEMBLY – 540
HYDROSTATIC PUMP, RELIEF VALVES –
560
HYDROSTATIC PUMP, SOLENOID – 570
HYDROSTATIC TRANSMISSION CIRCUIT –
90
JOYSTICK, CONTROL LEVER – 151
REDUCTION GEAR, FRONT – 440
REDUCTION GEAR, REAR – 450
STEERING CYLINDER FRONT AND REAR
– 480
STEERING SELECTOR VALVE ASSEMBLY
– 310
TELESCOPIC BOOM – 40
TIRES AND WHEELS – 10
TIRES AND WHEELS – 11
TIRES AND WHEELS – 12
TIRES AND WHEELS – 13
TRANSFER GEAR BOX – 510
TURBO CHARGER ASSEMBLY – 790
