Manitowoc Crane 16000 Wind Attac Parts Manual 16007057
$15.95
The Manitowoc Crane 16000 Wind Attachment Parts Manual (16007057) is a downloadable PDF guide essential for identifying and acquiring replacement parts for efficient maintenance of the 16000 Wind Attachment model, ensuring optimal functionality and safety.
Description
Manitowoc Crane 16000 Wind Attac Parts Manual 16007057 – PDF DOWNLOAD
The Manitowoc Crane 16000 Wind Attachment Parts Manual (16007057) is a downloadable PDF guide essential for identifying and acquiring replacement parts for efficient maintenance of the 16000 Wind Attachment model, ensuring optimal functionality and safety.
FILE DETAILS:
Manitowoc Crane 16000 Wind Attac Parts Manual 16007057 – PDF DOWNLOAD
Language : English
Pages : 85
Downloadable : Yes
File Type : PDF

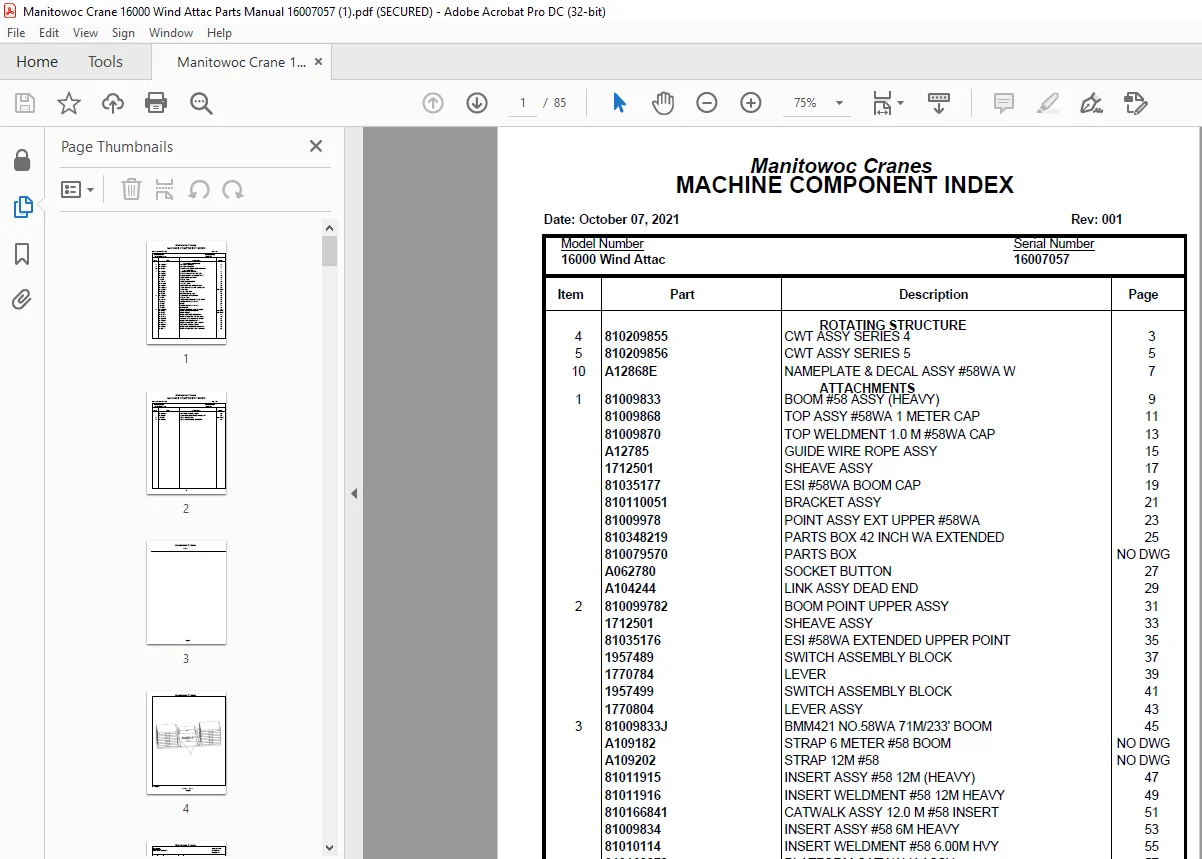

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Manitowoc Crane 16000 Wind Attac Parts Manual 16007057 – PDF DOWNLOAD
ROTATING STRUCTURE
4 810209855 CWT ASSY SERIES 4 3
5 810209856 CWT ASSY SERIES 5 5
10 A12868E NAMEPLATE & DECAL ASSY #58WA W 7
ATTACHMENTS
1 81009833 BOOM #58 ASSY (HEAVY) 9
81009868 TOP ASSY #58WA 1 METER CAP 11
81009870 TOP WELDMENT 1.0 M #58WA CAP 13
A12785 GUIDE WIRE ROPE ASSY 15
1712501 SHEAVE ASSY 17
81035177 ESI #58WA BOOM CAP 19
810110051 BRACKET ASSY 21
81009978 POINT ASSY EXT UPPER #58WA 23
810348219 PARTS BOX 42 INCH WA EXTENDED 25
810079570 PARTS BOX NO DWG
A062780 SOCKET BUTTON 27
A104244 LINK ASSY DEAD END 29
2 810099782 BOOM POINT UPPER ASSY 31
1712501 SHEAVE ASSY 33
81035176 ESI #58WA EXTENDED UPPER POINT 35
1957489 SWITCH ASSEMBLY BLOCK 37
1770784 LEVER 39
1957499 SWITCH ASSEMBLY BLOCK 41
1770804 LEVER ASSY 43
3 81009833J BMM421 NO.58WA 71M/233′ BOOM 45
A109182 STRAP 6 METER #58 BOOM NO DWG
A109202 STRAP 12M #58 NO DWG
81011915 INSERT ASSY #58 12M (HEAVY) 47
81011916 INSERT WELDMENT #58 12M HEAVY 49
810166841 CATWALK ASSY 12.0 M #58 INSERT 51
81009834 INSERT ASSY #58 6M HEAVY 53
81010114 INSERT WELDMENT #58 6.00M HVY 55
810168872 PLATFORM CATWALK ASSY 57
81009839 INSERT ASSY #58 BOOM 3M HEAVY 59
81010111 INSERT WELDMENT #58 3.0M HEAVY 61
Manitowoc Cranes
MACHINE COMPONENT INDEX
810168892 PLATFORM CATWALK ASSY 63
81017593 BOOM ASSY 58WA INTER STRUT BRS 65
5 1478529 DECAL-BM HAZARD NO DWG
9 81010805 DECAL INSTL-INSERT SHIPMENT 67
S.M
