MARKLIFT 25E 25ETD 30E 36E 25 GTD SELF-PROPELLED SCISSOR OPERATION & PARTS MANUAL – PDF

Description

MARKLIFT 25E 25ETD 30E 36E 25 GTD 30G 36G SELF-PROPELLED SCISSOR (MEDIUM SLAB MODELS) OPERATION & PARTS MANUAL 17202 – PDF DOWNLOAD

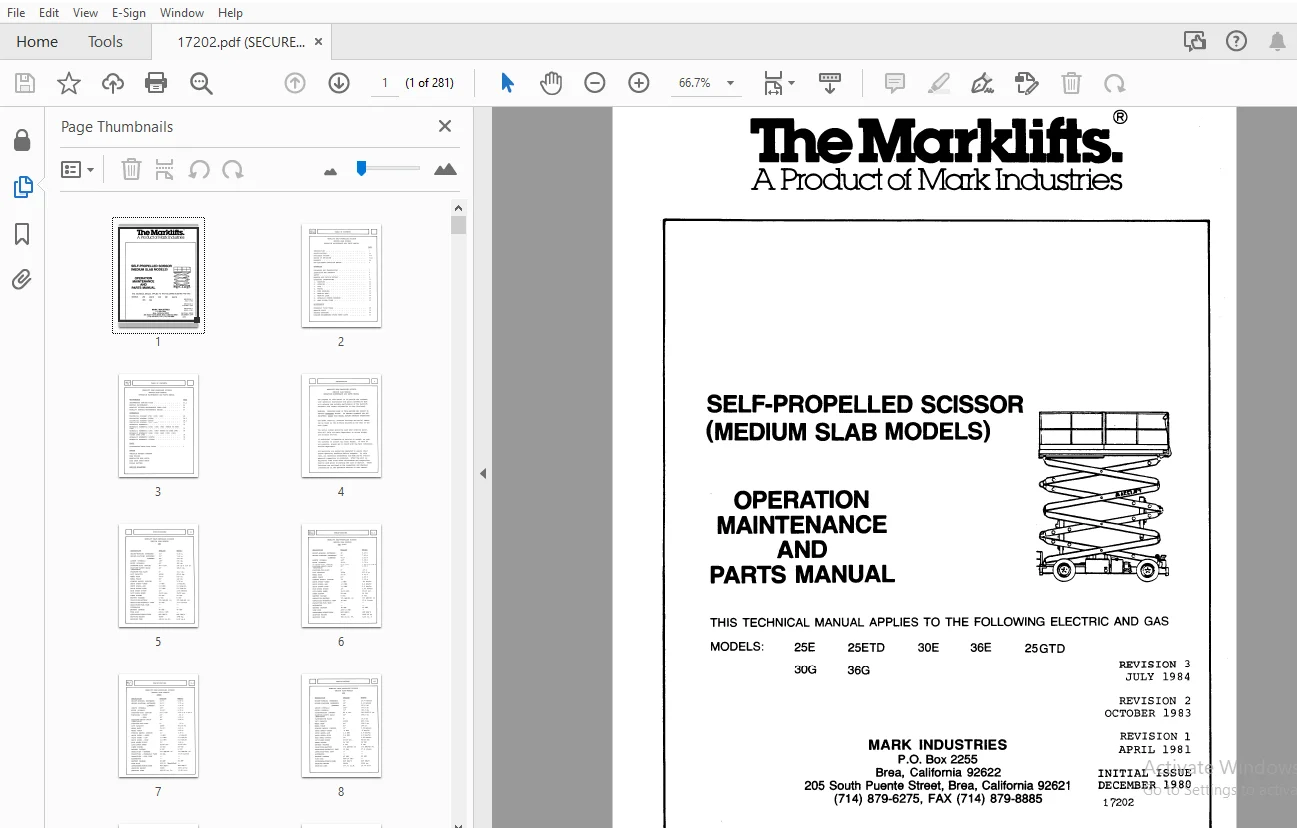

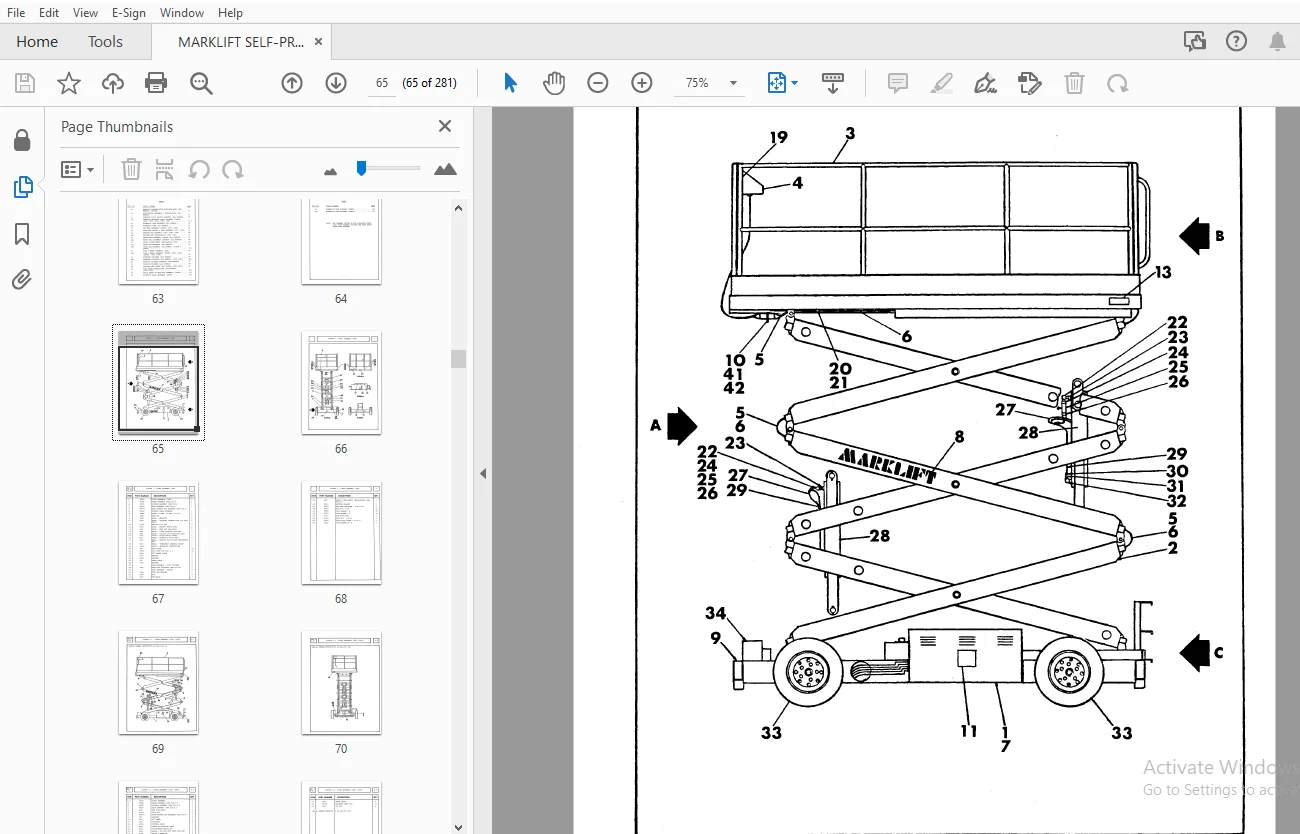

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

MARKLIFT 25E 25ETD 30E 36E 25 GTD 30G 36G SELF-PROPELLED SCISSOR (MEDIUM SLAB MODELS) OPERATION & PARTS MANUAL 17202 – PDF DOWNLOAD

INTRODUCTION
SPECIFICATIONS
AVAILABLE OPTIONS
RECORD OF REVISIONS
WARRANTY
NEW EQUIPMENT CONDITION REPORT

OPERATION

• UNLOADING AND TRANSPORTING
• INSPECTION AND CHECKOUT
• SAFETY
  • WARNING AND CAUTION DECALS
  • OPERATING INSTRUCTIONS
    1. STARTING
    2. STEERING
    3. LIFT
    4. TRAVEL
    5. FREE WHEELING
    6. WARNING HORN
    7. WARNING LIGHT
    8. HYDRAULIC SYSTEM PRESSURE
    9. NON-FILLED TIRES

MAINTENANCE

• HYDRAULIC FLUID TABLE
• SERVICE TOOLS
• TROUBLE SHOOTING
• MINIMUM RECOMMENDED SPARE PARTS LISTS
• RECOMMENDED SERVICE TOOLS
• BATTERY MAINTENANCE
• MARKLIFT SCISSOR MAINTENANCE CHECK LIST
• MARKLIFT SERVICE MAINTENANCE RECORD

SCHEMATICS

• ELECTRICAL DIAGRAM (252) (30E) (36E)
• ELECTRICAL DIAGRAM (25ETD)
• ELECTRICAL DIAGRAM (25TD)
• ELECTRICAL DIAGRAM (30G) (35G)
• HYDRAULIC SCHEMATIC
• HYDRAULIC SCHEMATIC (25E) (30E) (36E) (MARCH TO JUNE 1980)
• HYDRAULIC SCHEMATIC (30C) (36C) (MARCH TO JUNE 1980)
• HYDRAULIC SCHEMATIC (25E) (30E) (36E) (30C) (36C) (AFTER JUNE 1980)
• HYDRAULIC SCHEMATIC (25ETD)
• HYDRAULIC SCHEMATIC (25GTD)

PARTS

• ILLUSTRATED PARTS LIST INDEX

VENDOR

• CHRISTIE BATTERY CHARGER
• ONAN ENGINE
• PRESTOLITE PUMP MOTOR
• ROSS GEAR DRIVE MOTOR
• TROJAN BATTERY

SERVICE BULLETINS

S.S 05/24
