MARKLIFT 80C ,80C ,100C SELF-PROPELLED BOOM OPERATION & PARTS MANUAL – PDF

Description

MARKLIFT 80C (4X4) , 80C (6X4) , 100C (6X4) SELF-PROPELLED BOOM OPERATION & PARTS MANUAL 17125 – PDF DOWNLOAD

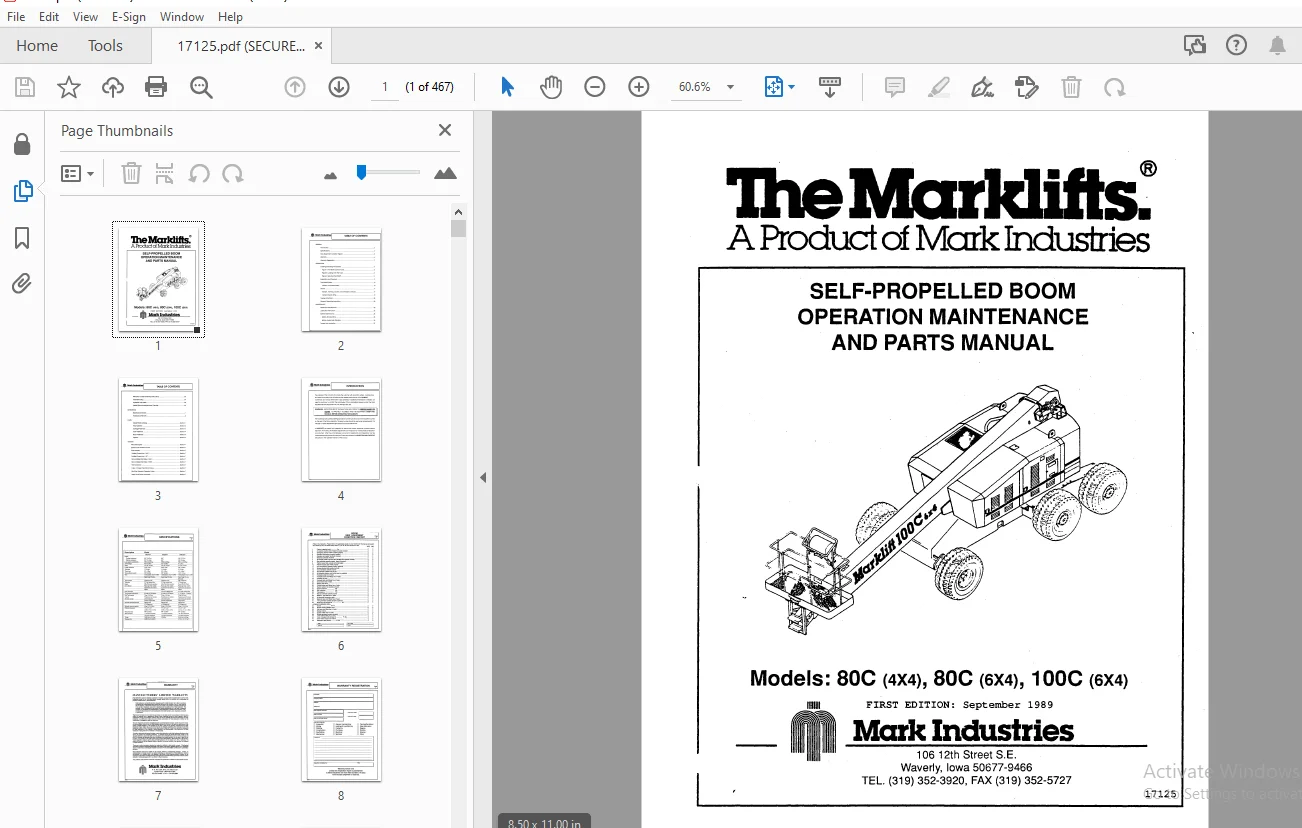

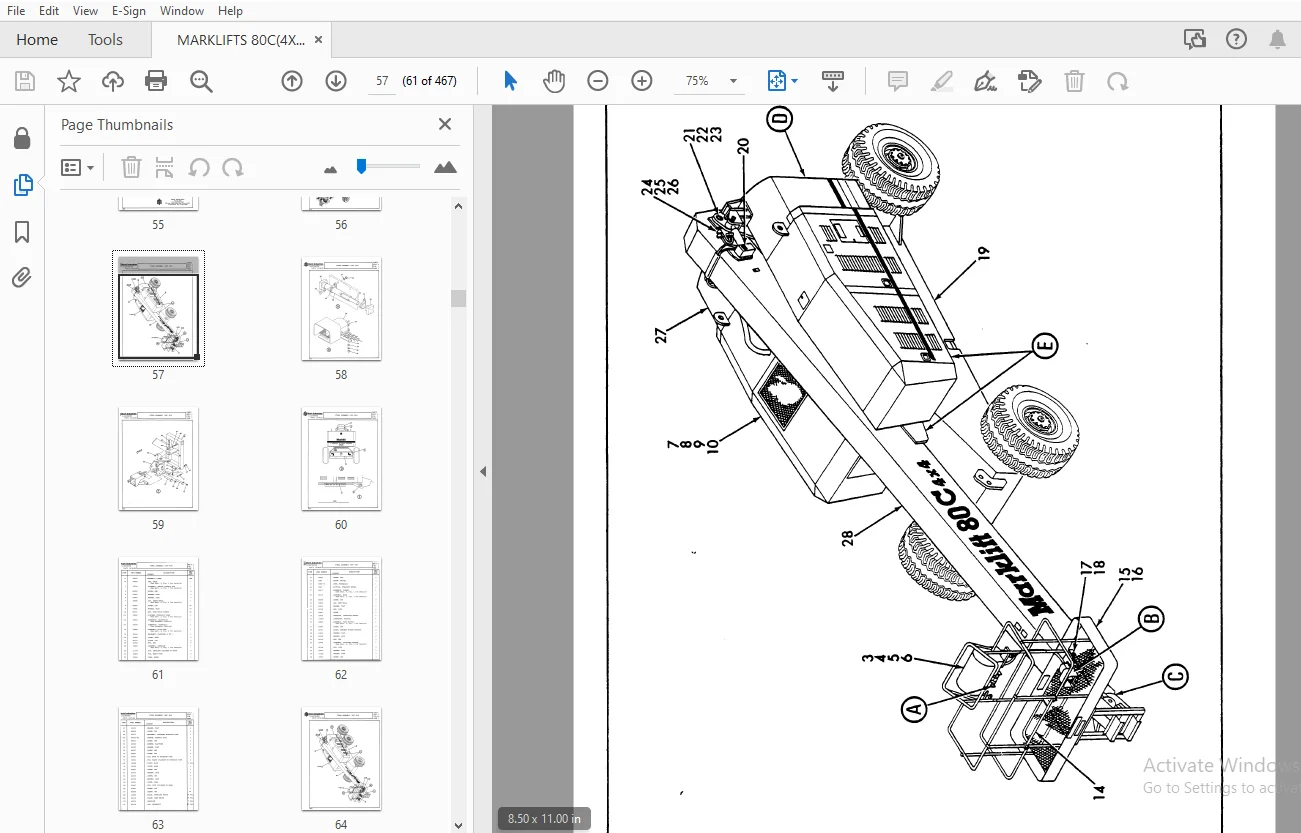

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

MARKLIFT 80C (4X4) , 80C (6X4) , 100C (6X4) SELF-PROPELLED BOOM OPERATION & PARTS MANUAL 17125 – PDF DOWNLOAD

GENERAL

• Introduction
• New Equipment Condition Report
• Warranty
• Warranty Registration

OPERATIONS

• Loading/Unloading Procedures
  • Figure I: Park Brake Control Valve
  • Figure 2: Loading onto The Truck
  • Figure 3: Securing the Marklift
• Inspection and Checkout
• The Marklift Safety
• Division of Industrial Safety
• Danger, Warning, Caution, and Emergency Decals
• General Decal Listing
• Towing Instructions
• General Operating Instructions

MAINTENANCE

• Preventive Maintenance
• Lubrication Instructions
• Battery Maintenance
  • Battery Fill Instructions
  • Battery Hydrometer Reading
• Torque Hub Lubrication
• Retraction Cable Tensioning Instructions
• Hydraulic Fluid Table
• Marklift Service Maintenance Checklist

SCHEMATICS

• Electrical Schematic
• Hydraulic Schematic

PARTS

• Marklift Parts Catalog
• Carriage Assembly
• Boom Assembly

VENDOR

• Hunter Hydro-Throttle Control
• Trojan Battery
• Fairfield Torque Hub – W3-P
• Fairfield Torque Hub – SIC
• Mico Multiple Disc Brake – SAE C
• Mico Multiple Disc Brake – SAE 8
• TRW Torqmotor
• Pulsar VP Series: Proportional Valve
• Mini-Pak Solenoid Operated Valve
• Helac Pivot Rotary Actuators
