Maruti Suzuki Eeco OBD-II Diagnostic Service Manual Petrol CNG Bi-Fuel PDF

Description

Maruti Suzuki Eeco OBD-II Diagnostic Service Manual Petrol CNG Bi-Fuel PDF DOWNLOAD

DESCRIPTION

Maruti Suzuki Eeco – Complete OBD-II Service & Diagnostic Manual

This is a comprehensive OBD-II service manual specifically designed for the Maruti Suzuki Eeco, covering both petrol (gasoline) models and bi-fuel CNG/Petrol variants. This professional technical manual provides in-depth coverage of the on-board diagnostic system, engine control systems, emission control diagnostics, and critical vehicle systems.

With 198 pages of detailed technical information, this manual is essential for technicians, mechanics, and service centers working on Maruti Suzuki Eeco vehicles equipped with OBD-II diagnostic systems.

Model Code: YG8 Series

📋 COMPREHENSIVE SECTION COVERAGE

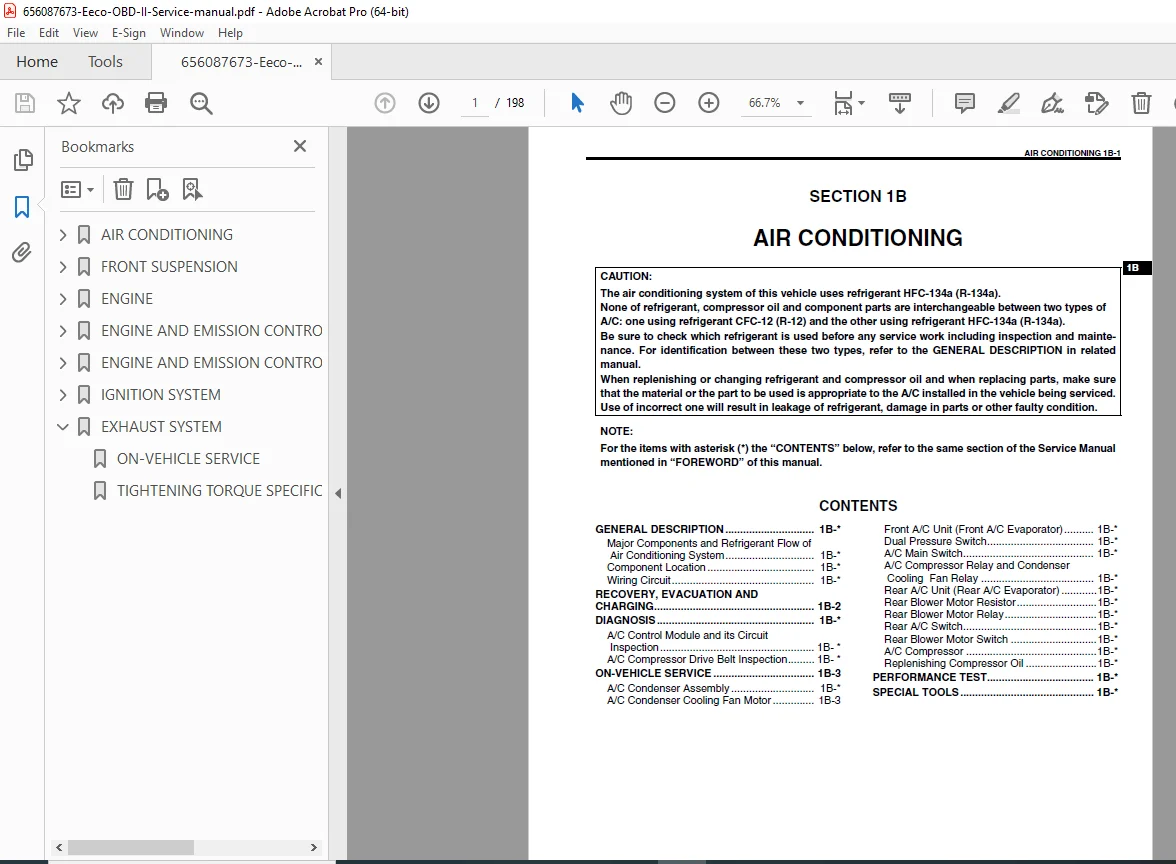

SECTION 1B – AIR CONDITIONING SYSTEM

• General Description
  • Major components and refrigerant flow diagram
  • Component location identification
  • Wiring circuit diagrams
  • HFC-134a (R-134a) refrigerant system specifications
• Recovery, Evacuation and Charging
  • Proper refrigerant recovery procedures
  • System evacuation methodology
  • Charging operation procedures
  • Refrigerant capacity: 350-390 grams (370±20g)
  • Low pressure specifications: 200-300 kPa (29-43 psi) at 25-35°C
  • High pressure specifications: 1370-1670 kPa (200-244 psi) at 25-35°C
• Diagnosis and Testing
  • A/C control module circuit inspection
  • A/C compressor drive belt inspection
  • Performance test procedures
• On-Vehicle Service Components
  • A/C condenser assembly service
  • A/C condenser cooling fan motor
    • Continuity testing procedures
    • Reference current: 5.2-8.2A at 12V
  • Front A/C unit (evaporator) service
  • Dual pressure switch replacement
  • A/C main switch diagnosis
  • Compressor relay and fan relay testing
  • Rear A/C unit service (if equipped)
  • Rear blower motor and resistor
  • Rear A/C switch and blower motor switch
  • A/C compressor service and oil replenishment
• Special Tools and Equipment
  • Required service materials
  • Air conditioning basic manual reference (99520-02130)

SECTION 3D – FRONT SUSPENSION SYSTEM

• General Description
  • Strut-type independent suspension design
  • Component relationship and operation principles
  • Steering knuckle and ball joint configuration
• Diagnosis and Inspection
  • Stabilizer bar and bushing check
  • Compression rod and bushing inspection
  • Strut damper testing procedures
  • Suspension control arm inspection
  • Control arm bushing verification
  • Control arm joint testing
  • Wheel hub, disc, nut and bearing check
• On-Vehicle Inspection and Service

Stabilizer Bar and Bushings

• Removal and installation procedures
• Proper bushing alignment with slip ring
• Identification painting orientation
• Mounting bracket installation
• Torque specifications:
  • Stabilizer mount bolt: 25 N·m (2.5 kg-m, 18 lb-ft)
  • Stabilizer upper/lower nut: 50 N·m (5.0 kg-m, 36.5 lb-ft)

Strut Damper Assembly

• Complete removal procedures
• Brake hose disconnection
• Strut support nut removal
• Disassembly using spring compressor (Special Tool: 09940M71431)
• Component identification and assembly order
• Coil spring directional installation
• Strut bearing service and lubrication (GREASE A 99000M25010)
• Bump stopper, spring seat installation
• Proper reassembly sequence
• Torque specifications:
  • Strut nut: 50 N·m (5.0 kg-m, 36.5 lb-ft)
  • Strut bracket nut: 105 N·m (10.5 kg-m, 77.4 lb-ft)
  • Strut support nut: 73 N·m (7.3 kg-m, 53 lb-ft)
• Required Service Materials
  • Suzuki Super Grease A (99000M25010) for strut bearing
• Special Tools
  • Hexagon wrench socket (09900M00411)
  • Hexagon wrench bit 6mm (09900M00414)
  • Socket wrench 17mm (09945M26010)
  • Coil spring compressor (09940M71431)

SECTION 6 – ENGINE GENERAL

• Precautions
  • Fuel system service precautions
  • Engine service safety warnings
  • Troubleshooting precautions
  • CNG control module circuit inspection precautions (bi-fuel models)
  • DTC troubleshooting guidelines
  • CAN communication system precautions
• General Engine Information
  • Engine diagnosis procedures
  • Diagnostic flow tables
  • Engine diagnosis tables
• Fuel System Service (Petrol and CNG)
  • Fuel line disconnection procedures
  • Fuel pressure relief methods
  • Service mode activation using Suzuki scan tool
  • CNG shortage control procedures
  • Forced CNG operation for diagnostics

SECTION 6E – ENGINE AND EMISSION CONTROL SYSTEM (Petrol Models)

• Precautions
  • Fuel system service safety
  • Engine control system handling
• General Description

On-Board Diagnostic (OBD) System

• ECM (Engine Control Module) functions
• Malfunction Indicator Lamp (MIL) operation
• DTC detection and storage logic
• 3 driving cycle detection methodology
• Freeze frame data storage
• DLC (Data Link Connector) communication

System Components

• Engine diagnosis general description
• CAN communication system description
• Air intake system overview
• Fuel delivery system architecture
• Electronic control system details
• Engine and Emission Control Input/Output Table
  • Complete sensor and actuator listing
  • Signal flow documentation
• Schematic and Routing Diagrams
  • Engine and emission control system diagram
  • System flow diagrams

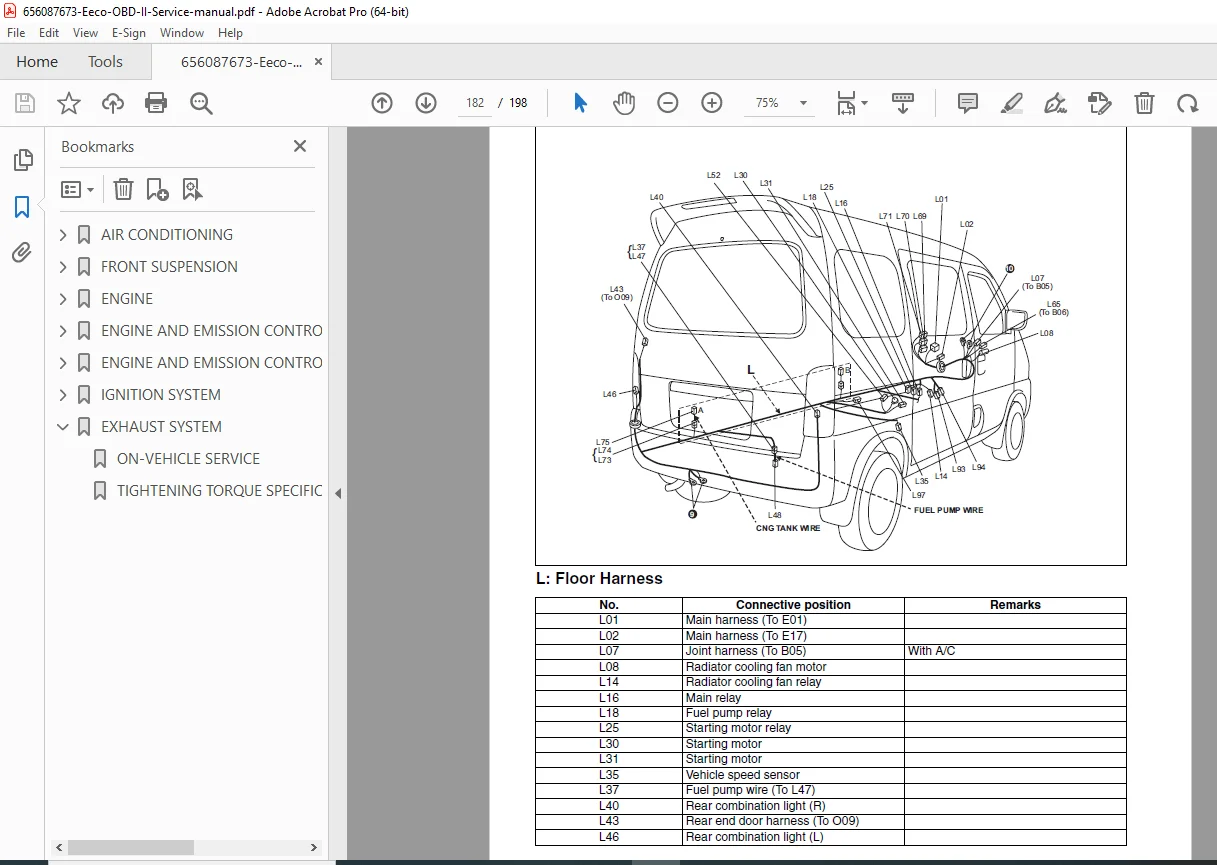

  • Wiring harness routing
  • Color-coded wire identification
• Diagnostic Trouble Codes (DTCs)

Complete DTC Coverage Including:

• P0112 – Intake Air Temperature Sensor Circuit Low
• P0113 – Intake Air Temperature Sensor Circuit High
• P0122 – Throttle Position Sensor Circuit Low
• P0123 – Throttle Position Sensor Circuit High
• P0171 – System Too Lean (Bank 1)
• P0172 – System Too Rich (Bank 1)
• Plus additional DTCs with diagnostic procedures

Each DTC section includes:

• Code definition and description
• Detection logic and conditions
• Freeze frame data parameters
• Step-by-step diagnostic flowcharts
• Circuit diagrams
• Component testing procedures
• Repair verification steps
• Circuit Checks and System Testing
  • A/C control signal verification (if equipped)
  • Radiator fan control system circuit check
  • Fuel cut operation testing
  • EVAP canister purge system inspection
  • IAC (Idle Air Control) valve operation inspection
• Repair Instructions
  • Accelerator cable and pedal adjustment
  • Idle speed and IAC duty inspection
  • IAC valve removal, inspection, installation
  • Throttle body on-vehicle inspection
  • Vehicle Speed Sensor (VSS) service
  • CMP (Camshaft Position) sensor service
  • CMP sensing rotor inspection
  • CKP (Crankshaft Position) sensor service
  • Knock sensor service procedures
  • Fuel pressure inspection
  • Fuel pump on-vehicle inspection

SECTION 6E1 – ENGINE AND EMISSION CONTROL SYSTEM (Bi-Fuel CNG Models)

• Complete CNG-Specific Coverage
  • Bi-fuel system operation principles
  • CNG control module diagnostics
  • Fuel selection system operation
  • CNG-specific DTCs and troubleshooting
  • CNG pressure sensor testing
  • Fuel changeover procedures
  • CNG injector service
  • Gas pressure regulator inspection
• Safety Precautions for CNG Systems
  • High-pressure system handling
  • CNG leak detection procedures
  • System depressurization methods

SECTION 6F – IGNITION SYSTEM

• Ignition System Components
  • Ignition coil testing procedures
  • Spark plug specifications
  • Distributor service (if applicable)
  • Ignition timing verification
  • Primary and secondary circuit diagnostics
• Ignition Circuit Diagnostics
  • No-start diagnosis
  • Misfire detection
  • Ignition signal testing
  • Coil resistance measurements

SECTION 6K – EXHAUST SYSTEM

• Exhaust System Components
  • Exhaust manifold service
  • Catalytic converter information
  • Oxygen sensor location and service
  • Muffler and tailpipe replacement
  • Exhaust system hanger service
  • Gasket and seal replacement
• Emission Control Components
  • Catalytic converter efficiency monitoring
  • Oxygen sensor testing procedures
  • Exhaust gas temperature considerations

🔧 KEY TECHNICAL FEATURES

✅ OBD-II Diagnostic System – Complete coverage of on-board diagnostics with scan tool communication
✅ Dual Fuel Coverage – Separate sections for petrol and bi-fuel CNG/petrol systems
✅ DTC Database – Comprehensive diagnostic trouble code definitions with repair procedures
✅ Freeze Frame Data – Understanding stored diagnostic conditions
✅ CAN Communication – Controller Area Network system diagnostics
✅ Sensor Testing – Detailed procedures for all engine sensors
✅ Wiring Diagrams – Complete electrical schematics with color codes
✅ Torque Specifications – All critical fastener torque values
✅ Special Tools – Identification of required specialized equipment
✅ Step-by-Step Procedures – Logical diagnostic flowcharts

📄 FILE DETAILS

🚗 COMPATIBLE VEHICLES

This manual covers:

• Maruti Suzuki Eeco – All variants
• Petrol Models – Standard gasoline engine
• CNG Models – Factory bi-fuel CNG/Petrol system
• 5-Seater and 7-Seater configurations
• Standard and AC variants

Primary Markets: India and export markets where Maruti Suzuki Eeco is sold

💡 WHO NEEDS THIS MANUAL?

• Maruti Suzuki Service Technicians – Official diagnostic and repair procedures
• Independent Mechanics – Professional-grade service information
• Auto Repair Shops – Complete OBD-II diagnostic reference
• CNG Conversion Specialists – Bi-fuel system diagnostics and service
• Fleet Maintenance Teams – Commercial Eeco fleet servicing
• Automotive Electricians – Wiring diagrams and electrical system diagnostics
• Diagnostic Technicians – DTC troubleshooting and scan tool operation
• DIY Enthusiasts – Advanced repair and maintenance procedures

🎯 WHY THIS MANUAL IS ESSENTIAL

OBD-II Compliance: This manual specifically addresses the OBD-II diagnostic system, making it invaluable for modern emission testing and diagnostics. Without proper OBD-II knowledge, diagnosing check engine lights and emission failures is nearly impossible.

CNG Bi-Fuel Coverage: One of the few comprehensive resources covering factory CNG/petrol bi-fuel systems. Essential for markets where CNG conversions are common.

Professional Diagnostics: Learn to use scan tools effectively with proper DTC interpretation, freeze frame data analysis, and systematic troubleshooting approaches.

Money-Saving Resource: Avoid expensive dealership diagnostic fees by performing your own OBD-II diagnostics and repairs with factory procedures.

Emission System Expertise: Understand catalytic converters, oxygen sensors, EVAP systems, and all emission control components to keep your Eeco running clean and efficient.

⚙️ SUPPORTED DIAGNOSTIC TOOLS

• Suzuki Scan Tool (recommended for full functionality)
• CAN Communication OBD Generic Scan Tools
• Standard OBD-II Code Readers
• Multi-brand automotive diagnostic equipment

📊 CRITICAL SPECIFICATIONS AT A GLANCE

Air Conditioning:

• Refrigerant: HFC-134a (R-134a)
• Capacity: 350-390 grams
• Condenser fan current: 5.2-8.2A at 12V

Front Suspension:

• Strut nut torque: 50 N·m (36.5 lb-ft)
• Strut bracket nut: 105 N·m (77.4 lb-ft)
• Stabilizer bar torques: 25-50 N·m

Diagnostic System:

• OBD-II compliant
• CAN communication capable
• Freeze frame data storage
• 3 driving cycle detection logic

⚡ INSTANT DOWNLOAD – DIAGNOSE AND REPAIR TODAY!

Stop guessing when the check engine light comes on! This complete Maruti Suzuki Eeco OBD-II service manual gives you the exact diagnostic procedures and repair instructions used by factory-trained technicians. Whether you’re troubleshooting a DTC code, servicing the air conditioning system, repairing front suspension, or maintaining a CNG bi-fuel system, this manual provides step-by-step guidance with clear diagrams and specifications. Download instantly and have professional diagnostic capabilities at your fingertips – perfect for DIY repairs, professional service work, or fleet maintenance!

Pricing Rationale:

• Specialized OBD-II diagnostic manual (198 pages)
• Unique bi-fuel CNG coverage (limited availability)
• Strong demand in Indian market and CNG markets
• Covers multiple critical systems comprehensively
• Professional diagnostic and repair procedures
• Essential for emission testing and diagnostics
• Moderate page count but highly focused content
• Niche vehicle with specific service needs
