MASCHIO A-AL USE & MAINTENANCE / PARTS MANUAL 00559200 – PDF

Description

MASCHIO A-AL USE & MAINTENANCE / PARTS MANUAL 00559200 – PDF DOWNLOAD

FILE DETAILS:

MASCHIO A-AL USE & MAINTENANCE / PARTS MANUAL 00559200 – PDF DOWNLOAD

Language : Italian, English, German, French & Spanish
Pages : 30
Downloadable : Yes
File Type : PDF

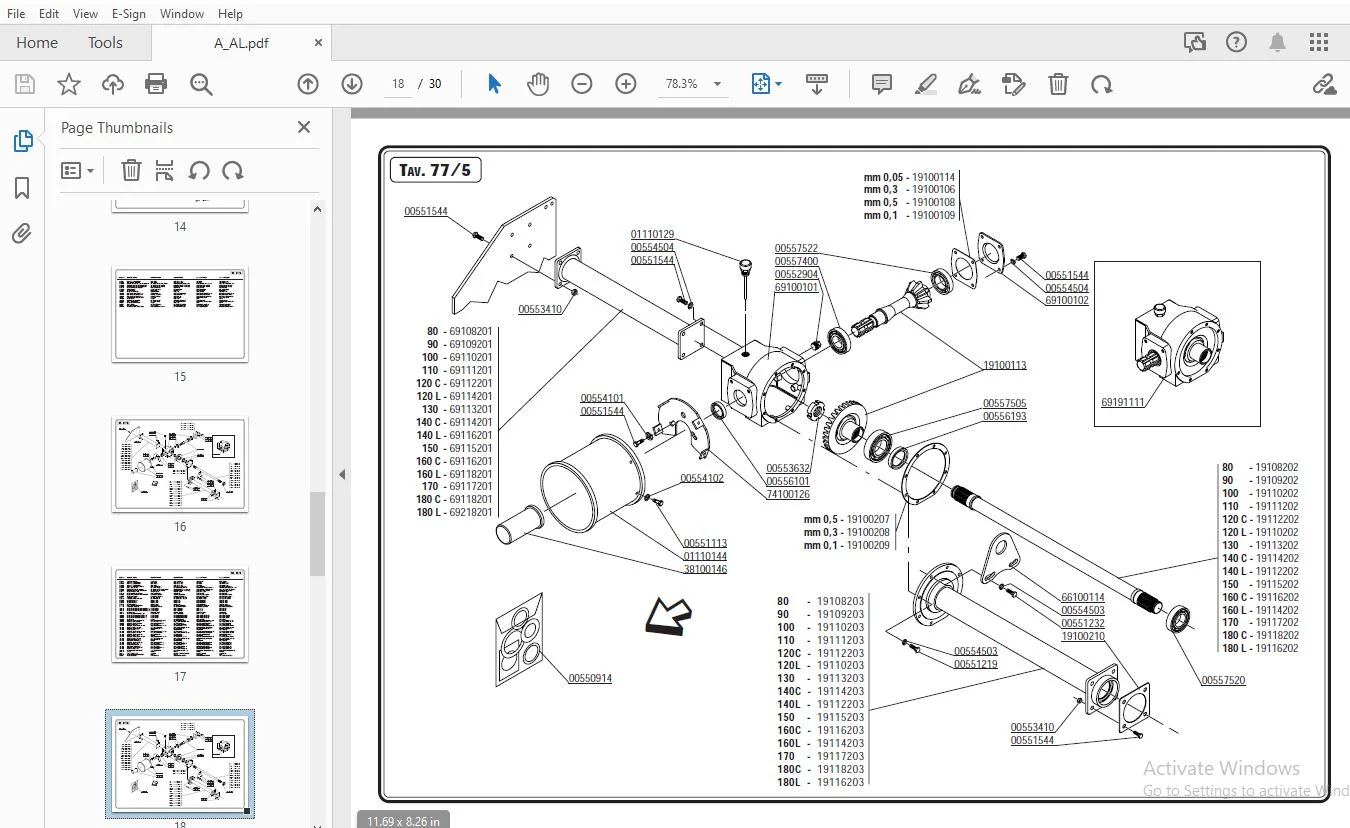

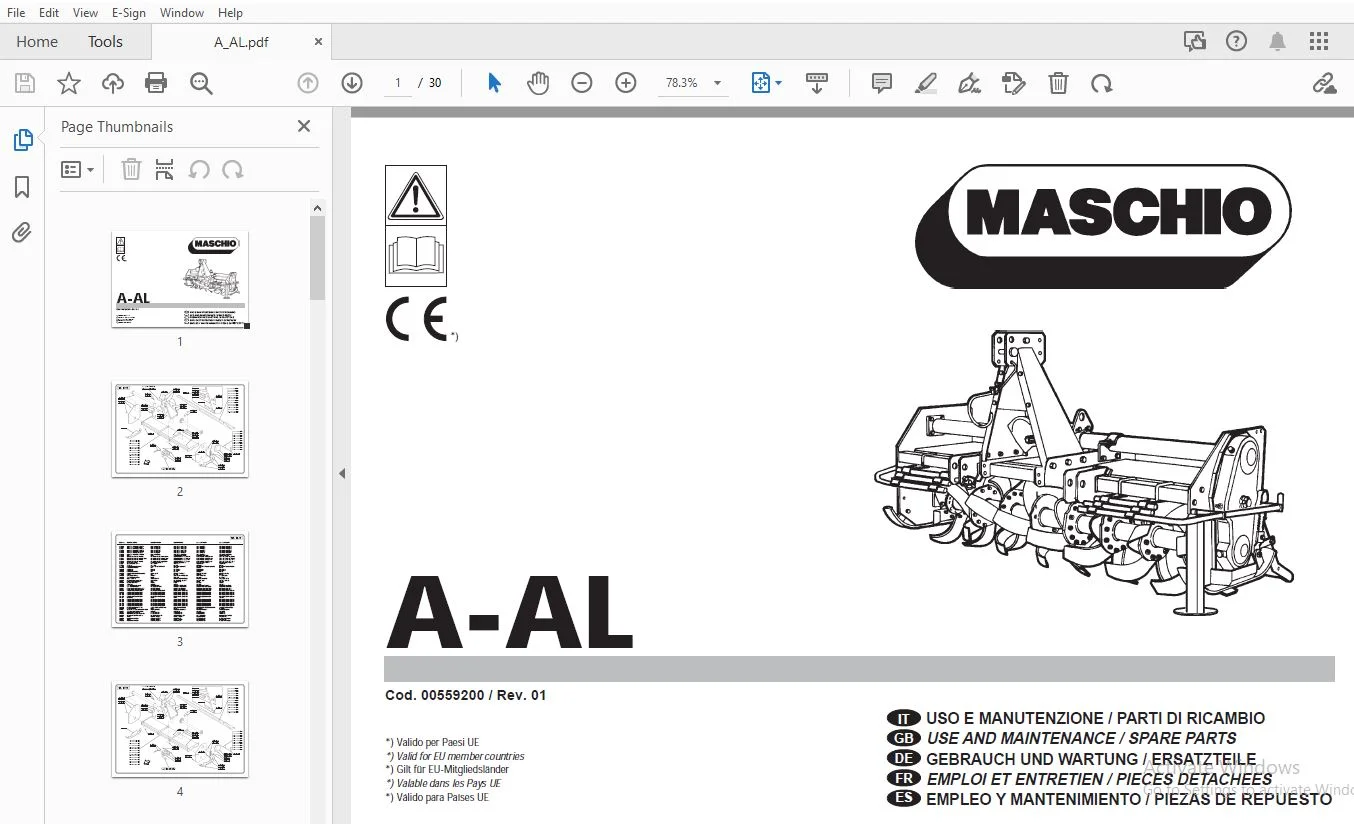

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

MASCHIO A-AL USE & MAINTENANCE / PARTS MANUAL 00559200 – PDF DOWNLOAD

1. Bolt M10X1.25X25
2. Bolt M12X1.25X25
3. Bolt M12X1.25X30
4. Bolt M12X1.25X35
5. Bolt M12X1.25X40
6. Bolt M16X1.5X40
7. Plug
8. Self-Locking Nut M10X1.25 980V
9. Self-Locking Nut M12X1.25 980V
10. Self-Locking Nut M14X1.5 980V
11. Self-Locking Nut M16X1.5 980V
12. Grower Washer D.10
13. Split Pin D.11
14. Adjuster Toothed Plate
15. Pin
16. Pin D.28
17. Pin D.22
18. Bush 3 Point
19. Pin
20. Stirrup
21. U Bolt
22. Skid Adjuster
23. Shaft Hook
24. Lock
25. Spring
26. Support
27. Chain Side Skid
28. External Side Skid
29. Side Protection

Levelling Plates and Hinges

30. Hinge Pin Levelling Plate
31. Hinge Pin Levelling Plate
32. Hinge Pin Levelling Plate
33. Hinge Pin Levelling Plate
34. Hinge Pin Levelling Plate
35. Hinge Pin Levelling Plate
36. Hinge Pin Levelling Plate
37. Hinge Pin Levelling Plate
38. Hinge Pin Levelling Plate
39. Hinge Pin Levelling Plate
40. Assembly Against Overturning Plate

Additional Components

41. Locking Stirrup
42. Support
43. Reinforcement
44. Reinforcement
45. External Side Panel
46. Levelling Bonnet
47. Complete Frame

S.S 11/24
