MASCHIO GASPARDO DC RAPIDO COMBI Operator & Parts Manual PDF

Description

MASCHIO GASPARDO DC RAPIDO COMBI USE & MAINTENANCE / PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

MASCHIO GASPARDO DC RAPIDO COMBI USE & MAINTENANCE / PARTS MANUAL – PDF DOWNLOAD

Language : Italian, English, French, German & Spanish
Pages : 42
Downloadable : Yes
File Type : PDF

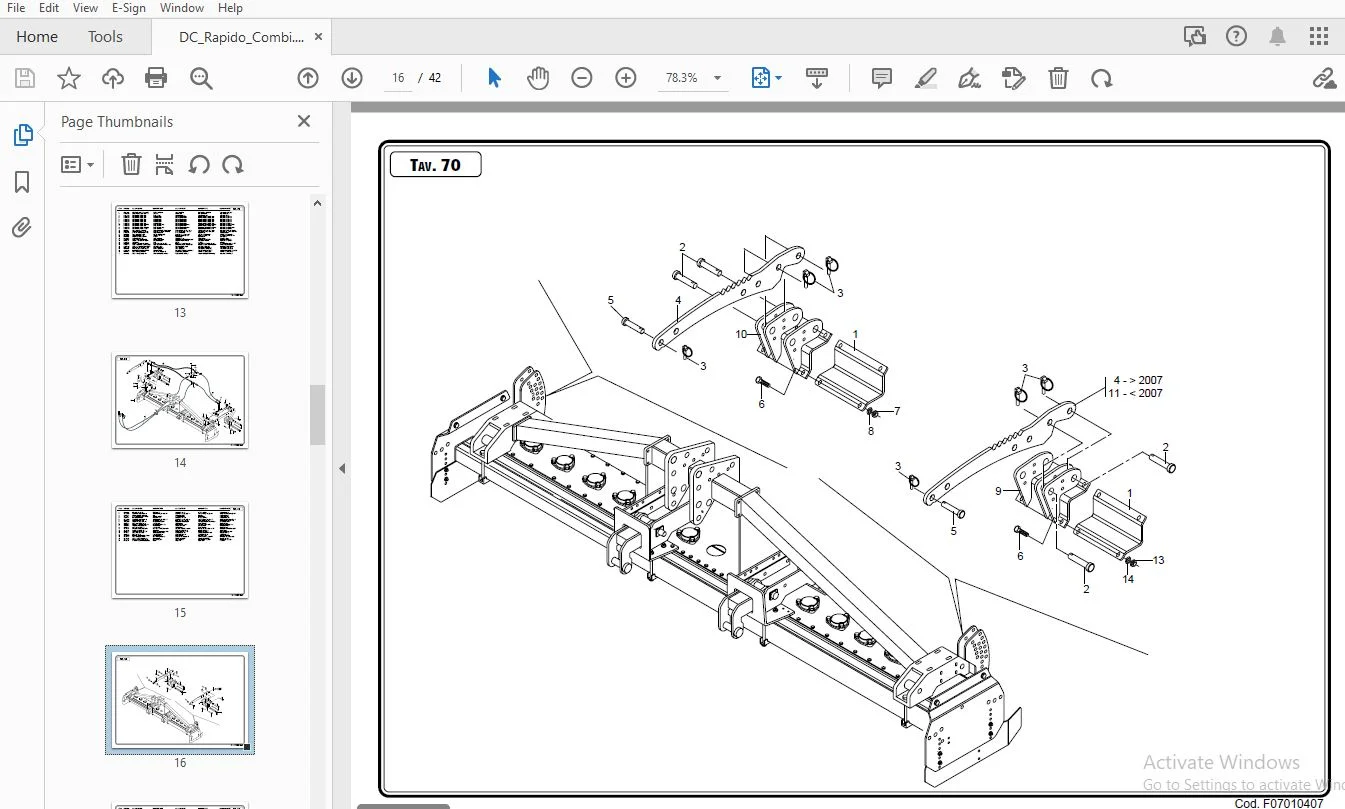

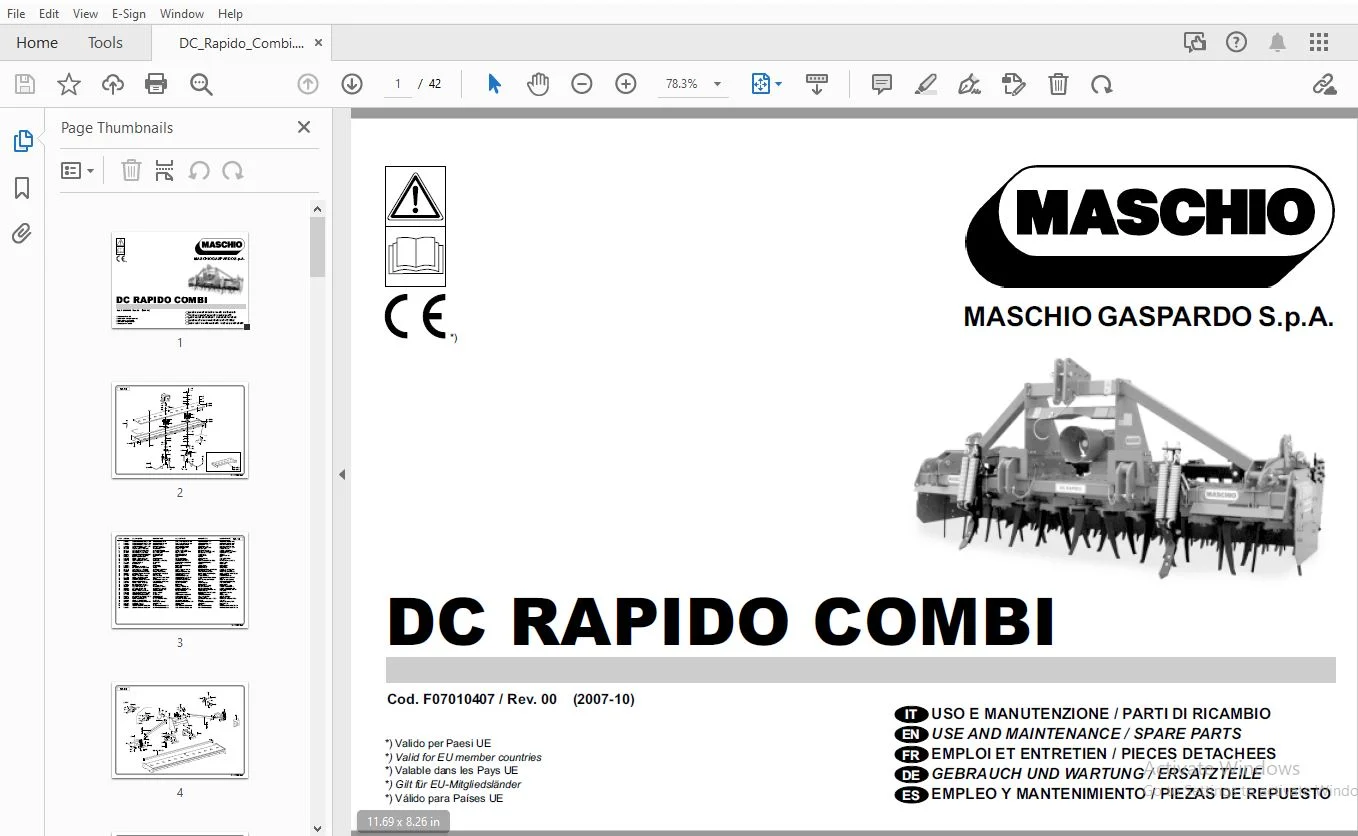

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

MASCHIO GASPARDO DC RAPIDO COMBI USE & MAINTENANCE / PARTS MANUAL – PDF DOWNLOAD

• TRANSMISSION BOX 2500
• TRANSMISSION BOX 1=3000
• UPPER PLATE L=2464
• UPPER PLATE L=2964
• NUT M10X1.25 D968 ZB
• WASHER 10.5X21
• GROWER WASHER D.10
• BOLT M10X1.25X30 U3740 8.8 ZB
• BOLT M10X1.25X35
• BEARING SUPPORT
• BEARING 6207 2RS
• GUIDE
• SEEGERRING D.80
• GASKET OR
• SELF-LOCKING NUT M45X1.5
• OIL INLET CAP
• GEAR
• INNER FLANGE
• GASKET MM.05
• SPACER
• WASHER M12ZGP EXTRA P.
• BOLT M12X1.25X35
• LATERAL BLADE SUPPORT
• BLADE QUICK-FIT 12MM RIGHT
• PIN D=16 L=117
• ELASTIC PIN 8X28
• ELASTIC PIN 8X35 U8715 C70 BR
• BLADE QUICK-FIT 12MM LEFT
• FLANGE BOTTOM SUPPORT DCC
• SEEGERRING D.90
• SPACER
• BOLT M10X1.25X35
• WASHER D=65 D=1.05 L=0.1
• WASHER D=65 D=1.05 L=0.5
• SPACER D=65 D=1.45 L=0.8
• SEEGERRING D.65
• SEALING PACKAGE
• GASKET
• OIL INLET CAP
• STIFFENING WEDGE
• BEARING 6210 2RS
• OIL SEAL 85X65X3177 SPEC.
• GASKET OR
• CENTER BLADE SUPPORT
• SPLIT PIN 5X100
• CRANK
• COMPLETE BOX DCR SCM 2500
• COMPLETE BOX DCR SCM 3000
