Massey Ferguson AGNO Power SA 168 AWF Engine Operator’s Manual – PDF DOWNLOAD

Description

Massey Ferguson AGNO Power SA 168 AWF Engine Operator’s Manual – PDF DOWNLOAD

5th Generation 168 AWF Engine
AGCOPOWER

DESCRIPTION:

Massey Ferguson AGNO Power SA 168 AWF Engine Operator’s Manual – PDF DOWNLOAD

1.1 Safety instructions
Л WARNING: ln the use and service of the engine there is always the possibllity of injury.
.. Before starting the service read and understand the safety instructions and remarks!
• When you are operating the engine or working near it, use hearing protectors to avoid noise impacts.
• lf you start the engine indoors, Ье sure to have proper ventilation.
• Never use aerosol type of starting aid! (Risk for explosion, personal injuries and engine damage!)
• Start the engine only Ьу using the starting switch in the cabin.
• Stop the engine always before service or repair work.
• Open fire, smoking and sparks should not Ье allowed near the fuel system and batteries. (Specially
when loading batteries, explosive.)
• Open the radiator сар with саге when the engine is hot as the cooling system is pressurised. The
cooling liquid and lubrication oil of а hot engine causes injuries when in contact with skin.
• Avoid touching the exhaust manifold, turbocharger and the other hot parts of the engine.
• Always disconnect the negative (-) battery саЫе when servicing or repairing the electric system.
• Do not open high pressure pipe connectors of the fuel system when the engine is running. Wait atleast
3 0 sec. after stopping the engine. lf the jet of high pressure fuel contacts your skin, fuel penetrates the
skin causing severe injuries. Get medical help immediately!
• Кеер the engine surfaces clean in order to avoid the risk of fire.
• At temperatures on excess of ЗОО0 С, e.g. if the engine is burnt Ьу а fire, the viton seals of the engine
(e.g. the undermost o-ring of the cylinder liner) produce very highly corrosive hydrofluoric acid. Do not
touch with bare hands, viton seals subjected to abnormally high temperatures. Always use neoprene
rubber or heavy duty gloves and safety glasses when decontaminating. Wash the seals and the
contaminated area with а 1 О % calcium hydroxide or other alkaline solution. Put all removed material in
sealed plastic bags and deliver them to the point stated Ьу the Authorities concerned.
NOTE: Never dispose of viton sea/s Ьу buming !
• The fuel, lubricating oil and coolant cause irritation in long time skin contact.
• lf for example welding or similar high current work is done for the application, it is recommended to
disconnect electronic control unit main connector and SCR supply module connector before working.

TABLE OF CONTENTS:

Massey Ferguson AGNO Power SA 168 AWF Engine Operator’s Manual – PDF DOWNLOAD

1 Introduction 5
1 1 Safety instructions 7
1 2 То the user 8
1 2 1 Engine type designations 8
1 2 2 Location of the engine serial number 9
1 2 3 Marking of the electronic control unit 1 О
1 3 Technical data 11
1 3 1 Principal dimensions and data 11
1 3 2 Fuel system 11
1 3 3 Lubrication system 11
1 3 4 Cooling system 12
1 3 5 Electrical system 12
1 3 6 SCR system technical data 12
1 4 Engine overview 13
1 5 Oil filter and oil cooler 15
1 6 SCR system overview 16
2 Operation 17
2 1 Operation and driving 19
2 2 Daily pre-start check 20
2 3 Starting the engine 21
2 3 1 Break in the engine 2 1
2 4 Starting the engine in cold conditions 23
2 4 1 Warming up the engine 2 3
2 5 Start the engine with an auxiliary battery 24
2 6 Attention during operation 25
2 7 Stopping the engine 26
3 Maintenance 27
3 1 Periodical maintenance 29
3 2 Maintenance chart 30
3 3 Maintenance to Ье made daily or at 10 hours intervals 31
3 3 1 Do а check for the engine oil level 3 1
3 3 2 Check coolant level 3 1
3 3 3 Check for leakages 3 1
3 4 Maintenance to Ье made weekly or at 100 hours intervals 32
3 4 1 Clean cooling system (from outside) 3 2
3 4 2 Examining the condition of the belt 3 2
3 5 Maintenance to Ье made at 400 hours intervals 33
3 5 1 Change engine oil 3 3
3 5 2 Oil sump capacity 3 3
3 5 3 Change oil filter 3 3
3 5 4 Update the engine software 3 4
3 6 Maintenance to Ье made at 800 hours intervals 35
3 6 1 Change fuel filters 3 5
3 6 2 Bleed the fuel system 3 6
3 7 Maintenance to Ье made once а year 37
3 7 1 SCR system maintenance 3 7
5th Generation 168 AWF Engine
V837091046
ТаЬ!е of contents
3 7 2 Replace the main filter and the inlet filter of the supply module 3 7
3 8 Maintenance to Ье made every two years 39
3 8 1 Changing coolant 3 9
3 9 Additional maintenance instructions 40
3 9 1 Bleed the fuel system 40
3 9 2 Before the cold season 40
3 9 3 Tightening torques 41
3 9 4 Coolant quality requirements 41
3 9 5 Fuel quality requirements 41
3 9 5 1 Biodiesel Ыends 4 3
3 9 6 Air filter 4 4
4 TrouЬleshooting 45
4 1 Engine control system fault codes 47
4 2 TrouЫeshooting of the engine 48
5 lndex 5 3
5th Generation 168 AWF Engine

MASSEY FERGUSON AGNO POWER SA 168 AWF ENGINE OPERATOR’S MANUAL – PDF DOWNLOAD:

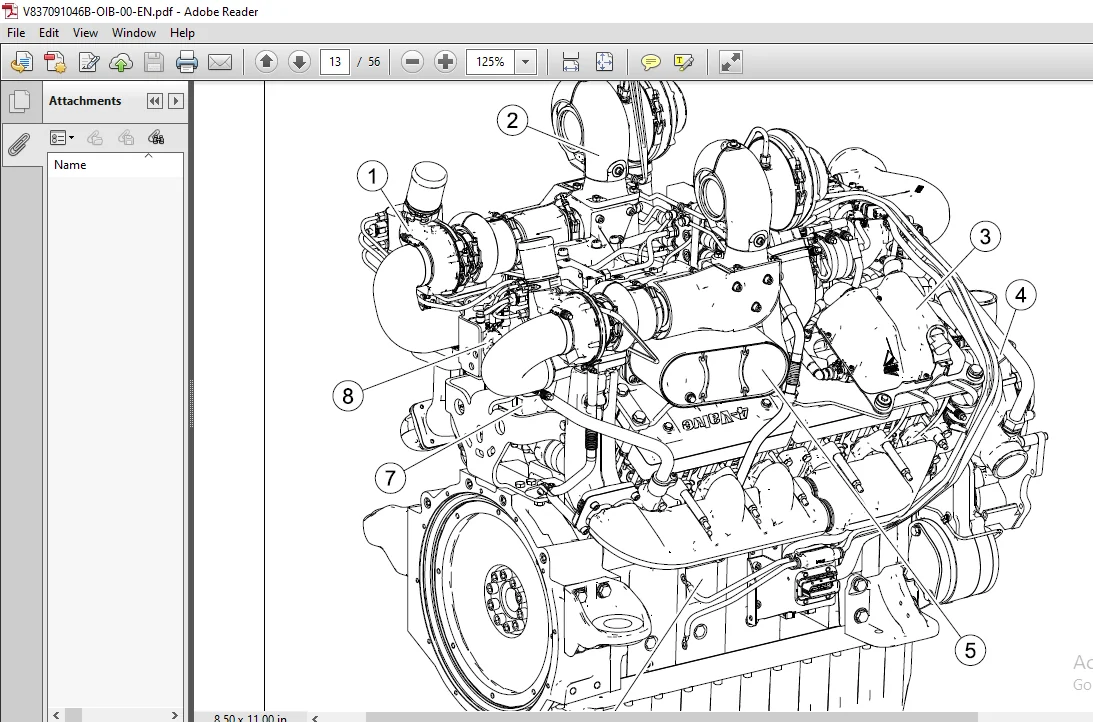

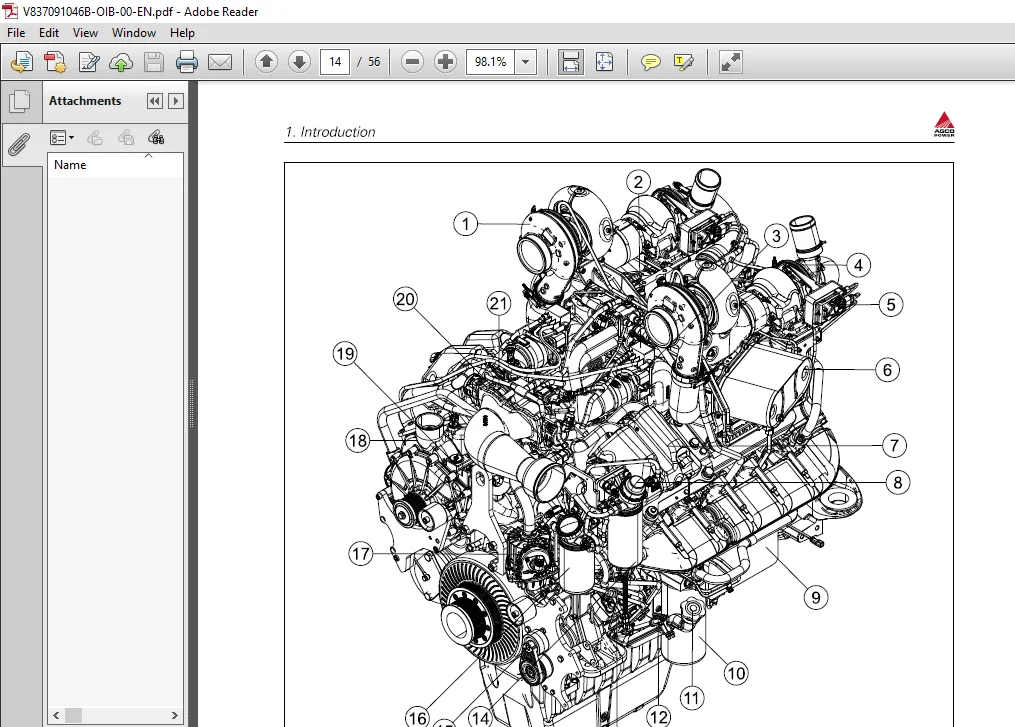

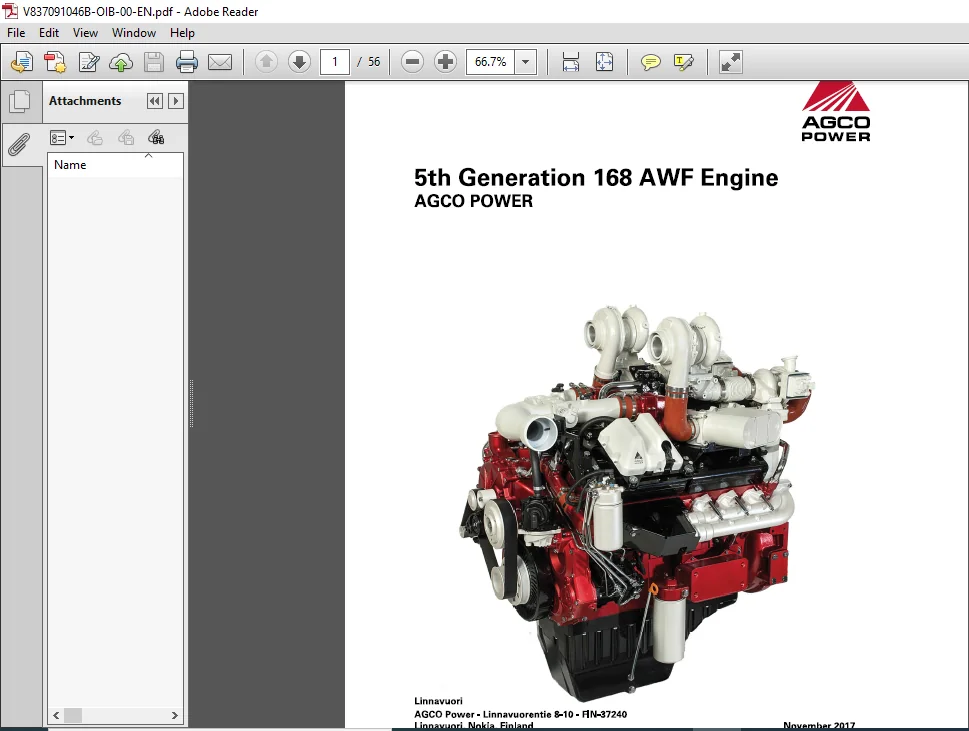

IMAGES PREVIEW OF THE MANUAL:
