Massey Ferguson D700C 700C Dozer Book Manual – PDF DOWNLOAD

Description

Massey Ferguson D700C 700C Dozer Book Manual – PDF DOWNLOAD

FILE DETAILS:

Massey Ferguson D700C 700C Dozer Book Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson D700C 700C Dozer Book Manual – PDF DOWNLOAD

MF D 700 C = Hanomag K 18 c E
MF 700 C = Hanomag K 18 c L
Publication No. 2 964 606 M1

GENERAL EXPLANATIONS ABOUT THE SPARE PARTS CATALOGUE:

Those spare parts which carry a “+” in the column “Bild-Nr. ” are not depicted.
“B” in front the figure number means : recommended for storing.
On principle exchange parts are identified by the Suffix “T” in the MF-No.
Remarks in the column “Bemerkung” : N = new part, U = not valid, substituded by the part listed under the
next number.
Additional parts carry a figure index number, like: 1 a, 1 b, 1 c.
Indented printing of the text indicates that the parts in question are components of the preceding underlined
assembly group.
Any parts of the standard equipment – Groups 1 to 14 – which are substituted when an extra equipment is mounted,
(Group 15) have been marked in the column “Bemerkung” and carry a foot-note.
Illustrations of spare parts are not binding in respect of the actual design of the individual parts.
The index of supply numbers of this catalogue contains all supply numbers, listed in numerical serial order. On
the right hand side of the supply numbers are the numbers of the page and the illustration under which the supply
number will be found in the catalogue.
The terms: left, right, front and rear, are to be understood as seen when looking in driving direction from driver’s
seat.
YOU WILL RECEIVE
your spare parts speedily and correctly provided you observe the following points:
1. All orders should be given on our order forms, provided no punched-card orders are made.
2. Order parts for building machines, exchange parts, exchange engines, always on separate order-sheets.
3. A typewriter should be used for ordering.
4. If there is a doubt, leave the supply number out, quote the number of the table and the illustration instead, in addition to engine number and chassis number.
5. The orders are handled using the punched card method basing on the supply numbers. Therefore, the terming of the part may serve only as an auxiliary hint to find the correct supply-number in case of doubt.
6. Give shipping instructions. If no instructions have been stated, we will forward the goods at our own discretion, without liability.
7. State your complete address, the next port, -railway station or airport.

TABLE OF CONTENTS:

Massey Ferguson D700C 700C Dozer Book Manual – PDF DOWNLOAD

1 ENGINE
1/1 ENGINE SUSPENSION
1/2 CRANKCASE
Timing gear cover, Oil sump, Flywheel housing
1/3 CRANK MECHANISM
Pistons, Connecting rods, Crankshaft, Flywheel
1/4 CYLINDER HEADS
Rockers, Valves
1/5 INJECTION SYSTEM
Injection pump, Injection lines, Injection nozzles
1/6 INJECTION PUMP. DRIVE
1/7 ENGINE TIMING GEAR
Camshaft, Tappets
1/8 – 1/9 reserved
1/10 ENGINE LUBRICATION SYSTEM
Oil pump, Oil filter, Oil lines
1111 ENGINE COOLING
Water pump, Fan, Tightening.device
1/12 COOLING WATER REGULATION
Thermostat, Cooling water lines
1/13 AIR INTAKE SYSTEM
Air filter, Preliminary filter, Vacuometer
Cool start system
1/14 EXHAUST SYSTEM
Exhaust muffler, Vertical pipe
1/15 reserved
2 COOLING SYSTEM
Radiator, Heat exchanger, Lines
3 4 reserved
29 – 31/4
31/6
33
35 – 37
Groip Subject
5 FUEL SYSTEM
Single-box filter, Primary filter, Fuel tank, Fuel lines 39 – 41
CONVERTER – PLANETARY GEAR
Drive 43
Converter 45
Gear housing 47 – 49
Gear pump, By-pass valve 51 – 53
Gear set 55 – 59
Housing 61
Control unit, Brake separating valve 63
Piping 65
Transmission lines, Filter 65/2
Linkages for transmission, gear shifting and acceleration 67 – 69
Universal joint shaft 71
Intermediate gear 73 – 75
7 STEERING
Steering operating linkage, Pedals
Steering device, Clutch, Brake
Steering clutch, Pipes
Steering ‘control device
8 FINAL DRIVE
Final drive housing, Support axle
Lines for flushing oil and pressure oil
Bevel gear
Lateral drive
TRACK ASSEMBLY of Dozers and Loaders
Track roller frame, Support axle housing
Track roller frame, Front and rear axle
Tensioning spring, Stone deflector, Track roller shield
Track idler wheel, Idler wheel fork
Track rollers
Support rollers
Tracks
10 ENGINE FRAME
Longitudinal beam, Bottom plating, Transversal spring
Floor plates
Towing device
11 SUPERSTRUCTURE
Radiator guard, Engine bonnet, Sides, Front wall
Track guard
Cabin
Windscreen wiper assembly
Driver’s seat
Heating
12 ELECTRICAL EQUIPMENT
Generator, Starter
Battery case, Headlamps
Instrument panel, Instruments
Wiring diagram
13 TOOLS, ACCESSORIES .
Factory sign
Tools
14 HYDRAULIC EQUIPMENT
Hydraulic pump, Drive
Suction lines, Pressure lines
Lifting / Lowering line
Tilting lines
15 DOZER AND LOADER ATTACHMENT
Push frame, Angledozer blade (Execution 1 + 2)
Push arm, Tilt-dozer blade, Lift cylinder bracket (Execution 1 + 2)
Oil tank
Hydraulics of tilt cylinder (Execution 1 +2)
Auxiliary frame
Lifting gear
olbehtil ter
Lifting and tipping cylinder
Operating linkage
Pipes for Loader
Rear ripper (Execution 1)
Rear ripper (Execution 2)
Cable winch
Repair sets

MASSEY FERGUSON D700C 700C DOZER BOOK MANUAL – PDF DOWNLOAD:

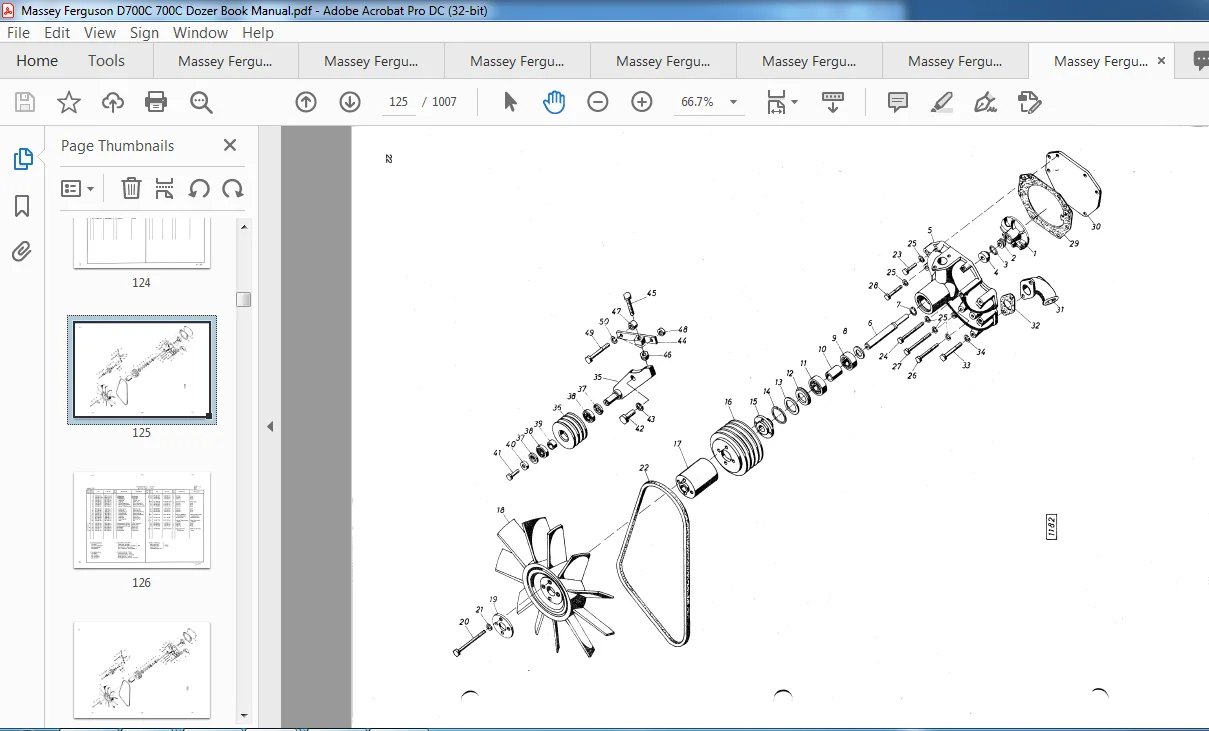

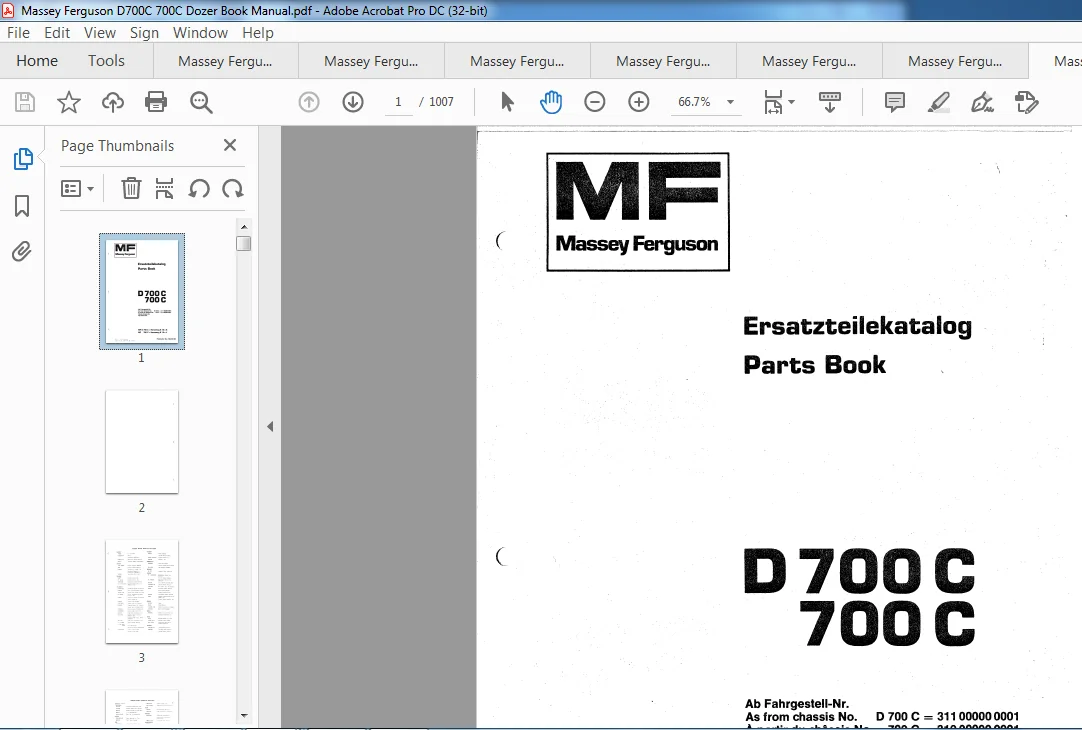

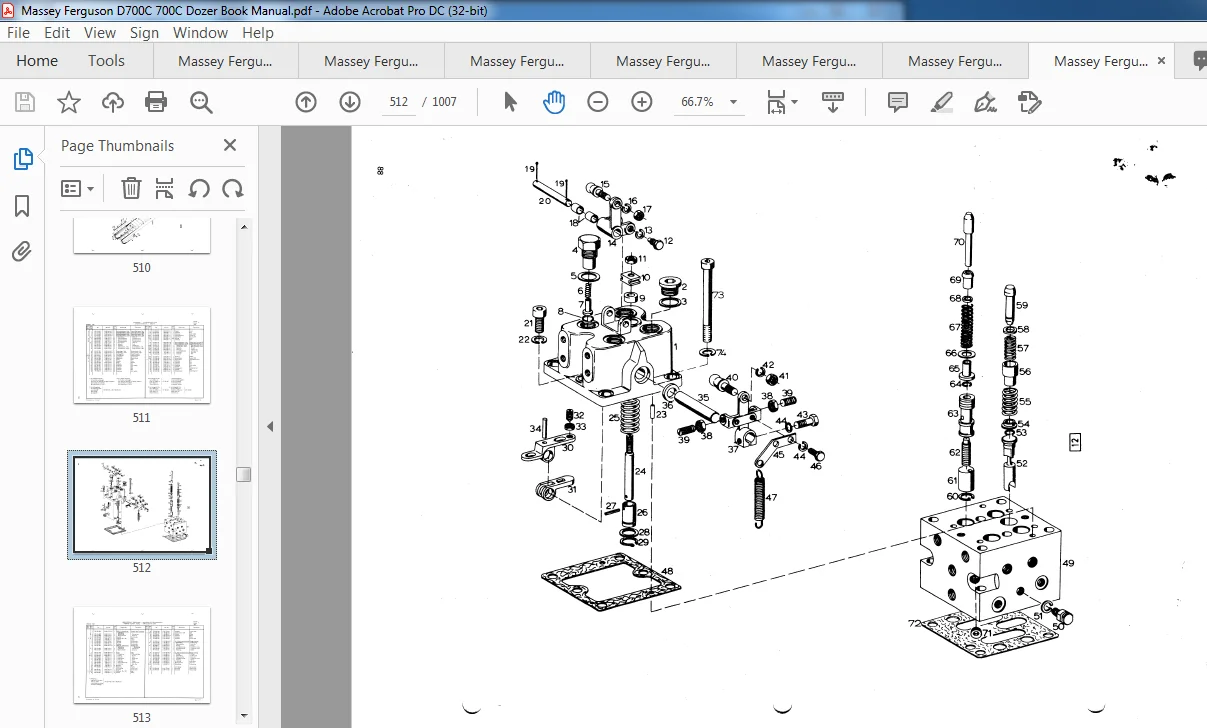

IMAGES PREVIEW OF THE MANUAL:
