Massey Ferguson EU Harvesting 4300 Pickup Header Service Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Harvesting 4300 Pickup Header Service Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Harvesting 4300 Pickup Header Service Manual – PDF DOWNLOAD

General information
Introduction to this service manual
This service manual gives information from engineering tests, operating data, and the latest service techniques at the time of publication. Read this service manual carefully before doing any service on the machine. The photos and illustrations used in this service manual were current at the time of publication. Production changes can cause machines to vary from the photos and the illustrations. The manufacturer reserves the right to redesign and change machines as necessary without notification.

Units of measurement
Measurements are given in metric units followed by the equivalent in U S units. Hardware sizes are given in millimeters for metric hardware and inches for U S hardware.
 Table of contents
This manual has a table of contents at the front. The table of contents shows the divisions. The individual divisions also have a table of contents.
 Page numbers
All pages have two numbers, such as 01-25. The first number shows the divis ion. The second number shows the page in the division. Page numbers occur on the lower right-hand or lower left-hand corner of each page.

A word to the operator:

• It is your responsibility to read and understand the safety section in this manual and the manual for all implements before you operate this machine. You are responsible for your safety. Good safety procedures prevent injury to you and the persons around you. Make the information in the safety section of this manual a part of your safety procedure.
• This safety section is written only for this type of machine. Safety is your responsibility. You can prevent injury and death. This safety section gives basic safety examples that can occur during the operation and maintenance of your machine. This safety section is not a replacement for safety instruction in other sections of this manual.
• Injury or death can occur if the safety instruction is not obeyed. Learn how to operate the machine and how to use the controls correctly. Do not operate the machine if you do not know how to operate the machine. Do not let persons operate the machine that do not know how to operate the machine. Follow all safety instructions in the manuals and on the safety signs on the machine, the implements, and the attachments. Use only approved attachments and implements. Make sure that your machine has the correct equipment that is necessary by the local regulations.

This manual
This manual covers general safety instructions for this machine. Keep this manual with the machine. Right and left, as used in this manual, are given as if you are in the operator seat. The photos, illustrations, and data used in this manual were up to date when published, but in-line production changes can make your machine have small differences. The manufacturer reserves the right to redesign and change the machine as necessary without notification.

Prepare for operation

• Read and understand the operating instructions and precautions in this manual before you operate or perform service оn the machine. Make sure that you know and understand the positions and operations of all controls. Make sure that all controls are in neutral and the parking brake is applied before you start the machine. Make sure that the steering wheel is in the center position and locked.
• Make sure that all persons are а sufficient distance from your area of work before you start or operate the machine. Do checks оn the controls and learn all controls in an area clear of persons and objects before you start work with the machine. Know the dimensions of the machine and have sufficient space available for operation.
• Do not operate the machine at high speeds around persons, buildings, other equipment, etc. Always use correct procedures when you do tasks around and operate the machine. Do not let children or persons who do not know how to operate the machine operate the machine. kеер other persons away from your area of work. Do not let other persons ride оn the machine. Make sure that the machine is in the good mechanical condition. Make sure that the machine has the correct equipment as necessary bу local regulations. All equipment has а limit. Make sure you understand the speed, brakes, steering, stability, and load characteristics of this equipment before you start.

TABLE OF CONTENTS:

Massey Ferguson EU Harvesting 4300 Pickup Header Service Manual – PDF DOWNLOAD

General 1
Frame 2
Augers 3
Drive system 4
Draper 5
Hydraulic system 6
Electrical system 7
Shielding 8
Index 9

MASSEY FERGUSON EU HARVESTING 4300 PICKUP HEADER SERVICE MANUAL – PDF DOWNLOAD:

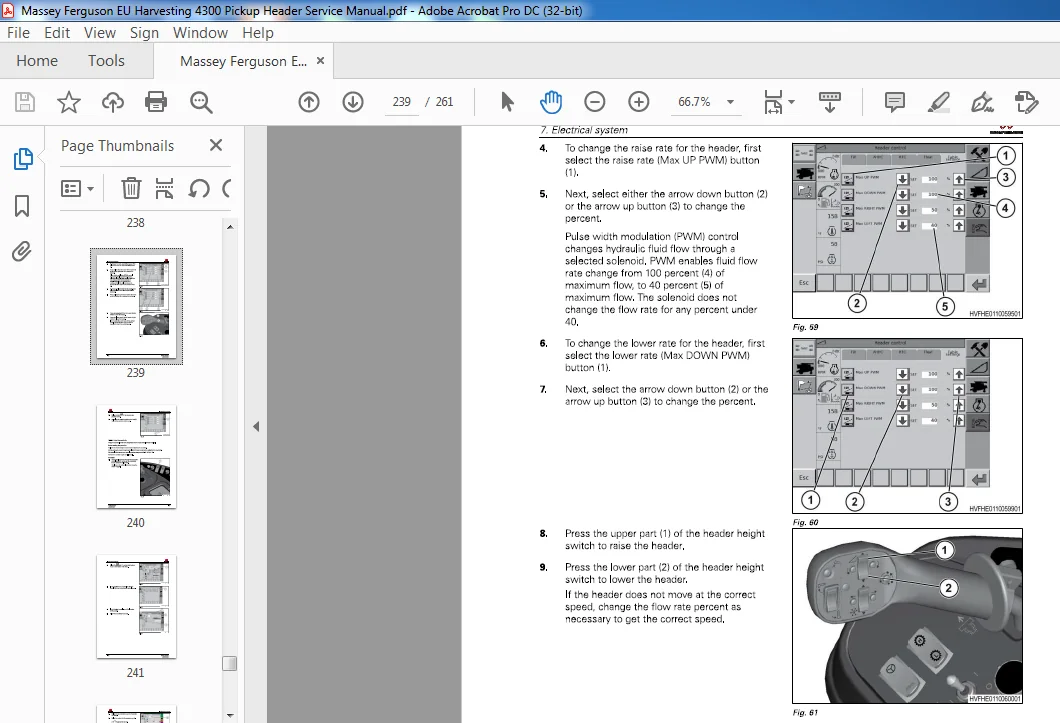

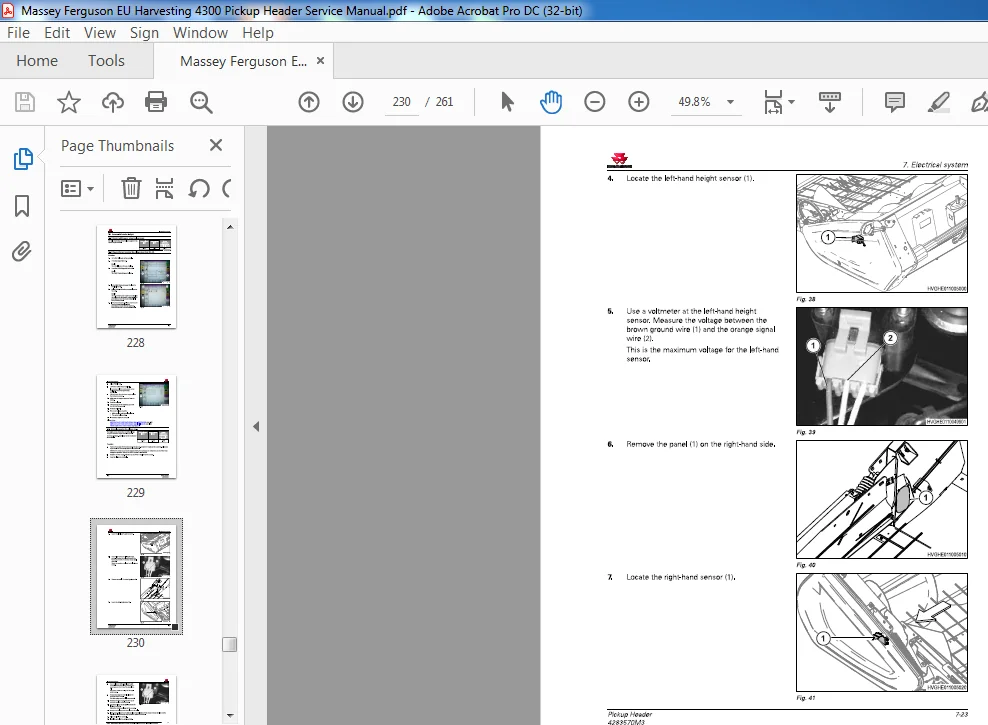

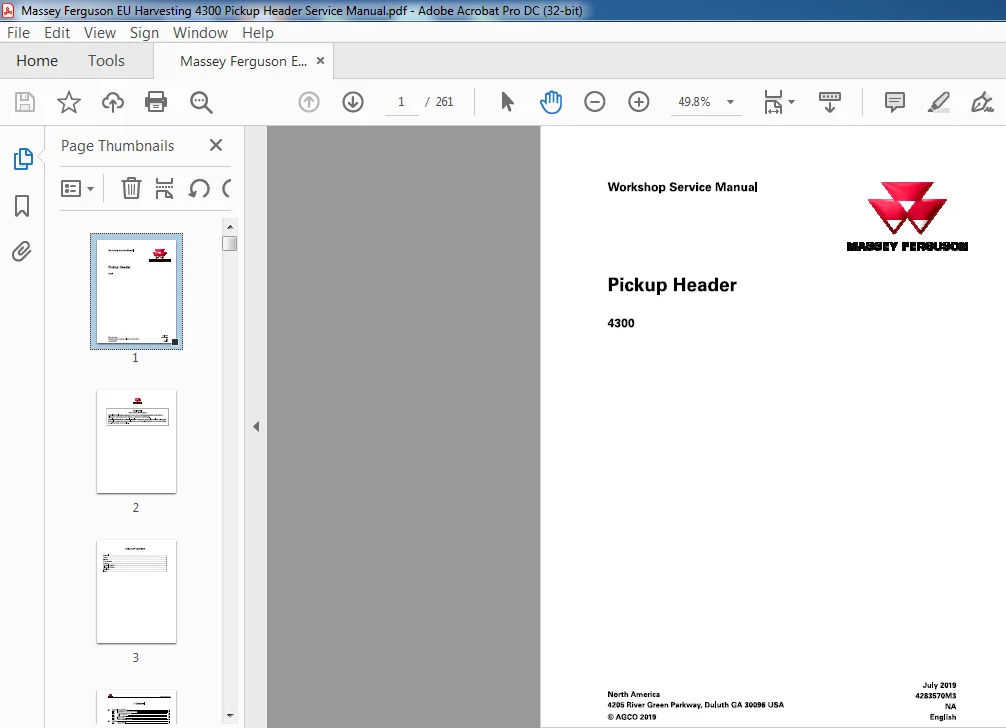

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
