Massey Ferguson EU Harvesting 9690 9790 Repair Time Schedule Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Harvesting 9690 9790 Repair Time Schedule Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Harvesting 9690 9790 Repair Time Schedule Manual – PDF DOWNLOAD

INTRODUCTION :

This repair time schedule manual has been developed to help dealers operate their service shop on a competitive and profitable basis. It provides a means for computing job estimated and will serve as a guide in establishing fair prices for service work performed. This is extremely important to all of us, as service repair prices must be competitive just as new product prices must be competitive if we are to maintain our current customers and gain new ones. This manual also serves as the basis by which Massey Ferguson establishes its warranty labor obligation. Use job numbers when submitting your warranty claims.

• Time allowances in this manual were compiled through practical observation of work performed of average ability, using tools specified by AGCO Massey Ferguson. Mechanics observed had previous experience working on each job. Time included average time to procure and clean parts and obtain special service tools.
• High speed tools were used during these time studies. Any comments or suggestions on the time allowed should be made in writing by E mail or fax to AGCO Product Reliability. Please use job numbers when applicable. This manual covers class V I and V I I axial combines: Definitions of abbreviations: R & R- To remove and replace. To remove all necessary assemblies to gain access to part, to make all necessary adjustments. D & C – To disconnect and connect, as in hydraulic lines.

TABLE OF CONTENTS:

Massey Ferguson EU Harvesting 9690 9790 Repair Time Schedule Manual – PDF DOWNLOAD

Introduction 1
Headers 2
Corn Headers 6
Feeding System 7
Threshing 9
Cleaning 11
Residue Systems 14
Elevating 15
Grain Bin 17
Powertrain and Drives 18
Shielding 21
Hydraulics 22
Electrical 24
Air Conditioning 26
Cab and Operator Area 27
Engine Attachments 28

MASSEY FERGUSON EU HARVESTING 9690 9790 REPAIR TIME SCHEDULE MANUAL – PDF DOWNLOAD:

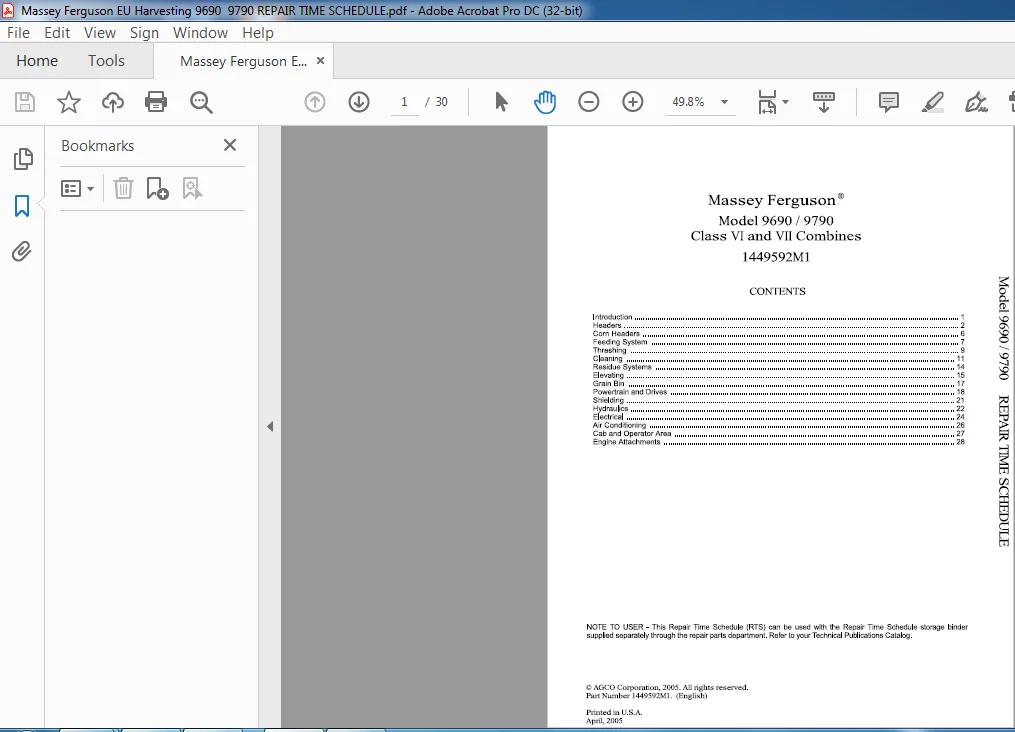

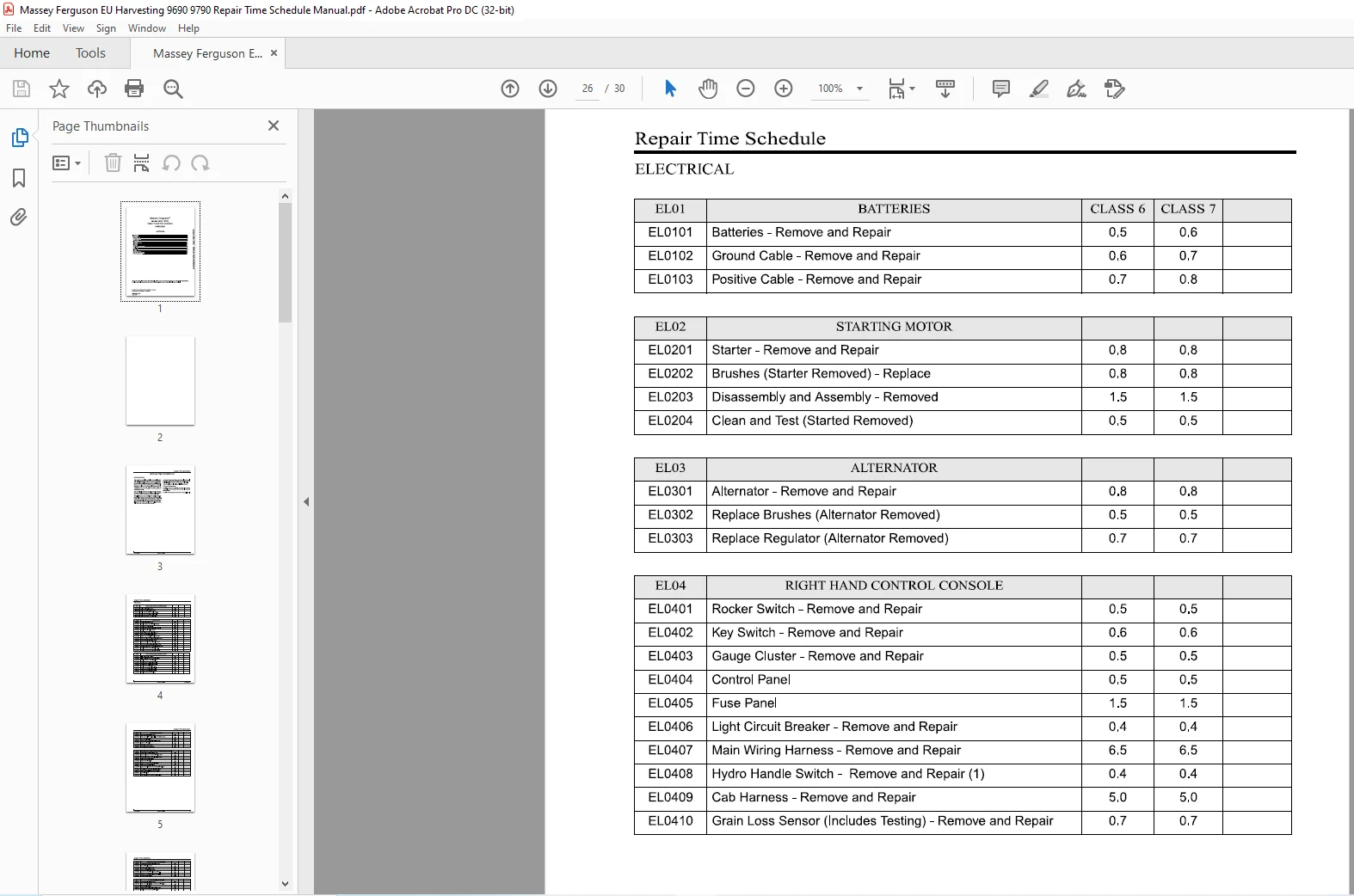

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
