Massey Ferguson EU Harvesting IDEAL Series Combine 7 7PL 7T 8 8PL 8T 9 9PL 9T Operator’s Manual

Description

Massey Ferguson EU Harvesting IDEAL Series Combine 7 7PL 7T 8 8PL 8T 9 9PL 9T Operator’s Manual 79037451B – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Harvesting IDEAL Series Combine 7 7PL 7T 8 8PL 8T 9 9PL 9T Operator’s Manual 79037451B – PDF DOWNLOAD

Part. No : 79037451В

Safety instructions
1.4.1 Engine safety instructions
• Make sure that all shields, guards and access doors are in the correct position and closed before you start the engine.
• Make sure that no personnel are near the machine before you start the engine. Operate the horn 2 times before you start the engine to warn personnel.
• Before you start the engine, make sure that:
– AII the controls are in the neutral position.
– The drive systems are in the disengaged position.
• lf you start the engine in а closed area, make sure that there is sufficient airflow.
• Start the engine from the operator seat only.
• Start the engine only with the start switch in the саЬ.
• lf the machine is in gear, the neutral start system makes sure that the engine does not start. lf you
override this system, it сап cause death or injury.
• Do not connect booster саЫеs to the starter motor terminals.
• Do not use starter fluid to start the engine. This сап cause:
– Explosions
– lnjury to personnel
– Damage to the machine.
• Кеер away from the engine while it is in operation. Before you open the engine cover, stop the engine
and remove the ignition key.
• Do not smoke, have an open fire, or а source of ignition near the fuel system or batteries.
• Do not touch the exhaust manifold, turbocharger and the other hot parts of the engine.
• Do not operate the engine at the idle speed when it is not necessary.
• Кеер the engine surfaces clean to prevent the risk of fire.
• Do not disconnect fuel pipes and hoses when the engine is O N. Stop the engine and wait 30 seconds
before you disconnect fuel pipes and hoses.
• The engine contains seals made of viton. lf viton is exposed to heat above 300 °С hydrofluoric acid is
made. Put on gloves and clean the area with а alkaline fluid to prevent injury.
• Before you do welding on the machine you must disconnect the:
– Battery
– Engine electronic control unit
– Selective Catalyst Reduction ( S C R) supply module.
Cleaning instructions
• То prevent damage to the machine, do not clean these components with high pressure fluid:
– Electrical equipment
– Fuel system
– Radiator.
• When you clean the engine, remove unwanted areas of moisture and then operate the engine to dry the remaining moisture.

Prepare for operation
• Read and understand all the instructions in this manual before you operate, or do maintenance on the
machine.
• Make sure that you know the positions and operations of all the controls.
• Make sure that all controls are in the neutral position and that you engage the parking brake before you
start the machine.
• Make sure that no personnel are in the dangerous areas at all times. Stop the machine if it is necessary.
• Know the dimensions of the machine and have sufficient availaЫe space for its operation.
• lf you operate the machine in these conditions, it increases the risk of injury to personnel and damage
to the machine:
– At high speeds
– Around personnel
– Near buildings
– Near other equipment or possiЫe Ыockages.
• Do not let children in or near the machine.
• Do not let persons who are not approved operate the machine.
• Do not let other personnel in, or on the machine when in operation.
• Make sure that the machine is in the correct serviceaЫe condition.
• ОЬеу all local laws. Make sure that the machine has the correct equipment in, or on it.
• AII equipment has а limit, make sure that you know the:
– Speed limits of the machine
– Distances and limits for the brakes
– Steering sensitivity
– Steering limits
– Machine limits when on а slope
– Load limits.

TABLE OF CONTENTS:

Massey Ferguson EU Harvesting IDEAL Series Combine 7 7PL 7T 8 8PL 8T 9 9PL 9T Operator’s Manual 79037451B – PDF DOWNLOAD

Safety 1
Introduction 2
Operation 3
Maintenance and lubrication 4
TrouЫeshooting 5
Specifications 6
Accessories 7
AssemЫy 8
Index 9

MASSEY FERGUSON EU HARVESTING IDEAL SERIES COMBINE 7 7PL 7T 8 8PL 8T 9 9PL 9T OPERATOR’S MANUAL:

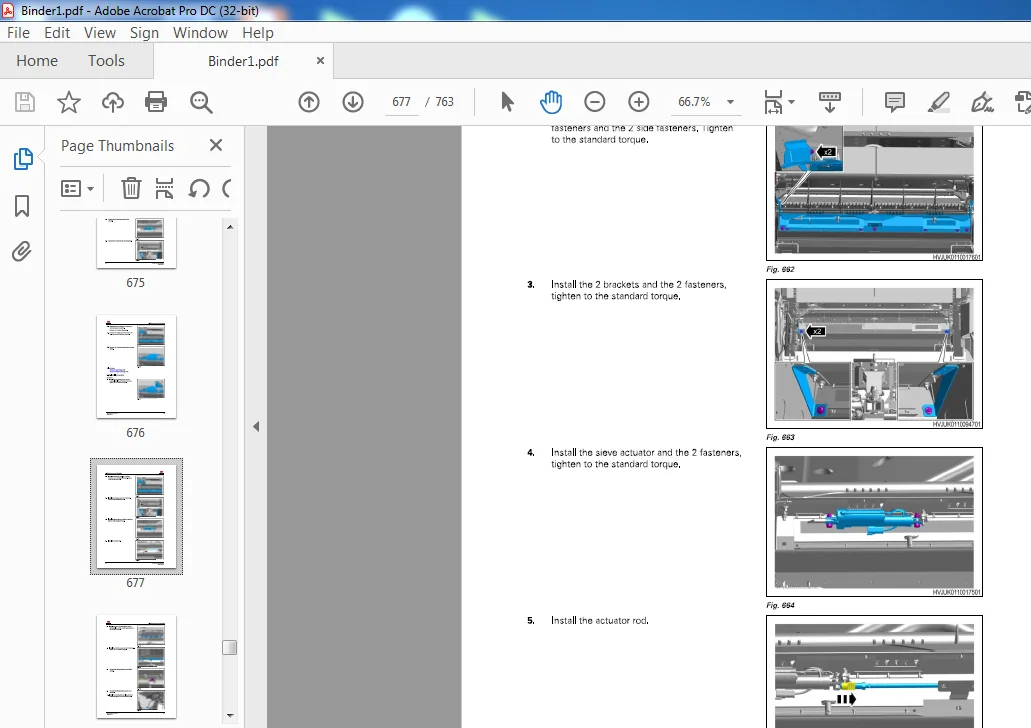

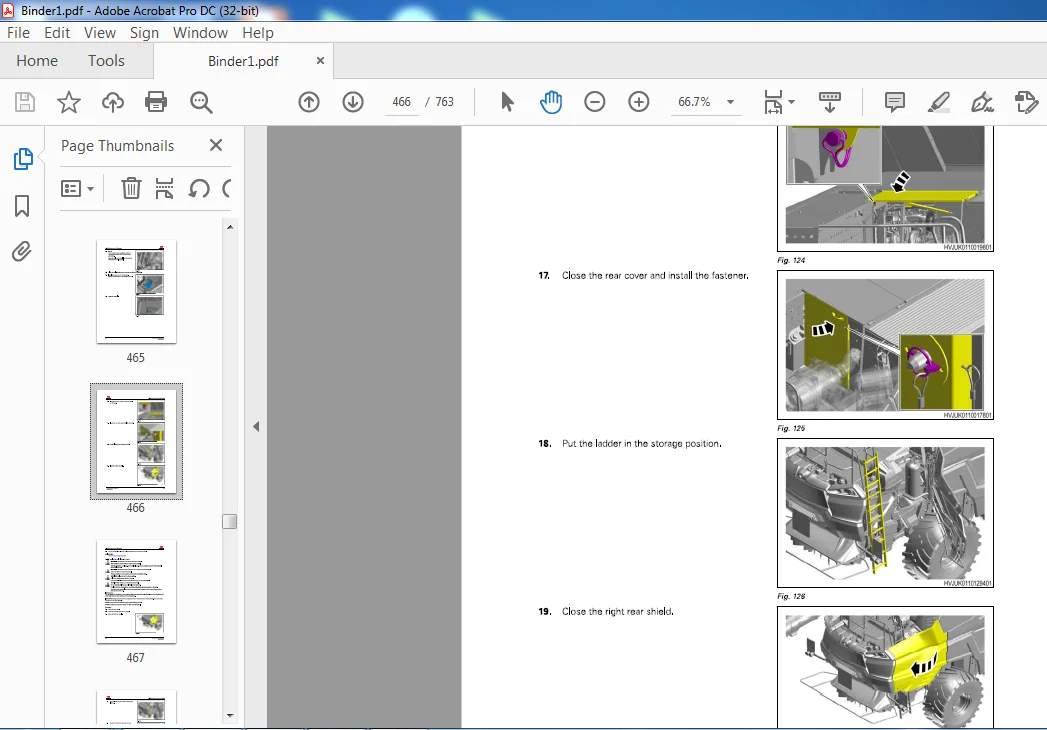

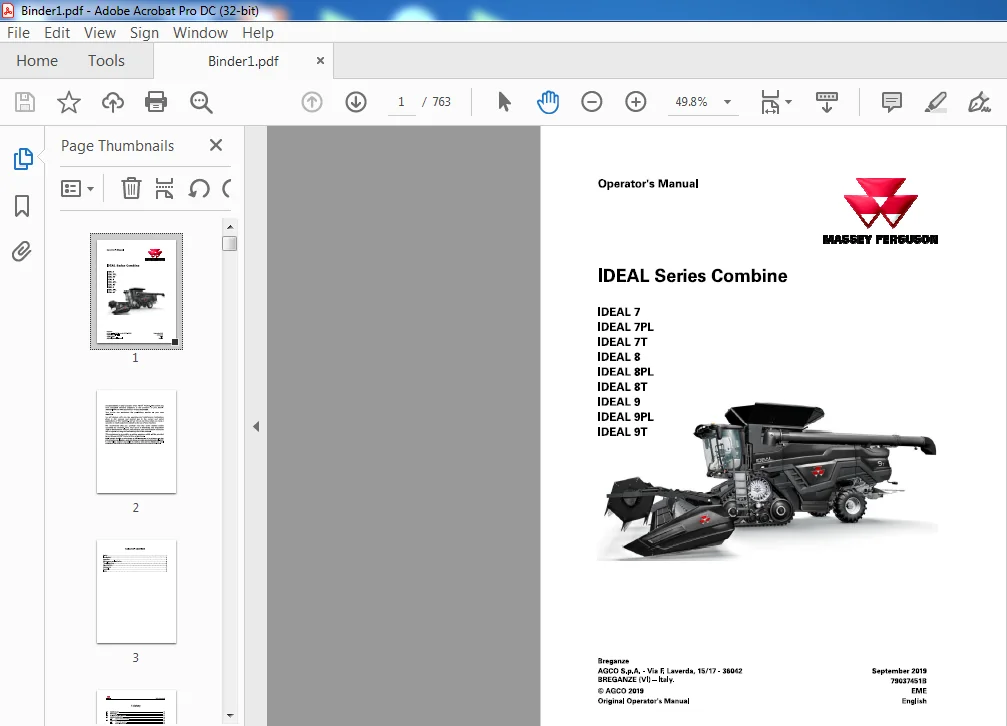

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
