Massey Ferguson MF 7360-7370 Combine Repair Manual PDF Download
Original price was: $68.95.$30.95Current price is: $30.95.
Massey Ferguson EU Harvesting MF 7360 – MF 7370 Combine Series Service Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Massey Ferguson EU Harvesting MF 7360 – MF 7370 Combine Series Service Manual – PDF DOWNLOAD
DESCRIPTION:
Massey Ferguson EU Harvesting MF 7360 – MF 7370 Combine Series Service Manual – PDF DOWNLOAD
Important caution
All repair and maintenance works described in this manual must be carried out only by the AGCO Service Network, strictly complying with the instructions given and using, whenever required, the special tools. Anybody who carries out the above operations without scrupulously complying with the instructions shall be held personally liable for any damage caused as a result of their actions.
Adjustment shims
During any adjustment, select the adjustment shims by measuring them individually with a micrometer and then adding up the values obtained: do not rely on the incorrect measurement of the total shim pack or on the nominal value given for each ring
Rotary shaft seals
For correct rotating shaft seal installation, proceed as follows:
— before fitting the seals, soak them for at least half an hour in the same oil they will be sealing;
– thoroughly clean the shaft and make sure that the shaft working surface is not damaged;
— move the the sealing lip towards the fluid; in the case of a hydrodynamic sealing lip the grooves must face in such a way that, considering the shaft rotation direction, the fluid is taken back towards the inner part of the seal;
– smear a thin layer of lubricant on the sealing lip (oil rather than grease) and fill the gap between the sealing lip and the dust lip with grease on twin lip seals;
— fit the seal in the relevant housing by pressing it or using a drift with a flat contact surface; do not beat it with a hammer or a mallet;
— during driving, make sure the seal is perpendicular to its housing and, when driving is finished, make sure it touches the shoulder;
— to prevent the sealing lip from getting damaged by the shaft, lay down suitable protection when fitting both parts
O—rings
Lubricate O-rings before fitting them in their seats to prevent them from rolling over and twisting during fitting, thus jeopardizing their sealing action.
Sealants
Before laying the sealant on the mating surfaces, prepare them as follows:
— remove any scales with a wire brush;
— thoroughly degrease the surfaces with one of the following cleaning agents: trichloroethylene, oil or a solution of water and soda.
Spring pins
While fitting split spring pins, make sure that their groove is directed towards the effort direction, stressing the pin. Spiral spring pins do not need any orientation during fitting.
TABLE OF CONTENTS:
Massey Ferguson EU Harvesting MF 7360 – MF 7370 Combine Series Service Manual – PDF DOWNLOAD
- General information
- Engine
- Gear box
- Front drive axle
- Hydrostatic Transmission
- Electrical system
- brakes
- Attachments headers
- Axles and wheels
- Cab air conditioning system
- Cleaning
- Drive transmission
- Grain maize conversion
- Grain storage
- Hydraulics System
- Preface
- Product feeding
- Separation
- Steering
- Straw chopper
- Threshing
MASSEY FERGUSON EU HARVESTING MF 7360 – MF 7370 COMBINE SERIES SERVICE MANUAL – PDF DOWNLOAD:

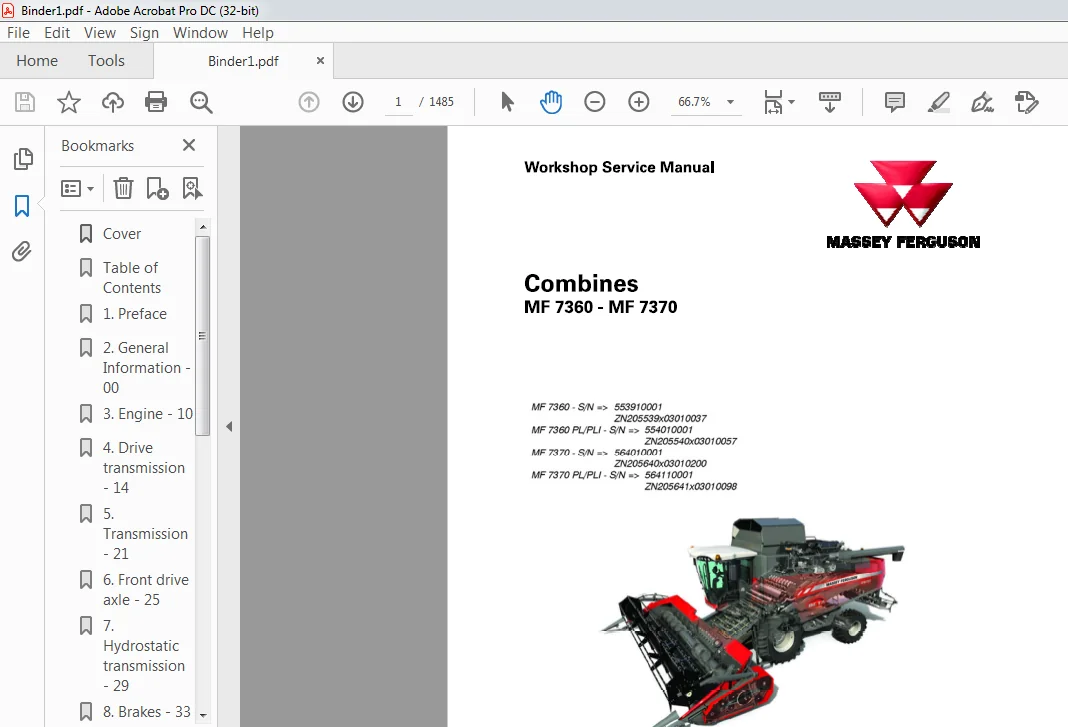

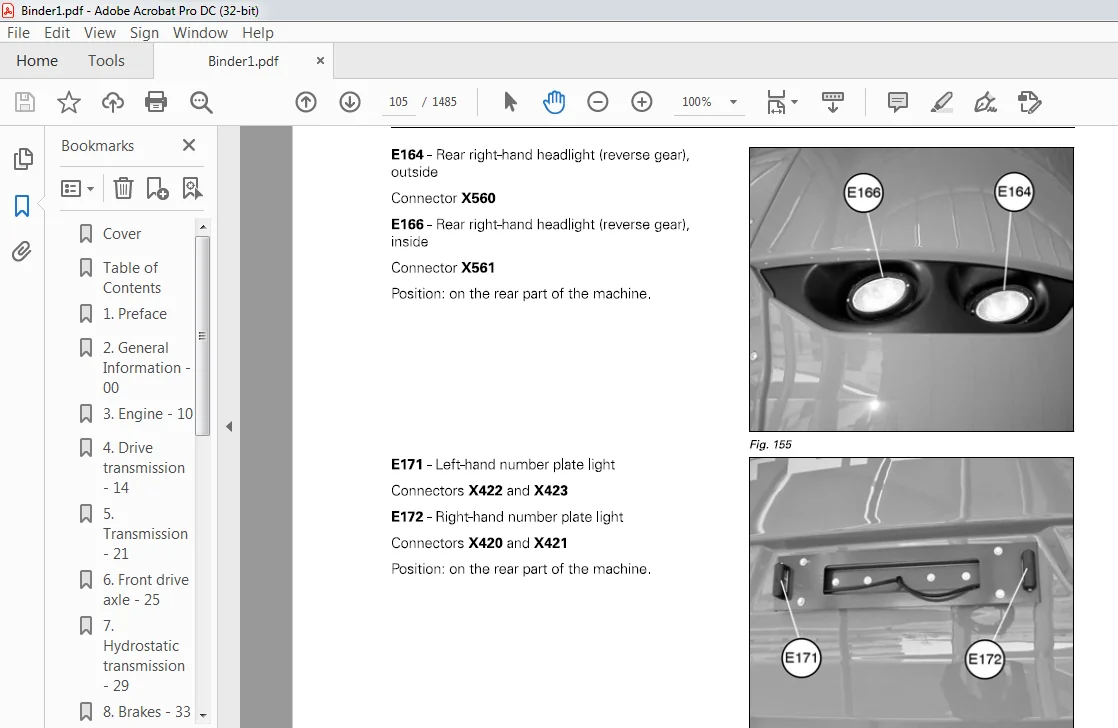

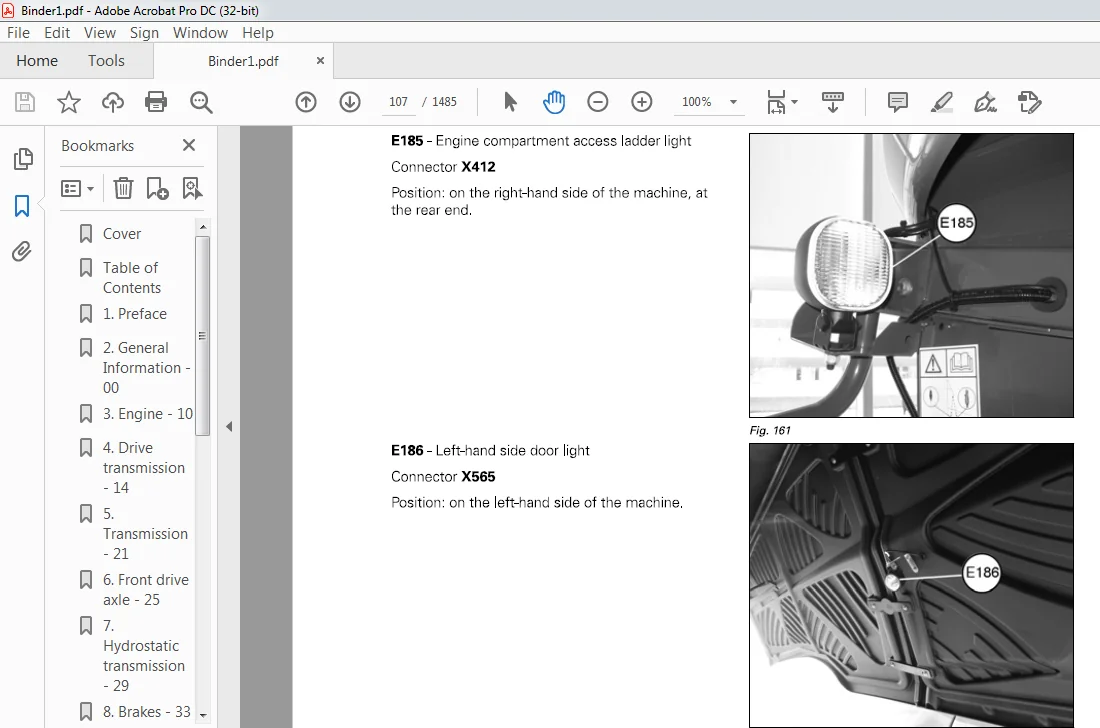

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
