Massey Ferguson EU Hay Equipment 1840 Small Square Baler Repair Time Schedule Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Hay Equipment 1840 Small Square Baler Repair Time Schedule Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Hay Equipment 1840 Small Square Baler Repair Time Schedule Manual – PDF DOWNLOAD

Form Number 4283536M1

A. TIME ALLOWANCE:

• The times listed in this publication are the result of careful study of the operation concemed; they represent the average tÎlne ONE trained dealer mechanic, of normal ability has taken to carry out the operation in a typical dealership, using standard workshop tooling and equipment including air tools, located for reasonable access and working conditions. They DO NOT include any traveling to or from the farm or site.
• The machine is assumed to be clean and to be bare of any extra equipment or attachment of non “AGCO” manufacture, and delivered to an authorized and duly equipped workshop where trained personnel and spare parts required to perform the operations are immediately available. The times given include difficulties encountered working on used as opposed to new machines, and are based on methods and recommended tools shown in the workshop manual.
• The times are based on a second band machine in reasonable condition properly maintained using approved parts. Extra time may be required to deal with seized, rusted or damaged parts. Allowances are included in the operation tÎlnes quoted for obtaining ail tools and parts, cleaning and testing after repair. Diagnostic time is included in the time allowance unless a separate code is listed for diagonistic time. The times given in this Repair Time Schedule are for a complete job from start to finish, including allowances for intermediate operations.

B.TIMES: All the operating times are presented in hours and the decimal parts of an hour. Decimal times must be used on ail warranty claÎlns. The times given in this repair time schedule are for a complete job from start to finish. Where access bas been gained for an adjacent repair only the additional time for the second repair will be accepted and not the total time for the two failures.

C. REVIEW Of TIMES : If you find any improvement in the method which reduces the tÎlne of an operation or you find you cannot meet an operation tÎlne after more than three attempts using the recommended method, a “Request for Review ofTime” form (see next page) must be submitted quoting ail relevant details.

TABLE OF CONTENTS:

Massey Ferguson EU Hay Equipment 1840 Small Square Baler Repair Time Schedule Manual – PDF DOWNLOAD

Contents
Description
Accessories
Bale Feeding System
Bale Forming System
Bale Knotting System
Chassis
Decals
Drive System
Electrical System
Hydraulic System
Spindles and Wheels

MASSEY FERGUSON EU HAY EQUIPMENT 1840 SMALL SQUARE BALER REPAIR TIME SCHEDULE MANUAL – PDF DOWNLOAD:

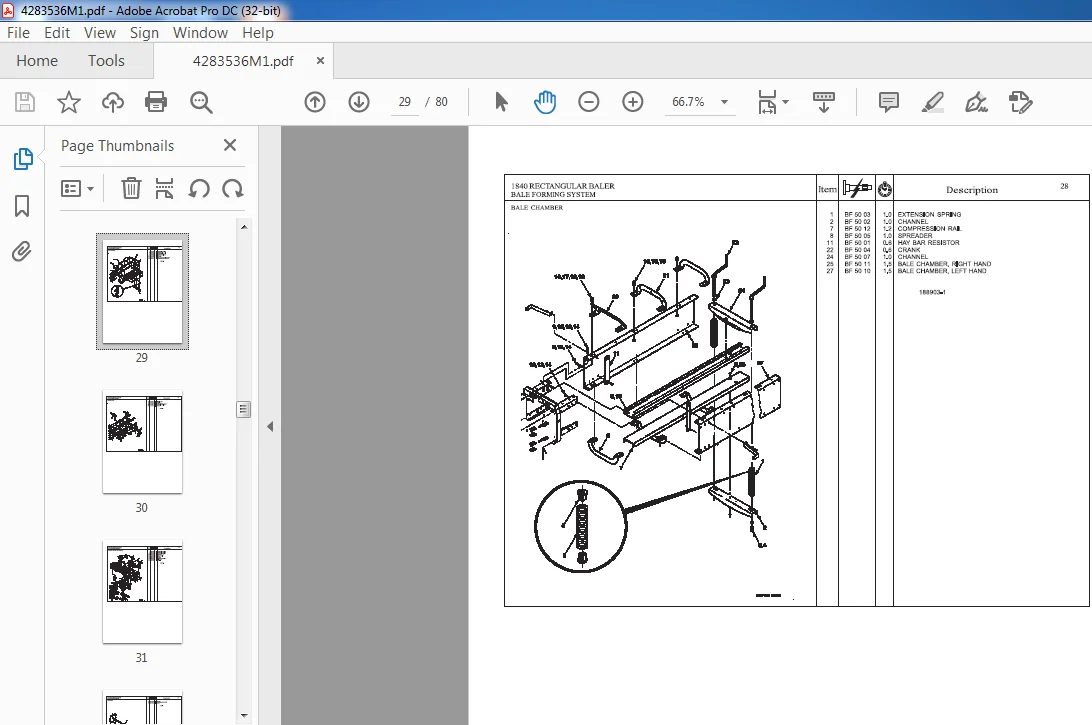

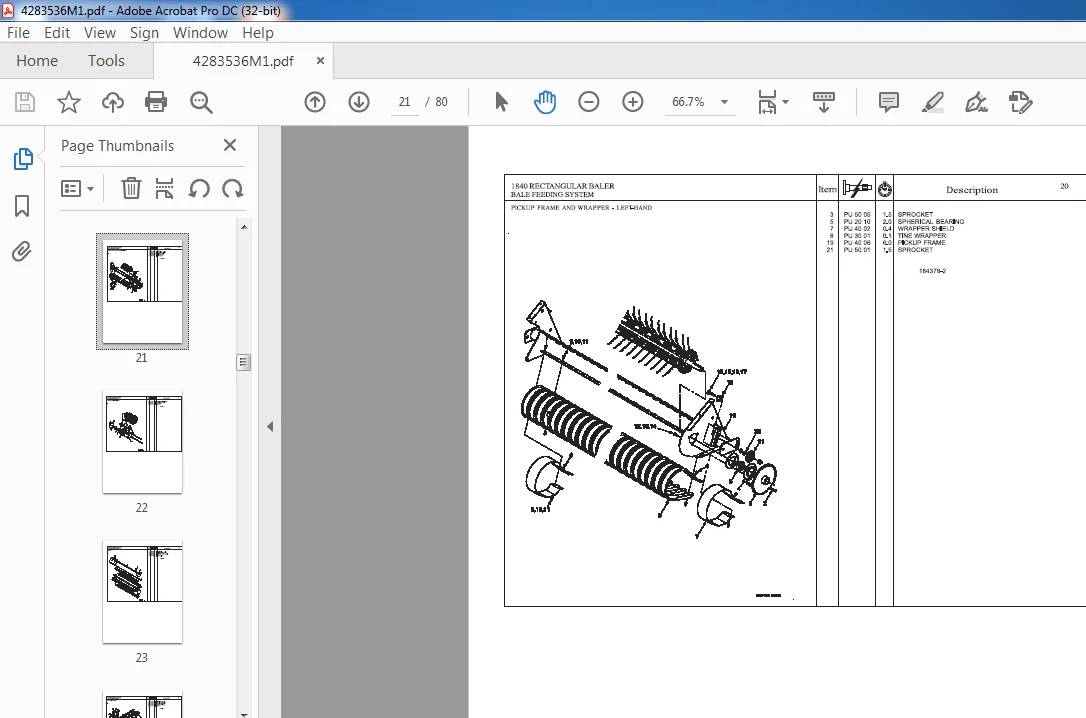

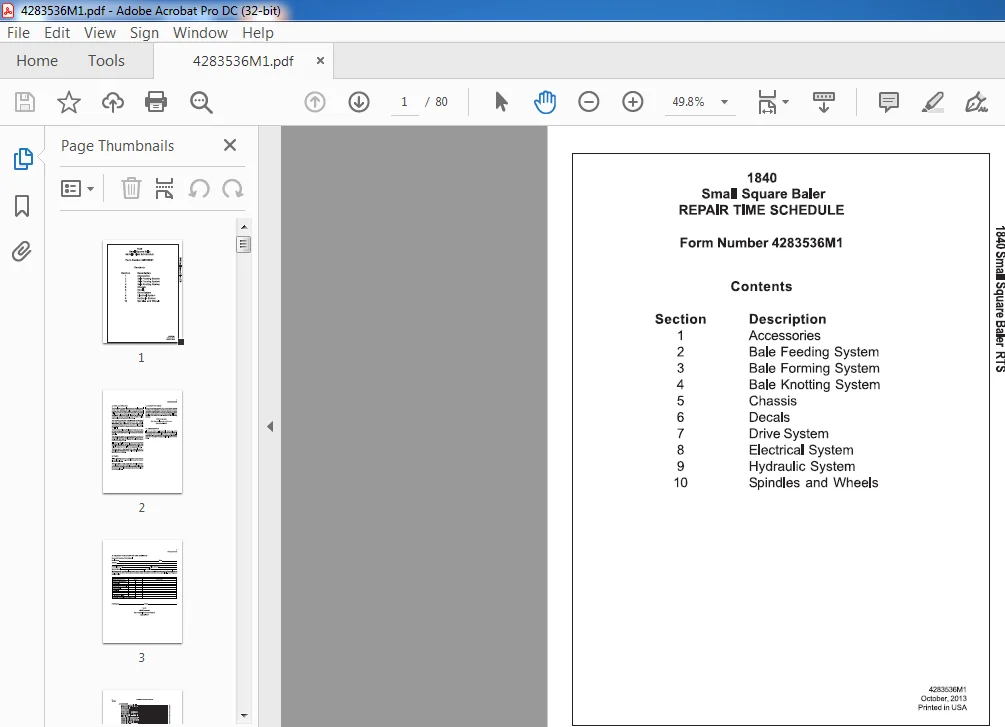

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
