Massey Ferguson EU Hay Equipment RK391 DN RK421 DN RK451 DN Rotary Rake Operator’s Manual

Description

Massey Ferguson EU Hay Equipment RK391 DN RK421 DN RK451 DN Rotary Rake Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson EU Hay Equipment RK391 DN RK421 DN RK451 DN Rotary Rake Operator’s Manual – PDF DOWNLOAD

Product
Designation: Rotary rake
Model: RK 391 DN
RK421 DN
RK451 DN

TO OUR CUSTOMER:

• We believe you have exercised excellent judgment in the purchase of your Massey Ferguson® machine. We are most appreciative of your patronage. Your Dealer has performed the pre-delivery service on your new machine. He will discuss with you the operating and maintenance instructions given in this manual, and instruct you in the proper and varied applications of this machine.
• Call on him at any time when you have a question or need equipment related to the use of your machine. We recommend that you carefully read this entire manual before operating the unit. Also, time spent in becoming fully acquainted with it’s performance features, adjustments, and maintenance schedules will be repaid in a Jong and satisfactory life of the product. This equipment is covered by a written warranty which will be provided to you by your Massey Ferguson® Dealer at time of purchase.

This Operator’s Manual describes all equipment and variants, including optional equipment that is not supplied in the standard scope of delivery. Customers cannot derive any claims regarding the equipment of machines that have been supplied or are to be supplied on the basis of this description. Our machines undergo continuous further development. All technical details and illustrations in this Operator’s Manual are therefore non-binding and we reserve the right to make changes.

Introduction :

These operating instructions for the RK 391 ON, RK 421 ON and RK 451 ON rotor rakes contain detailed instructions and information regarding safe use, maintenance, special precautions and any special equipment that is available. As a result of continuous further development of the machines, all technical data, figures and photos in these operating instructions are non-binding and we reserve the right to make changes. No alteration service is offered for these operating instructions.

Safety
2.1 Intended use
The rotor rake is used to rake together cut stalks lying on the ground. For this, the machine must be in the working position. This machine has been constructed exclusively for normal use with agricultural or similar tasks. Any other use beyond this is considered improper. The manufacturer accepts no responsibility for any damage caused by improper use. The user alone is responsible for this.
“Proper use” includes:
• Paying attention to all of the information on how to use the machine in the operating instructions,
• Taking all warnings into account and
• Carrying out all inspections and maintenance work as instructed when they are due.

TABLE OF CONTENTS:

Massey Ferguson EU Hay Equipment RK391 DN RK421 DN RK451 DN Rotary Rake Operator’s Manual – PDF DOWNLOAD

1 Introduction 3
2 Safety 5
2.1 Intended use 5
2.2 Reasonably foreseeable misuse 5
2.3 Warranty and liability 5
2.4 User qualifications 5
2 .5 Warnings and symbols 6
2.6 Warning notices on the machine 7
2.7 Safety instructions 9
2.7.1 General safety instructions 9
2.7.2 Special safety instructions 10
3 Machine description 12
3.1 Product features 12
3.2 Notices on the machine 12
3 .3 Special equipment 13
3.4 Machine component 14
4 Specifications 15
4.1 Machine data 15
4.2 Noise information 15
4.3 Axle loads, gross weight and minimum ballast required 16
5 Before initial operation 17
5.1 Assembling the machine 17
5.2 Adjusting the PTO-shaft 17
6 Attachment to the tractor 19
6.1 Initial operation 19
6.2 Coupling the machine 19
6.3 Connecting the PTO-shaft to the tractor 20
7 Transport position and working position 21
7.1 Switching the machine to transport position 21
7.2 Switching the machine to working position 22
8 Using the machine 25
9 Settings 27
9.1 Adjusting working height 27
9.2 Adjusting the height of the swath former 27
9 .3 Setting the swath deposit 28
9.4 Adjusting the lateral inclination 28
9.5 Adjusting the longitudinal inclination 29
10 Optional functions 30
10.1 Contact wheel 30
10.2 Lighting equipment 31
11 Machine storage 32
12 Rectifying faults 34
13 Servicing 36
RK391DN/RK421DN/RK451DN 1
13.1 Maintenance intervals 36
13.2 Cleaning 37
13.3 Tightening torques for nuts and bolts 37
13.4 Adhesive notice 37
13.5 PTO-shaft 37
13.6 Tyres 38
13.7 Lubrication instruction 38
14 Index 42

MASSEY FERGUSON EU HAY EQUIPMENT RK391 DN RK421 DN RK451 DN ROTARY RAKE OPERATOR’S MANUAL:

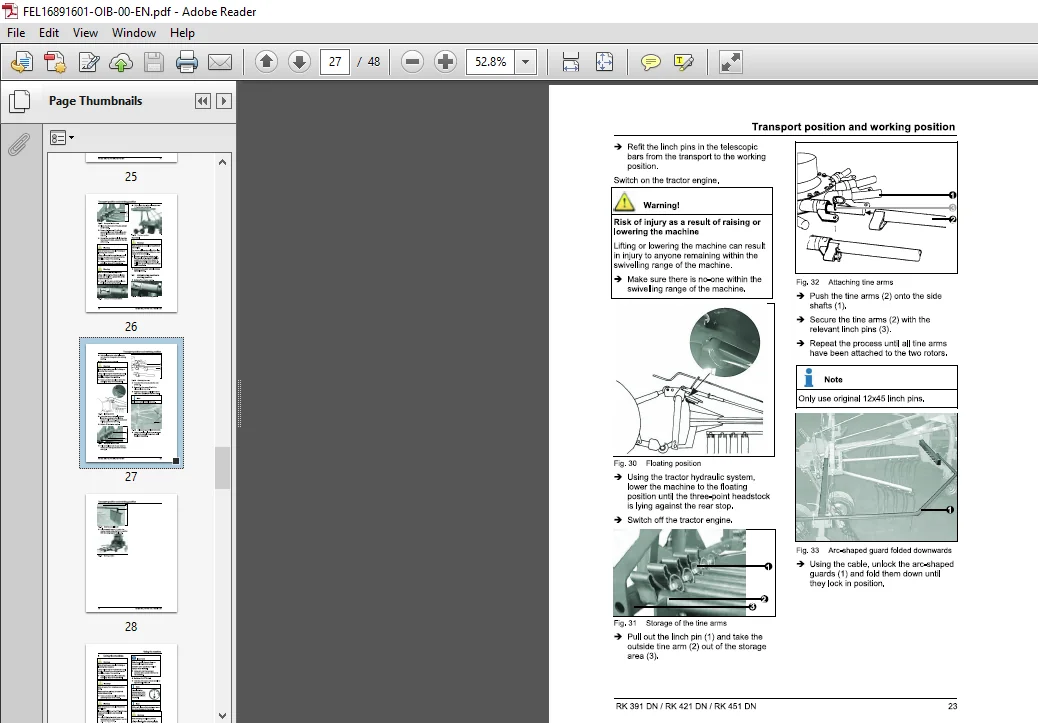

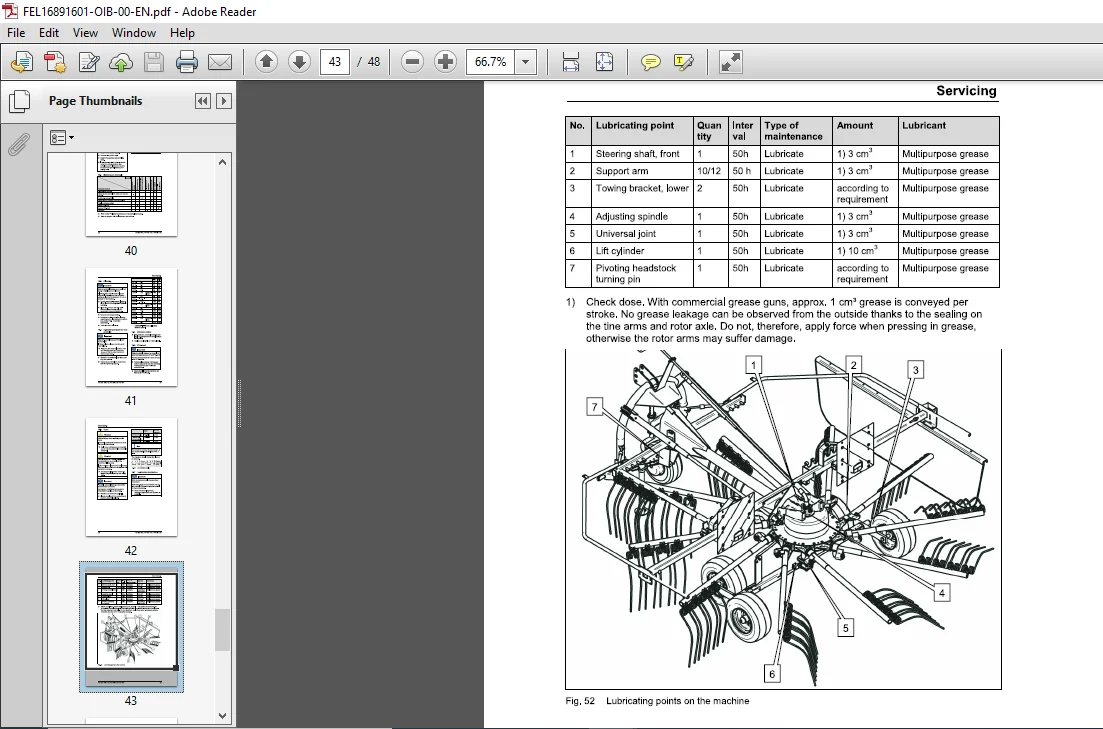

IMAGES PREVIEW OF THE MANUAL

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
