Massey Ferguson EU Seeding MF300 Operator Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Seeding MF300 Operator Manual – PDF DOWNLOAD

FILE DETAILS:

Massey Ferguson EU Seeding MF300 Operator Manual – PDF DOWNLOAD

MASSEY FERGUSON EU SEEDING MF300 OPERATOR MANUAL – PDF DOWNLOAD:

DESCRIPTION:

Massey Ferguson EU Seeding MF300 Operator Manual – PDF DOWNLOAD

INTRODUCTION:

We are greatly satisfied in complimenting you for purchasing a product from the AGCO do Brazil line. This manual was developed to inform you about the correct procedures to be adopted during operation, adjustments and maintaining the Planter Spreader ME 320/ 322 l 326. The models available are the MF 320, MF 322 and MF 326 with 20, 22 and 26 lines respectively for planting rice and winter crops (wheat, barley, etc.) with a metal box (fitted with continuous flow meter), and can be fitted with fine seed box for pasture, soil coverage, etc… The implement was developed and manufactured to provide maximum yield, economy, versatility, durability, and easy operation in a broad range of working conditions.

• It features a super reinforced structure that offers great resistance developed for working on irrigated rice crops land. Transmission is done through roller chains and automatic ratchets that are automatically activated and deactivated through the hydraulic system. High capacity fertilizer and seed reservoirs built in carbon steel and powder painted that ensure autonomy and durability. Independent, articulated wheels, positioned on the side structure, instant activation to ensure contact with the ground and constant transmission movement. Fertilizer distribution can be done through the drive auger and rotor systems, conventional model transversal meter and Ferti system model transversal meter.
• For seeds it is done through a helicoidal channeled rotor adjusted through an indicator. The lift system is formed by 2 (two) independent hydraulic cylinders designed to operate at a maximum work pressure of 210 bar and a hydraulic travel of 190mm. Work depth is provided by adjusting the hydraulic cylinder travel, the three springs mounted on each sowing line and the limiters positioned next to the disk. The compactors cover and compact the seeds and can be: angular, convex or in “V”. Among the optional items there is the Line Marker (for model MF 326) and the Longitudinal Transport Set, the hectare meter and the Fine Seed Kit that ensure versatility to the implement.
• For any further clarification or to solve technical problems see your AGCO do Brazil Authorized Dealer who, together with the Technical Assistance Department ensure full operation of your implement, in whatever event. It is important to keep handy the information contained in the identification plate that can be found fixed to the implement frame.

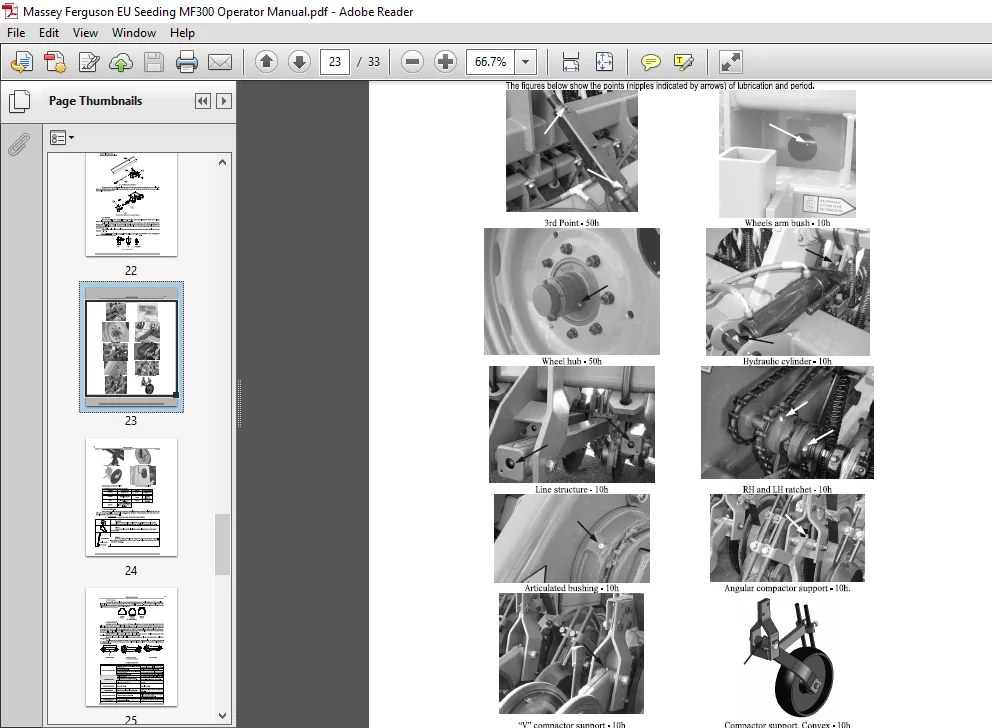

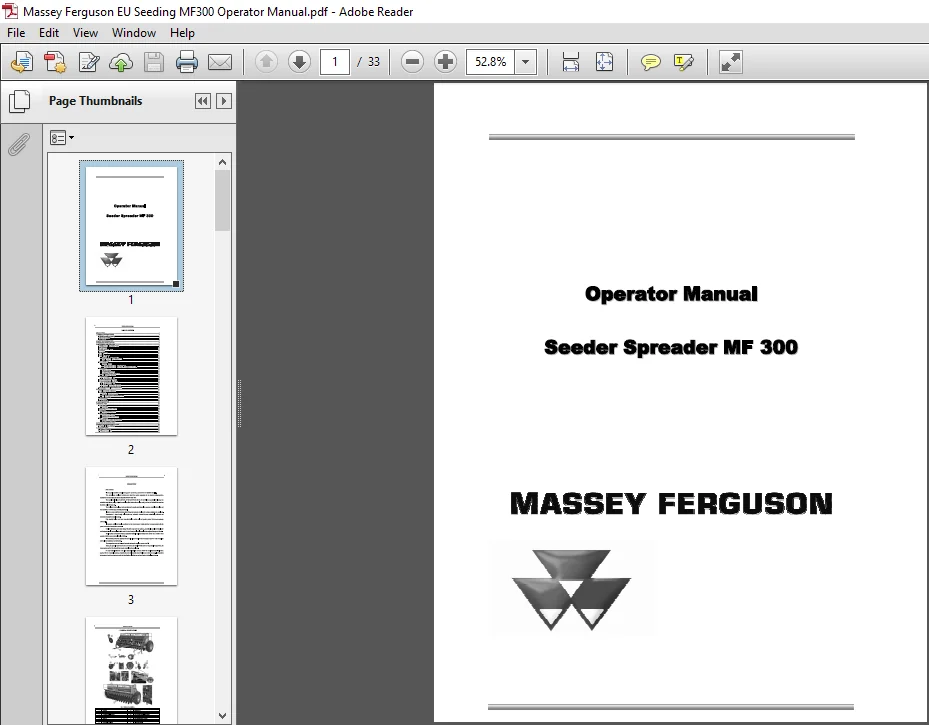

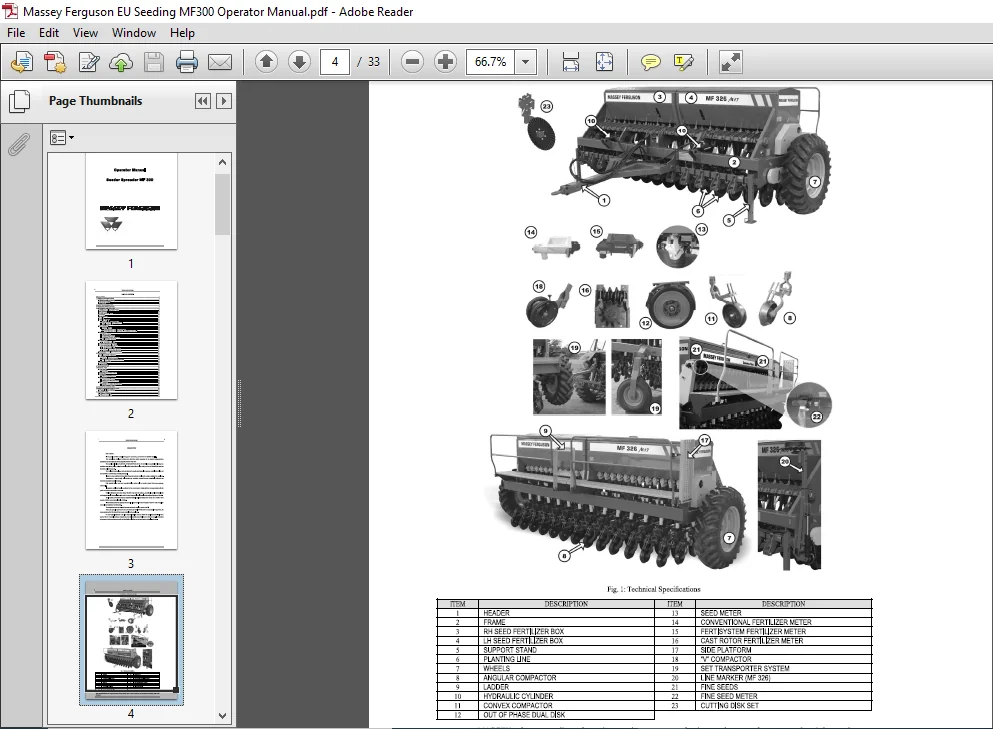

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Massey Ferguson EU Seeding MF300 Operator Manual – PDF DOWNLOAD

1 TECHNICAL SPECIFICATIONS
1 1 Weight capacity and spacing
1 2 Reservoir CapaCities
1 3 DimenSions
2 SAFETY RECOMENDACIONS
3 NORMS FOR GOOD PLANTING
4 ADJUSTMENT AND OPERATION
4 1 Hitching the implement to the Tractor
4 2 Support Stand
4 3 Ladder and side platform
4 4 Transport
4 5 Line positioning
4 6 Leveling
4 7 Fertilizer distribution
4 7 1 Practical fertilizer distribution test
4 7 2 Approximate Fertilizer Distribution Table
4 7 3 Fertilizer Sight Glass
4 8 Seed Distribution
4 8 1 Practical seed test
4 8 1 1 Seed Distribution Table (Wheat and Rice)
4 8 1 2 Seed Distribution Table Drive Gear Z—18 (teeth) and Driven 2—30
4 9 Sowing depth
4 9 1 Spring pressure
4 9 2 Top backstop adjustment
4 9 3 Adjustment Through Limiting Ring
4 9 4 Cylinder Shim Adjustment
4 10 Furrow opening
4 10 1 Out of Phase Dual Disk
4 11 Seed Compaction and Covering
4 12 Line Marker (Optional for MF 326)
4 12 1 Line marker adjustment
4 11 2 Line marker arm length adjustment
4 11 3 Disk angle of actuation adjustment
4 12 Unhitching the implement from the tractor
5 MAINTENANCE
5 1 Fertilizer reservoir maintenance
5 2 Lubrication
5 2 1 Points of lubrication and period
5 2 2 Table of Suggested Lubricants for the MP
5 3 General Retightening
5 4 Tire Pressures
5 5 Chain stretching
6 TROUBLESHOOTING
7 OPTIONAL ITEMS
7 1 Fine Seed Box
7 1 1 Operation
7 2 Fine Seed Transmission Assembly
7 3 Cutting Disk
7 3 1 Cutting Depth Adjustment
7 4 Hectare Meter
7 4 1 Measurement Procedure
7 4 2 Measurement Procedure Example
7 5 MF Transporter
7 5 1 Machine Dimensions with Transporter
7 5 2 Side Transport Procedure
8 STORAGE RECOMMENDATIONS
9 GENERAL WARRANTY iNSTRUCTiONS
9 1 Technical Delivery Certificate
10 WARRANTY TERM
10 1 Warranty Conditions
10 2 Warranty Cancellation

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
