INTRODUCTION:

We are greatly satisfied in complimenting you for purchasing a product from the AGCO do Brazil line. This manual was developed to inform you about the correct procedures to be adopted during operation, adjustments and maintaining the Pneumatic Planter Spreader MP 700 H (Drive Shaft) l HF (Continuous Flow). The implement was developed and manufactured to provide maximum yield, economy, versatility, durability, and easy operation in a broad range of working conditions. The implement features instant actuation, articulated wheels that ensure ground contact and constant movement of the transmissions. The wheels can be moved freely on the frame aimed at obtaining the broadest range of spacings possible, which are entirely incorporated with the ratchets. cylinder. support and rocker arm.

• The tires have characteristic low compaction, avoiding damage to the soil. Anti-slip rear platform and transmission through fully protected chains provide a safe operation. Polyethylene fertilizer and seed reservoirs ensure durability and are corrosion resistant. The fertilizer reservoirs are hinged to make cleaning and maintenance easier.
• Fertilizer distribution carried out by Fertisystem Auto Lub AP precision meter is free of grease nipples and have permanent lubrication. Mismatched fertilizer lines with 20″ (22” optional) cutting disks ensure straw flow. finishing and planting speed can be mounted with furrowers or dual disks. Fertilizer line depth limiter (optional) ensure uniformity of the depth at which the fertilizer is deposited in the soil.
• Mismatched seed lines with pantographic system offers broad articulation travel to follow ground irregularities and maintain a constant angle of attack. Mounted with matched, 17” dual disks and side limiters with height and opening adjustment. Pneumatic seed meter system activated by the tractor PTO or hydraulic system (hydraulic drive only on tractors fitted with continuous flow controller system and minimum flow rate of 30 lein); The disarm-amt furrower systems and line marker (optional) are technologies that ensure greater swiftness and quality to work with the implement.
• For any further clarification or to solve technical problems see your Authorized Dealer who, together with the Technical Assistance Department ensure full operation of your implement, in whatever event. It is important to keep handy the information contained in the identification plate that can be found fixed to the implement frame.

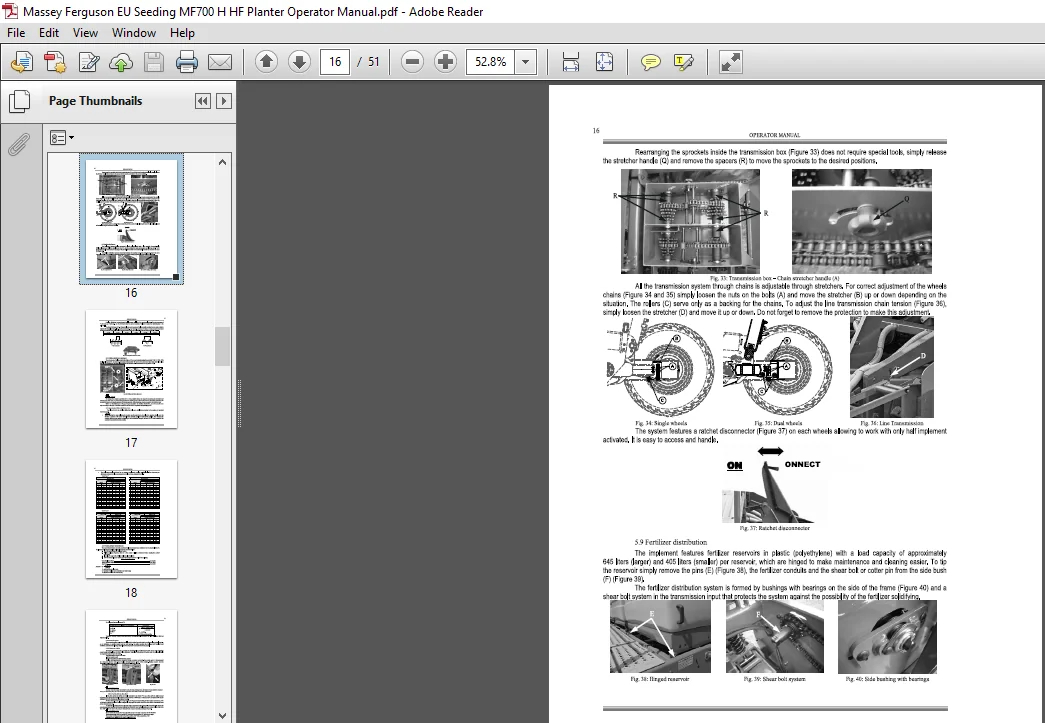

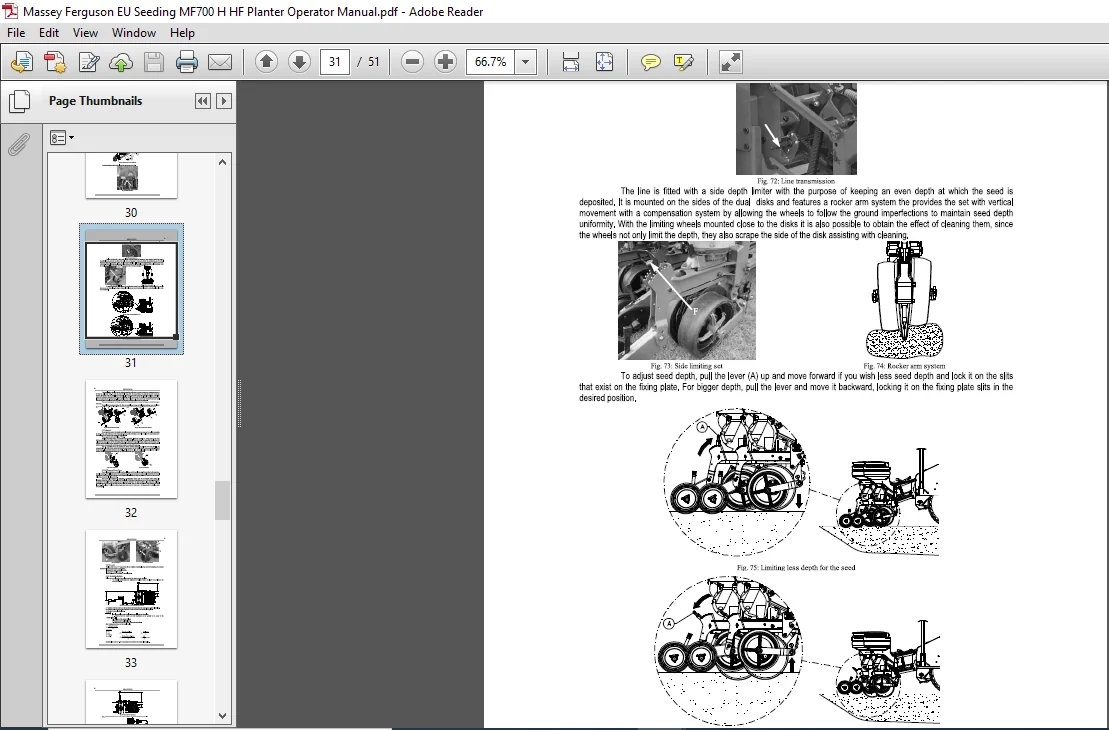

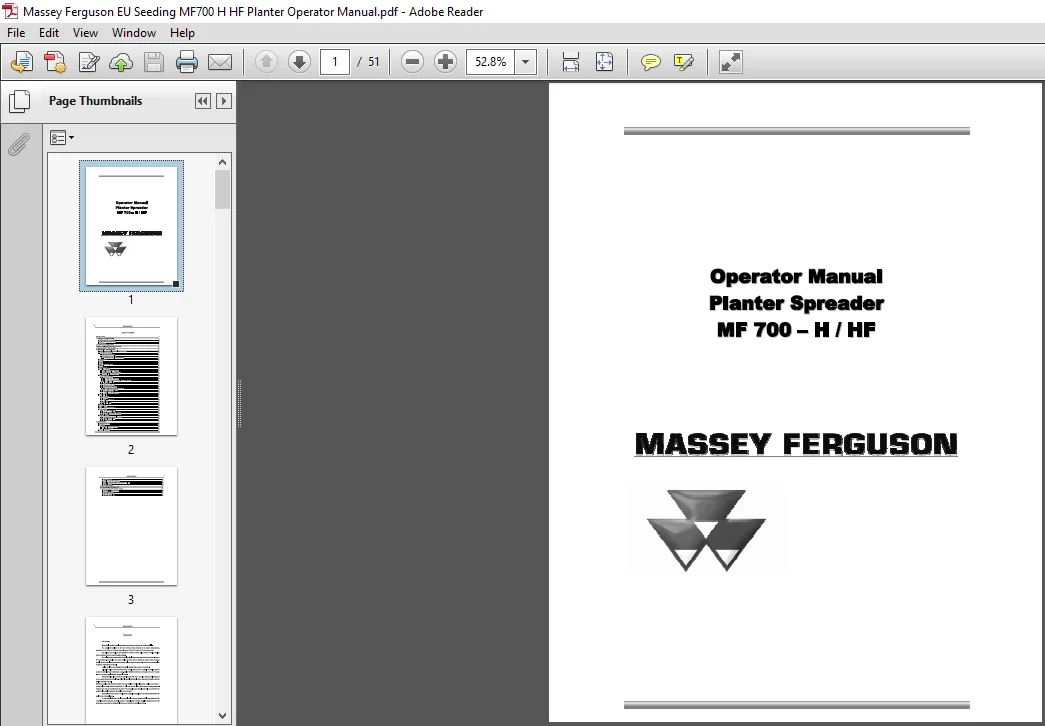

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Massey Ferguson EU Seeding MF700 H HF Planter Operator Manual – PDF DOWNLOAD

1. TECHNICAL SPECIFICATIONS
1.1 Weight, capacity and spacmg
1.2 Lifting off the ground for movmg
1.3 Dimensions
2. SAFETY RECOMMENDATIONS
3. RECOMMENDATION FOR GOOD PLANTING
4. PREPARATION OF THE TRACTOR
5. ADJUSTMENT AND OPERAIION
5.1. Coupling and uncoupling the implement on the tractor
5.2. Procedures for transport
5.2.1 Connected to the tractor
5.2.2 Loaded on trucks or trailers
5.2.2.1 Preparing the implement for transport
5.3 Tire pressures
5.4 Header
5.5 Frame
5.6 Body Guard and Platform
5.7 Wheels
5.8 Transmission
5.9 Fertilizer distribution
5.9.1 Fertilizer distribution adjustment
5.9.2 Approximate fertilizer distribution table
5.9.3 Practical fertilizer distribution test
5.10 Pneumatic System
5.10.1 Matermacc Turbine
5.10.1.1 Turbine drive by drive shaft
5.10.1.2 Turbine driven by continuous flow hydraulic system
5.10.2 Flow regulator valve
5.10.3 Air distributor
5.10.4 Matermacc seed meters
5.10.5 Pneumatic seed distribution
5.10.5.1 Changing the pneumatic meter disks
5.10.6 Seed distribution adjustment
5.10.7 Seed distribution table
5.10.8 Practical seed distribution test
5.11 Fertilizer lines
5.11.2 Furrower
5.11.3 Disarm-ann furrower
5.11.4 Dual disk
5.11.5 Fertilizer limiter
5.12 Seed line
5.13 Compactors
5.14 Rail Cleaner and Furrow Closer
5.15 Line marker
5.15.1 Line marker adjustment
5.15.2 Line marker arm length adjustment
5.15.3 Disk angle of actuation adjustment
5.16 Hydraulic System
5.16.1 Depressurizing the hydraulic system
5.16.2 Hydraulic system lock
5.16.3 Cylinder wedges
6.1 Change of Spacings
6.2 Lubrication
6.2.1 Points of lubrication and period
6.2.2 Tables of lubricants
6.3 General retightening
6.4 Chain stretching
6,5 Fertilizer reservoir maintenance
6.6 Fertilizer metering system maintenance and cleaning
6.7 Hydraulic Hoses
7. TROUBLESHOOTING
8. STORAGE RECOMMENDATIONS
9. GENERAL WARRANTY INSTRUCTIONS
9.1 Technical Delivery Certificate
9.2 Warranty Certificate
9.3 Warranty Conditions
9.4 Warranty Cancellation
