Massey Ferguson EU Seeding MF9000 9920 9930 Cart Control Operator Manual – PDF DOWNLOAD

Description

Massey Ferguson EU Seeding MF9000 9920 9930 Cart Control Operator Manual – PDF DOWNLOAD

FILE DETAILS:

Massey Ferguson EU Seeding MF9000 9920 9930 Cart Control Operator Manual – PDF DOWNLOAD

MASSEY FERGUSON EU SEEDING MF9000 9920 9930 CART CONTROL OPERATOR MANUAL – PDF DOWNLOAD:

DESCRIPTION:

Massey Ferguson EU Seeding MF9000 9920 9930 Cart Control Operator Manual – PDF DOWNLOAD

We believe you have exercised excellent judgment in the purchase of your Massey Ferguson® machine. We are most appreciative of your patronage. Your Dealer has performed the pre-delivery service on your new machine. He will discuss with you the operating and maintenance instructions given in this manual, and instruct you in the proper and varied applications of this machine. Call on him at any time when you have a question or need equipment related to the use of your machine. We recommend that you carefully read this entire manual before operating the unit. Also, time spent in becoming fully acquainted with it’s performance features, adjustments, and maintenance schedules will be repaid in a long and satisfactory life of the product. This equipment is covered by a written warranty which will be provided to you by your Massey Ferguson‘i’ Dealer at time of purchase.

OPERATOR MANUAL :

This manual covers general safety practices for this machine. The Operator Manual must always be kept with the machine. Right-hand and left-hand, as used in this manual, are determined by facing the direction the machine will travel when in use. The photos, illustrations, and data used in this manual were current at the time of printing, but due to possible in-line production changes, your machine can vary slightly in detail. The manufacturer reserves the right to redesign and change the machine as necessary without notification.

PREPARE FOR OPERATION:

• Read this manual completely and make sure you understand the controls. Know the positions and operations of all controls before you operate this machine. Check all controls in an area clear of people and obstacles before starting your work. All equipment has a limit. Make sure you understand the speed, brakes, steering, stability, and load characteristics of the machine before you start. Make sure your machine has the correct equipment needed by the local regulations.
• When parking. park the machine and the tractor on a solid level surface. Put all controls in neutral, put the transmission in PARK, and apply the tractor parking brake. Stop the tractor engine and take the key with you. Make sure the tractor and implement are in the proper operating condition according to the operators manuals. Make sure the tractor brakes and the machine brakes, if equipped, are adjusted correctly.

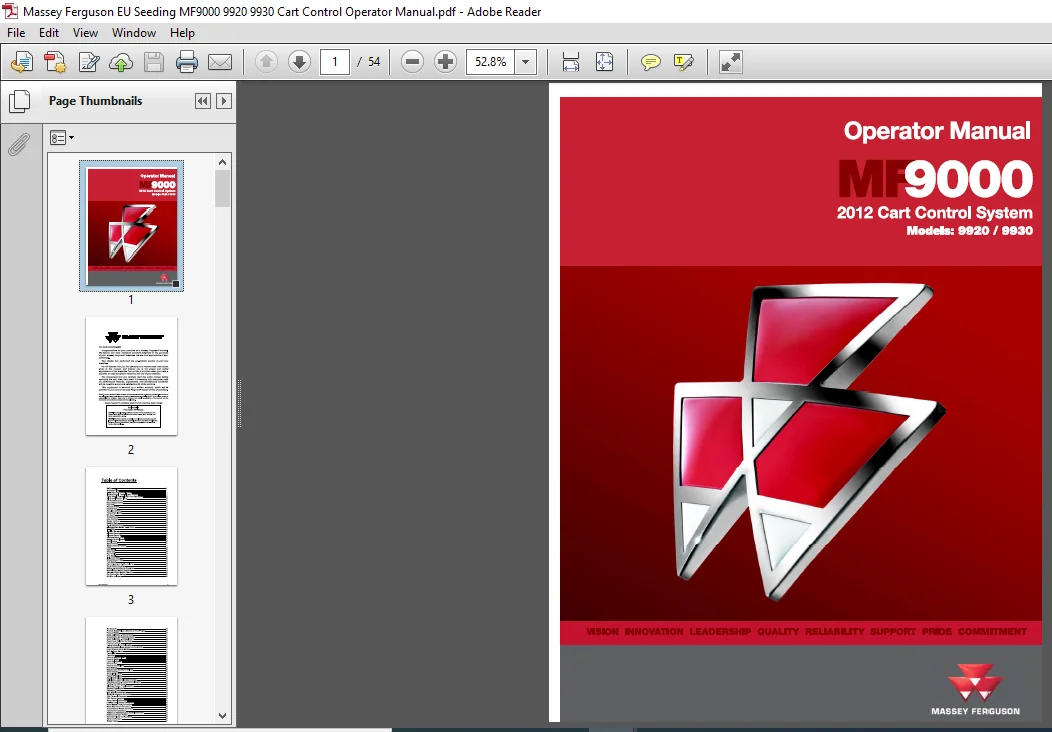

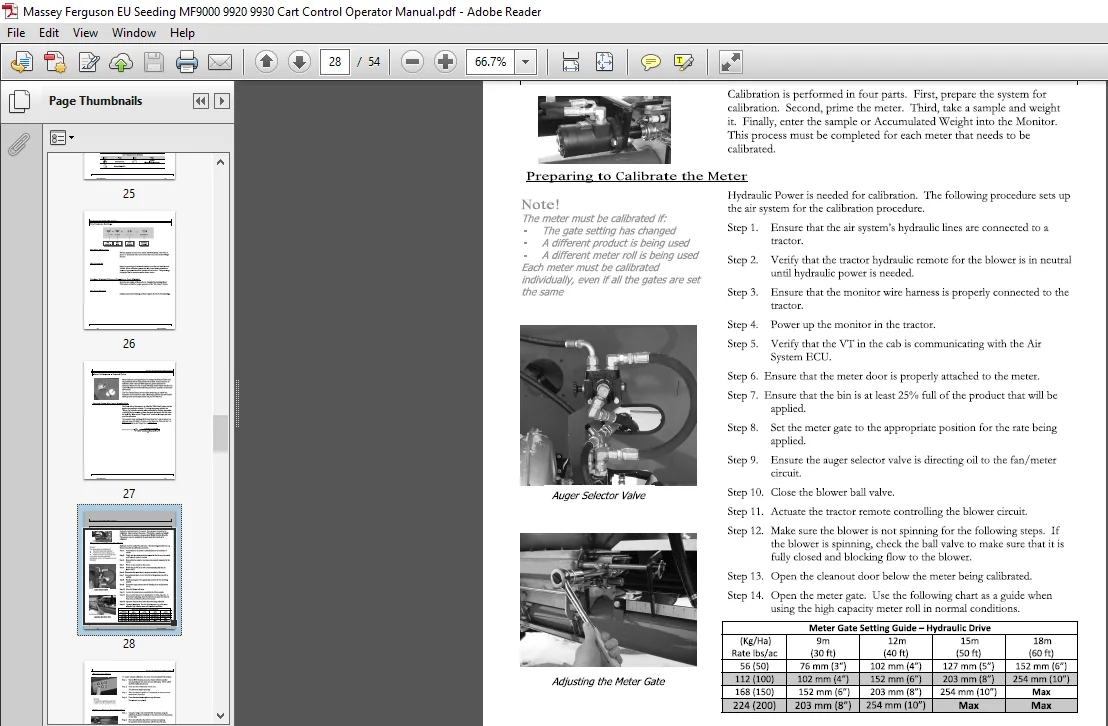

IMAGES PREVIEW OF THE MANUAL:
